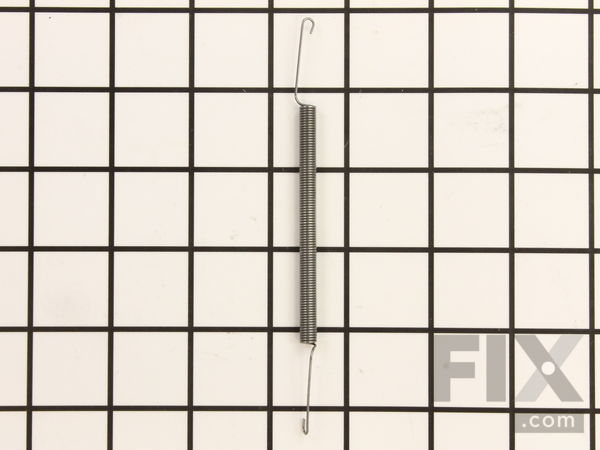

12008682-1-M-Breville-SP0010504-Door Spring
Part Location Diagram of SP0010504 Breville Door Spring
See part A-133.1 in the diagram
( Grid squares measure 1x1 inch )
12008682-1-S-Breville-SP0010504-Door Spring Part Location Diagram of SP0010504 Breville Door Spring

Door Spring

★★★★★
★★★★★
16 Reviews

Rated by 15 customers

?

Easy

1- 2 hours

Ratings submitted by customers like you who bought this part.

?
$9.69
Special Order
Fix Number:
FIX12008682
Manufacturer #:
SP0010504
Manufactured by:
Breville
Product Description
This is a genuine manufacturer-approved replacement part used for select models of Breville Smart Ovens, to ensure this part fits your Oven please see the "Model Cross Reference List" below. The spring provides spring action to prevent the door from falling open, as well as keep the door to shut. If your door no longer has enough tension to close correctly, it may be time to replace the Door Spring. This item is made out of metal and is approximately 5" long. This part is also referred to as a Tension Spring. Each spring is sold separately.
Works with the following brands:
Breville
Works with the following products
Toaster Oven
2 Questions and Answers 15 Installation Instructions ★ 16 Customer Reviews
Product Description Questions and Answers Installation Instructions Customer Reviews Model Compatibility

Product Description

This is a genuine manufacturer-approved replacement part used for select models of Breville Smart Ovens, to ensure this part fits your Oven please see the "Model Cross Reference List" below. The spring provides spring action to prevent the door from falling open, as well as keep the door to shut. If your door no longer has enough tension to close correctly, it may be time to replace the Door Spring. This item is made out of metal and is approximately 5" long. This part is also referred to as a Tension Spring. Each spring is sold separately.

  • Works with the following brands:
    Breville
  • Works with the following products:
    Toaster Oven

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

2 questions answered by our experts.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Anne
December 11, 2022
Will this work for the BOV900BSSUSC? Thanks.
For model number BOV900BSSUSC
Fix.com logo
Hello Anne, thank you for your question. No, we cannot confirm as it is not in the parts list for model BOV900BSSUSC. Good luck with this repair.

4 people found this helpful.

Was this helpful?
Thank you for voting!
Jeff
June 19, 2022
Is this part available for immediate shipment?
For model number BOV800XL
Fix.com logo
Hello Jeff, Thank you for your inquiry. The stock status for parts is always listed below the Add to Cart button on our site underneath the part information. If you are not sure what a stock status means, you can click on it and a separate window will appear with the explanation for what that status means. In this case, the part shows as Special Order, meaning we do not have it in stock and would have to special order it from the manufacturer. We hope this helps and if you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

2 people found this helpful.

Was this helpful?
Thank you for voting!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.6 / 5.0, 15 reviews.
  • 1
  • 2
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Joyce from CRESTWOOD, KY
Parts Used:
SP0010504
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Door spring broke allowing door to drop down when opened, and not completely closing during operation
Step 1: Unplug unit
Step 2: Remove feet
Step 3: Remove rear panel (lot of phillips screws)
Step 4: Pull side panel away far enough to remove old spring pieces and install new (I used needle nose pliers to connect spring to door, then stretch other end to hole on back of unit).
Step 5: Reapply rear panel, ensuring top g oes behind lip of top cover
Step 6: Reapply feet
Step 7: Note - I believe I removed 32 screws total in order to remove rear panel and side panel to complete job.
Read less
65 of 68 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Michael from HAMILTON, NJ
Parts Used:
SP0010504
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Broken door spring
Just a note to warn you the edges of all the panels on this toaster oven are as sharp as a razor. They weren't de-burred at the factory. Got two nasty cuts while doing this repair...be careful.
41 of 42 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
James from CARLSBAD, CA
Parts Used:
SP0010504
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Door would no longer stay closed.
Tools needed: #2 Phillips screwdriver and long needle nose pliers.

Spring is located inside the case on the left, opposite side of controls. It connects the door bracket to the back of the case. Remove all plastic feet parts from bottom of unit by removing 12 screws. Unscrew the back panel (many screws) and slide it down to rem ove it. Shim open the left side panel from the back. Look for the broken spring parts and remove with pliers, forceps, or magnet. Use pliers to attach new spring, first to door bracket and then to hole in rear of case. Caution: metal edges are sharp.
Read less
29 of 32 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
John C from EATONTON, GA
Parts Used:
SP0010504
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers
The spring that governs the door opening and closing broke
It is a fairly easy project - just many small screws that need to be removed and then replaced. Those who have worked on this project before did a great job of walking us through what needed to be done - once all the screws were removed we use needle nose pliers to remove both halfs of the broken spring and attach the new spring - I did think I might not have the strength to pull the new spring from the door to the back of the oven and it did take a bit of time to finally reach the hole - the spring the dropped into place and all that was required was to reattach all the screws but first it required all of the holes to be perfectly aligned - once that was accomplished the door worked perfectly as did the toaster oven. Do follow the sequence of activities for this replacement project on Fix.com
Read less
15 of 15 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
John from BYRAM TWP, NJ
Parts Used:
SP0010504
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers, Socket set
Broken Door Spring
The instructions are clear and the replacement part is perfect. Replacing the spring itself is fairly simple; however reassembling the oven panels with 20+ screws is not simplistic. Once you disassemble the rear and side panels, aligning the holes again is quite the chore. It took me over 90 minutes to reassemble everything and I'm rea sonably capable with tools. Nevertheless, it cost me roughly $4.00 + shipping to replace the broken spring as opposed to over $200.00 for a replacement oven..
Read less
13 of 15 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Chris from NORTH CANTON, OH
Parts Used:
SP0010504
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers
Broken Door Spring; door flopped open
I followed the very simple instructions that came with the email about the part being delivered. Simply, it was: Unplug the unit, remove the feet, remove the back, remove the damaged spring and replace. Then replace the back and feet. It was very clear, but not as easy as it sounds. It took a long time to remove all the very small sc rews. The damaged spring would not be easy to remove. I had to have someone help me. After it was in place, it took a while to get the screws put in; very hard to align since one must pull away the side of the oven a bit to get to the area where the spring must be replaced. Pulling the side out even a little bit caused the unit to become misaligned so the screws wouldn't go in easily. I only put back enough screws to hold the back in place; I have 15 screws left, LOL. It is okay because the back is only a cosmetic/safety panel. THE DOOR WORKS GREAT now... and, will hold until I have to buy a new oven.
Read less
5 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
guy from CLOVER, SC
Parts Used:
SP0010504
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers
Breville Door Spring
The Breville oven door is returned to the closed position by a long coil spring which is connected to the door at on end of a curved slotted bracket and to the back of the oven enclosure at a small 1/8” diameter hole. The door spring is quite stiff to expand so installing it will take some hard pulling. I used an pair of extended length n eedlenose pliers that worked well. Also, the metal enclosure edges are very sharp so use care when handling and pulling on it. Keep band aids handy.

There are many many very small phillips head screws you have to remove. They are easily stripped so be sure your screwdriver fits tightly into the head or you will strip them.

Search the internet for directions on how best to do this. Below is how I did it.

1. Remove screws holding the side door so you can pull it back enough to access the curved slotted bracket and remove the spring if it is still attached at that end. I think you also need to remove two long black plastic parts that have 4 screws each.

Note that there is a pin that must be located in the slot. Keep it in place. It guides the door as it opens and closes.

2. Remove the screws on the back of the oven and slide the back up to access the area where the spring attaches there. It is a small hole in the oven enclosure used for no other purpose.

3. Remove the spring if still attached.

4. Connect the new spring to the hole in the curved bracket at the door front. Using long needlenose pliers, get a good hold on the other end of the coil spring. Pull hard to extend the spring and hook it in the hole in the enclosure. Be sure not to block the hook at the end of the spring with the pliers.

5. Check the door operation to be sure it opens and closes properly.

6. Reposition the oven back and all the screws you removed in that and the side.

Good luck
Read less
4 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Karen from North Brunswick, NJ
Parts Used:
SP0010504
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Door falls open
Remove all screws both feet. Remove all screws on back. With small Phillips head. After removing back carefully rock top and sides towards back. Open door and remove broken spring and remove broken spring from hole in back frame.
One end of spring has a slightly smaller loop. The larger end hooks through door-easier to access with d oor open. Spring lay’s along side of oven. I used thin nylon string and pushed a loop through frame-hooked spring- pulled spring through frame. Reassembled oven. I wasn’t strong enough to pull spring with pliers and was concerned if pliers slipped I was pulling towards my face. String was easy.
Read less
4 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Michael from ROSWELL, GA
Parts Used:
SP0010504
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers
Replace door spring
Because my spring was not attached, I wasn't sure where to attach the back end of the spring. I ended up attaching it to a screw hole at the very back of the unit.

You'll definitely want to attach the door end first. Stretching it to attach at the back takes a lot of tension so it would be very hard to pull and attach to the door lever.

The door seems tighter than previously, but may be because it's now a new spring.
Read less
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
KAREN from NEWPORT BEACH, CA
Parts Used:
SP0010504
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers
Broken Door Spring
I've never been good at fixing things, so I'm certain that no one would want to follow my instructions on how to fix the door spring on their toaster oven. That being said, I am very grateful for those who shared their experience and detailed instructions, right down to the number of screws they had to remove. Their guidance was excelle nt, so if you have to replace your door spring on your toaster oven, I highly recommend you read all the submitted install instructions. I couldn't have done it without them. Btw, I highly recommend wearing gloves when working with the metal siding as one reviewer suggested. The metal edges and corners are sharp. Also, know that spring is really tight, so a little muscle is needed. Good luck!
Read less
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
  • 2
★ Customer Reviews
Average Rating: (16 Reviews)
4.6
★★★★★
★★★★★
Filter By Rating:
  • 5★
    12
  • 4★
    3
  • 3★
    0
  • 2★
    0
  • 1★
    1
  • 1
  • 2
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Ronald I - September 15, 2023
Verified Purchase
door spring for Breville convection oven
Part works fine but is weaker than the original spring.
★★★★★
★★★★★
Dan R - July 4, 2023
Verified Purchase
Perfect fit!
Kind of a pain to install, with lots of screws and some sharp edges. But the spring added years of useful life to an oven that would otherwise be destined for the landfill.
★★★★★
★★★★★
Simon C - August 11, 2022
Verified Purchase
Perfect part! Perfect repair
Was hard to find elsewhere
★★★★★
★★★★★
Michi K - August 11, 2022
Verified Purchase
Repair complete!!
It took a lot of little screws, but thanks to my handy husband, we saved $300+ with this little but vital door spring. Thank you and much appreciation to comments posted that outlined the repair issues.
★★★★★
★★★★★
Thomas F - July 30, 2022
Verified Purchase
Exactly what I wanted but had to wait.
It was exactly what I needed and wanted to repair my toaster oven. Availability was a small problem and I had to wait for the item to be in stock.
★★★★★
★★★★★
Gary R - July 29, 2022
Verified Purchase
Door spring for Breville toaster oven
Spring is the perfect size for this oven. A bit tricky to install, but that's not the fault of the spring. After installation, keeps door either closed or completely open.
★★★★★
★★★★★
Mrs Stephanie E - June 18, 2022
Verified Purchase
Didn't go as planned
Total fail - On the first attempt to secure the spring to the back as instructed the hooked end attached to the door just broke off. Part failed.
Fix.com logo
August 3, 2022
Hi Stephanie, Thank you for your review. Please accept our apologies for this situation. We will be in touch with you shortly regarding your order.
★★★★★
★★★★★
Tad P - June 16, 2022
Verified Purchase
Came sooner than I thought it would
The parts breakdown really helped me identify the part I needed.
★★★★★
★★★★★
Howard B - November 1, 2021
Verified Purchase
It worked!
It takes a while undoing screws to get access. I realized the end of the spring fits in to a hole in the metal back of the oven.
★★★★★
★★★★★
Karen H - August 13, 2021
Verified Purchase
Easy fix
Perfect replacement.
  • 1
  • 2

Model Compatibility

This part works with the following models:
Fix Number: FIX12008682
Manufacturer Part Number: SP0010504
Brand
Model Number
Description
Breville
BOV800XL
Toaster Oven - Smart Oven
