12049188-1-M-Oreck-O-5336401-Belt, Motor
Part Location Diagram of O-5336401 Oreck Belt, Motor
See part 70 in the diagram

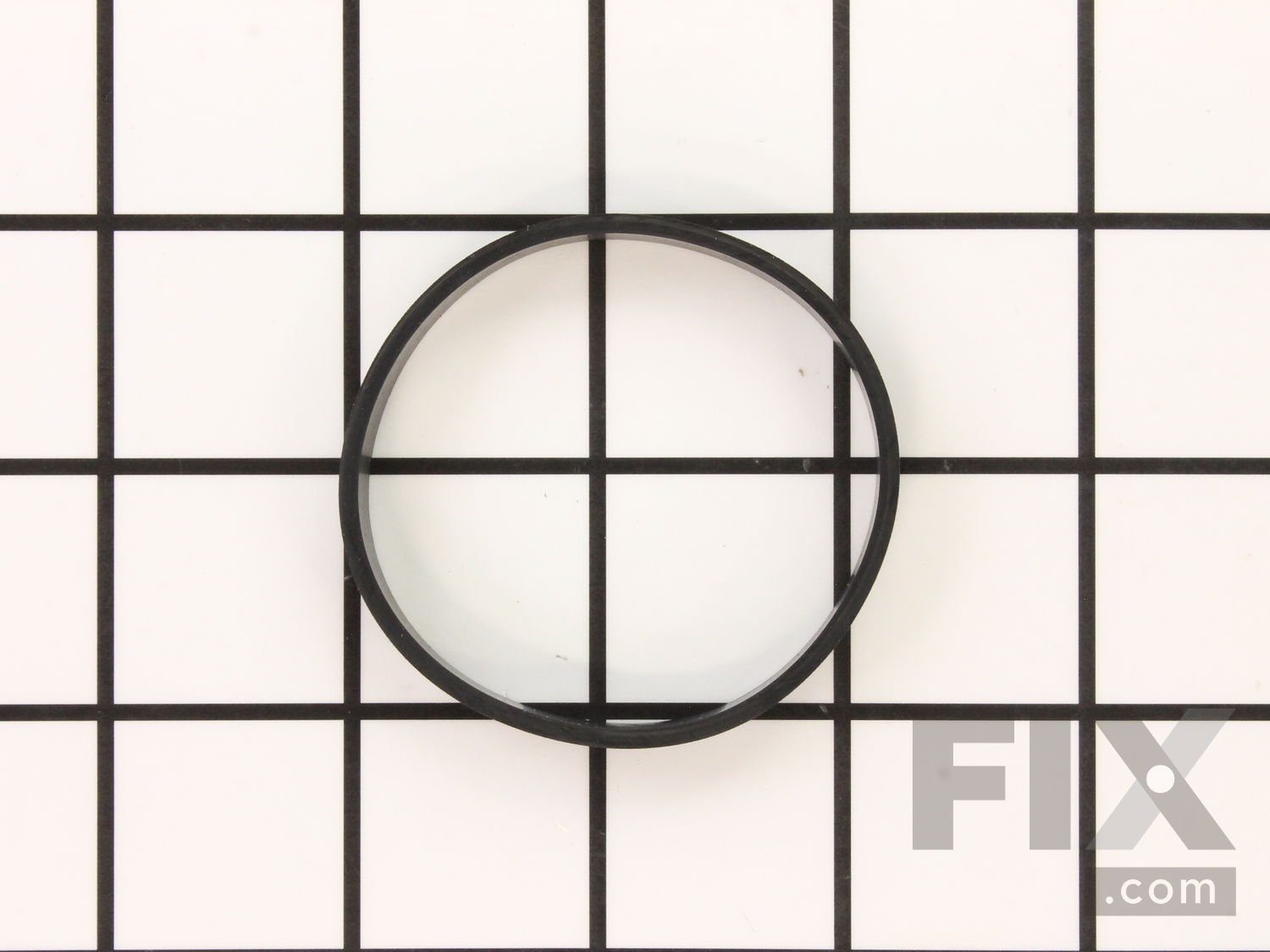

( Grid squares measure 1x1 inch )
12049188-1-S-Oreck-O-5336401-Belt, Motor Part Location Diagram of O-5336401 Oreck Belt, Motor

Belt, Motor O-5336401

Works With Model XLS700!

Rated by 1 customers

?

Very Difficult

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$6.96
In Stock
Fix Number:
FIX12049188
Manufacturer #:
O-5336401
Manufactured by:
Oreck
Works With Model XLS700!

Jump to:

Product Description

This belt is an original Oreck replacement part manufactured for use with steam carpet cleaners. The motor belt is used to drive the brush roll for deep cleaning. Belts wear out over time from normal use and replacing a worn belt is a good way to keep the steamer up and running. This belt is sold individually.

  • Works with the following brands:
    Oreck
  • Works with the following products:
    Steamer
Works with the following brands:
Oreck
Works with the following products
Steamer

Questions and Answers

Be the first to ask our experts a question about this part!

Affresh Washing Machine Cleaner - 3 pack
$19.75
Special Order
Part Number: FIX1960673
This washing machine cleaner includes three time-release tablets designed to remove odor-causing residues, grime, and buildup from high-efficiency and top-load washing machines. The tablets work by cleaning the tub, pump...
Produce Preserver Filter
$18.54
In Stock
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Washing Machine Cleaner Tablets – 6 Count
$28.91
In Stock
Part Number: FIX12345661
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Affresh Dishwasher Cleaner Tablets - 6
$22.91
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Affresh Ice Machine Cleaner
$27.83
In Stock
Part Number: FIX12583750
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...
Refrigerator Deodorizer
$32.12
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 1.8 / 5.0, 1 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
David from ANDOVER, MA
Parts Used:
O-5336401
Difficulty Level:
Very Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
drive belt for brush motor broke
I first tried to just uncover the brush pulley and use a small pliers to push the new belt over the motor shaft, but that was impossible. I then removed the cover over the motor so I could see the end of motor shaft, but the end of the shaft was so close to the housing that I still could not get the belt over both the motor shaft and the brush pulley with any tool that I had. The motor is held in place by a spring steel clip that is screwed to the housing. I removed that clip, installed the belt over the brush pulley, and used my hand to position the motor shaft inside the belt. It was not easy to get a belt loop into the motor housing area, but it got done. With the motor at an angle and shaft inside the belt, I slowly pressed the motor back in the mounting area and secured it with the steel clamp. I then replaced the motor cover and the brush pulley cover and I was back in business.

One reason for all my difficulty is the new belt is smaller than the path of the motor shaft and brush pulley. So the belt must be stretched to install it. It is very strong and not at all easy to stretch. One final word of caution: all the screws that I removed are self-threaded into the plastic housing. If you simply turn the screws back into the housing, you are in danger of cross threading and the screws may not hold securely. A trick that I learned a long time ago for such screws is to turn the screw counterclockwise with slight downward pressure. When I feel a click and the screw drops a bit, it means that the screw is in the original threads. I then turn it clockwise until it is snugly seated. Done this way, I've never had a screw refuse to tighten, no matter how often I've removed and replaced the screw.
Read less
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX12049188
Manufacturer Part Number: O-5336401
Brand Model Number Description
Oreck M800 Steamer - Steamer
Oreck M800Q Steamer - Steamer
Oreck XLS465 Steamer - Steamer
Oreck XLS465Q Steamer - Steamer
Oreck XLS700 Steamer - Steamer
Oreck XLS700Q Steamer - Steamer
