Firebox Base YXT-04-00

Works With Model 10201599!

Rated by 1 customers

?

Very Difficult

More than 2 hours

Ratings submitted by customers like you who bought this part.

?
$39.55
In Stock
Fix Number:
FIX10296095
Manufacturer #:
YXT-04-00
Manufactured by:
Char-Broil
Works With Model 10201599!

Jump to:

Product Description

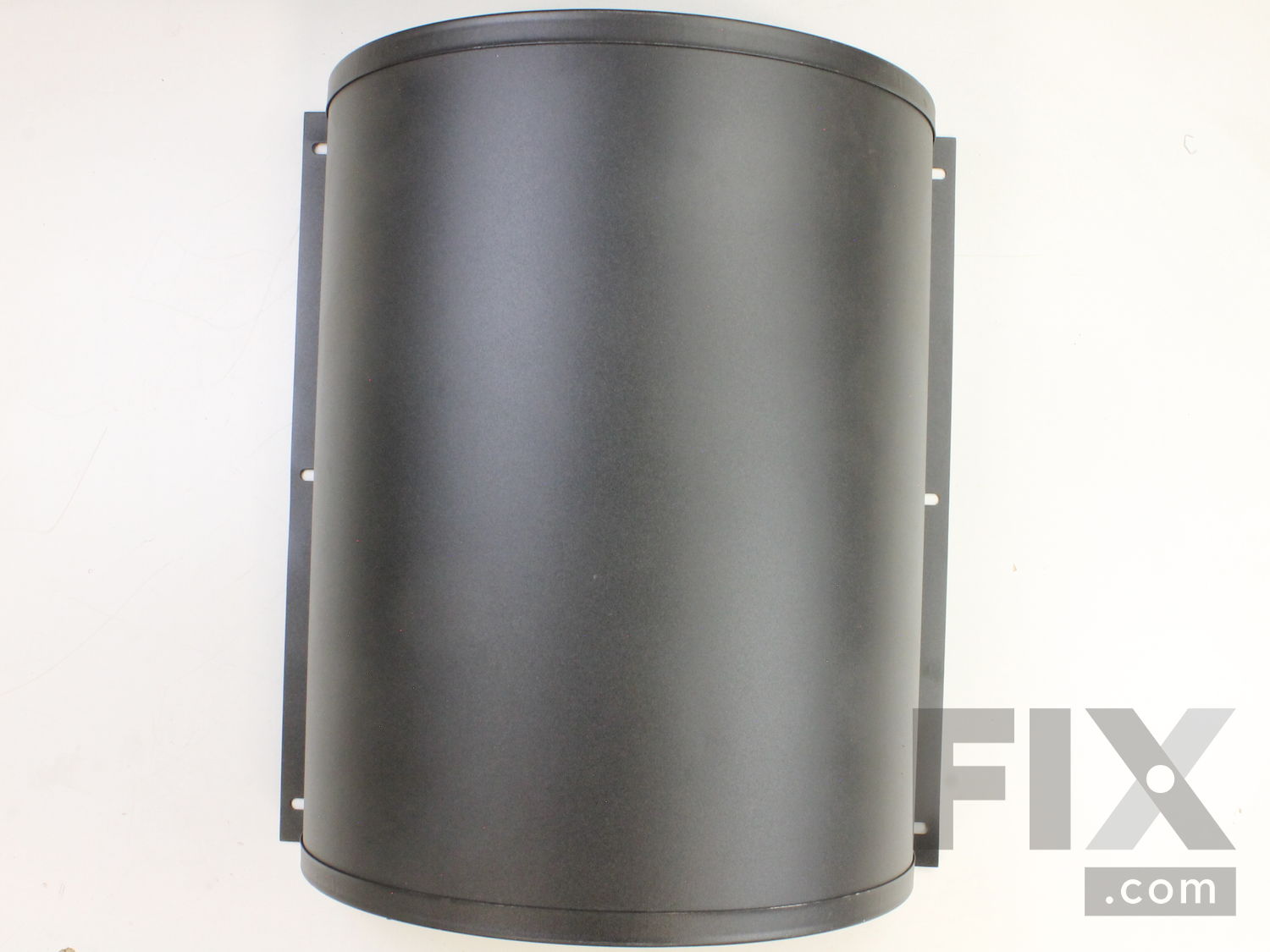

This is an authentic Char-Broil replacement part, sourced from the original manufacturer for use with offset smokers. This item is the bottom section of the firebox and is used to house and support the charcoal tray and grate. The firebox is available as an individual replacement part, please see illustrated diagram for associative parts.

  • Works with the following brands:
    Char-Broil
  • Works with the following products:
    Smoker
Works with the following brands:
Char-Broil
Works with the following products
Smoker

Questions and Answers

Be the first to ask our experts a question about this part!
