See part 47 in the diagram

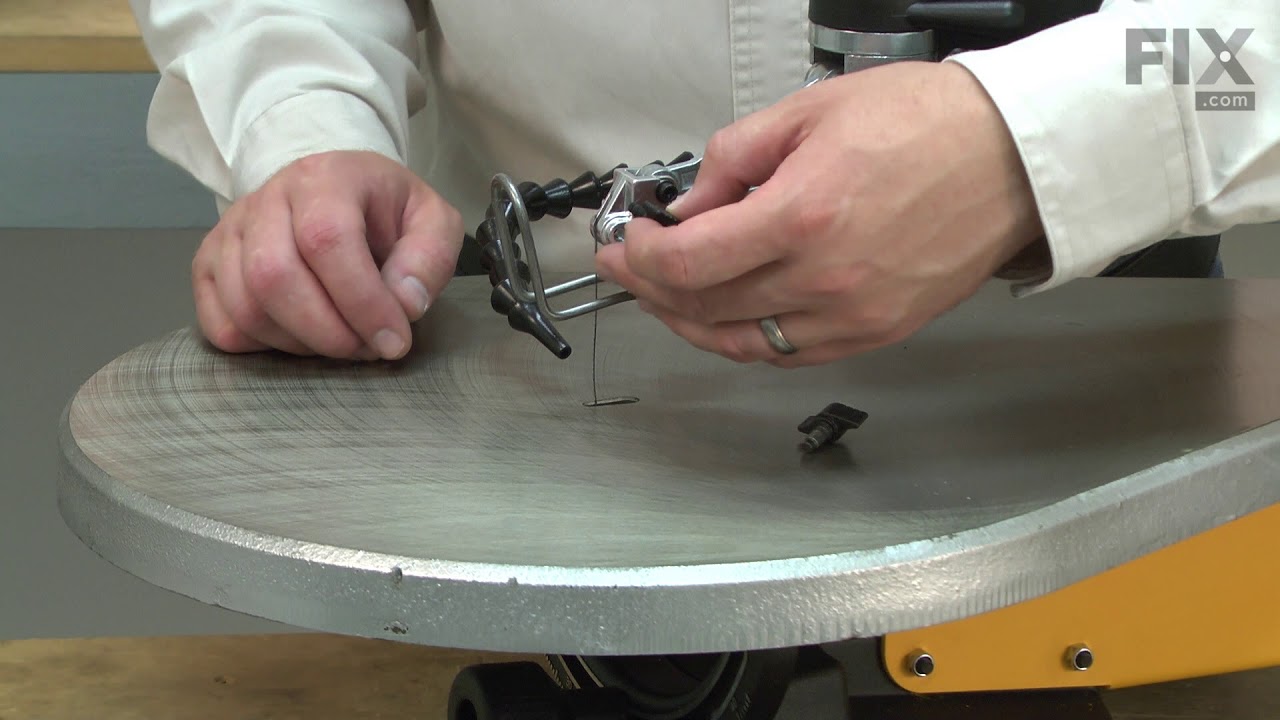

Replacing your DeWALT Scroll Saw Clamp Knob Assembly play video
( Grid squares measure 1x1 inch )

Clamp Knob Assembly

$15.66
Fix Number: FIX10168807
Manufacturer #: 286303-00
Manufactured by: DeWALT

Product Description

This is a single OEM clamp knob assembly for a saw. The clamp knob is what secures the blade in the saw blade clamp. This assembly has a wingnut cast onto a threaded metal stud. With use, the clamping surface will deteriorate, which causes the blade to slip. The threads on the metal stud can also start to strip. For this quick and easy repair, you will need to disconnect the blade, and then unscrew and remove the clamp knob from the blade chuck. To install your new part, fasten the clamp knob into the blade chuck and reassemble the blade.

Videos For installing this part.

Replacing your Clamp Knob Assembly

Replacing your Clamp Knob Assembly play video
Questions and Answers

Questions and Answers

Be the first to ask our experts a question about this part!

Model Compatibility
This part works with the following models:
Fix Number: FIX10168807
Manufacturer Part Number: 286303-00
Brand
Model Number
Description
Delta
40-690
Scroll Saw - 20" VS Scroll Saw
DeWALT
DW7461
Tool Stand & Cart - Table Saw Sliding Table
DeWALT
DW7470
Miter Saw - Miter Gauge
DeWALT
DW788
Scroll Saw - Scroll Saw
DeWALT
DW788L
Scroll Saw - Scroll Saw
DeWALT
DW788LS
Scroll Saw - Scroll Saw Package
