See part 22 in the diagram
Replacing your Whirlpool Refrigerator Refrigerator Compressor Start Relay play video
( Grid squares measure 1x1 inch )

Refrigerator Compressor Start Relay

★★★★★
★★★★★
1 Review
$71.26
Fix Number: FIX11750123
Manufacturer #: WPW10197428
Manufactured by: Whirlpool

Product Description

This compressor start relay is for refrigerators. The compressor start relay attaches to the compressor and helps start the compressor motor. Safely store any food that could deteriorate while the power is off and unplug the refrigerator before installing this part.

Videos For installing this part.

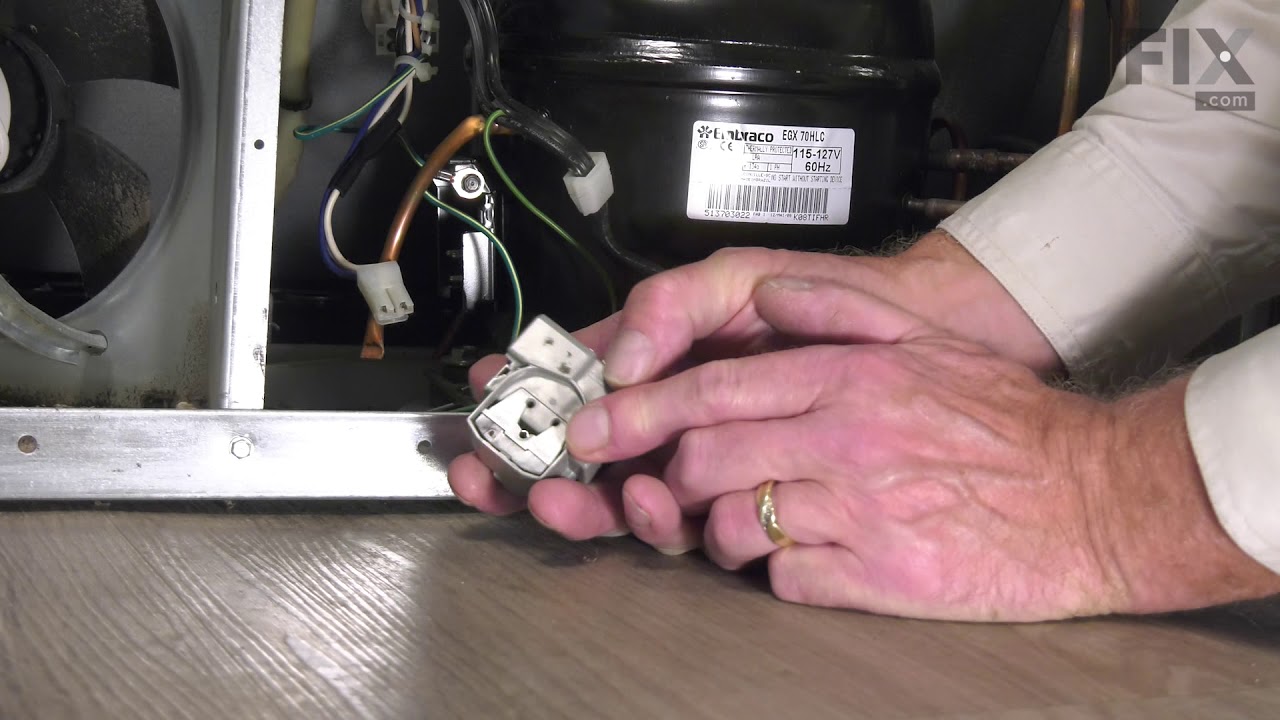

Replacing your Refrigerator Compressor Start Relay

Replacing your Refrigerator Compressor Start Relay play video
Questions and Answers

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.9 / 5.0, 1 reviews.
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
  • Customer:
    Richard from Dripping Springs, TX
  • Parts Used:
    WPW10662129, WPW10197428
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Nutdriver
Compressor wouldn't start (would try and start for 10 seconds, then pause for a 1.5 minutes, then try again)
According to everything I read, if the compressor wouldn't start then it's either a bad compressor ($365 for new compressor + $400 labor + $79 trip charge for technician to fix it) or it was a bad capacitor and/or start-dev (relay +overload circuit). For about $80 for the capacitor and start-dev I was willing to try these parts out and just skip having a technician come out. (If this didn't work, I would be going to buy a new refrigerator. I will say that this repair tactic wouldn't have been very doable if we didn't have a extra fridge in the garage so that could wait for the parts to be delivered. The repair was successful and it took about 15 minutes to complete the repair. Steps: 1) Pulled the fridge away from the wall and unplugged it. 2) Used my nut driver to remove the access panel at the bottom rear of the fridge. 3) The 'start-dev is pushed onto 3 pins on the side of the compressor. The capacitor is pushed onto 2 pins on the outside of the start-dev. Both can be removed together from the side of the compressor.4) Once removed, then disconnect the electrical 'molex' connector from the start-dev. Lift the tab on the side, and wiggle it off. 5) reverse these instruction to install the new parts. 6) After plugging in the fridge, the compressor should now come on and stay on while it cools your food down.
11 of 11 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer Reviews
Average Rating: (1 Review)
5.0
★★★★★
★★★★★
Filter By Rating:
  • 5
    1
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
Model Compatibility
This part works with the following models:
Fix Number: FIX11750123
Manufacturer Part Number: WPW10197428
Brand
Model Number
Description
Kenmore
10632852011
Refrigerator
Kenmore
10632853011
Refrigerator
Kenmore
10632862011
Refrigerator
Kenmore
10632863011
Refrigerator
Kenmore
10641132710
Refrigerator - Side-By-Side Refrigerator
Kenmore
10641132712
Refrigerator - Side-By-Side Refrigerator
Kenmore
10641133712
Refrigerator - Side-By-Side Refrigerator
Kenmore
10641139712
Refrigerator - Side-By-Side Refrigerator
Kenmore
10641172710
Refrigerator - Side-By-Side Refrigerator
Kenmore
10641172711
Refrigerator - Side-By-Side Refrigerator
Kenmore
10641172713
Refrigerator - Side-By-Side Refrigerator
Kenmore
10641173710
Refrigerator - Side-By-Side Refrigerator
Kenmore
10641173711
Refrigerator - Side-By-Side Refrigerator
Kenmore
10641173713
Refrigerator - Side-By-Side Refrigerator
Kenmore
10641179711
Refrigerator - Side-By-Side Refrigerator
Kenmore
10650022211
Refrigerator - REFRIGERATOR
Kenmore
10650023211
Refrigerator - REFRIGERATOR
Kenmore
10650029211
Refrigerator - REFRIGERATOR
Kenmore
10650029213
Refrigerator - REFRIGERATOR
Kenmore
10650042710
Refrigerator - Side-By-Side Refrigerator
Kenmore
10650042711
Refrigerator - Side-By-Side Refrigerator
Kenmore
10650042713
Refrigerator - Side-By-Side Refrigerator
Kenmore
10650043710
Refrigerator - Side-By-Side Refrigerator
Kenmore
10650043711
Refrigerator - Refrigerator
Kenmore
10650043713
Refrigerator - Side-By-Side Refrigerator
Kenmore
10650045710
Refrigerator - Side-By-Side Refrigerator
Kenmore
10650045711
Refrigerator - Side-By-Side Refrigerator
Kenmore
10650045713
Refrigerator - Side-By-Side Refrigerator
Kenmore
10650049710
Refrigerator - Side-By-Side Refrigerator
Kenmore
10650049713
Refrigerator - Side-By-Side Refrigerator
