Thermostat Assembly
$94.56
In Stock
Fix Number: FIX11739232
Manufacturer #: WP2198202
Manufactured by:
Whirlpool
-
Product Description
This genuine OEM part is a thermostat assembly for your fridge. This part acts as a sensor to detect temperature changes in the evaporator. When the defrost cycle is running and the ice has melted, the thermostat detects the temperature increase and shuts the cycle off. You may need to replace the thermostat assembly if your fridge or freezer is too warm, the temperatures fluctuate constantly, or the units continuously runs, or will not run at all. You can use a multimeter to check if the thermostat is faulty and needs to be replaced. Please be sure to disconnect the power supply to your fridge before beginning this repair.
-
Works with the following brandsWhirlpool, Kenmore, Roper, Estate
-
Works with the following productsRefrigerator
-
Fixes the following symptomsWill Not Start, Fridge too warm, Freezer section too warm, Fridge too cold
-
Part Number Cross ReferencePart# WP2198202 replaces these:AP6006166, 1110552, 1115242, 1115243, 1115244, 1115245, 1129437, 2161283, 2161284, 2169112, 2169113, 2198201, 2198202, 99989726, WP2198202VP
Product Description
This genuine OEM part is a thermostat assembly for your fridge. This part acts as a sensor to detect temperature changes in the evaporator. When the defrost cycle is running and the ice has melted, the thermostat detects the temperature increase and shuts the cycle off. You may need to replace the thermostat assembly if your fridge or freezer is too warm, the temperatures fluctuate constantly, or the units continuously runs, or will not run at all. You can use a multimeter to check if the thermostat is faulty and needs to be replaced. Please be sure to disconnect the power supply to your fridge before beginning this repair.
-
Works with the following brands:Whirlpool, Kenmore, Roper, Estate
-
Works with the following products:Refrigerator
-
Fixes the following symptoms:Will Not Start, Fridge too warm, Freezer section too warm, Fridge too cold
-
Part# WP2198202 replaces these:AP6006166, 1110552, 1115242, 1115243, 1115244, 1115245 ... Show more , 1129437, 2161283, 2161284, 2169112, 2169113, 2198201, 2198202, 99989726, WP2198202VP Show less
Videos For installing this part.

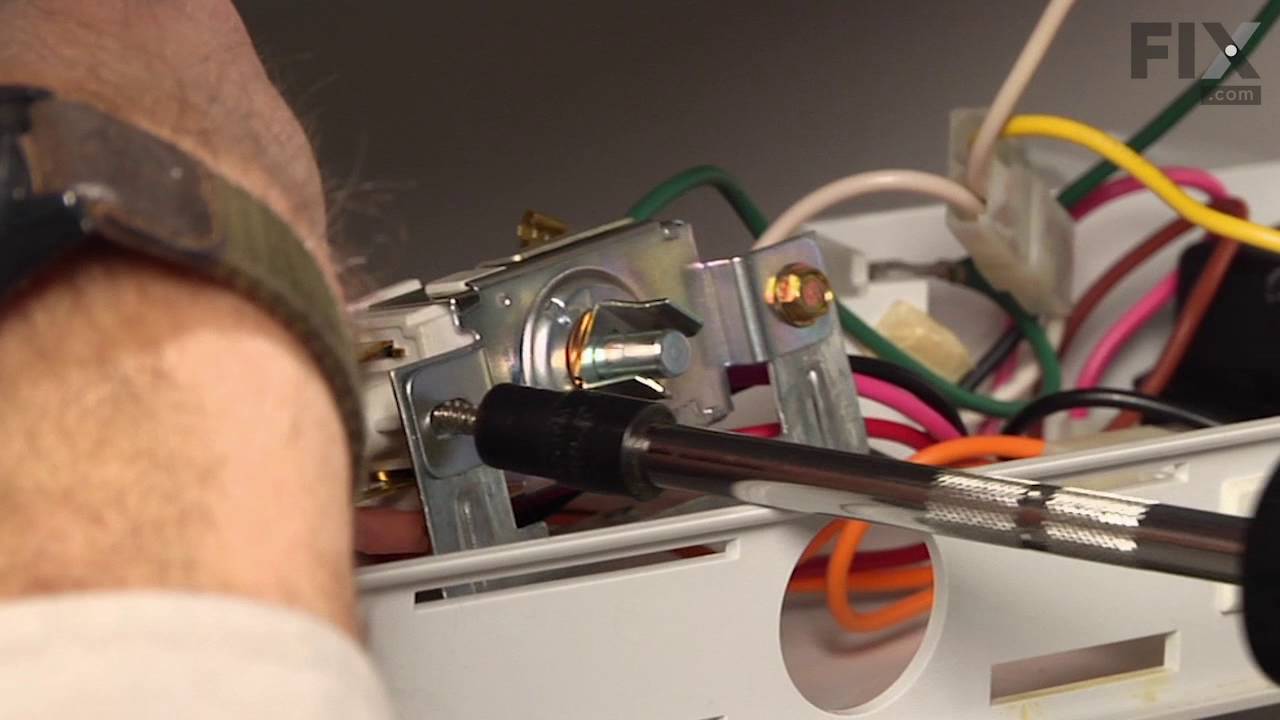

Replacing your Thermostat Assembly
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Installation Instructions Provided by Fix customers like you.
- < Prev
- 1
- 2
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:Harold from Belmont, MI
-
Parts Used:WP2198202
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Screw drivers
Temperature was fluctuating significantly.
Replaced thermostat step by step as shown in the video. Video was everything that I needed to know to easily replace the part.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:James from Denison, IA
-
Parts Used:WP2198202
-
Difficulty Level:Very Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Pliers, Screw drivers
Frig would shut off and not cool or freeze in freezer
To find problem I read other peoples problems and then I tapped on the thermostat and the frig would come on and cool and freeze. I had to keep doing this every 6-8 hours till part came. I ordered the part it came in. I watched the video and it was a snap to put in if you have the right tools. The putty knife was the life saver to take off the face plate. Start at the very top and work it side to side to remove that face plate. Watch the video!! It makes this job very simple then.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:THOMAS from MOUNTLAKE TER, WA
-
Parts Used:WP2198202
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Pliers, Screw drivers
Temperatures were both too cold or too warm.
Step 1: Watch video provided on line at fix.com
Step 2: Disconnect power cord back of refrigerator.
Step 3: Used putty knife to carefully remove control panel knobs and cover plate.
Follow steps in video to a tee it was a tremendous help, and took the guess work out of this repair. The people at fix.com did a great job in troubleshooting online help, shipping (recvd unit in 3 days) and video instructions.
It'll be a week tomorrow since repair and refrigerator running like new.
Step 2: Disconnect power cord back of refrigerator.
Step 3: Used putty knife to carefully remove control panel knobs and cover plate.
Follow steps in video to a tee it was a tremendous help, and took the guess work out of this repair. The people at fix.com did a great job in troubleshooting online help, shipping (recvd unit in 3 days) and video instructions.
It'll be a week tomorrow since repair and refrigerator running like new.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:David from Media, PA
-
Parts Used:WP2198202
-
Difficulty Level:Easy
-
Total Repair Time:1- 2 hours
-
Tools:Nutdriver, Screw drivers
Refrigerator and freezer running either too long or not long enough.
Followed the video step by step of the repairman replacing the thermostat. All went well and the refrigerator/freezer is now working as it's supposed to.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Lorne from Bemidji, MN
-
Parts Used:WP2198202
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:1- 2 hours
-
Tools:Nutdriver, Pliers, Screw drivers
Freezer and refrigerator too warm
I simply followed the video!
Was this instruction helpful to you?
Thank you for voting!
-
Customer:james from West Palm Beach, FL
-
Parts Used:WP2198202
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:1- 2 hours
-
Tools:Nutdriver, Screw drivers, Socket set
Thermostat not working
The repair itself was fairly easy. I would suggest spraying a little lube into the insulation tube before sliding it over the wire. It kept getting stuck and bending and ended up taking about 1/2 hour to put on. Putting everything back together was pretty quick.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Sheree from Owings, MD
-
Parts Used:WP2198202
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Pliers, Screw drivers
Freezer would thaw out, frig side would not cool as well.
We followed the instructions from the video which was very helpful. Two things that were not in the video. 1. The step where you have to unplug the main electric from the top,part of the frig after dropping down the panel not is about an inch square plug with wires on the left side. 2. While the video tells you to plug the red and, I think orange wires back onto the thermostat, they didn't mention that the prong placement might be different and what to do in that case. Being smart people, we were able to figure that out by looking at the lettering on the wires and the letters on the prongs. Would be nice to know that info without guessing when it comes to electrical. Otherwise, simple installation and the frig is working normally once again.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Gerald from Oak Park, MI
-
Parts Used:WP2198202
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:30 - 60 mins
-
Tools:Pliers, Screw drivers, Wrench (Adjustable)
Fridg Was Was So Cold
The vegetables had to be thrown out several times. They felt like they were in the freezer. Any liquids felt very cold as well. Had to have our handyman do this job. We could not do it and after seeing the problems he had with it ----- it was not that easy at all.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Christopher from Llano, CA
-
Parts Used:WP2198202
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Screw drivers
No cooling, Would not kick on.
The thermostat is located just behind the knob for the refrigerator temperature setting. Had to remove the control panel and the covers around the vent in at the top of the refrigerator. Removed the thermostat and replaced. Used the sensing bulb plastic cover from the old thermostat and installed on the new one. Reinstalled control panel and covers.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Barry from Combine, TX
-
Parts Used:WP2198202
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Pliers, Screw drivers
Was not cooling properly
Ordered the Part , watch video did repair. One note of advise the part did not fit the screws I took off old part, so you will have to find new screws to mount new thermostat.
Was this instruction helpful to you?
Thank you for voting!
- < Prev
- 1
- 2
- Next >
★
Customer Reviews
Filter By Rating:
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
Yongxin Z - May 14, 2019
Verified Purchase
My frige is working now!
This part works good. It is fun to do this kind of repair. It would be greater if the manufacturer provides a simple installation instruction.
