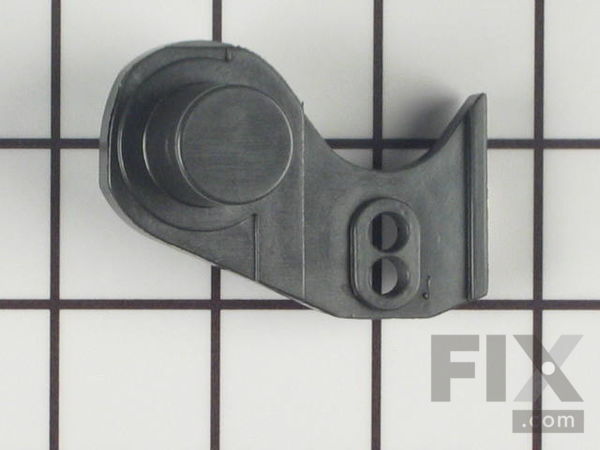

11743243-1-M-Whirlpool-WP61005724-Door Closer with Cup
Part Location Diagram of WP61005724 Whirlpool Door Closer with Cup
See part 12 in the diagram

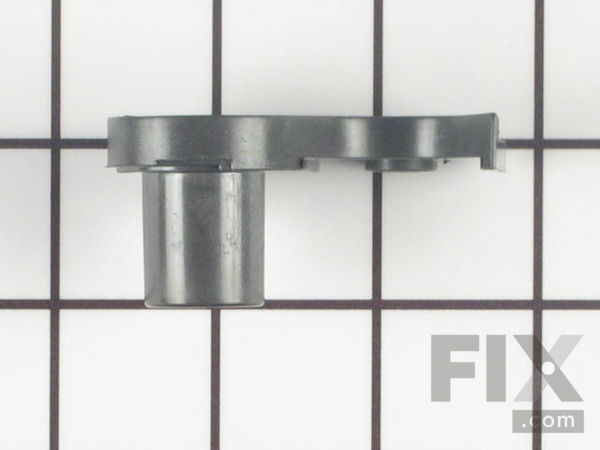

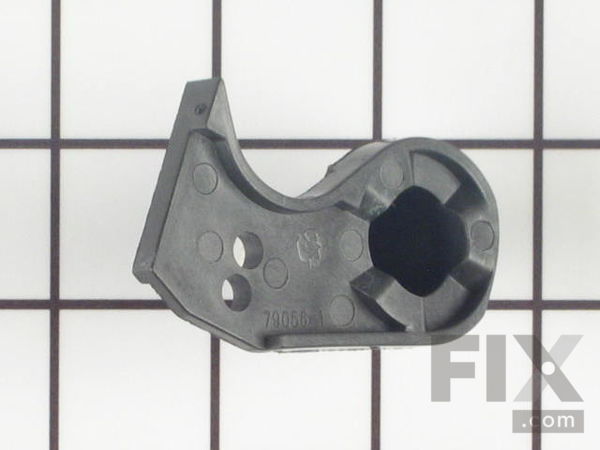

( Grid squares measure 1x1 inch )
11743243-1-S-Whirlpool-WP61005724-Door Closer with Cup 11743243-2-S-Whirlpool-WP61005724-Door Closer with Cup 11743243-3-S-Whirlpool-WP61005724-Door Closer with Cup Part Location Diagram of WP61005724 Whirlpool Door Closer with Cup

Door Closer with Cup

Rated by 3 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$39.36
In Stock
Fix Number:
FIX11743243
Manufacturer #:
WP61005724
Manufactured by:
Whirlpool
Product Description
This door closer is less than three inches long. It is all black in color and it is made entirely of plastic.
Works with the following brands:
Maytag, Jenn-Air, Crosley, Amana
Works with the following products
Refrigerator
Fixes the following symptoms
Door won’t open or close
Part Number Cross Reference
Part# WP61005724 replaces these:
61005724
2 Related Parts Questions and Answers 3 Installation Instructions Model Compatibility
Product Description Questions and Answers Related Parts Installation Instructions Model Compatibility

Product Description

This door closer is less than three inches long. It is all black in color and it is made entirely of plastic.

  • Works with the following brands:
    Maytag, Jenn-Air, Crosley, Amana
  • Works with the following products:
    Refrigerator
  • Fixes the following symptoms:
    Door won’t open or close
  • Part# WP61005724 replaces these:
    61005724

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Natural Door Closer
$18.09
In Stock
Part Number: FIX2059251
This part is the replacement natural door closer for your refrigerator. It is black in color and is approximately 3 inches by 2 inches in size. The natural door closer allows your refrigerator door to open and close smoo...
Lower Hinge Pin
$11.14
No Longer Available
Part Number: FIX11743155
This lower hinge pin is almost two inches long. It is made entirely of plastic and it is all black in color.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.3 / 5.0, 3 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Ed from AUBURN, AL
Parts Used:
WP61005724, WP61003174
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Socket set
Fresh food door required push to close
Removed door and replaced lower hinge pin and door closer with cup. Natural door closer not required on fresh food door as shown on diagram. Also, reused screw so new screw not required.
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Donald from Orlando, FL
Parts Used:
WP61005724, 61003174
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set
Door would not close completely on the fresh food side as hinge was wore out.
Removed cover from top hinge with screwdriver with hex head. Then removed top hinge with 5/16 socket and ratchet. I had already removed all food from door. Then I turned door open about half way and lifted door off bottom hinge pin and laid door on dining room table. Took one 5/16 screw that held door closer with cup and replaced the new part on door and replaced screw to scecure. I did buy both door closers but both would work. It`s best to buy both door closers as you don`t know which you have. I then pried the bottom hinge pin out of bracket on bottom door bracket and new hinge pin just snaps in. Replaced door on frige in reverse order and secured top hinge and adjusted door. Very easy and in less than thirty minutes. My time and $32.58 for parts.
Read less
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Jeremy from Caney, KS
Parts Used:
WP61005724, 61003174
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver, Socket set
Door would not close on its own
Removed 3 bolts that hold lower hing and replaced the closer and pin.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX11743243
Manufacturer Part Number: WP61005724
Brand
Model Number
Description
Amana
ARS2760BW
Refrigerator - Side-by-side
Maytag
AS2125CIHW
Refrigerator
Maytag
AS2125SIHW
Refrigerator
Maytag
AS2126PIHW
Refrigerator
Maytag
AS2728GIHB
Refrigerator
Maytag
AS2728GIHW
Refrigerator
Maytag
AZ2727GIHB
Refrigerator
Maytag
AZ2727GIHW
Refrigerator
Crosley
CS21G2Q
Refrigerator - Side-by-side
Crosley
CS21G2W
Refrigerator - Side-by-side
Crosley
CS21G5DQ
Refrigerator - Side-by-side
Crosley
CS21G5DW
Refrigerator - Side-by-side
Crosley
CS23G5Q
Refrigerator - Side-by-side
Crosley
CS23G5W
Refrigerator - Side-by-side
Crosley
CS24G6DB
Refrigerator - Side-by-side
Crosley
CS24G6DQ
Refrigerator - Side-by-side
Crosley
CS24G6DW
Refrigerator - Side-by-side
Maytag
GC2220DEGB
Refrigerator - Side-by-side
Maytag
GC2227CDFB
Refrigerator
Maytag
GC2227CDFW
Refrigerator
Maytag
GC2227DEDB
Refrigerator - Side-by-side
Maytag
GC2227DEDW
Refrigerator - Side-by-side
Maytag
GC2227GEH1
Refrigerator - Side-by-side
Maytag
GC2227SDFB
Refrigerator - Side-by-side
Maytag
GC2227SDFW
Refrigerator - Side-by-side
Maytag
GC2228EED3
Refrigerator - Side-by-side
Maytag
GC2228EED5
Refrigerator - Side-by-side
Maytag
GC2228EED9
Refrigerator - Side-by-side
Maytag
GC2228EEDW
Refrigerator - Side-by-side
Maytag
GC2228GEH3
Refrigerator - Side-by-side
