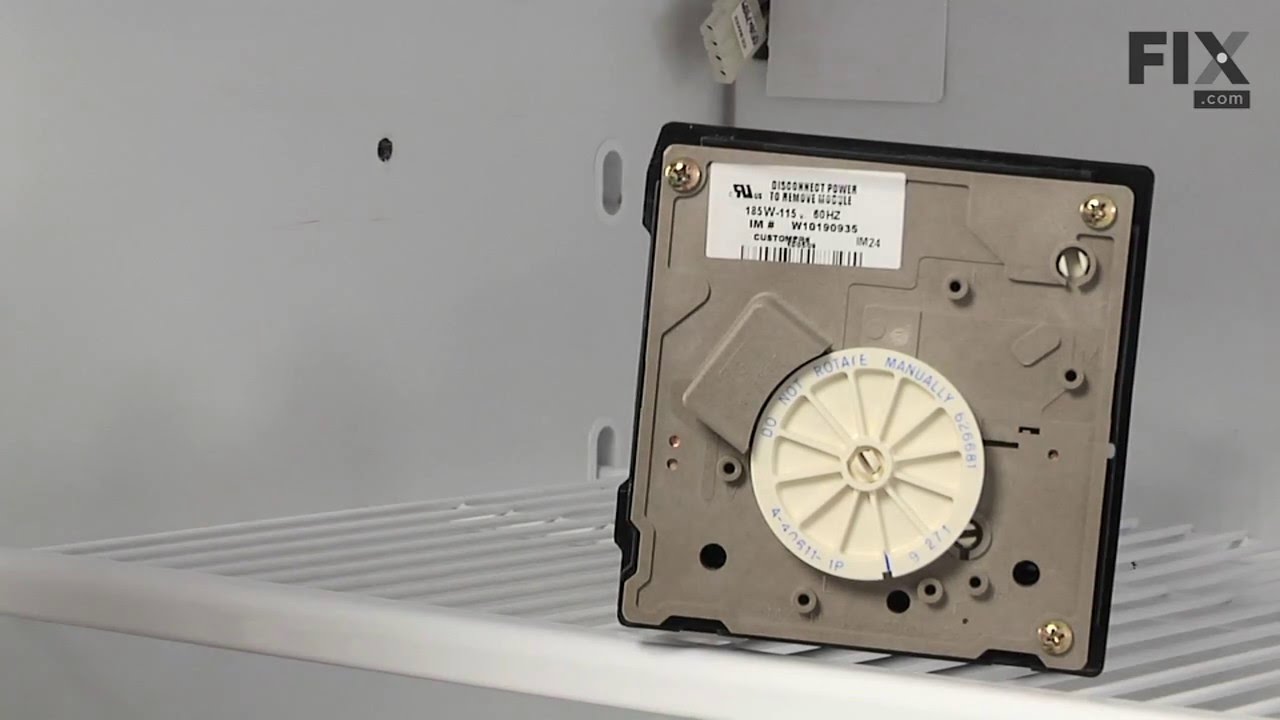

Icemaker Control Assembly

Your Price
$112.58

Fix Number: FIX2341896

Manufacturer #: W10190935

Manufactured by: Whirlpool

Get this part fast. Average delivery time via standard shipping: 1.8 days.

Part description

This part is used to help tell the icemaker what to do - it turns the timing cams and the ejector blades. Motor is not sold separately.

Works with the following brands

Kenmore, Whirlpool, KitchenAid, Amana, Roper, Maytag, Estate, Crosley, Jenn-Air, Inglis, Dacor, Thermador

Works with the following products

Refrigerator, Ice Maker

Fixes the following symptoms

Ice maker not making ice | Ice maker won’t dispense ice | Leaking | Won’t start

Videos For installing this part.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.2 / 5.0, 22 reviews
>
<
Customer:
Charlie from Wintergreen Resort, VA
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers, Socket set
Water was not entering the icemaker tray
I initially replaced the water inlet valve, but that did not correct the problem. Replacing the icemaker control did. I removed the icemaker assembly by unscrewing the 3 nuts with a socket wrench and unplugging the icemaker assembly. I snapped off the white end piece, unscrewed the 3 screws, & removed the old icemaker control. I installed the new unit with a Phillips screwdriver, replaced the icemaker, plugged it in, and tightened the 3 bracing screws. The unit began making ice in one hour.
9 of 9 people found these instructions helpful

Were these instructions helpful?

Customer:
Wim from Orchard Park, NY
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver, Screw drivers
Icemaker stopped making ice
Checked Water valve operation. Replaced Control module happened Easy fix following replacement guide on website.
2 of 2 people found these instructions helpful

Were these instructions helpful?

Customer:
Michelle from Muncie, IN
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Screw drivers
Old ice maker motor burned out, bought new motor and controls
checked instructions on Utube, it was necessary to get all air out of water line before ice maker made ice.
2 of 4 people found these instructions helpful

Were these instructions helpful?

Customer:
Stephen from North Tonawanda, NY
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set
Not making ice
tested control decided that controller was bad installed new controller back in business
1 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Barry from La Mirada, CA
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver
Ice maker was not making ice
The website diagnosed this part was the most failed part for making ice. Ordered the part watched the video from the website and it was a snap to replace. When I first replaced the control assembly the ice maker didnt cycle right away, but after 30 mins or so it began making ice again. Quick easy fix and Sears should change their repair service to Replace Service. I had them come out paid them 99 bucks to tell me the ice maker wasn't working , duh, and then told me 300 bucks to replace it. Guess i should have go on the web first.
1 of 2 people found these instructions helpful

Were these instructions helpful?

Customer:
Kurt from Noblesville, IN
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers
Ice maker made clicking noise; was not ejecting cubes
Repair went just as described in the video....very helpful!
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Don from Rancho Palos Verds, CA
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers, Socket set
Cie make failed to complete cycle, and required a manual movement of over load control wire
removed three ice make mounting screws rotate ice maker to expose control assembly. Remover three phillips screws. removed old assembly. Replace with new assembly install screws. rotate ice maker to original position and screw it down. replace control wire. Get out your glass and have a drink.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Randy from Ellijay, GA
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Icemaker moter quit
3 screws and I put the new one in and it worked perfectly.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Dale from Bend,Or 97701, OR
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Screw drivers
Refrigerator not producing ice
Look at the video to see how to repair and then repaired my ice maker within 30 minutes
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
richard from wyandotte, MI
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Not making ice
easy three screws pull out and replace no problem didnt solve my problem making ice but very slow 3 days tray not full
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Gary from Sun City West, AZ
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
Ice maker stopped making ice
The troubleshooting tips from this site helped me select the part and their service guide helped. To get the correct dis-assembly/assembly instructions I went to the SEARS web site. SEAR does not help with troubleshooting. Between the two my ice maker is now working again!
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Lisa from Cave Creek, AZ
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers
Icemaker not making ice
Me being a women and not at all handy I simply watched the repair video after determining the highest possible percent of part failure. After a few glasses of my favorite wine I followed the instructions provided on the video and every thing worked. I love it when a plan comes together. Thanks You Lisa
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Michael from Lake Stevens, WA
Parts Used:
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver
No ice from ice maker.
Easy repair, more difficult to diagnose. I took a gamble and bought the part based on the percentage. After I was done I thought it didn't work. Then I closed the door and heard the water fill the ice maker. A couple hours the first ice dropped. The power is cut to the ice maker when the door is open, unless you bypass the switch.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
John from Boca Raton, FL
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Icemaker not making ice
I've had the icemaker out several times doing different repairs each time. One screw, unplug the wire connecter and it slides right out for complete acess to everything. Very simple repair.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Gail from Rogers, AR
Parts Used:
  • Icemaker Control Assembly
Difficulty Level:
Very Easy
Total Repair Time:
30 - 60 mins
Tools:
Socket set
Ice maker went out
replaced motor
0 of 1 people found these instructions helpful

Were these instructions helpful?

>
<
