11743626-1-M-Whirlpool-WP67005445-Keyboard
Part Location Diagram of WP67005445 Whirlpool Keyboard
See part 3 in the diagram

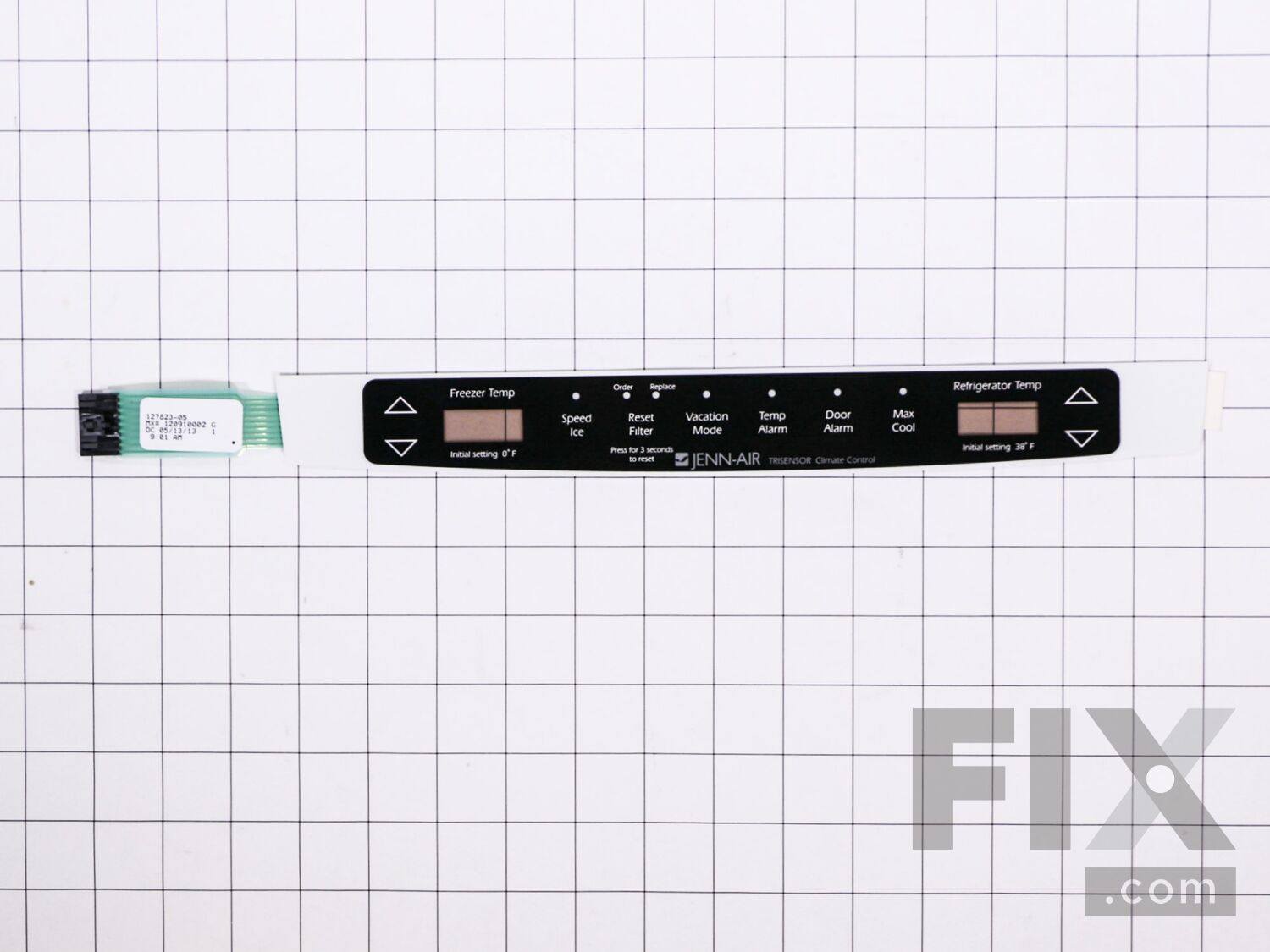

( Grid squares measure 1x1 inch )
11743626-1-S-Whirlpool-WP67005445-Keyboard 11743626-2-S-Whirlpool-WP67005445-Keyboard Part Location Diagram of WP67005445 Whirlpool Keyboard

Keyboard WP67005445

Rated by 2 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$141.59
In Stock
Fix Number:
FIX11743626
Manufacturer #:
WP67005445
Manufactured by:
Whirlpool

Jump to:

Product Description

This dispenser control panel serves as the user interface for your refrigerator’s ice and water functions, allowing you to select settings and send commands to the main control board. A faulty panel can cause issues such as unresponsive buttons, stuck keys, or erratic inputs, making replacement essential for restoring smooth operation. Installation requires unplugging the refrigerator and may involve replacing the keyboard housing due to strong adhesive backing.

  • Works with the following brands:
    Jenn-Air, Whirlpool
  • Works with the following products:
    Refrigerator
  • Part# WP67005445 replaces these:
    12782305, 67005445
Works with the following brands:
Jenn-Air, Whirlpool
Works with the following products
Refrigerator
Part Number Cross Reference
Part# WP67005445 replaces these:
12782305, 67005445

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Refrigerator Electronic Circuit Board
$288.77
No Longer Available
Part Number: FIX11750388
This electronic circuit board controls key refrigerator functions, including cooling and temperature regulation. When the original board fails due to power issues or error codes, this replacement restores reliable perfor...
HOUSING
$101.95
In Stock
Part Number: FIX12745449
Affresh Dishwasher Cleaner Tablets - 6
$22.00
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Affresh Washing Machine Cleaner - 3 pack
$19.89
Special Order
Part Number: FIX1960673
This washing machine cleaner includes three time-release tablets designed to remove odor-causing residues, grime, and buildup from high-efficiency and top-load washing machines. The tablets work by cleaning the tub, pump...
Produce Preserver Filter
$17.80
In Stock
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Washing Machine Cleaner Tablets – 6 Count
$27.76
In Stock
Part Number: FIX12345661
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Refrigerator Deodorizer
$30.85
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.
Affresh Ice Machine Cleaner
$26.73
In Stock
Part Number: FIX12583750
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...
Refrigerator Deodorizer
$30.85
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.
Affresh Ice Machine Cleaner
$26.73
In Stock
Part Number: FIX12583750
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...
View Less

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.1 / 5.0, 2 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Ben from New York, NY
Parts Used:
WPW10207861, WP67005445
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Keyboard said "OFF" and "OFF", and nothing I could do would get the fridge running
Remove the device at the top of the fridge box that gets the flap on the left door to turn as you close the door. Phillips head screwdriver. Removed in less than a minute. Then slip a large flat head screwdriver under the front corners of the control module (which shows the keyboard in front, the light switches, and the bulb enclosure in the back). Do it slowly and carefully and you will be able to pop off the entire module. Two opening in the back of the module show the main clips that snap the unit closed. Carefully pry those until the unit opens up. A small flat head screwdriver is need to disconnect the electrical harness and a small connector. You can then lift out the controller board, which is only held in with one simple clip. Detach the harness from the keyboard to the control board. It's a bit tricky, as the release clip is small, so go slowly. (They really could have devised a much better connector!) If you are replacing the keyboard (which might also be the source of the problem), it can be peeled of easily, although it is glued on. Start removing it by picking up a corner with a small screwdriver. Then just reassemble everything! Of course, you have the fridge disconnected while doing all this. I plugged it back in before I snapped the units back together again. All in all, pretty easy.
Read less
2 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
charles from ELIZABETHTOWN, KY
Parts Used:
WP67005445
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
temperature would not adjust
unplug unit. pop off lite cover. remove control card cover housing pry off old keypad and install new one reinstall all parts removed, plug unit back in and test worked perfectly
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX11743626
Manufacturer Part Number: WP67005445
Brand Model Number Description
Jenn-Air JBC2088HTB Refrigerator - Bottom Freezer
Jenn-Air JBC2088HTW Refrigerator - Bottom Freezer
Jenn-Air JBD2286KEB Refrigerator - Bottom Freezer
Jenn-Air JBD2286KEB11 Refrigerator - Bottom Freezer, Bottom Mount
Jenn-Air JBD2286KEW Refrigerator - Bottom Freezer
Jenn-Air JBD2286KEW11 Refrigerator - Bottom Freezer, Bottom Mount
Jenn-Air JBL2088HES Refrigerator - Bottom Freezer
Jenn-Air JBL2088HES13 Refrigerator - BOTTOM-MOUNT REFRIGERATOR
Jenn-Air JBL2286KES Refrigerator
Jenn-Air JBL2286KES12 Refrigerator - Bottom Freezer, Bottom Mount
Jenn-Air JBR2088HES Refrigerator - Bottom Freezer
Jenn-Air JBR2088HES13 Refrigerator - BOTTOM-MOUNT REFRIGERATOR
Jenn-Air JBR2286KES Refrigerator
Jenn-Air JBR2286KES12 Refrigerator - Bottom Freezer, Bottom Mount
Jenn-Air JFC2089HEP Refrigerator - Bottom Freezer
Jenn-Air JFC2089HEP13 Refrigerator - BOTTOM-MOUNT REFRIGERATOR
Jenn-Air JFC2089HES Refrigerator - Bottom Freezer
Jenn-Air JFC2089HES13 Refrigerator - BOTTOM-MOUNT REFRIGERATOR
Jenn-Air JFC2089HPF Refrigerator - Bottom Freezer
Jenn-Air JFC2089HPF12 Refrigerator - BOTTOM-MOUNT REFRIGERATOR
Jenn-Air JFC2089HPR10 Refrigerator - Bottom Freezer
Jenn-Air JFC2089HPR11 Refrigerator - Bottom Freezer, Bottom Mount
Jenn-Air JFC2089HPY Refrigerator - Bottom Freezer
Jenn-Air JFC2089HPY12 Refrigerator - BOTTOM-MOUNT REFRIGERATOR
Jenn-Air JFC2089HTB Refrigerator - Bottom Freezer
Jenn-Air JFC2089HTB12 Refrigerator - BOTTOM-MOUNT REFRIGERATOR
Jenn-Air JFC2089HTW Refrigerator - Bottom Freezer
Jenn-Air JFC2089HTW12 Refrigerator - BOTTOM-MOUNT REFRIGERATOR
Jenn-Air JFD2589KEP Refrigerator - Bottom Freezer
Jenn-Air JFD2589KEP12 Refrigerator - BOTTOM-MOUNT REFRIGERATOR
