Evaporator Fan Motor Kit
Works With Model TRT16NRHW1!
$83.46
In Stock
Fix Number: FIX450319
Manufacturer #: 5300158289
Manufactured by:
Frigidaire
Works With Model TRT16NRHW1!
-
Product Description
This motor runs the evaporator fan in your refrigerator. It is mounted on the center hub and has three lead wires terminals. This motor rotates in a clockwise fashion. Its shaft has a diameter of 1/8" and is 1-1/4" long.
-
Works with the following brandsFrigidaire, Kenmore, Kelvinator, Gibson
-
Works with the following productsRefrigerator
-
Fixes the following symptomsNoisy, Fridge too warm, Freezer section too warm
-
Part Number Cross ReferencePart# 5300158289 replaces these:AP2134901, 2300, 5300158289, 08000036, 08004176, 215314700, 215348200, 215360800, 215464000, 215464100, 218322200, 218661700, 218718403, 218878700, 218878701, 218878901, 3001224, 3001421, 5303275816, 5303310100 ... Show more , 5303917277, 5303917473, 8000036, 8004176, G000158289, G000168579, G000173301, G158289, G162705, G163939, G165335, G168579, G168797, G173301, G176117, G178481, K1204667 Show less
Product Description
This motor runs the evaporator fan in your refrigerator. It is mounted on the center hub and has three lead wires terminals. This motor rotates in a clockwise fashion. Its shaft has a diameter of 1/8" and is 1-1/4" long.
-
Works with the following brands:Frigidaire, Kenmore, Kelvinator, Gibson
-
Works with the following products:Refrigerator
-
Fixes the following symptoms:Noisy, Fridge too warm, Freezer section too warm
-
Part# 5300158289 replaces these:AP2134901, 2300, 5300158289, 08000036, 08004176, 215314700 ... Show more , 215348200, 215360800, 215464000, 215464100, 218322200, 218661700, 218718403, 218878700, 218878701, 218878901, 3001224, 3001421, 5303275816, 5303310100, 5303917277, 5303917473, 8000036, 8004176, G000158289, G000168579, G000173301, G158289, G162705, G163939, G165335, G168579, G168797, G173301, G176117, G178481, K1204667 Show less
Videos For installing this part.

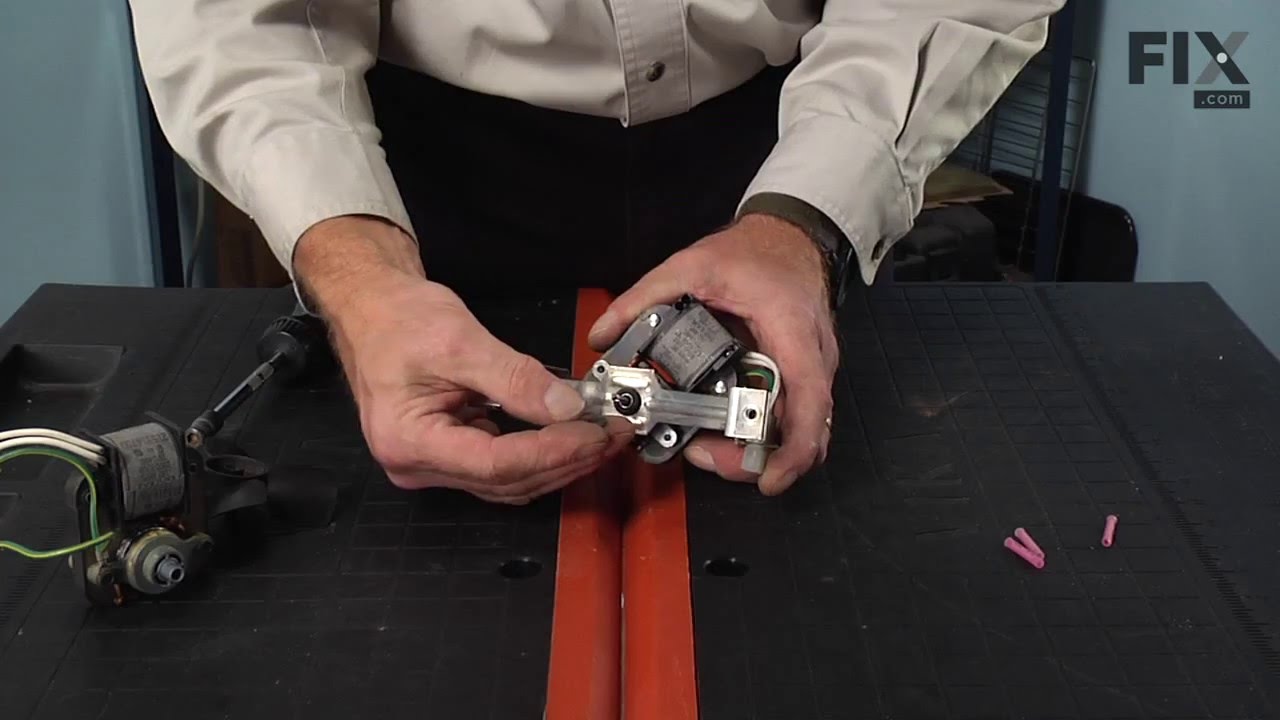

Replacing your Evaporator Fan Motor Kit

Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Related PartsAdditional or alternate parts to consider.
Installation Instructions Provided by Fix customers like you.
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:Michael from Woodside, NY
-
Parts Used:5300158289
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver
Worn out motor was noisy
I watched the you tube video before ordering the part. The changeout is easy, but remove the plastic fan without breaking it, as one does not come with the kit. I took a few photos as I proceeded with the motor removal. The photos were useful later when reinstalling the parts. Don't forget to unplug the fridge.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:JC from Mercedes, TX
-
Parts Used:5300158289
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers
noisy fan
As per video THANKS YOU
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Robert from New Albin, IA
-
Parts Used:5300158289
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver
Howling evaporator fan
Removed the plastic shroud (2 screws), then the fan support bracket (2 screws), and unplugged the wiring harness from the fan, then removed the assembly from the freezer. The wiring harness plug had to be removed from the bracket to remove the screw from the ground wire, then the bracket could be removed from the fan, and the fan blade was removed. Assembly was the reverse. It took some time to figure out exactly how the fan went back into the bracket so the wiring was in the correct spot....I wasn't paying attention to the fan orientation on removal. New fan worked like a charm. Thanks!
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Randy from Columbia, TN
-
Parts Used:5300158289
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Screw drivers
Replace Evaporator Fan Motor
Repair went fairly well with the video However, the small washer that was supposed to be in the kit was not there. I did not know this until I had removed the old motor. I placed a washer on the shaft of the fan as instructed, but I am not sure it was the right size, as it was loose on the shaft. The three connectors were in the plastic bag, but I did not need them.
Was this instruction helpful to you?
Thank you for voting!
