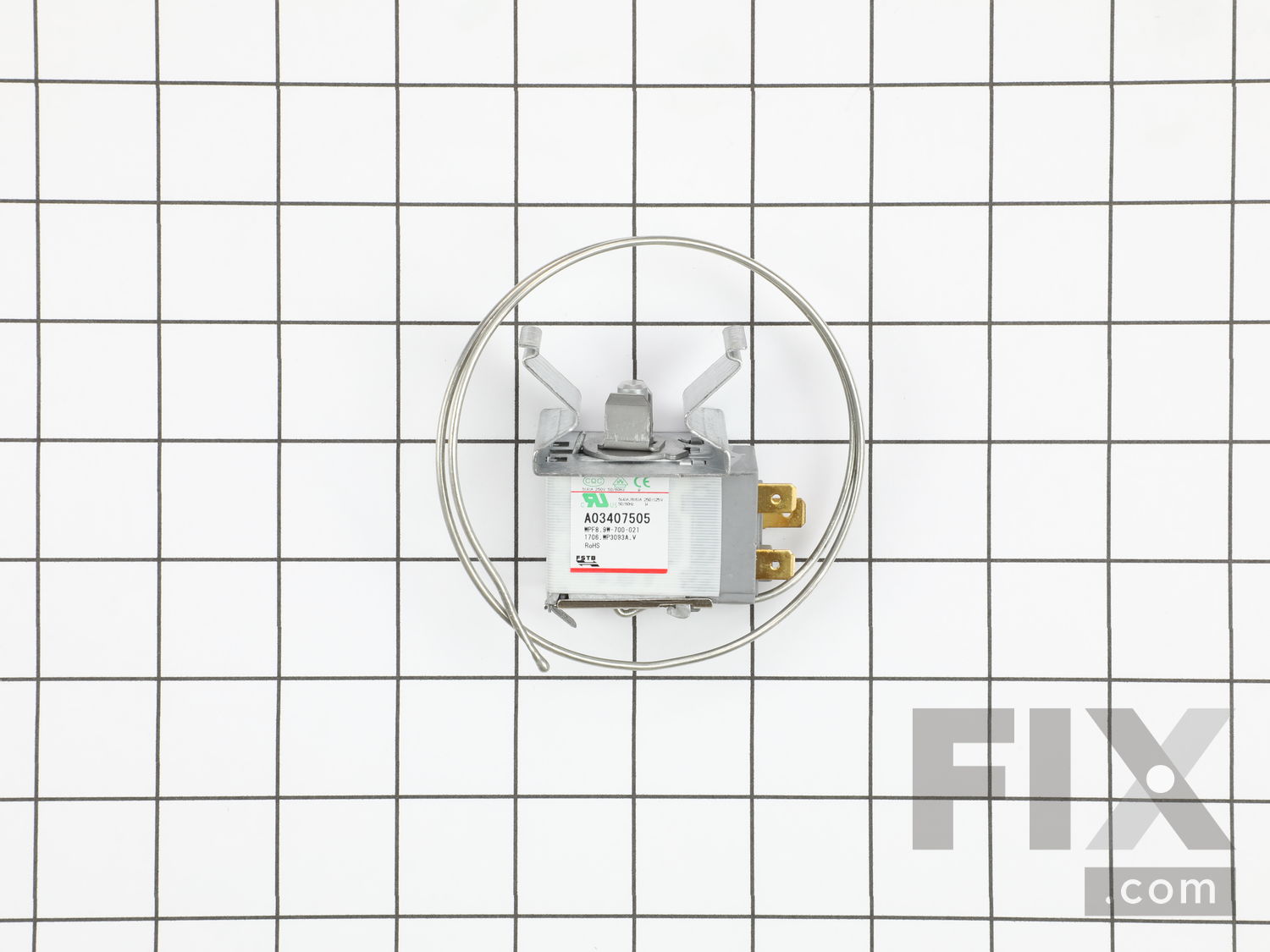

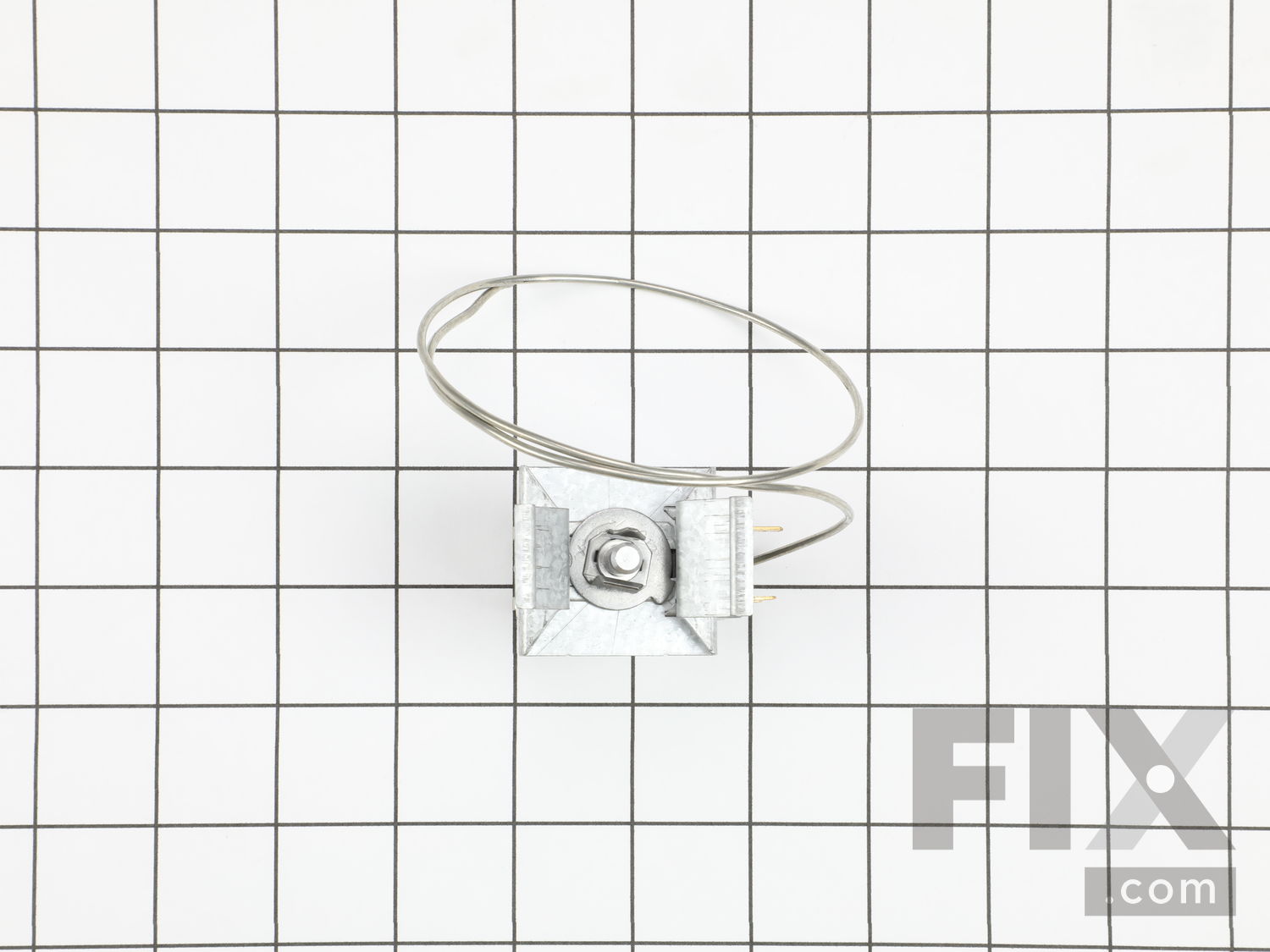

See part F21 in the diagram
( Grid squares measure 1x1 inch )

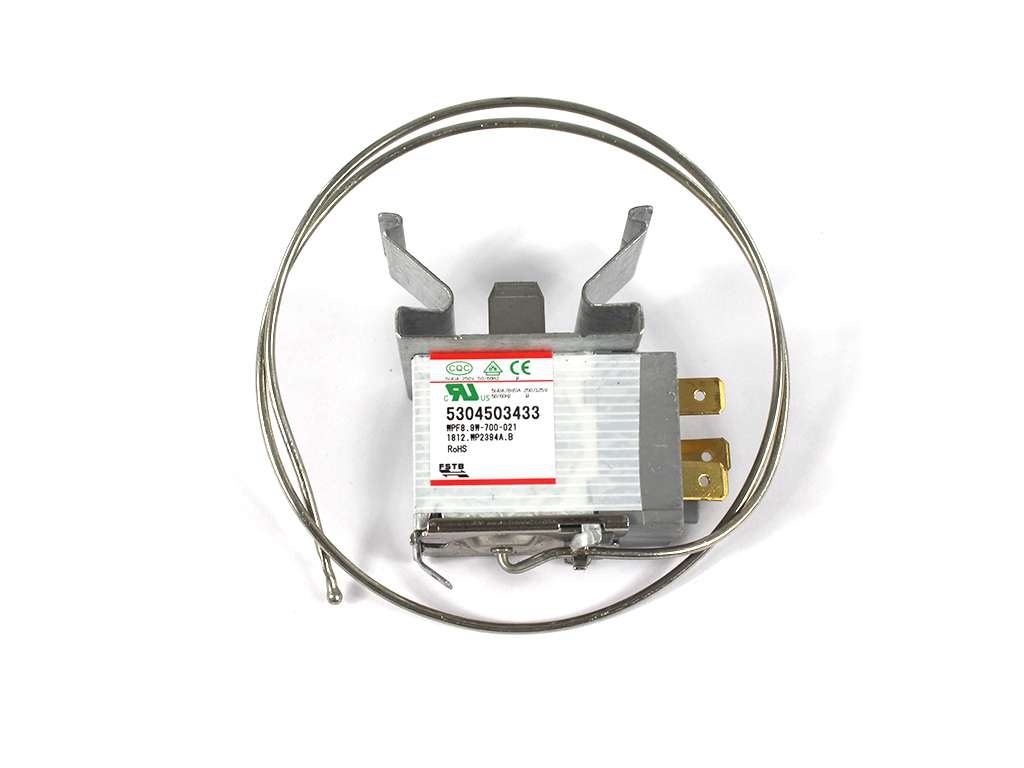

Temperature Control Thermostat

$69.74
Fix Number: FIX10057387
Manufacturer #: 5304497345
Manufactured by: Frigidaire

Product Description

Questions and Answers

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

1 question answered by our experts.
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Ily
March 17, 2022
I have a fridge-only model. It was working ok. We moved it from one room to an adjacent room at 55 degrees F. After plugging in and turning on, it didn't cool. Unplugged for few days, turned back on and now the temperature is down to 0 degrees F, compressor is hot, and doesn't turn off. What should I check?
For model number 253.60722000
Hello Ily, Thank you for the question. This could be caused by a faulty Defrost Thermostat. We suggest testing the Thermostat with a multimeter. The best way to do this is to remove the thermostat from the refrigerator so you can control the temperature of the sensor. You can let the sensor warm up to room temperature. With the sensor warmed up to room temperature the sensor should read approximately 6.2K Ohms at 68°F. With the thermistor submerged is a glass full of ice water, the sensor should be very close to 32°F which should read approximately 16.3K Ohms. If the values that you are getting are far off from these readings, then the sensor is bad and should be replaced. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

Was this helpful?
Thank you for voting!
Related Parts:
Model Compatibility
This part works with the following models:
Fix Number: FIX10057387
Manufacturer Part Number: 5304497345
Brand
Model Number
Description
Kenmore
25360721007
Refrigerator
Kenmore
25360721008
Refrigerator
Kenmore
25360721009
Refrigerator
Kenmore
2536072100A
Refrigerator
Kenmore
2536072100B
Refrigerator
Kenmore
2536072100C
Refrigerator
Kenmore
25360722000
Refrigerator
Kenmore
25360722001
Refrigerator
Kenmore
25360722002
Refrigerator
Kenmore
25360722003
Refrigerator
Kenmore
25360722004
Refrigerator
Kenmore
25360722005
Refrigerator
Kenmore
25360722006
Refrigerator
Kenmore
25360722007
Refrigerator
Kenmore
25360722008
Refrigerator
Kenmore
25360722009
Refrigerator
Kenmore
25360722010
Refrigerator
Kenmore
25360722011
Refrigerator
Kenmore
25360722012
Refrigerator - REFRIGERATOR
Crosley
CALR17LW0
Refrigerator
Crosley
CALR17LW1
Freezer
Crosley
CALR17LW2
Freezer
Frigidaire
FRU1767GW0
Refrigerator
Frigidaire
FRU1767GW1
Refrigerator
Frigidaire
FRU1767GW2
Refrigerator
Frigidaire
FRU17B2JW10
Refrigerator
Frigidaire
FRU17B2JW11
Refrigerator
Frigidaire
FRU17B2JW12
Refrigerator
Frigidaire
FRU17B2JW13
Refrigerator
Frigidaire
FRU17B2JW15
Refrigerator
