Part Location Diagram of W11548749 Whirlpool Electronic Control Board
See part 2 in the diagram
( Grid squares measure 1x1 inch )

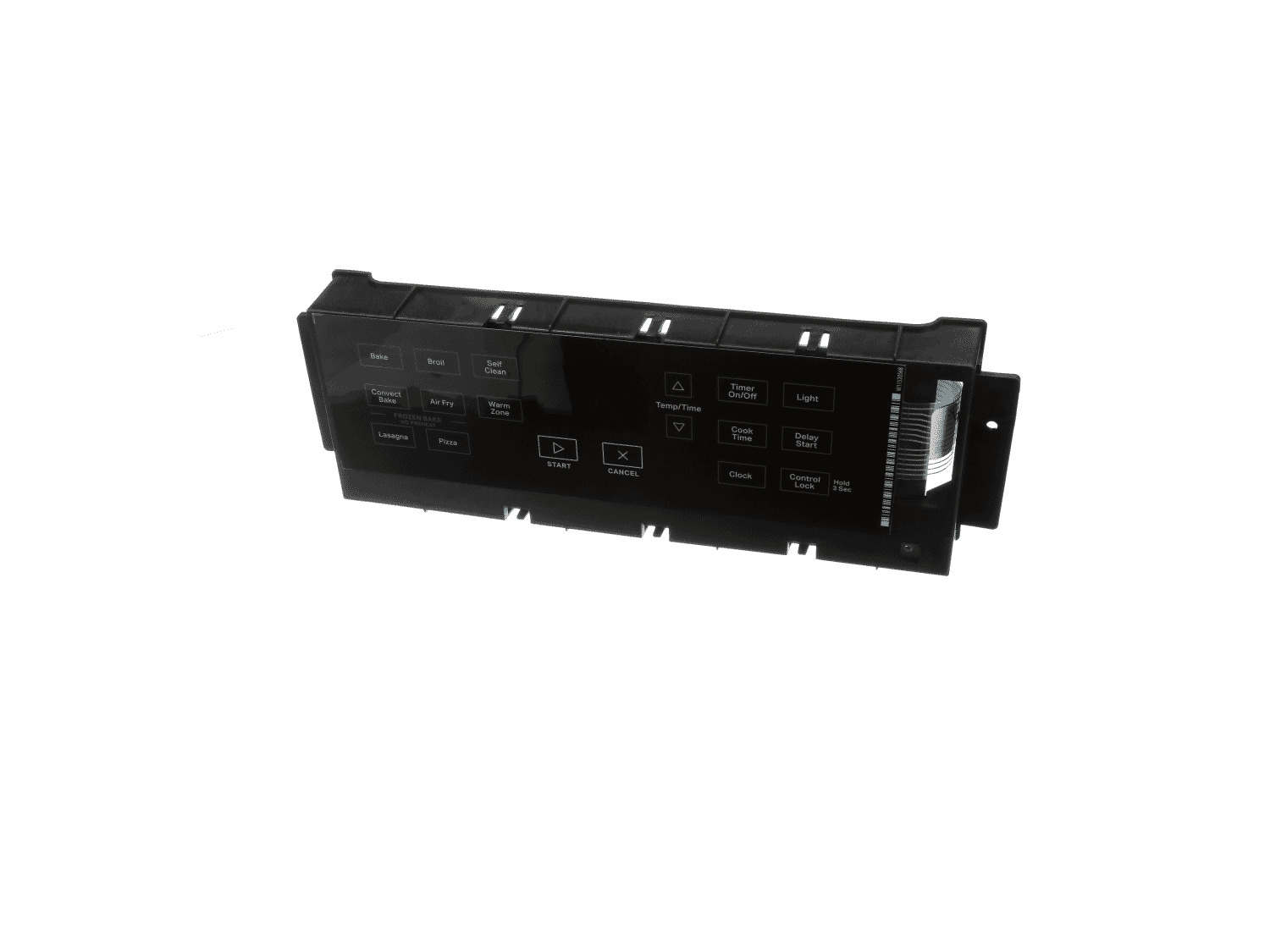

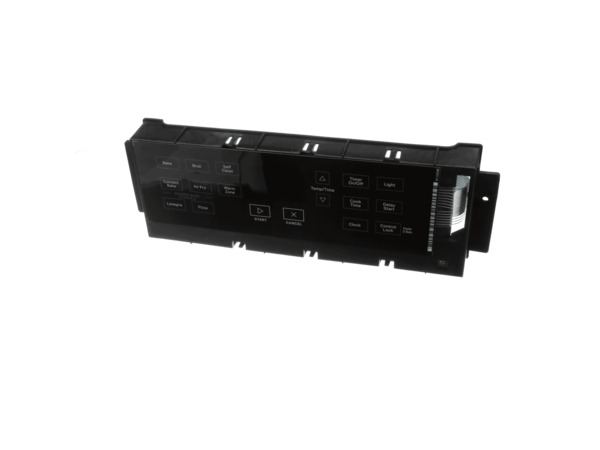

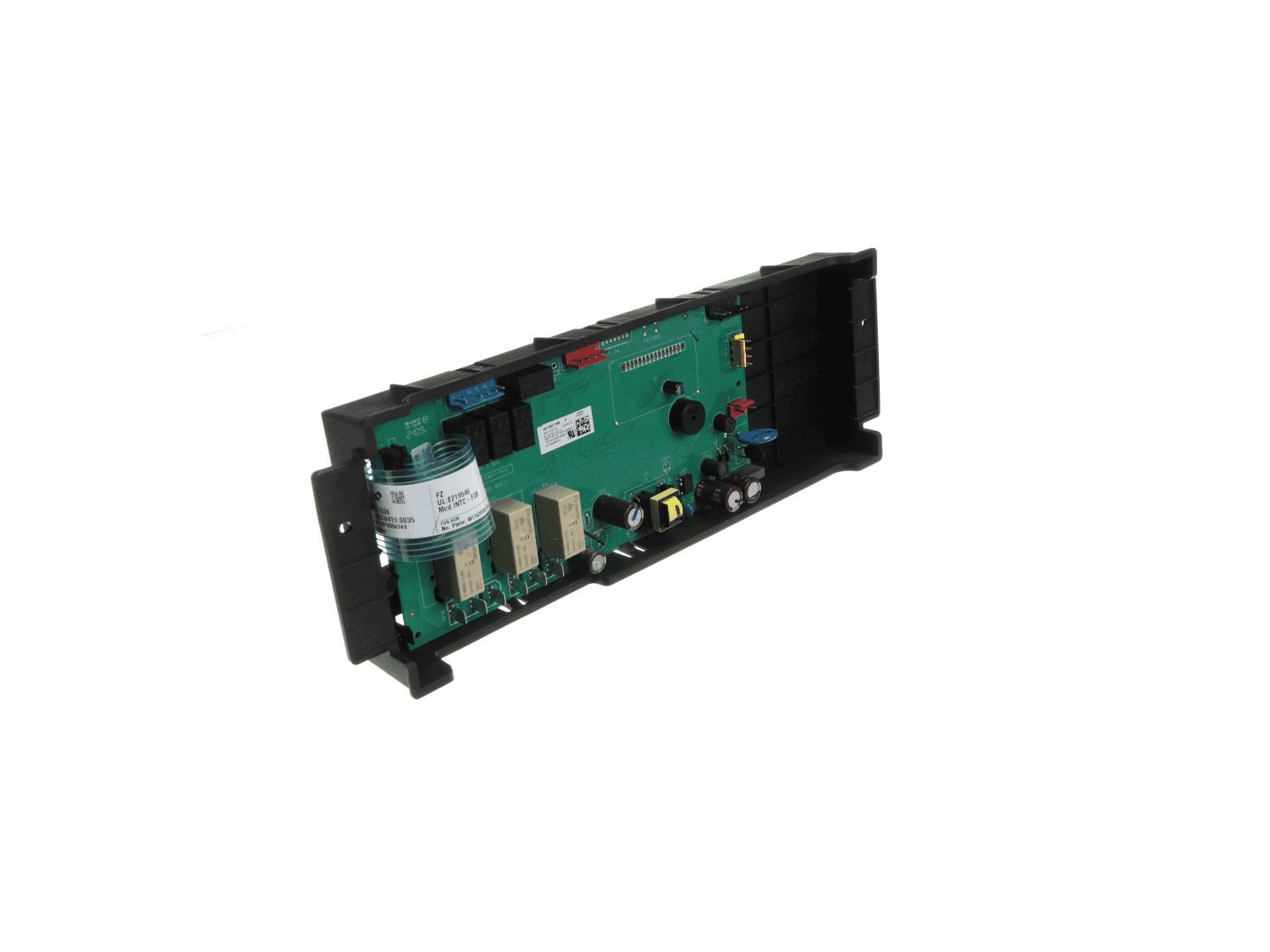

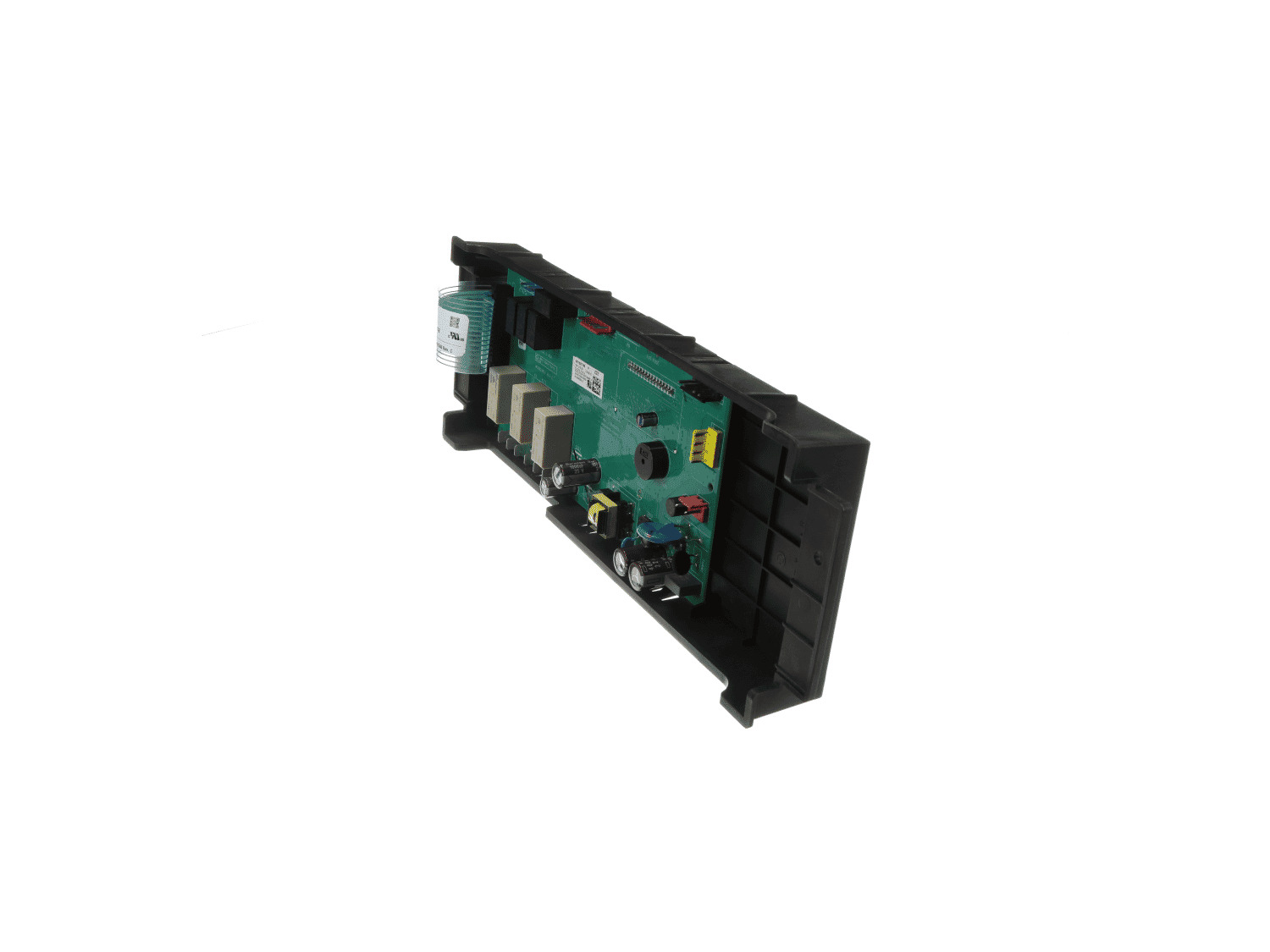

Electronic Control Board W11548749

Works With Model WFE535S0LZ3!
$166.37
In Stock
Fix Number:
FIX16620302
Manufacturer #:
W11548749
Manufactured by:
Whirlpool
Works With Model WFE535S0LZ3!

Product Description

This electronic control board manages your range’s temperature, cooking settings, and timing. It includes the digital display and sends signals to the heating elements and burners. Compatible with select Whirlpool, Maytag, and KitchenAid models, it’s a common replacement for ovens that won’t start or heat properly.

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Model Compatibility

This part works with the following models:
Fix Number: FIX16620302
Manufacturer Part Number: W11548749
Brand Model Number Description
Whirlpool WFE535S0LS3 Range - Whirlpool Free Standing Electric Range
Whirlpool WFE535S0LZ3 Range - Whirlpool Free Standing Electric Range
Whirlpool WFE550S0LB3 Range - Whirlpool Free Standing Electric Range
Whirlpool WFE550S0LV3 Range - Whirlpool Free Standing Electric Range
Whirlpool WFE550S0LW3 Range - Whirlpool Free Standing Electric Range
Whirlpool WFE550S0LZ3 Range - Whirlpool Free Standing Electric Range
Whirlpool YWFE550S0LB3 Range - Whirlpool Free Standing Electric Range
Whirlpool YWFE550S0LV3 Range - Whirlpool Free Standing Electric Range
Whirlpool YWFE550S0LW3 Range - Whirlpool Free Standing Electric Range
Whirlpool YWFE550S0LZ3 Range - Whirlpool Free Standing Electric Range
