Part Location Diagram of 316400601 Frigidaire Bottom Panel
See part 8 in the diagram
Replacing your Frigidaire Range Bottom Panel
( Grid squares measure 1x1 inch )

Bottom Panel 316400601

Rated by 4 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$139.10
In Stock
Fix Number:
FIX977589
Manufacturer #:
316400601
Manufactured by:
Frigidaire

Product Description

This is used as the "floor" of the oven cabinet. Note: Does not come with rivets or screws. Must be purchased locally.

Videos For installing this part.

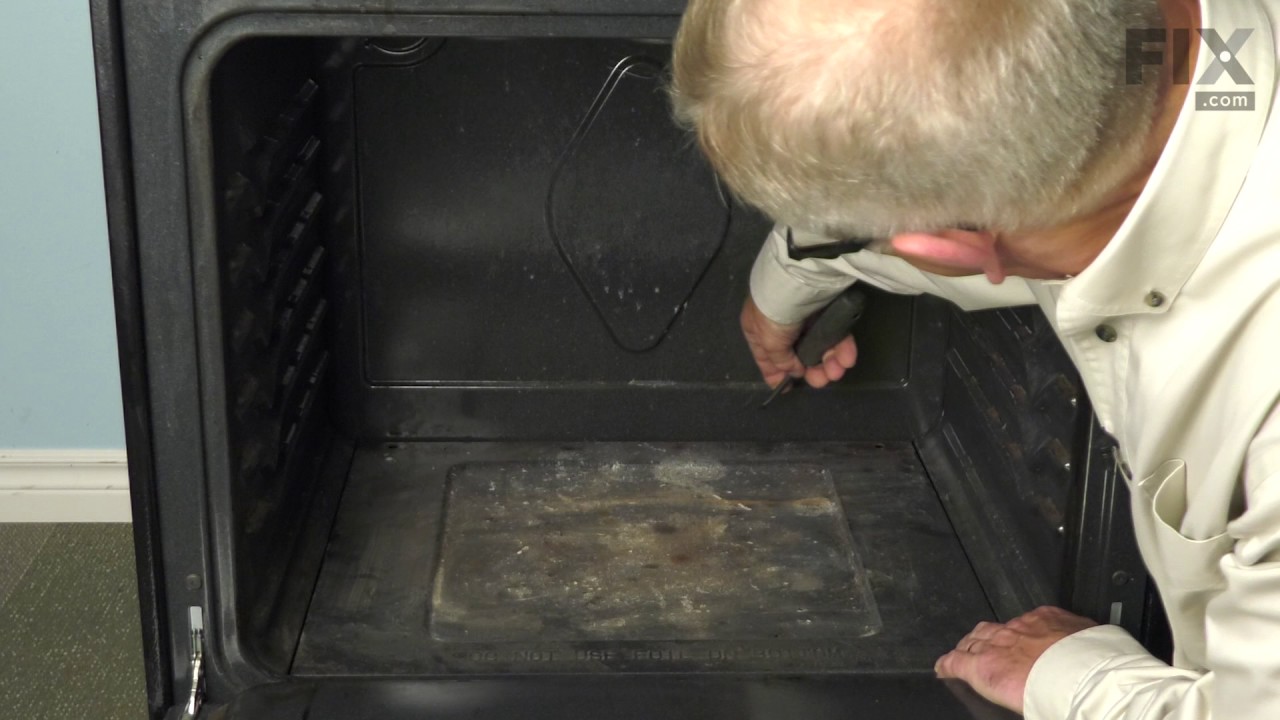

Replacing your Bottom Panel

Replacing your Bottom Panel

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Produce Preserver Filter
$21.50
In Stock
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Cooktop Cleaning Cream
$15.57
In Stock
Cooktop Cleaner
$17.74
In Stock
Affresh Cleaner
$19.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.2 / 5.0, 4 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Jerry from Crawfordville, FL
Parts Used:
316400601
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Bottom or floor pan had corrosion holes from burned food
Very straight forward. Remove two thumb screws (they were tight so had to use a screw driver), one in each rear corner of pan. Use small screw driver to lift rear of pan enough to clear oven lights then push to the rear until the pan clears the front panel lip. Clean threads on screws so they reinstall with less effort. Reverse pan re moval to install new pan.
4 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Gary from JACKSONVILLE, NC
Parts Used:
316400601
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Previous owner layed aluminum foil on top of bottom panel and it stuck. Could not remove it.
Removed all grates from oven. Removed two screws and lifted panel out. Wiped out around bottom element. Inserted new bottom panel, installed two screws and tightened. Put the grates back in and done.
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
JUDITH from GRAND PRAIRIE, TX
Parts Used:
316400601
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Foil oven liner pan burned onto oven floor
Pan should have been placed on bottom shelf, not floor. It burned fast and when removed, peeled off oven floor self-cleaning finish. Remove 2 screws at back of oven that hold floor panel in place. Use flat head screwdriver to gently pry it upward till you can grab it and work it loose. Remove and then put new panel in place and tighten s crews.
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
terrance from eldon, MO
Parts Used:
316400601
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
wife used foil
was installed by repairman
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX977589
Manufacturer Part Number: 316400601
Brand
Model Number
Description
Frigidaire
00462048A
Range - Range
Frigidaire
00462048B
Range - Range
Frigidaire
00462048C
Range - Range
Frigidaire
00462048D
Range - Range
Frigidaire
20462052A
Range - Range
Frigidaire
20462052B
Range - Range
Frigidaire
20462052C
Range - Range
Frigidaire
40466006B
Range - Range
Frigidaire
40466006C
Range - Range
Kenmore
5995408571
Range - Kenmore Range/Stove/Oven 5995408571
Frigidaire
60462050A
Range - Range
Frigidaire
60462050B
Range - Range
Frigidaire
60462050C
Range - Range
Frigidaire
60462050D
Range - Range
Kenmore
79077552800
Range
Kenmore
79077552801
Range
Kenmore
79077552803
Range
Kenmore
79077552804
Range
Kenmore
79077553800
Range
Kenmore
79077553801
Range
Kenmore
79077553802
Range
Kenmore
79077553803
Range
Kenmore
79077553805
Range
Kenmore
79077553806
Range
Kenmore
79077553807
Range
Kenmore
79077559800
Range
Kenmore
79077559801
Range
Kenmore
79077559804
Range
Kenmore
79078502010
Range
Kenmore
79078502011
Range
