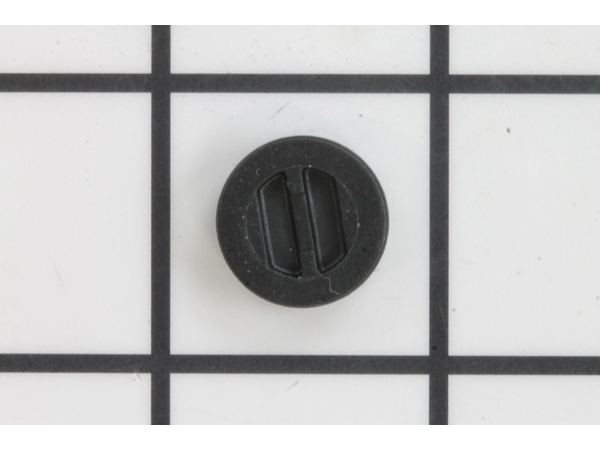

Part Location Diagram of 4.132-007.0 Karcher Drain Plug Only For Replacemen
See part B-4 in the diagram
( Grid squares measure 1x1 inch )

Drain Plug Only For Replacemen 4.132-007.0

$13.14
In Stock
Fix Number:
FIX9949502
Manufacturer #:
4.132-007.0
Manufactured by:
Karcher

Product Description

This is a drain plug for different models of pressure washers. It is used to seal the check valve for the engine of the pressure washer and features an O-ring that can deteriorate over time. Failing to replace the drain plug can result in water leakage from the pump, potentially causing damage to the pump and surrounding parts, and leading to pump overheating and seizing. To replace this drain plug, you will only need a few tools such as a screwdriver, Allen key, a set of pliers, and a utility knife. First, remove the pump from the pressure washer assembly using a screwdriver or Allen key. Then, disconnect the detergent hose by cutting it with a utility knife. Gain access to the valve(s), which may require you to use a screwdriver and/or hammer to remove the covering plate. Use a set of pliers to rotate and loosen the drain plug and remove it. Apply silicone grease to the new drain plug before installing and securing it. Reinstall the metal plate covering, reconnect the detergent hose to the pump, and reinstall the pump. Monitor your pressure washer for any leaks or other issues with the new drain plug installed.

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

1 question answered by our experts.
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Terry
July 1, 2022
I need the drain plugs that fit on top of the 3 ventil valves on the pump. your chart only fits G 3000 OH. What is the part # for the model G 3025 OH? thank you
For model number G 3025 oh
Fix.com logo
Hello Terry, Thank you for your inquiry. We have researched the model number you have provided and it shows a pipe plug, part# FIX10020930. We hope this helps and if you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

Was this helpful?
Thank you for voting!
Related Parts:

Model Compatibility

This part works with the following models:
Fix Number: FIX9949502
Manufacturer Part Number: 4.132-007.0
Brand Model Number Description
Karcher 1575-3500 Pressure Washer - Commercial Cold Water Pressure Washer Hd Hand Held
Karcher G2400HH Pressure Washer - Pressure Washer
Karcher G2500HT Pressure Washer - Pressure Washer
Karcher G2500LH Pressure Washer - Pressure Washer
Karcher G2500OH Pressure Washer - Pressure Washer
Karcher G2500PH Pressure Washer - Pressure Washer
Karcher G2500VH Pressure Washer - Pressure Washer
Karcher G2600OR Pressure Washer - Pressure Washer
Karcher G2600PC Pressure Washer - Gas Pressure Washer
Karcher G2600PH Pressure Washer - Pressure Washer
Karcher G2600VC Pressure Washer - Gas Pressure Washer
Karcher G2600VCPLUS Pressure Washer - Gas Pressure Washer
Karcher G2600VH Pressure Washer - Pressure Washer
Karcher G2650HH Pressure Washer - Pressure Washer
Karcher G2650OH Pressure Washer - Pressure Washer
Karcher G3000BH Pressure Washer - Pressure Washer
Karcher G3000OH Pressure Washer - Pressure Washer
Karcher HD2500HK Pressure Washer - Pressure Washer
Karcher HD2600DK Pressure Washer - Pressure Washer
Karcher HD2700DH Pressure Washer - Pressure Washer
Karcher HD3000DH Pressure Washer - Pressure Washer
Karcher K1800G Pressure Washer - Pressure Washer
Karcher K2000GM Pressure Washer - Pressure Washer
Karcher K2200G Pressure Washer - Pressure Washer
Karcher K2200GM Pressure Washer - Pressure Washer
Karcher K2300G Pressure Washer - Pressure Washer
Karcher K2400HH Pressure Washer - Pressure Washer
Karcher K4000G Pressure Washer - Pressure Washer
Karcher K5000G Pressure Washer - Pressure Washer
Karcher K5800GH Pressure Washer - Pressure Washer
