10176139-1-M-DeWALT-5140010-28-Planer Drive Belt

Part Location Diagram of 5140010-28 DeWALT Planer Drive Belt

See part 27 in the diagram

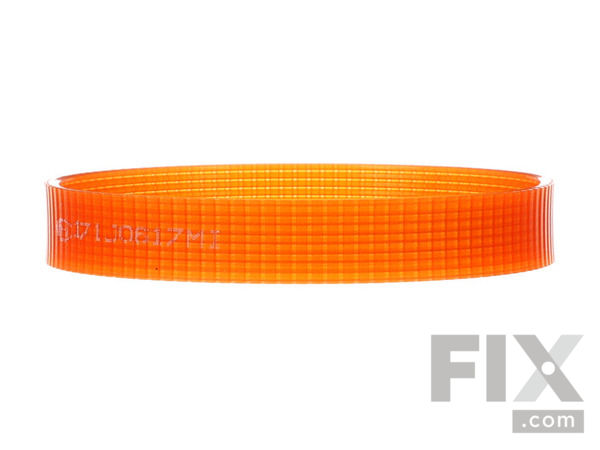

10176139-1-S-DeWALT-5140010-28-Planer Drive Belt 360 view

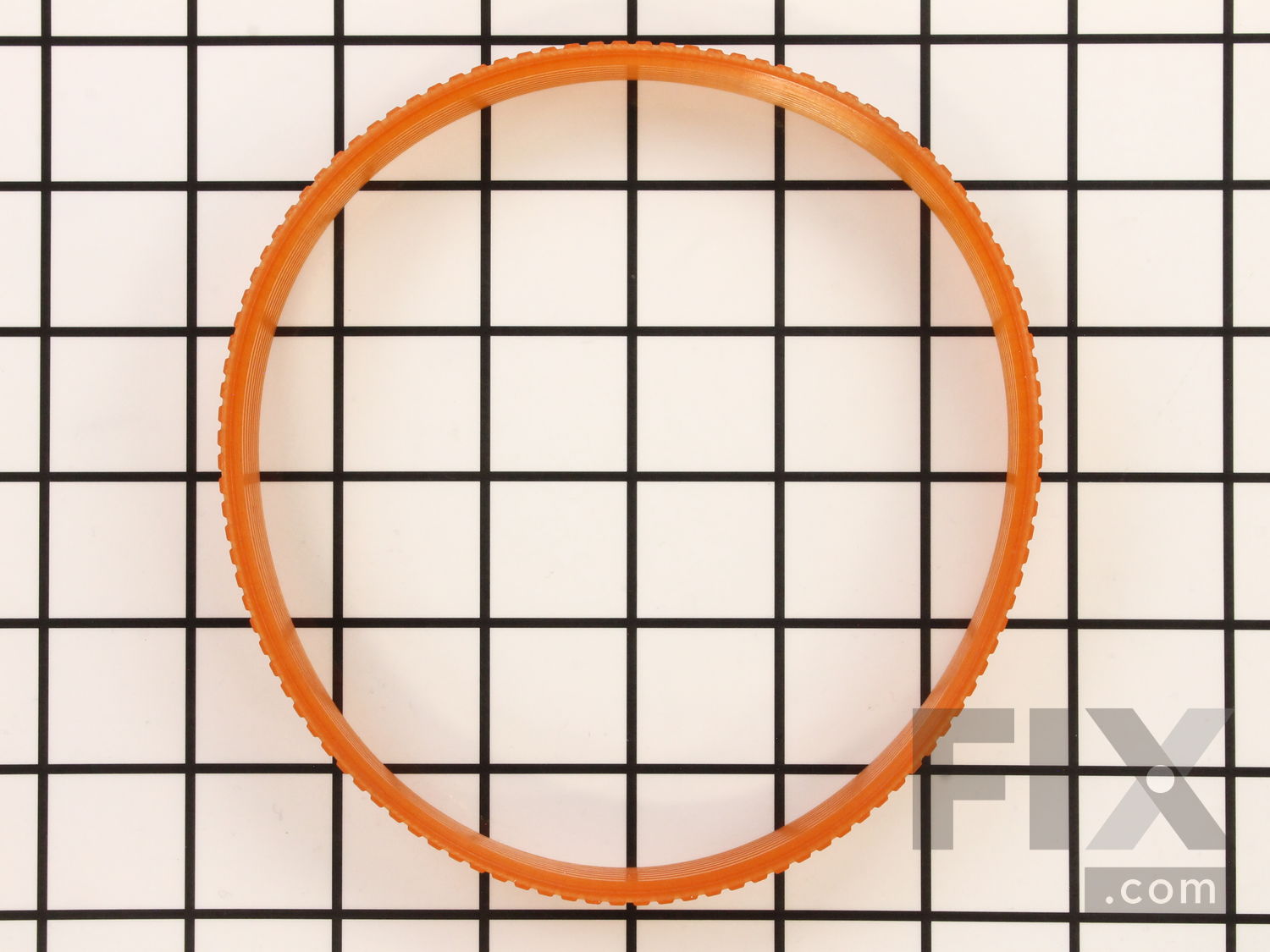

( Grid squares measure 1x1 inch )

10176139-1-S-DeWALT-5140010-28-Planer Drive Belt

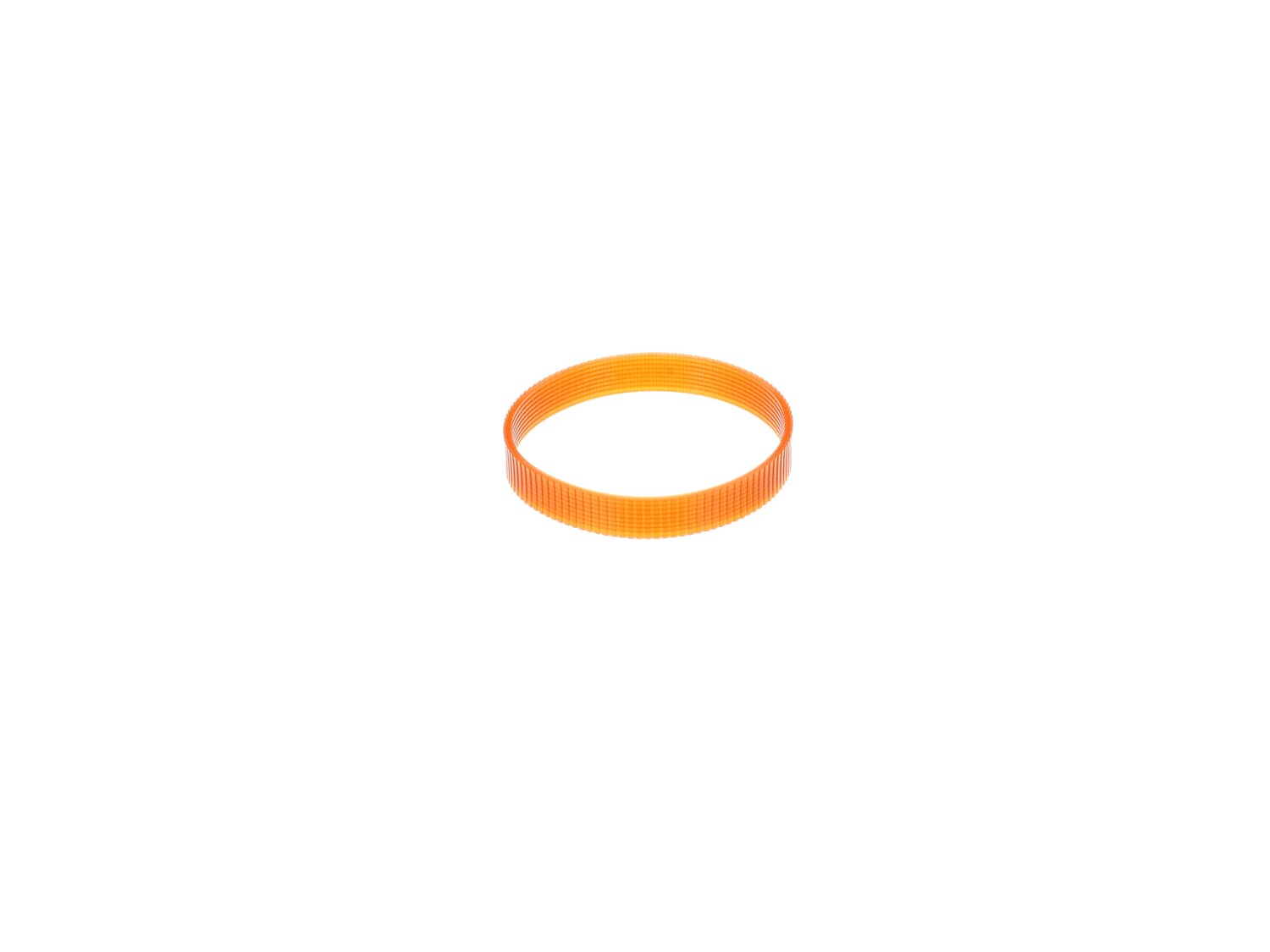

10176139-2-S-DeWALT-5140010-28-Planer Drive Belt

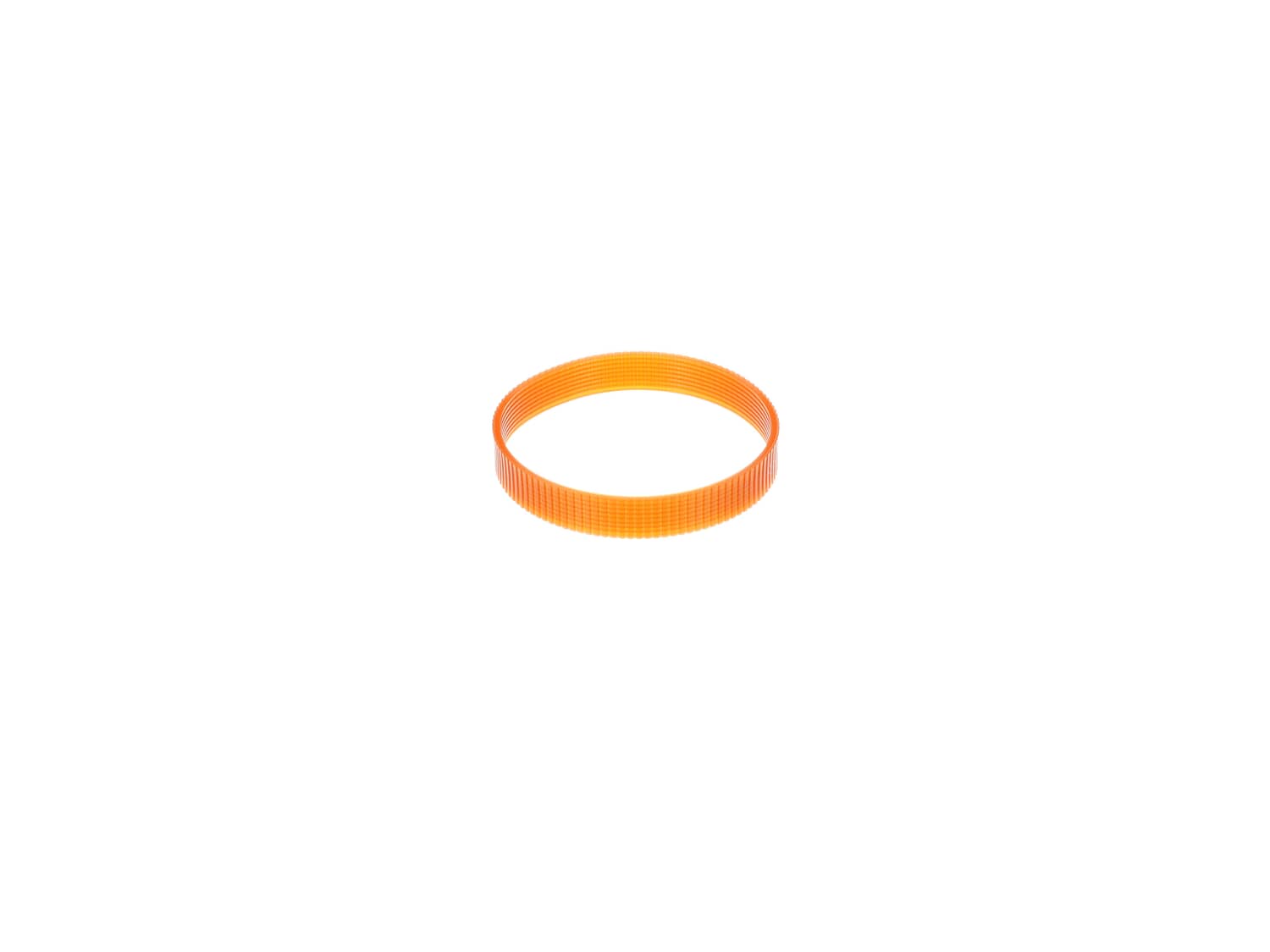

10176139-3-S-DeWALT-5140010-28-Planer Drive Belt

Planer Drive Belt 5140010-28

$70.59

In Stock

Fix Number:: FIX10176139
Manufacturer #:: 5140010-28
Manufactured by:: DeWALT

Jump to:

Product Description
Questions and Answers
Related Parts
Model Compatibility

Product Description

This drive belt is for planers. Drive belt connects the motor pulley to the spindle assembly to spin the blades. Disconnect the power cord before installing this part. Wear work gloves to protect your hands.

Works with the following brands:

DeWALT
Works with the following products:
Planer Jointer

Works with the following brands:: DeWALT
Works with the following products: Planer Jointer
