See part 38 in the diagram

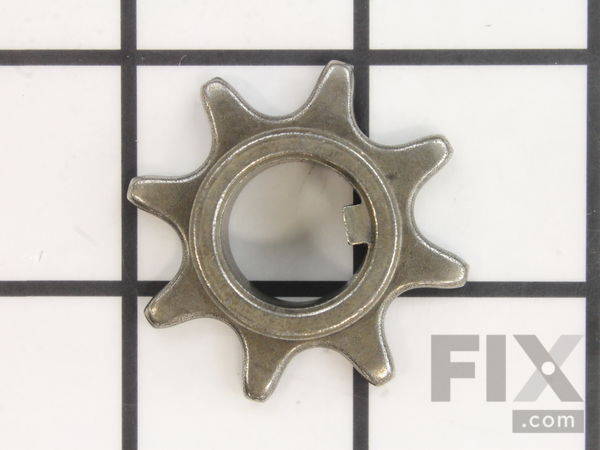

( Grid squares measure 1x1 inch )

Sprocket

★★★★★
★★★★★
1 Review
$5.80
Fix Number: FIX10168640
Manufacturer #: 285928-00
Manufactured by: DeWALT

Product Description

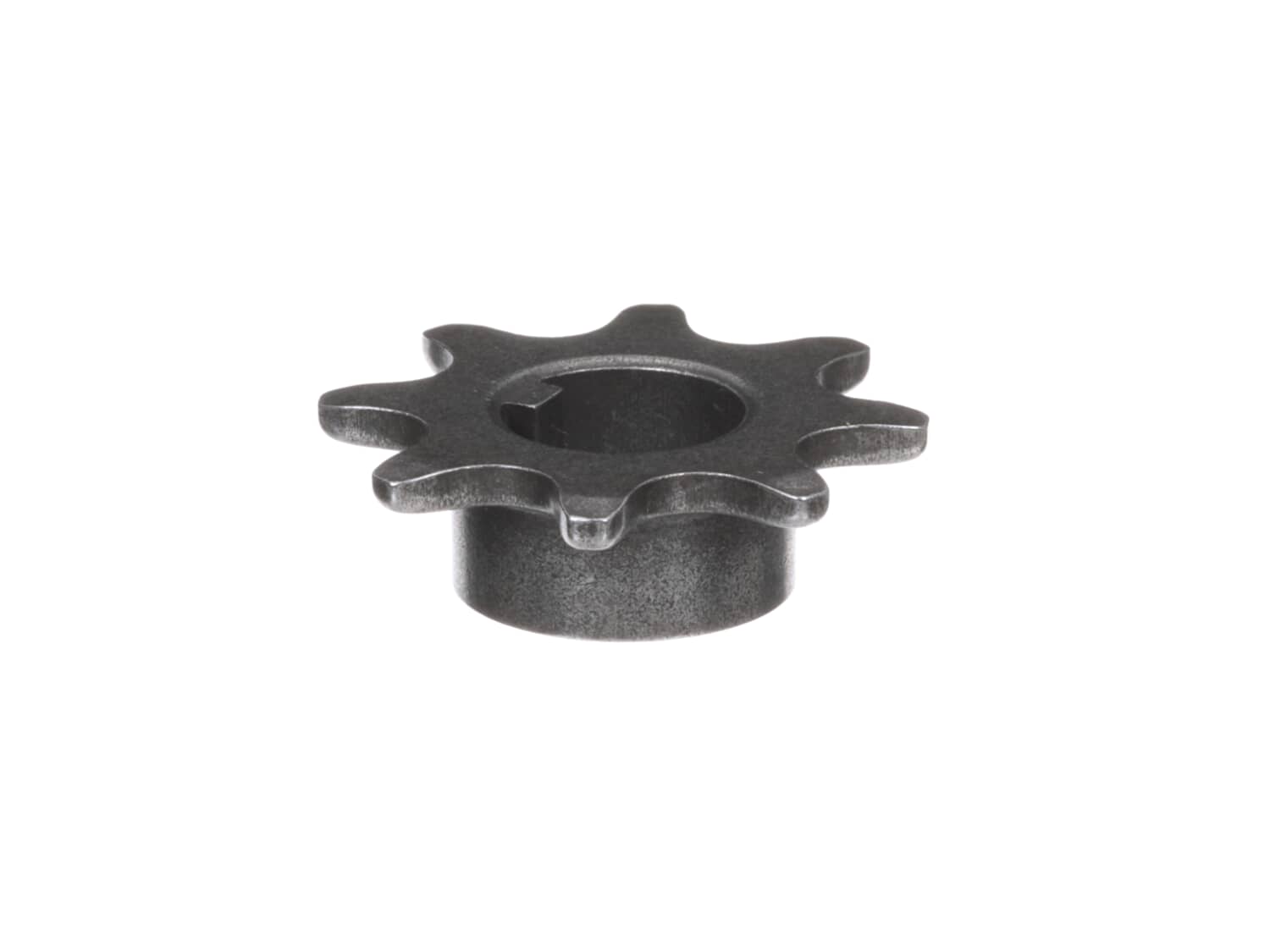

This manufacturer-approved replacement sprocket is sold individually. Your planer feed rollers are driven by chains and sprockets. The outfeed roller has two sprockets on it, one connects it to the gearbox and the other connects to the infeed roller, the infeed roller also has a single sprocket, four in total on your planer. When the sprocket has worn down the chain will start to skip. If the planer is overloaded often, this might also cause the key on the sprocket to shear. This sprocket has eight teeth, a 5/8 bore with a 3/16 key inside the bore.

Questions and Answers

Questions and Answers

Be the first to ask our experts a question about this part!

Customer Reviews
Average Rating: (1 Review)
5.0
★★★★★
★★★★★
Filter By Rating:
  • 5
    1
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0
    Sort by:
    Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
      Model Compatibility
      This part works with the following models:
      Fix Number: FIX10168640
      Manufacturer Part Number: 285928-00
      Brand
      Model Number
      Description
      DeWALT
      DW733
      Planer Jointer - 12 1/2 inch Planer
      DeWALT
      DW733-B2
      Planer Jointer - Planer
      DeWALT
      DW733-B2C
      Planer Jointer - Planer Thicknesser
      DeWALT
      DW734
      Planer Jointer - 12-1/2 inch Planer
