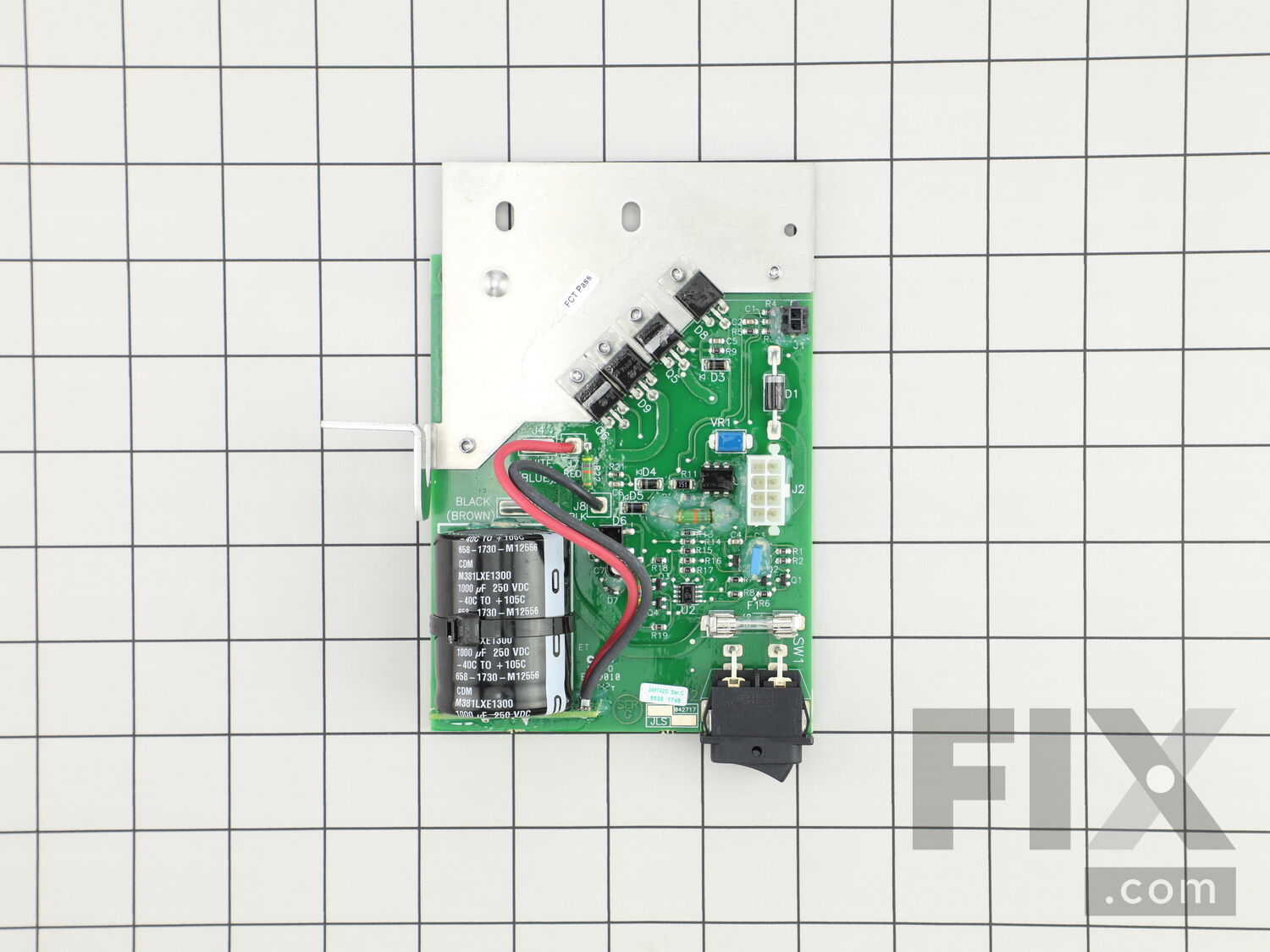

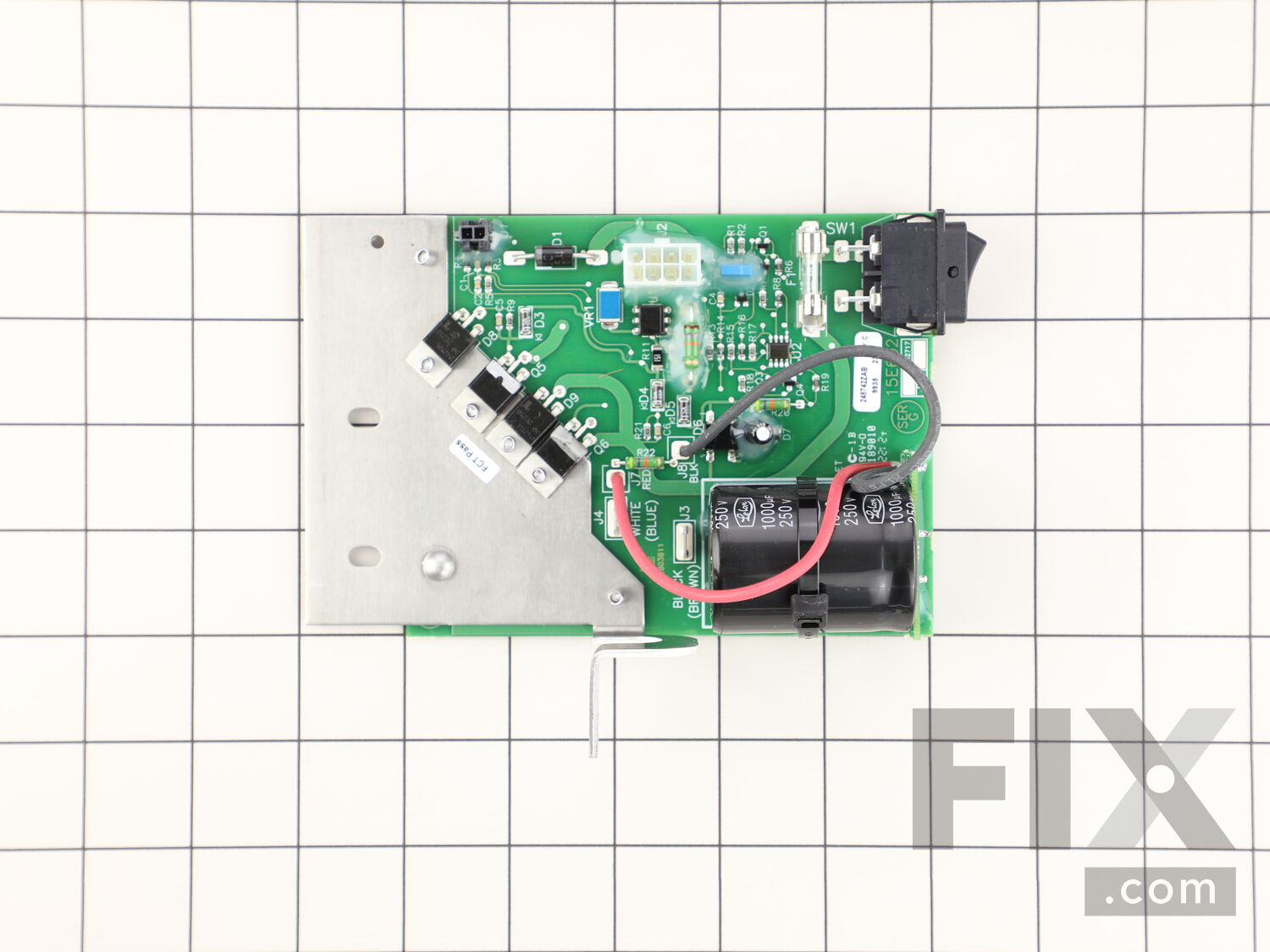

10161654-1-M-Graco-249052-Control Board Kit, 120v
Part Location Diagram of 249052 Graco Control Board Kit, 120v
See part B-18 in the diagram
( Grid squares measure 1x1 inch )
10161654-1-S-Graco-249052-Control Board Kit, 120v 10161654-2-S-Graco-249052-Control Board Kit, 120v Part Location Diagram of 249052 Graco Control Board Kit, 120v

Control Board Kit, 120v 249052

Works With Model 210ES!
$305.90
Special Order
Fix Number:
FIX10161654
Manufacturer #:
249052
Manufactured by:
Graco
Works With Model 210ES!

Jump to:

Product Description

This is a genuine OEM part. The control board kit (120v) is made for use with the Electric Airless Sprayer models. The Graco component is constructed of metal, wiring and plastic, and is fitted into the motor shield kit. The panel is designed to send and receive electrical signals in the device. A wrench is necessary in making the replacement. The control board kit is sold individually.

  • Works with the following brands:
    Graco
  • Works with the following products:
    Paint Sprayer, Sprayer
Works with the following brands:
Graco
Works with the following products
Paint Sprayer, Sprayer

Questions and Answers

Be the first to ask our experts a question about this part!
