10413808-1-M-Max-KN70142-Cylinder Cap Seal Unit
Part Location Diagram of KN70142 Max Cylinder Cap Seal Unit
See part 11 in the diagram

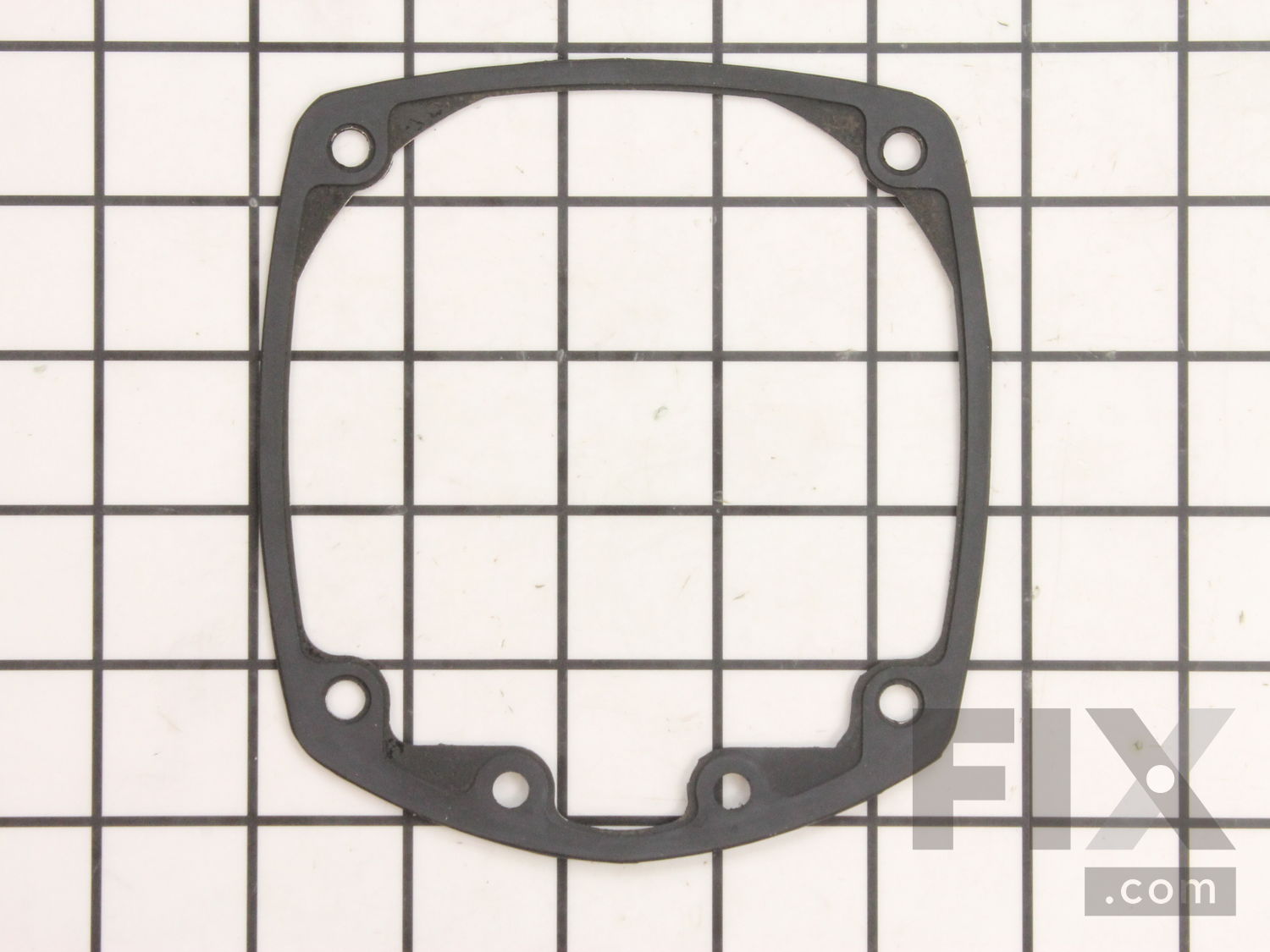

10413808-1-S-Max-KN70142-Cylinder Cap Seal Unit 360 view
( Grid squares measure 1x1 inch )
10413808-1-S-Max-KN70142-Cylinder Cap Seal Unit 10413808-1-S-Max-KN70142-Cylinder Cap Seal Unit 360 view
Part Location Diagram of KN70142 Max Cylinder Cap Seal Unit

Cylinder Cap Seal Unit KN70142

★★★★★
★★★★★
1 Review

Rated by 1 customers

?

Really Easy

Less than 15 mins

Ratings submitted by customers like you who bought this part.

?
$34.97
On Order
Fix Number:
FIX10413808
Manufacturer #:
KN70142
Manufactured by:
Max

Jump to:

Product Description

This is an authentic Max replacement part. The cylinder cap seal is placed between the cylinder cap unit and the fame of the nail gun. This seal helps maintain pressure inside the nail gun while also helping to keep dust, dirt, and jobsite debris out. When this seal starts to wear down it will fail, air will begin to leak from your nail gun and it will no longer be able to drive nails effectively. This cylinder cap seal is sold individually.

  • Works with the following brands:
    Max
  • Works with the following products:
    Nailer
Works with the following brands:
Max
Works with the following products
Nailer

Questions and Answers

Be the first to ask our experts a question about this part!

Affresh Dishwasher Cleaner Tablets - 6
$22.91
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Affresh Washing Machine Cleaner - 3 pack
$20.71
Special Order
Part Number: FIX1960673
This washing machine cleaner includes three time-release tablets designed to remove odor-causing residues, grime, and buildup from high-efficiency and top-load washing machines. The tablets work by cleaning the tub, pump...
Produce Preserver Filter
$18.54
In Stock
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Washing Machine Cleaner Tablets – 6 Count
$28.91
In Stock
Part Number: FIX12345661
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Refrigerator Deodorizer
$32.12
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.
Affresh Ice Machine Cleaner
$27.83
In Stock
Part Number: FIX12583750
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 5.0 / 5.0, 1 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Ryan from GENEVA, FL
Parts Used:
KN70142
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver
The nail gun is over 10 years old and spends most of it's life inside a hot trailer. The seal finally dried out and wouldn't hold pressure.
I unscrewed 4 Allen head screws in the cylinder cap.
Removed the cap and seal.
Discarded the old seal and cleaned the area.
Placed new seal and screwed the cap back on.
Good as new!
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
★ Customer Reviews
Average Rating: (1 Review)
5.0
★★★★★
★★★★★
Filter By Rating:
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Ronnie V - August 29, 2020
Verified Purchase
Perfect fit
Thanks for the prompt service and exact fit for this older nail gun

Model Compatibility

This part works with the following models:
Fix Number: FIX10413808
Manufacturer Part Number: KN70142
Brand Model Number Description
Max CN890F Nailer - Max Cn890f Nailer
Max CN890F2 Nailer - Max Cn890f2 Nailer
Max SN883CH/28 Nailer - Clipped Head Stick Nailer
Max SN883CH/34 Nailer - Clipped Head Stick Nailer
Max SN883CH2-28 Nailer - Max Sn883ch2-28 Nailer
Max SN883RH Nailer - Full Round Head Stick Nailer
Max SN883RH2 Nailer - Full Round Head Stick Nailer
Max SN883RH3 Nailer - Max Sn883rh3 Nailer
Max SN890CH2 Nailer - Max Sn890ch2 Nailer
Max SN890CH2_34_ Nailer - Clipped Head Stick Nailer
Max SN890CH3-34 Nailer - Max Sn890ch3-34 Nailer
