Worm Gear

1 Review
Your Price
$12.34

Fix Number: FIX11748374

Manufacturer #: WPW10112253

Manufactured by: Whirlpool

Get this part fast. Average delivery time via standard shipping: 1.8 days.

Part description

This worm gear is an inch and a half in diameter. It is used for some of Whirlpool's brands of mixers.

Works with the following brands

KitchenAid, Whirlpool, Kenmore

Works with the following products

Mixer

Fixes the following symptoms

Touchpad does not respond

Videos For installing this part.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.1 / 5.0, 16 reviews
>
<
Customer:
Melody from Silverton, CO
Parts Used:
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Stripped the worm gear, fixed bushings
I opened the mixer and determined that the worm gear had failed, as designed, to save the other gears. There was also oil separated from the grease and it needed replaced. The Transmission case gasket was damaged and must have been from the time it was built. I removed the grease with putty knife and kept I on a plastic plate until the parts came in (to determine the amount needed when I replaced it.) I used the punch to remove the two pins needed with light tap from hammer. I left the mixer in pieces on the counter until the parts arrived. I replaced the gear and all other parts and placed fresh grease in the mixer. I had to adjust the beater, too. I had removed one of the bushings by mistake. When mixer was back together it would not start. IT TOOK SOME TIME BUT I FOUND ANOTHER WEB SITE THAT EXPLAINED HOW TO REPLACE THE BUSHING. TAKE A FLASHLIGHT AND LOOK INTO THE SQUARE BRUSH HOLDER. THERE IS A DETANT IN THE HOLDER. THE SHAVED SIDE OF THE BRUSH NEEDS TO SLIP PAST THE DETENT TO BE ABLE TO TOUCH THE AMATURE. Once that was done, it worked great. Very smooth with new gear and grease.
5 of 5 people found these instructions helpful

Were these instructions helpful?

Customer:
Raymond from EAST PEORIA, IL
Parts Used:
  • Worm Gear
Difficulty Level:
Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers
Nylon worm gear had shredded - as disassembling, the pin in worm gear would not come out, had to grind end and
followed youtube vid that was closest
2 of 2 people found these instructions helpful

Were these instructions helpful?

Customer:
James from Shelby Twp, MI
Parts Used:
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Screw drivers
Powers on monentarily at lowest speed. No other speeds work.

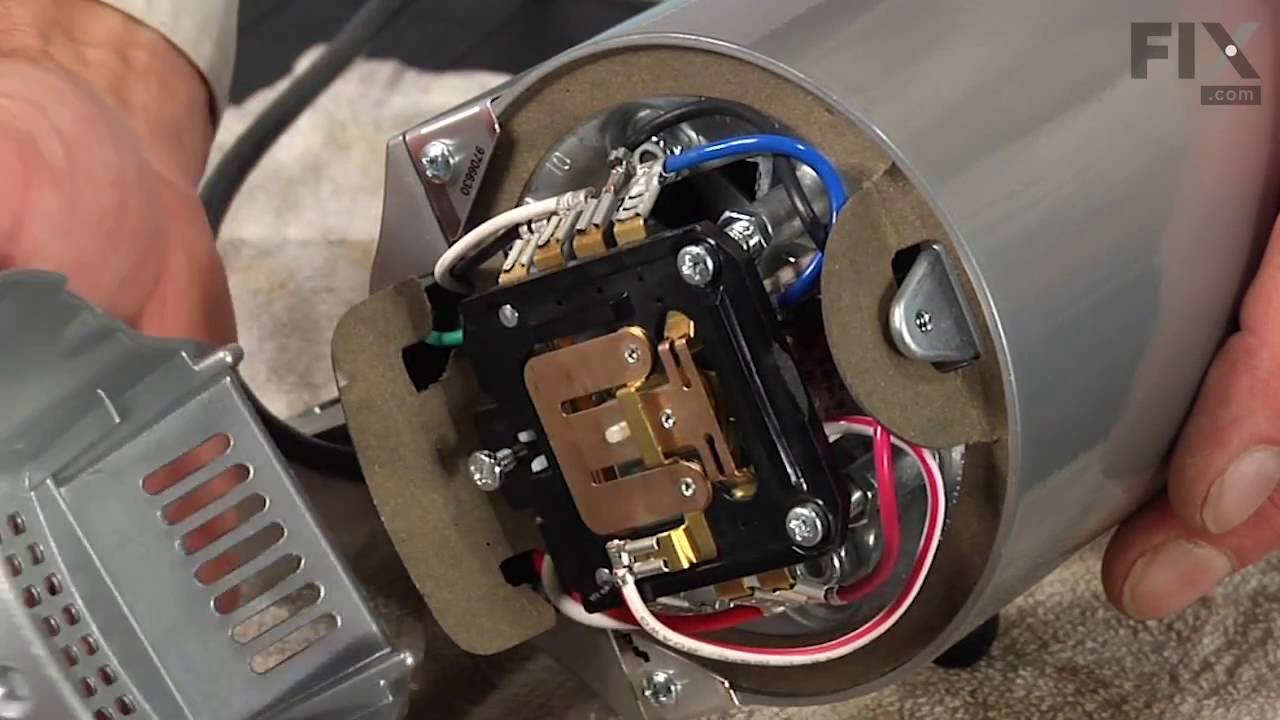

Primary problem was a bad speed control plate (SCP). I removed the rear cap exposing the speed control plate and pressed the adjustment screw while I changed speeds. It started working but saw sparking on the SCP contacts. Decided to first change out the worm gear & grease. 3 oz container of grease is avialable from Amazon. Don't buy the 1# pkg. You'll end up tossing most of it out. Contrary to other posts you must use food-safe grease, in case a leak develops, which was the case here. New control plate arrived damaged but the site replaced it promptly. Plate is labeled with wire colors but hard to read in dim light. Suggest drawing a diagram of the wire colors & placement before disconnecting. Also spent extra time adjusting the 3 screws on the plate so the mixer operated smoothly at all speeds. Rubber foot was much smaller & taller than the others and caused the mixer to rock slightly. Trimmed off the top and it worked fine.
2 of 2 people found these instructions helpful

Were these instructions helpful?

Customer:
James from Windsor, NY
Parts Used:
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Internal worm gear to electric motor stripped
After looking at your sites great exploded views I was able to disassemble the motor assembly. Replaced the brushes and damaged gear assembly . Reassembled Worked great.Wife's china made mixer had diecast internal parts that shattered after her attempt to mix cookie dough. Now with this USA made Kitchen Aid Mixer she can mix concrete with coke bottles and never work hard. Thank You for you great site and delivery ethic. Only wish my Hitachi ex50urg excavator had a parts exploded views as you do. Also Worm gear and bracket had improvements to redirect lube grease to keep improved gear material well lubricated.
2 of 3 people found these instructions helpful

Were these instructions helpful?

Customer:
Gerald R from Reading, OH
Parts Used:
  • Worm Gear
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Screw drivers
KitchenAid stand mixer won't spin broken worm gear
During our seasonal baking our stand mixer quit spinning putting a quick halt to the process. The mixer was only about 9 years old and i figured that it was a goner. I did an internet search and was planning to go to Walmart the next morning and spend $280 on a new model but after looking at the unit and doing a YOUTUBE search I followed some easy directions to take the unit apart and replace the worm gear. The hardest part of fixing the unit is getting to the gear which is caked with grease. Moving the gear grease out of the way is somewhat of a challenge since it is very thick similar to wheel bearing grease on your car. Once i got to the gear and removed it i could see that there were some missing teeth. The gear is made of plastic and designed to give if too much pressure is put on the motor and other gears. It saves the motor from burning out. Again, doing an online search i found that this site had it for under $5 so I ordered it. I had to wait a few days to receive it but once it came in the repair was simple. A failing worm gear is a common problem so I decided to get two gears so next time i will have one on hand for an even quicker fix. Upon reassembly I had to clear some more grease out of the way to tap out the retainer key that held the gear in place. Once done the repair was quick! Do this...it is easy if you have a few tools and a little bit of common sense!
1 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Jeffery from Omega, GA
Parts Used:
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Worm gear had worn the teeth down where the mixer would not turn anymore
Removed the band around the end near where the beaters go, then remove the 4 screws holding the case together, then removed the screw holding the end cap over the motor area, then removed 6 screws from near the beaters area. Next, pulled the case apart to get to the worm gear. Remove 3 screws from the worm gear case, then took a hammer an punch and punched the pin holding the worm gear assembly together out, removed the worm gear and replaced and then did all the first steps in reverse order.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
David from Carnegie, PA
Parts Used:
  • Worm Gear
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers
The "fail safe worm gear" ( yes its ment to fail) to save the motor.
Go to Kitchen Aid mixer on, "You Tube" and watch the video's to get great instructions on all Kitchen Aid Mixers
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Neil from pittsburgh, PA
Parts Used:
  • Worm Gear
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
The gear was stripped.
I used the videos online. They helped a lot
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Carroll from Willisville, AR
Parts Used:
  • Worm Gear
Difficulty Level:
Very Easy
Total Repair Time:
1- 2 hours
Tools:
Screw drivers
Knob fell out of attachment plug, destroyed the worm gear
Removed lower gear box removed top of mixer, replaced worm gear and followed the video and completed the job. Video was a great helpful tool.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Ed from Evansville, IN
Parts Used:
  • Worm Gear
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Stripped worm gear
Followed youtube video. R&R stripped worm gear
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Robert from Las Cruces, NM
Parts Used:
  • Worm Gear
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Mixer stopped turning
I used the video. it was excellent. My mixer has a fixed head (the bowl moves up and down). The only difference from the video was that there are four screws that hold the mixer to the stan that must be removed to get to the back two screws that hold the cover on the gear system that turns the mixer blades. You also need to be aware that there is a huge amount of grease in the gear system that has to be removed and put into the cover and put back onto the gear system before reassembling the cover.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Dennis from Prescott, AZ
Parts Used:
  • Worm Gear
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Stripped plastic gear on bearing assembly
The parts ordered were cost effective and shipped quickly. Installation was easy. My concern is with the Kitchen Aid manufacturer, all other gearing in the mixer are made of metal and this one gear is plastic which I have had to replace before. This is overall a good machine with the exception of this one cheap plastic gear.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Gerald from Mesa, AZ
Parts Used:
  • Worm Gear
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Motor ran but beaters did not turn
Searched YouTube and found the solution and instructions how to replace the worm gear. Told me how to order the part from this site . Placed the order, the part arrived the next day. Replaced the worm gear and had it back together in 15 minutes. One of the easiest repairs I've ever made. I generally don't believe in "Peice of Cake" but this was a peice of cake.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Constance from Jackson, MI
Parts Used:
  • Worm Gear
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Over a period of years, stress on the lower gears finally stripped
Took apart the mixer, found the gear that was damaged, found it on the computer at your site and also found the video...the video was very helpful for after the part arrived. It would have been even more helpful to have found it before we identified the part, but of course, that doesn't happen.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Carl from Anchorage, AK
Parts Used:
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Worm gear had been stripped
Set up my computer on the table, followed the directions on the video, pausing at each step along the way. Even though the model in the video wasn't the same as mine, it was very easy to follow.
0 of 1 people found these instructions helpful

Were these instructions helpful?

>
<
