10188024-1-M-DeWALT-N078040SV-Field
Part Location Diagram of N078040SV DeWALT Field
See part 2 in the diagram

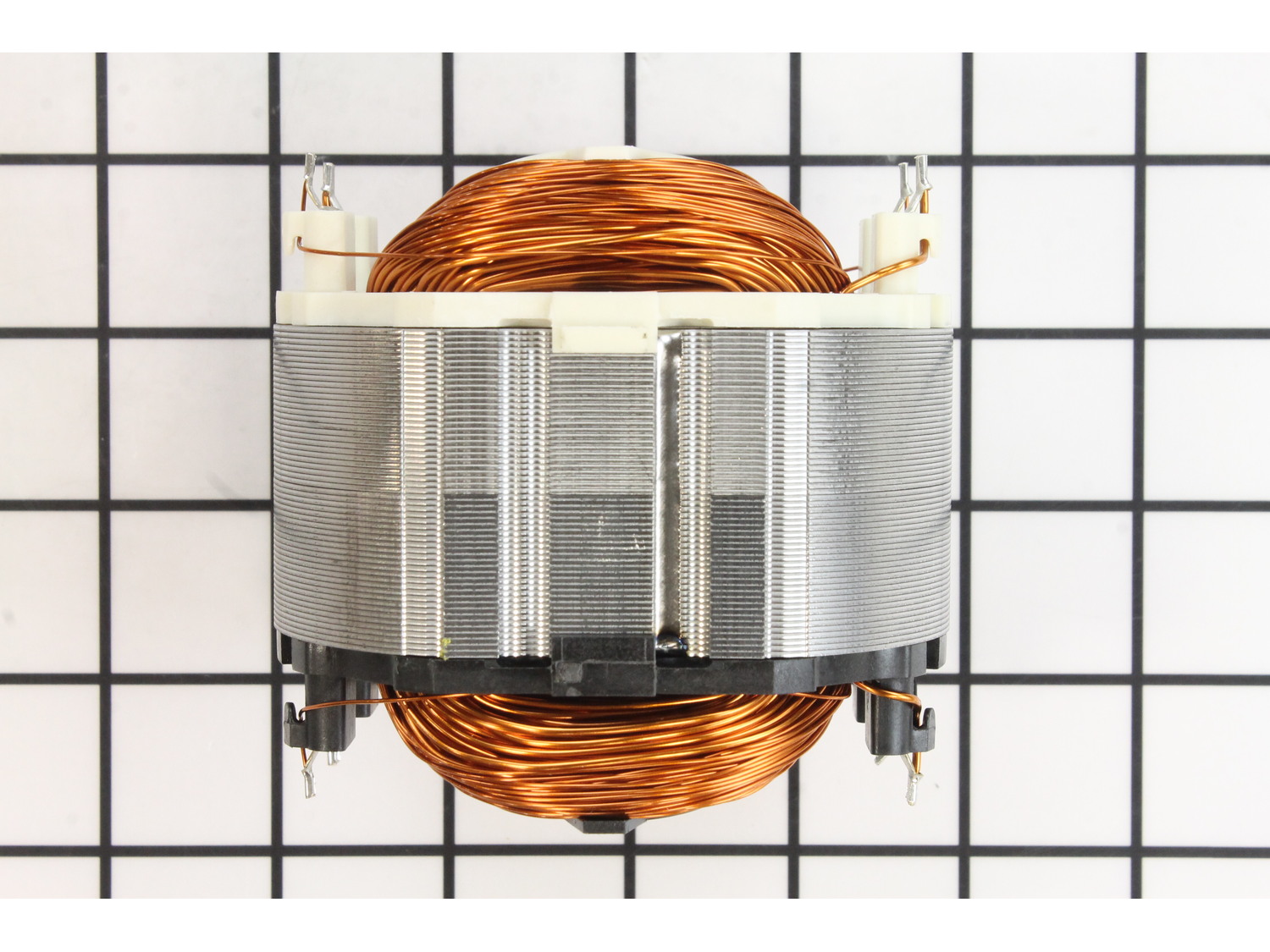

10188024-1-S-DeWALT-N078040SV-Field 360 view
( Grid squares measure 1x1 inch )
10188024-1-S-DeWALT-N078040SV-Field 10188024-1-S-DeWALT-N078040SV-Field 360 view
Part Location Diagram of N078040SV DeWALT Field

Field N078040SV

$ 45.95
No Longer Available

No Longer Available

Sorry, this part is No Longer Available at Fix.com, which means:

  • The part is no longer sold by the manufacturer.
  • The manufacturer does not stock any substitute parts to replace this one and therefore, unfortunately, we cannot obtain or recommend a substitution for this part.
  • We cannot obtain the part through any other means.

Our call center and online agents are, unfortunately, unable to help you locate this part, but you may still be able to find the part elsewhere. We recommend:

  • Typing your part number into a search engine and checking to see whether another company might stock it.
  • Searching online stores like eBay for your part number.
  • Visiting a local appliance store or parts dealer to see if they have this part in stock.
  • Contacting a local technician, who may be able to repair your existing part or replace it with their own solution.
  • Contacting the manufacturer of your appliance directly to check for their recommendations.
Fix Number:
FIX10188024
Manufacturer #:
N078040SV
Manufactured by:
DeWALT

Product Description

This replacement field is specially designed for use with Bosch miter/circular saws. In conjunction with an armature it is what drives the unit. A field is usually damaged by overloading the power tool, or because of a bad armature. It is highly recommended to replace both carbon brushes when replacing a field. This item is sold individually. To complete this repair you would need a screwdriver. • Make sure the saw is unplugged • Remove brush covers and take out brushes • Remove the cap and the housing screws • Once the housing is removed you will have access to the field • Disconnect all wires leading from the field • Take out old field and replace it with a new one • Re-connect all the wires • Re-assemble the motor

  • Works with the following brands:
    DeWALT, Black and Decker, Craftsman
  • Works with the following products:
    Miter Saw, Circular Saw
  • Part# N078040SV replaces these:
    N078040SV
