10166115-1-M-DeWALT-146723-01-Baffle,fan
Part Location Diagram of 146723-01 DeWALT Baffle,fan
See part 11 in the diagram
10166115-1-S-DeWALT-146723-01-Baffle,fan 360 view

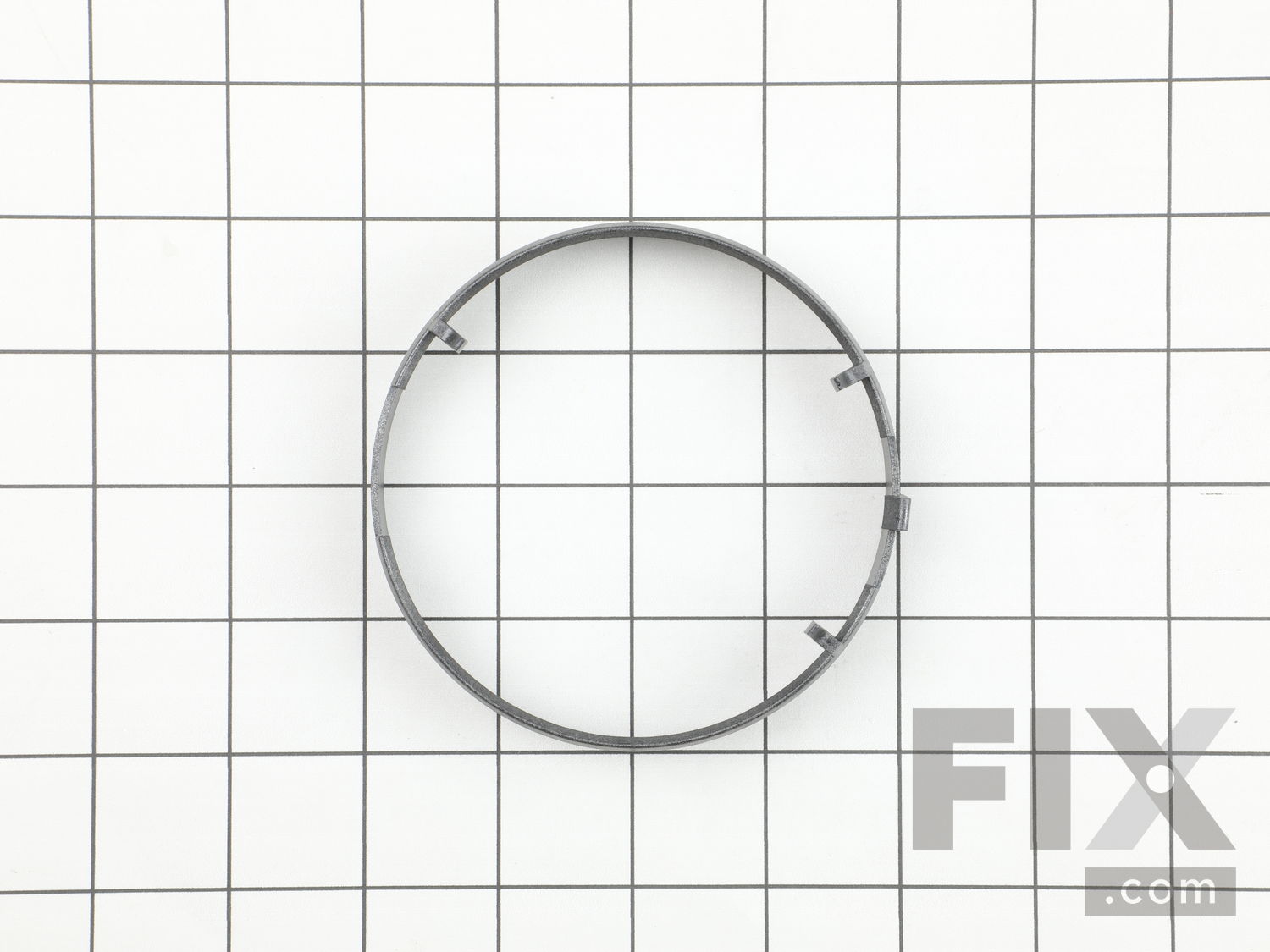

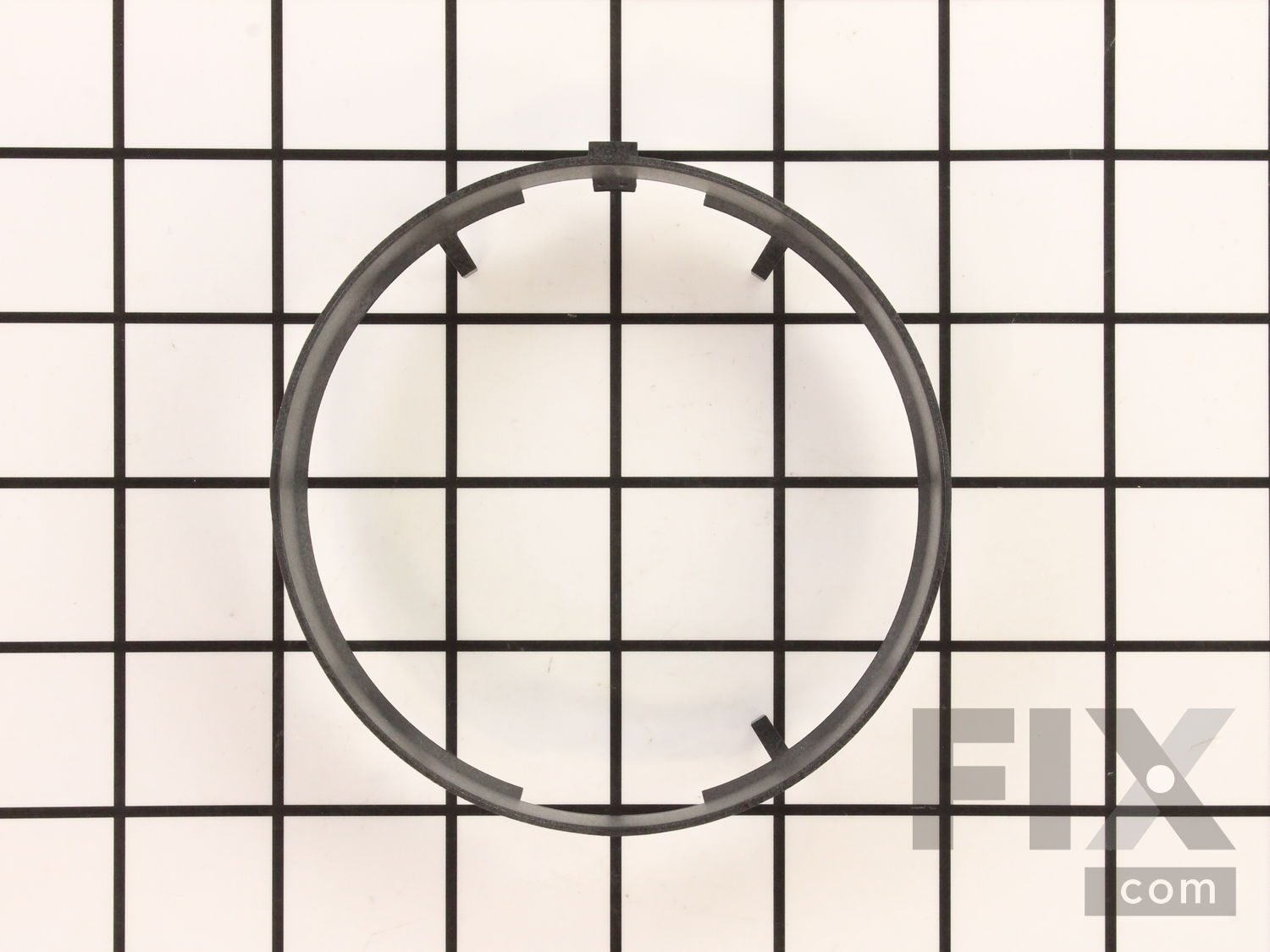

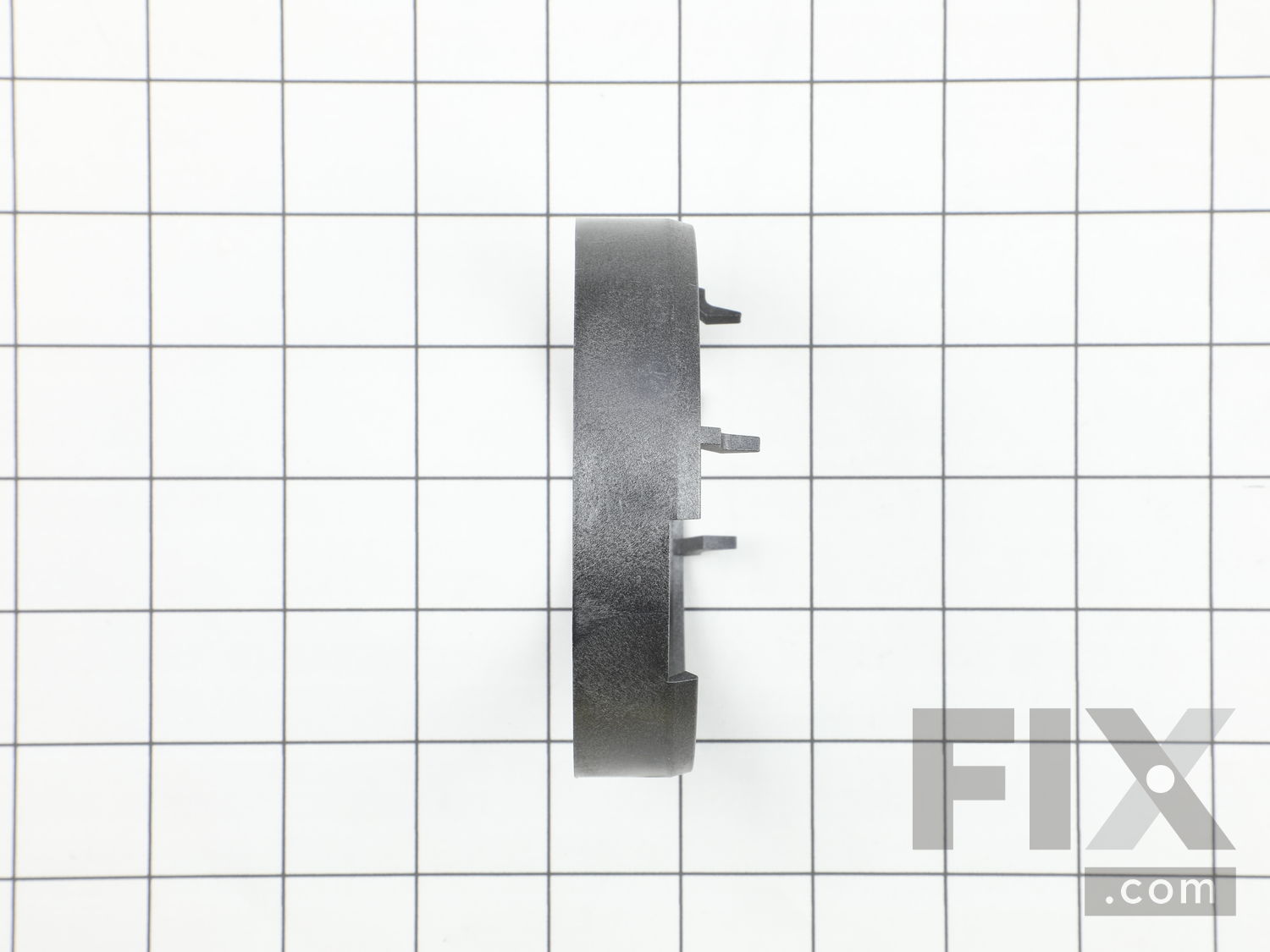

( Grid squares measure 1x1 inch )
10166115-1-S-DeWALT-146723-01-Baffle,fan 10166115-2-S-DeWALT-146723-01-Baffle,fan 10166115-3-S-DeWALT-146723-01-Baffle,fan 10166115-1-S-DeWALT-146723-01-Baffle,fan 360 view
Part Location Diagram of 146723-01 DeWALT Baffle,fan

Baffle,fan 146723-01

Works With Model DW705!
$6.51
In Stock
Fix Number:
FIX10166115
Manufacturer #:
146723-01
Manufactured by:
DeWALT
Works With Model DW705!

Jump to:

Product Description

It is a genuine item that is supplied by the original equipment manufacturer for use with DeWALT and Black and Decker compound miter saws. The baffle helps to cover the fan and direct the airflow, please make sure to refer to the appropriate diagrams of your model for the correct location and application of this component. it is an identical replacement for a missing or a damaged part that was originally installed on a new unit. Keep in mind this high-quality part is made of durable material and is sold individually.

  • Works with the following brands:
    DeWALT, Black and Decker
  • Works with the following products:
    Miter Saw, Table Saw
Works with the following brands:
DeWALT, Black and Decker
Works with the following products
Miter Saw, Table Saw

Questions and Answers

Be the first to ask our experts a question about this part!

Affresh Washing Machine Cleaner - 3 pack
$19.75
Special Order
Part Number: FIX1960673
This washing machine cleaner includes three time-release tablets designed to remove odor-causing residues, grime, and buildup from high-efficiency and top-load washing machines. The tablets work by cleaning the tub, pump...
Produce Preserver Filter
$18.54
In Stock
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Washing Machine Cleaner Tablets – 6 Count
$28.91
In Stock
Part Number: FIX12345661
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Affresh Dishwasher Cleaner Tablets - 6
$22.91
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Affresh Ice Machine Cleaner
$27.83
In Stock
Part Number: FIX12583750
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...
Refrigerator Deodorizer
$32.12
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.

Model Compatibility

This part works with the following models:
Fix Number: FIX10166115
Manufacturer Part Number: 146723-01
Brand Model Number Description
Black and Decker 3660 Miter Saw - 12 Miter Saw
Black and Decker 3680 Miter Saw - 12 Compound Miter Saw
Black and Decker 3680-46 Miter Saw - Mitre Saw-Austraila
DeWALT D704-04 Miter Saw - DeWalt Miter Saw Model D704-04 (D70404, D704 04) Parts
DeWALT D705-04 Miter Saw - DeWalt Miter Saw Model D705-04 (D70504, D705 04) Parts
DeWALT DW704 Miter Saw - 12 inch Miter Saw
DeWALT DW705 Miter Saw - 12 Inch Miter Saw
DeWALT DW705-220 Miter Saw - 12 inch Miter Saw
DeWALT DW705-35 Miter Saw - 12 Cmpd.Mitersaw-Lat.Amer
DeWALT DW705-44 Miter Saw - 12 Cmpd Mitersaw-Chile
DeWALT DW705-46 Miter Saw - 305mm Comp Mitersaw Nz/Au
DeWALT DW705-AR Miter Saw - 12 Miter Saw
DeWALT DW705-B2 Miter Saw - 12in Compound Miter Saw
DeWALT DW705-B3 Miter Saw - 12in Compound Miter Saw
DeWALT DW705-BR Miter Saw - 12 Miter Saw
DeWALT DW705S Miter Saw - 12 Inch Compound Miter Saw
DeWALT DW705TY5 Saw - Saw
DeWALT DW715 Miter Saw - Miter Saw
DeWALT DW715-AR Miter Saw - 12 Miter Saw
DeWALT DW715-B2 Miter Saw - 12 Miter Saw
DeWALT DW715-BR Miter Saw - 12 Miter Saw
DeWALT DW744 Table Saw - Jobsite Table Saw
DeWALT DW744S Table Saw - Jobsite Table Saw
DeWALT DW744SB Table Saw - Table Saw
