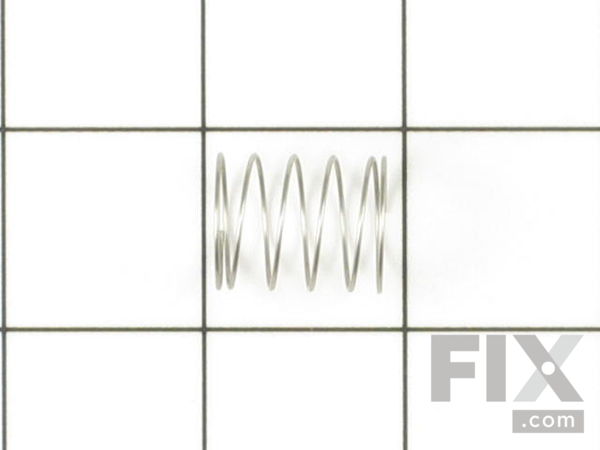

Part Location Diagram of WP8205529 Whirlpool Button Return Spring
See part 4 in the diagram
( Grid squares measure 1x1 inch )
11745274-1-S-Whirlpool-WP8205529-Button Return Spring Part Location Diagram of WP8205529 Whirlpool Button Return Spring

Button Return Spring WP8205529

Rated by 1 customers

?

Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$21.89
Special Order
Fix Number:
FIX11745274
Manufacturer #:
WP8205529
Manufactured by:
Whirlpool

Jump to:

Product Description

This spring is located behind the release button on microwaves.

  • Works with the following brands:
    Whirlpool, KitchenAid, Kenmore, Jenn-Air
  • Works with the following products:
    Microwave, Wall Oven, Microwave Oven Combo
  • Part# WP8205529 replaces these:
    4313631, 8185331, W10872301
Works with the following brands:
Whirlpool, KitchenAid, Kenmore, Jenn-Air
Works with the following products
Microwave, Wall Oven, Microwave Oven Combo
Part Number Cross Reference
Part# WP8205529 replaces these:
4313631, 8185331, W10872301
