Turntable Motor WB26X172
Works With Model JTP86SFS!
$86.38
In Stock
- Fix Number:
- FIX237905
- Manufacturer #:
- WB26X172
- Manufactured by:
- GE
Works With Model JTP86SFS!
Product Description

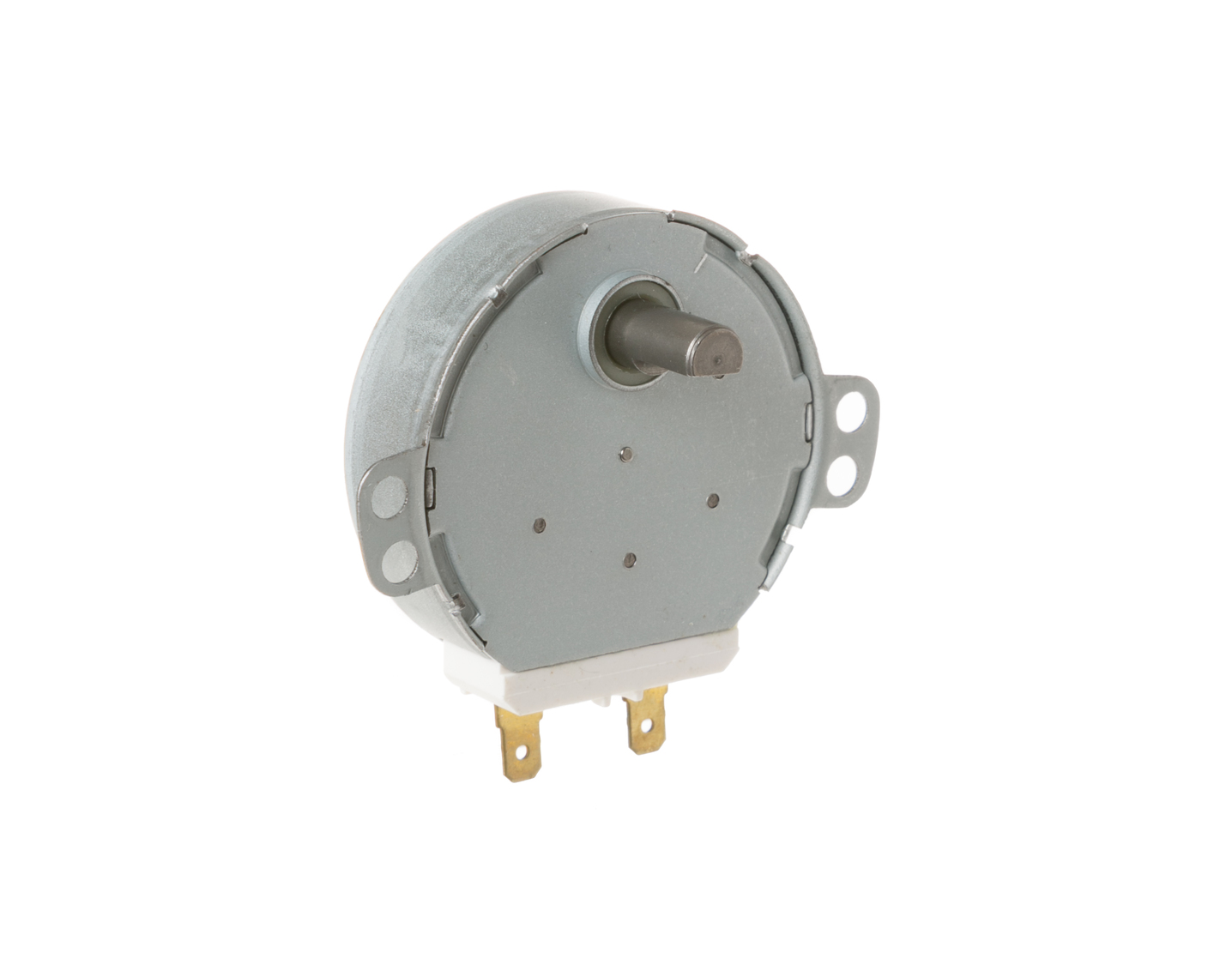

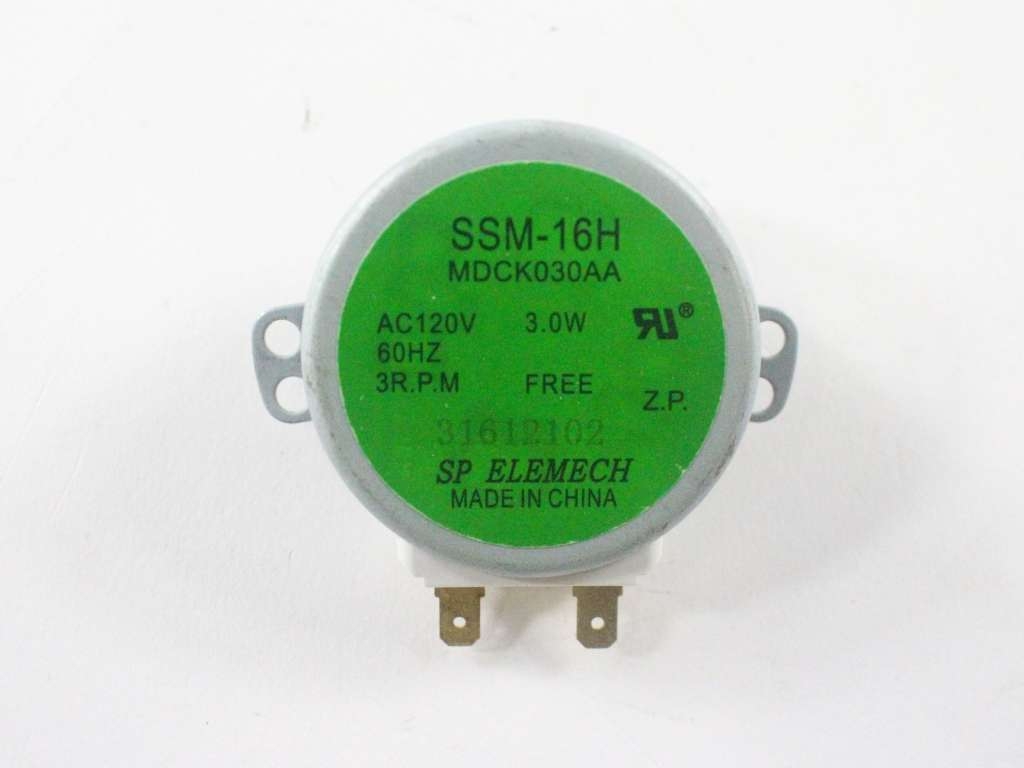

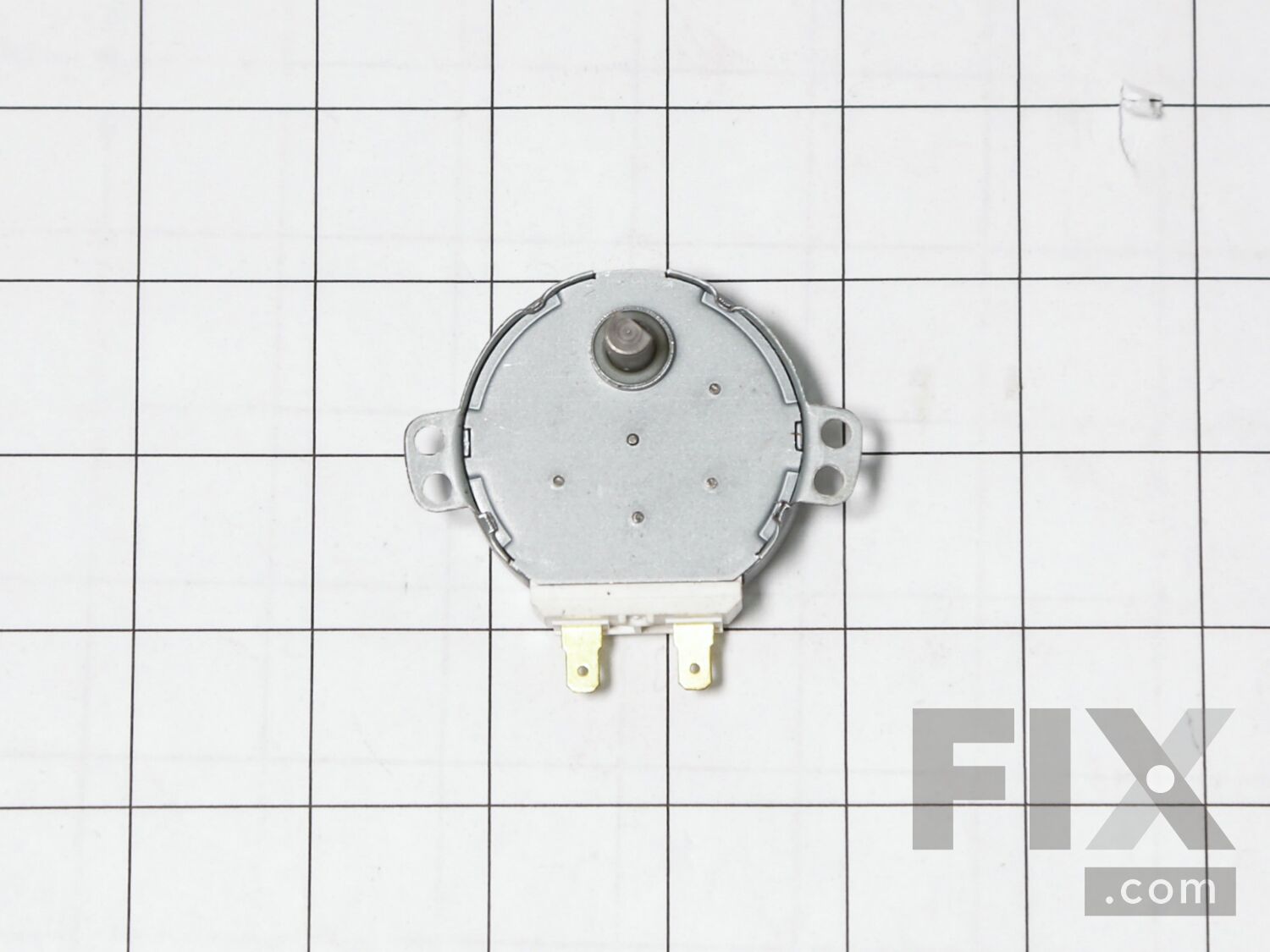

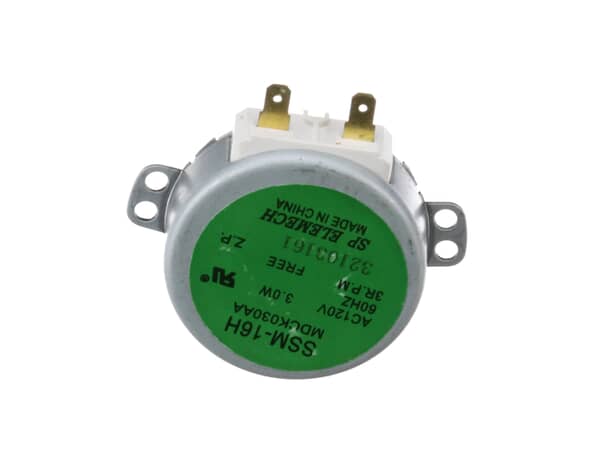

This motor rotates the glass turntable in the microwave.
-
Works with the following brands:General Electric
-
Works with the following products:Microwave, Range
-
Part# WB26X172 replaces these:AP2024904, 254053
- Works with the following brands:
- General Electric
- Works with the following products
- Microwave, Range
- Part# WB26X172 replaces these:
- AP2024904, 254053
Part Number Cross Reference
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
LYNN
September 2, 2022
How do we access the turntable motor on the above model. Also, should we consider the motor being defective if turntable intermittenly turns. The shaft and the part the platter looks okay, not stripped. Assume the grill comes off as I see screws around trim, once trim off is the unit on rails that you can slide unit out to where you can access bottom for motor replacement? Appreciate your input. Thanks, LH
For model number kENMORE 911.47812200

Hello Lynn, thank you for your question. We have researched your model and found that first you need to check the drive block for being worn or cracked, and check the wheel ring, but more often this is a bad motor, part number PS237905. To replace the motor, first unplug the appliance from the electrical outlet or turn the circuit breaker off. You will need to drop the bottom panel down to gain access to the turntable motor. You will have to remove several mounting screws along the bottom of the microwave. Then, lower the bottom panel to access the turntable motor. Remove the wires from the turntable motor. Remove the turntable motor with a Torx bit. Remove the spacer from the old motor to put it on the new motor. Bring the new motor into position and secure it with the screws. Now reattach the wires, and secure the lower panel with the screws. We hope this helps!
Was this helpful?
Thank you for voting!
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Sorry, we couldn't find a match for "".
Here's a guide for finding your model number.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Related Parts Additional or alternate parts to consider.
Model Compatibility
This part works with the following models:
Fix Number: FIX237905
Manufacturer Part Number: WB26X172
Manufacturer Part Number: WB26X172
| Brand | Model Number | Description |
|---|---|---|
| General Electric | GTC0716W01 | Microwave |
| General Electric | GTC0934W001 | Microwave |
| General Electric | GTC0934W002 | Microwave |
| General Electric | GTC0946W01 | Microwave |
| General Electric | GTC1015WC01 | Microwave |
| General Electric | GTC1015WC02 | Microwave |
| General Electric | GTC1134W002 | Microwave |
| General Electric | GTC1134W003 | Microwave |
| General Electric | GTC1134W01 | Microwave |
| General Electric | GTC1146W01 | Microwave |
| General Electric | HGTC1134W001 | Microwave |
| General Electric | HTC0716W01 | Microwave |
| General Electric | HTC0934W001 | Microwave |
| General Electric | HTC0934W002 | Microwave |
| General Electric | HTC0945BC01 | Microwave |
| General Electric | HTC0945WC01 | Microwave |
| General Electric | HTC0946BC01 | Microwave |
| General Electric | HTC0946WC01 | Microwave |
| General Electric | JE1140WNC01 | Microwave |
| General Electric | JE1140WVC001 | Microwave |
| General Electric | JE1140WVC002 | Microwave |
| General Electric | JE1550GWC01 | Microwave |
| General Electric | JE1550WWC01 | Microwave |
| General Electric | JE940GV02 | Microwave - SAMSUNG 0.9 MICROWAVE |
| General Electric | JE940PV02 | Microwave - SAMSUNG 0.9 MICROWAVE |
| General Electric | JE940WNC001 | Microwave |
| General Electric | JE940WV02 | Microwave - SAMSUNG 0.9 MICROWAVE |
| General Electric | JE940WVC001 | Microwave |
| General Electric | JE940WVC002 | Microwave |
| General Electric | JE950WNC001 | Microwave |
