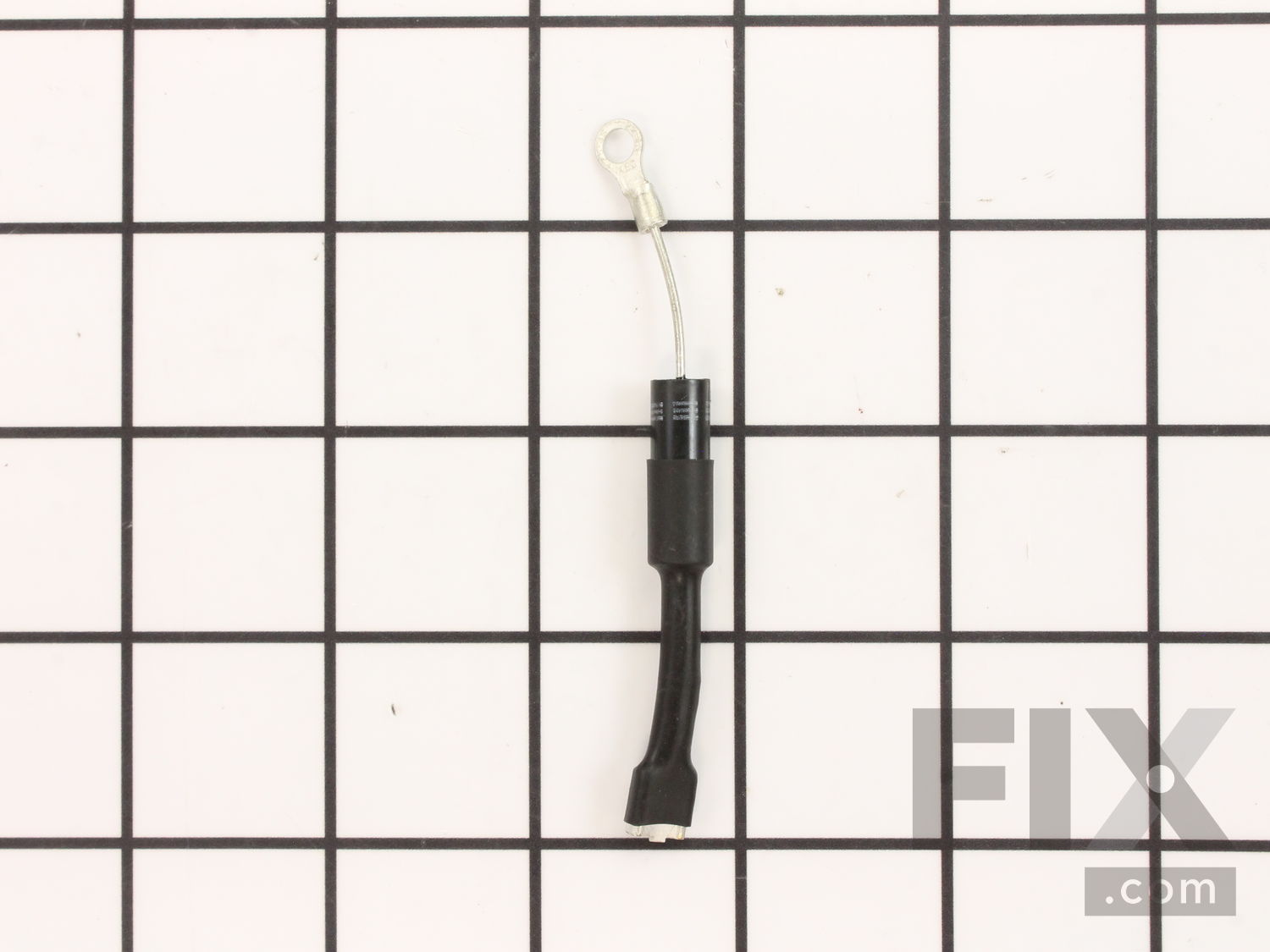

Part Location Diagram of WPR9800486 Whirlpool Black Sleeve Diode
See part 111 in the diagram
( Grid squares measure 1x1 inch )

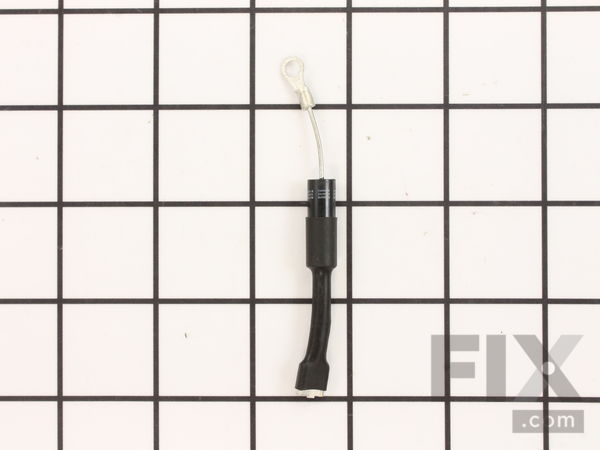

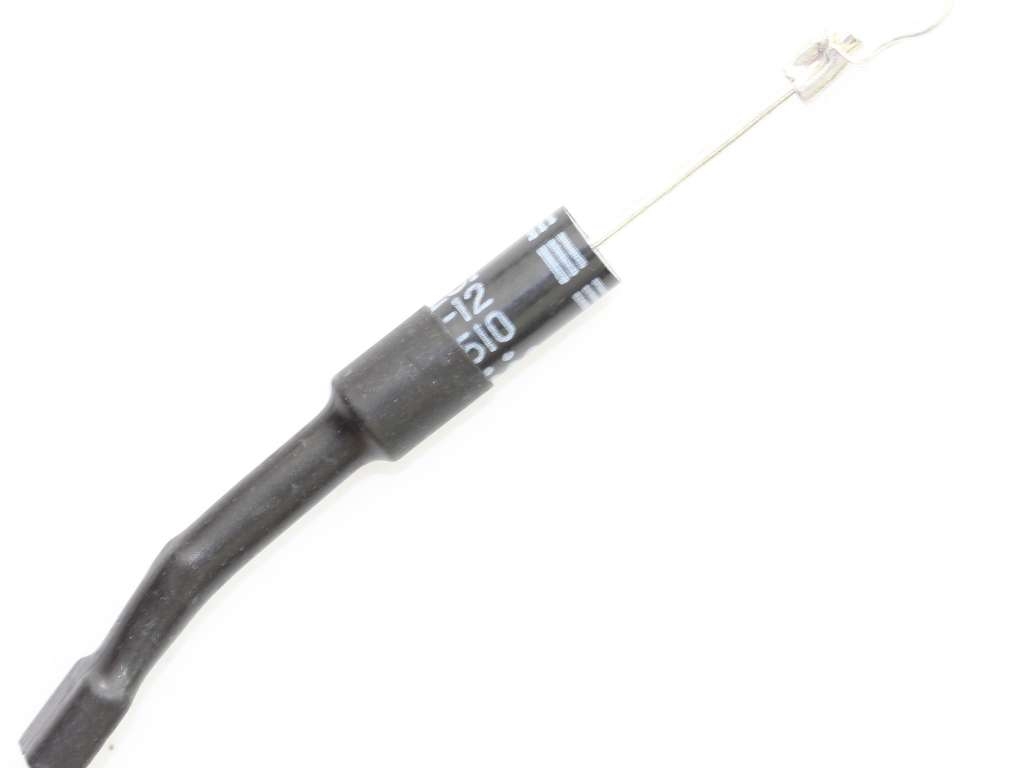

Black Sleeve Diode WPR9800486

Rated by 3 customers

?

Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$31.47
In Stock
Fix Number:
FIX11747959
Manufacturer #:
WPR9800486
Manufactured by:
Whirlpool

Product Description

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Produce Preserver Filter
$21.50
In Stock
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Cooktop Cleaning Cream
$15.57
In Stock
Cooktop Cleaner
$17.74
In Stock
Affresh Cleaner
$19.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.2 / 5.0, 3 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Charles from Fairburn, GA
Parts Used:
WPR9800486
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Microwave died. No noise to indicate it was going bad, just would work off and on till it finally quit
Removed microwave from it's position above the oven. Opened case. Diode right there on the bottom left connected to the case with a screw and the capacitor with a plug. Remove old and install new. Pay attention to which side of the capacitor the diode is attached. I think the left lugs, but make sure. Replace this part before you order th e capacitor. As it said on the web site - this part fixes 99% of the problems. No need for the capacitor unless this diode does not do the job on it's own. Replace covers before testing. It helps to have two people getting the microwave in and out of it's place. Also, you have to bend down the ends of the track the microwaves legs are in, then bend them back when reinstalling the unit. Getting it in and out is the hardest part of the repair. :-)
4 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Barbara from Red Oak, TX
Parts Used:
WPR9800486
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver
Stopped Heating With Loud Humming Noise
Replacement did not solve problem. Per instant repairman, there was a 84% chance of fix. Other web based diagnosis sites pointed at failed magnatron. New microwave is on order now. Peplacment of diode was not difficult once oven was removed from cabinet space. Cover removal and one bracket holding capacitor in place was all that was necessary to replace diode.
2 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
david from peculiar, MO
Parts Used:
WPR9800486
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Wrench (Adjustable)
no heat
replaced black sleeve diode. Did not fix problem
1 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
