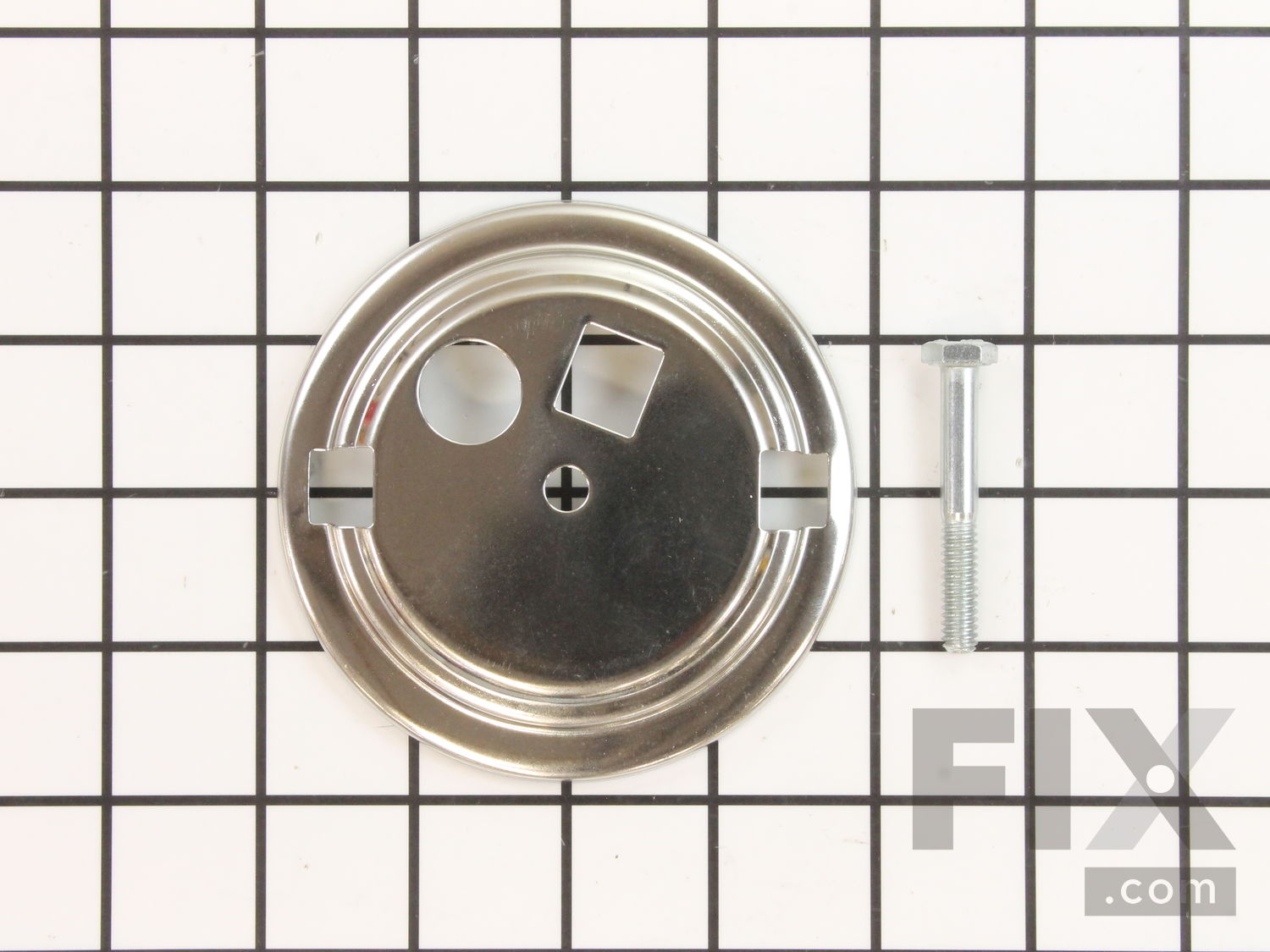

10240929-1-M-Coleman-200B4301-Frame Bottom & Bolt
Part Location Diagram of 200B4301 Coleman Frame Bottom & Bolt
See part A-8 in the diagram
( Grid squares measure 1x1 inch )
10240929-1-S-Coleman-200B4301-Frame Bottom & Bolt Part Location Diagram of 200B4301 Coleman Frame Bottom & Bolt

Frame Bottom & Bolt 200B4301

$ 5.82
No Longer Available

No Longer Available

Sorry, this part is No Longer Available at Fix.com, which means:

  • The part is no longer sold by the manufacturer.
  • The manufacturer does not stock any substitute parts to replace this one and therefore, unfortunately, we cannot obtain or recommend a substitution for this part.
  • We cannot obtain the part through any other means.

Our call center and online agents are, unfortunately, unable to help you locate this part, but you may still be able to find the part elsewhere. We recommend:

  • Typing your part number into a search engine and checking to see whether another company might stock it.
  • Searching online stores like eBay for your part number.
  • Visiting a local appliance store or parts dealer to see if they have this part in stock.
  • Contacting a local technician, who may be able to repair your existing part or replace it with their own solution.
  • Contacting the manufacturer of your appliance directly to check for their recommendations.
Fix Number:
FIX10240929
Manufacturer #:
200B4301
Manufactured by:
Coleman

Product Description

Thi is a Coleman-made replacement kit used with 1-Mantle Gas Lanterns. The Frame Bottom itself has a hole that accommodates the valve assembly shaft. It sits above the Base Rest (Part Number: 200B4891) on top of the fount (the fuel and air tank). It acts as a support that holds the glass globe in place around the mantles. This is a two-piece metal assembly that includes the globe-support base as well as the connection bolt.

  • Works with the following brands:
    Coleman
  • Works with the following products:
    Lighting
