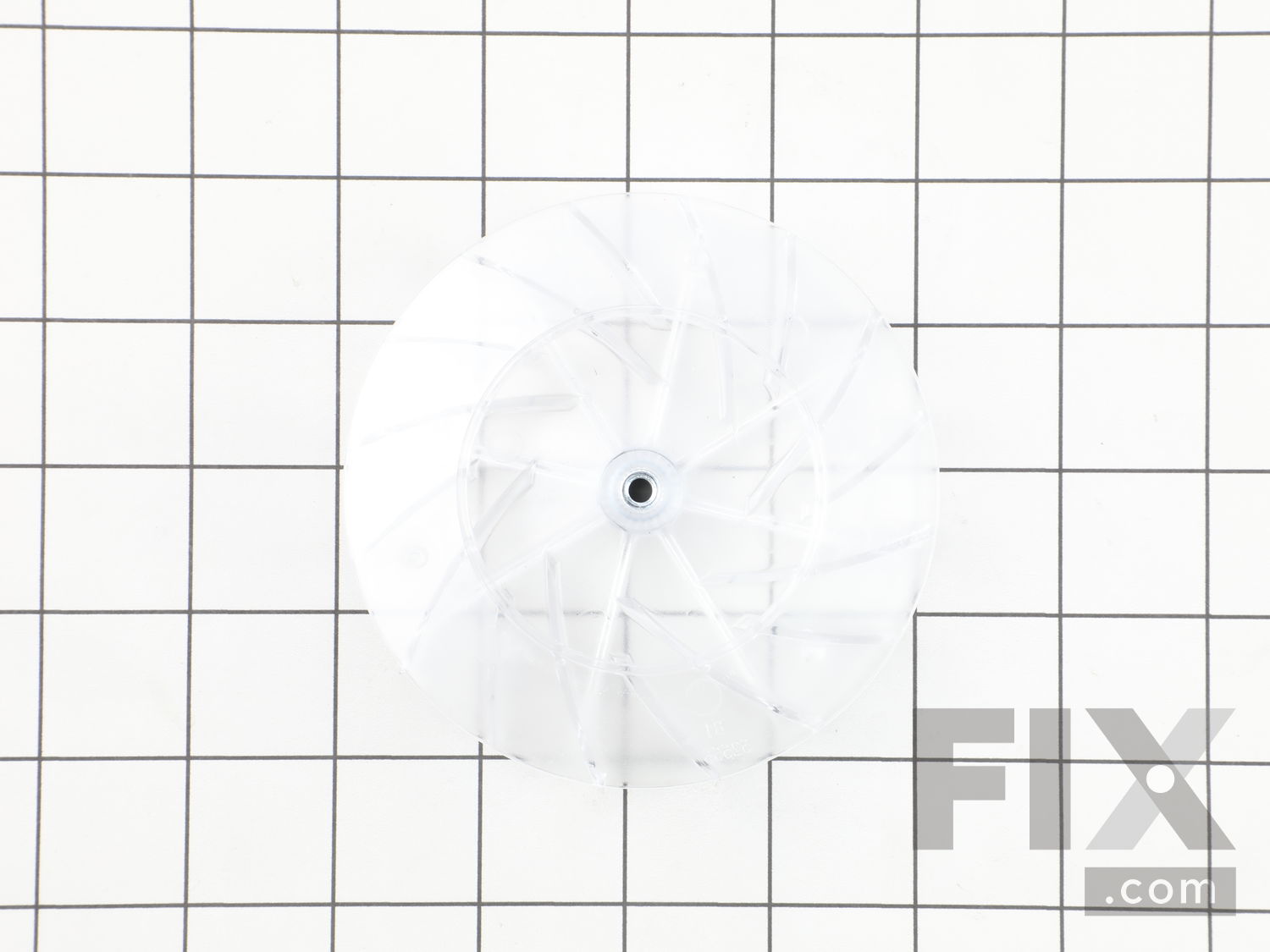

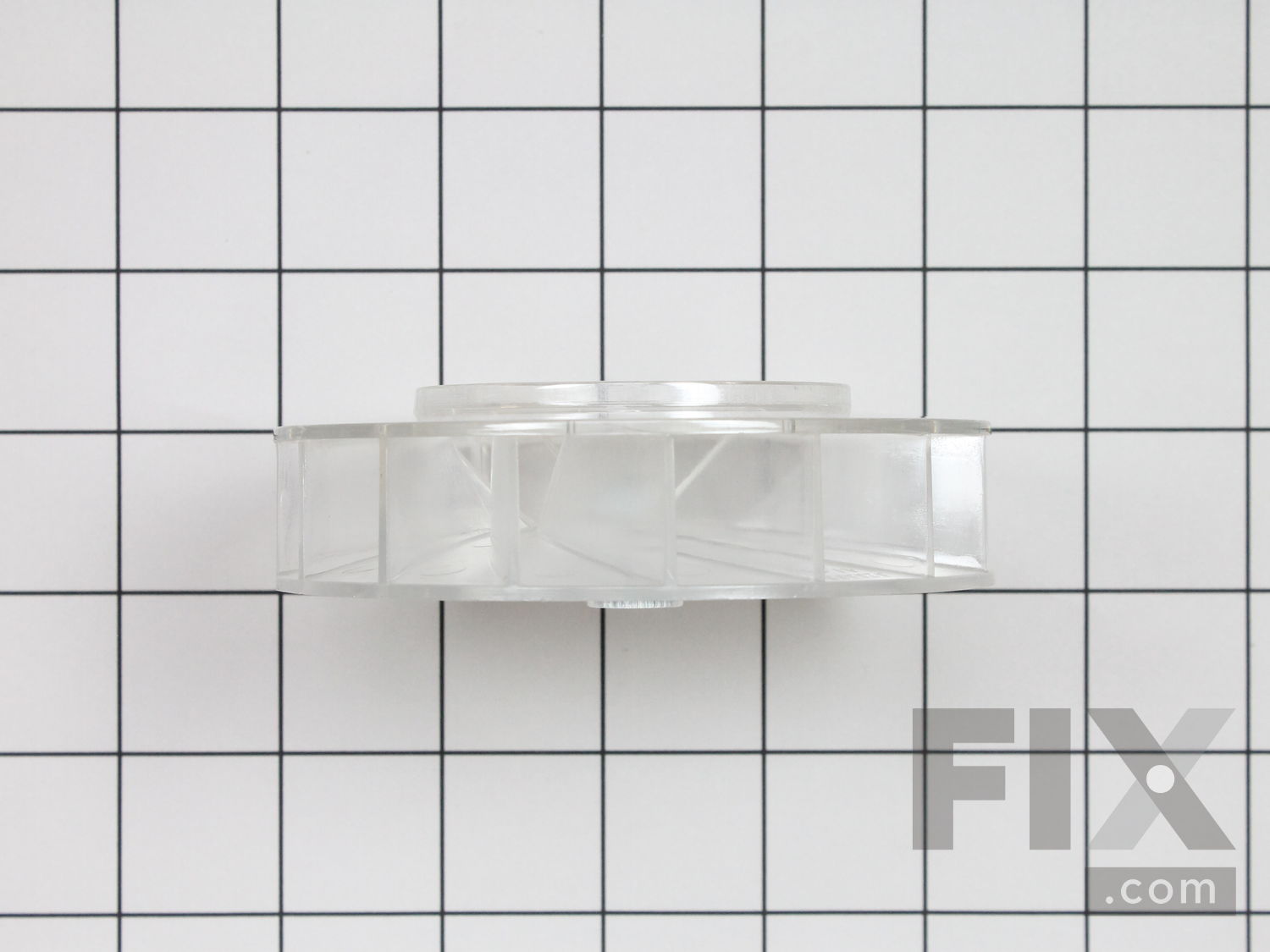

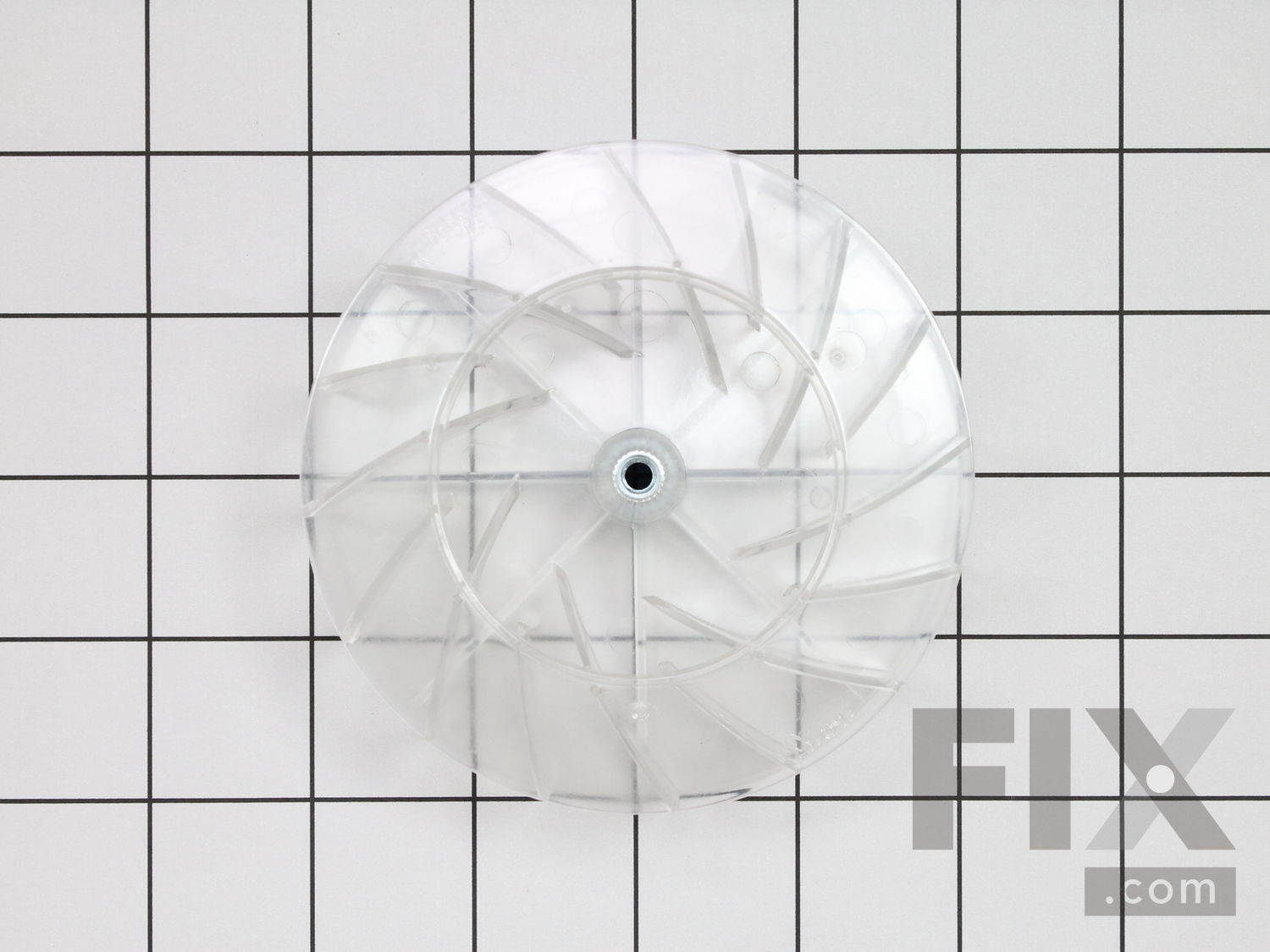

18783717-1-M-Homelite-308164004-IMPELLER ASSEMBLY
Part Location Diagram of 308164004 Homelite IMPELLER ASSEMBLY
See part B-12 in the diagram
( Grid squares measure 1x1 inch )
18783717-1-S-Homelite-308164004-IMPELLER ASSEMBLY 18783717-2-S-Homelite-308164004-IMPELLER ASSEMBLY 18783717-3-S-Homelite-308164004-IMPELLER ASSEMBLY Part Location Diagram of 308164004 Homelite IMPELLER ASSEMBLY

IMPELLER ASSEMBLY 308164004

Works With Model RY40401!

Rated by 1 customers

?

Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$6.73
In Stock
Fix Number:
FIX18783717
Manufacturer #:
308164004
Manufactured by:
Homelite
Works With Model RY40401!

Jump to:

Product Description

  • Works with the following brands:
    Ryobi
  • Works with the following products:
    Leaf Blower / Vacuum
  • Fixes the following symptoms:
    Engine runs but will not blow air
  • Part# 308164004 replaces these:
    308164004
Works with the following brands:
Ryobi
Works with the following products
Leaf Blower / Vacuum
Fixes the following symptoms
Engine runs but will not blow air
Part Number Cross Reference
Part# 308164004 replaces these:
308164004

Questions and Answers

Be the first to ask our experts a question about this part!

Affresh Dishwasher Cleaner Tablets - 6
$22.91
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Affresh Washing Machine Cleaner - 3 pack
$19.75
Special Order
Part Number: FIX1960673
This washing machine cleaner includes three time-release tablets designed to remove odor-causing residues, grime, and buildup from high-efficiency and top-load washing machines. The tablets work by cleaning the tub, pump...
Produce Preserver Filter
$18.54
In Stock
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Washing Machine Cleaner Tablets – 6 Count
$28.91
In Stock
Part Number: FIX12345661
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Refrigerator Deodorizer
$32.12
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.
Affresh Ice Machine Cleaner
$27.83
In Stock
Part Number: FIX12583750
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.3 / 5.0, 1 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
David from CANONSBURG, PA
Parts Used:
308164004
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
While the blower was in use, something got too close to the air inlet, and the impeller took in foreign material that damaged the impeller blades.
Turn the blower on its side, there are approximately (14) T15 Torx screws that are about 1" long that all need to be removed. Some are recessed inside further which requires a T15 driver with approximately 4" of depth to reach them. After all screws are removed, the two outer cases split apart right down the middle. The blower nozzle d oes need to be removed prior to separation, and also there are a few Ryobi factory stickers that will need to be sliced down the middle of them to allow the cases to separate. Once the case is removed, you will see the motor with the impeller attached. The motor can be slid out of its housing far enough to be able to remove the impeller. To remove the impeller, use an adjustable wrench of the end opposite the impeller, there are flat areas on the impeller shaft where an adjustable wrench can be tightened onto to hold it steady. With the adjustable wrench in place, the impeller can easily be removed by unscrewing it from the thread end of the shaft. Be careful because my impeller threads were reverse threaded to allow for the impeller to stay tight. I recommend using permanent strength thread lock on the threads of the shaft prior to tightening it down onto the motor shaft. Pay close attention to install the impeller in the same direction as the old one was removed. After this step, reassemble in reverse order.
Read less
6 of 6 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX18783717
Manufacturer Part Number: 308164004
Brand Model Number Description
Ryobi RY40401 Leaf Blower / Vacuum - Blower
