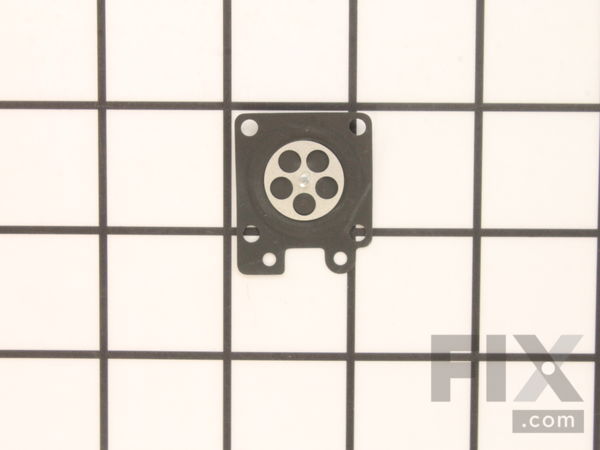

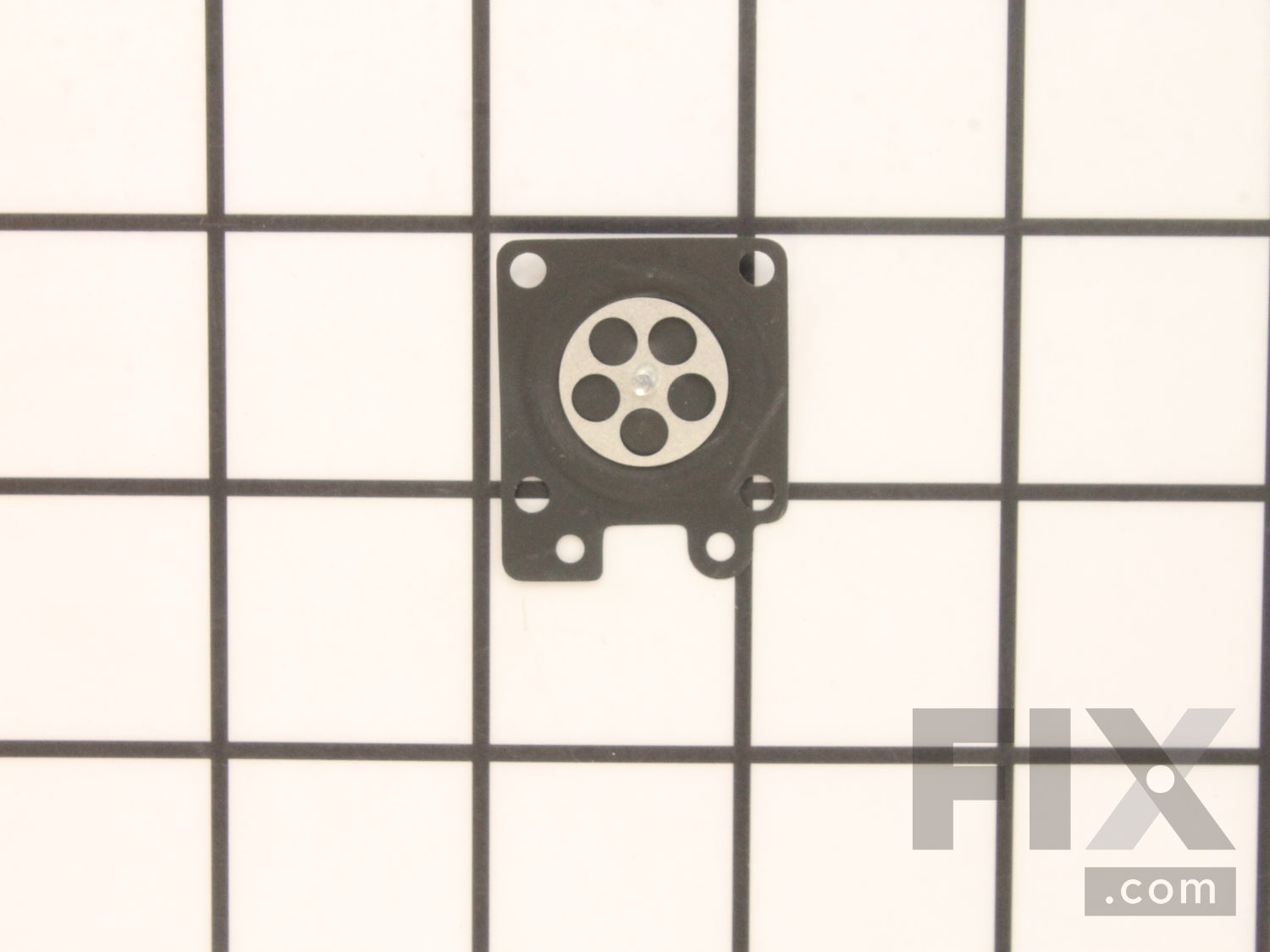

Diaphragm 505306801

Works With Model 143RLL!
$18.65
In Stock
Fix Number:
FIX9000016
Manufacturer #:
505306801
Manufactured by:
Husqvarna
Works With Model 143RLL!

Jump to:

Product Description

This authentic OEM part is specially made for use with Husqvarna and Jonsered handheld lawn and garden equipment. It helps to provide a tight fit between connected components of the carburetor. This is a high-quality replacement for a missing or a damaged diaphragm that was installed on a new unit. Refer to the diagrams for your model to ensure the proper replacement procedure. A wrench set will be needed to perform this repair. Keep in mind this diaphragm is made of durable material and is sold individually.

  • Works with the following brands:
    Husqvarna, RedMax, Jonsered
  • Works with the following products:
    Leaf Blower / Vacuum, Brush Cutter, Chainsaw
  • Part# 505306801 replaces these:
    504643101, 505306801, 511493701, 522648401
Works with the following brands:
Husqvarna, RedMax, Jonsered
Works with the following products
Leaf Blower / Vacuum, Brush Cutter, Chainsaw
Part Number Cross Reference
Part# 505306801 replaces these:
504643101, 505306801, 511493701, 522648401
