Diaphragm Kit 12310103930

$15.60

Fix Number:: FIX8854508
Manufacturer #:: 12310103930
Manufactured by:: Echo

Jump to:

Product Description
Questions and Answers
Related Parts
Model Compatibility

Product Description

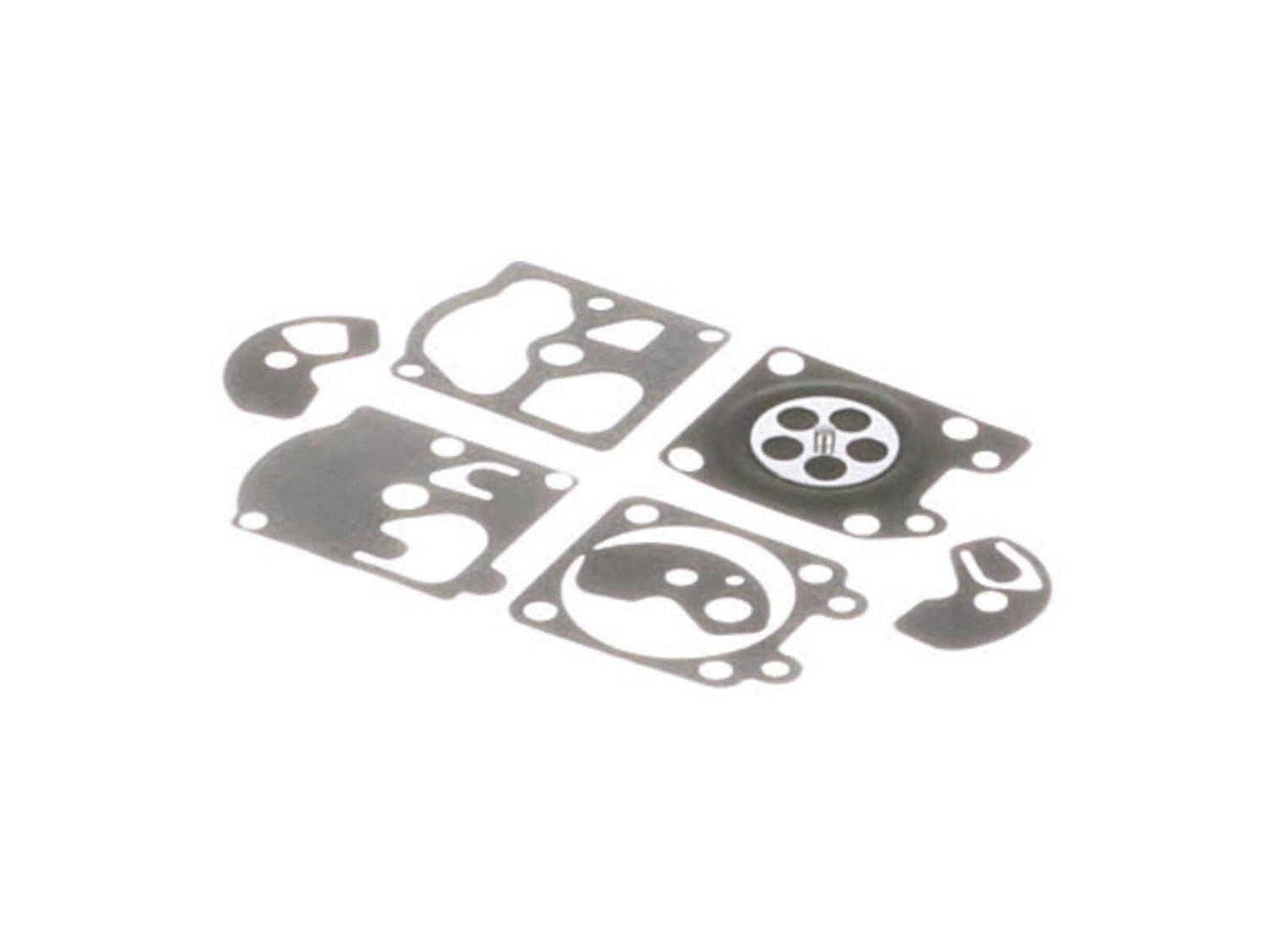

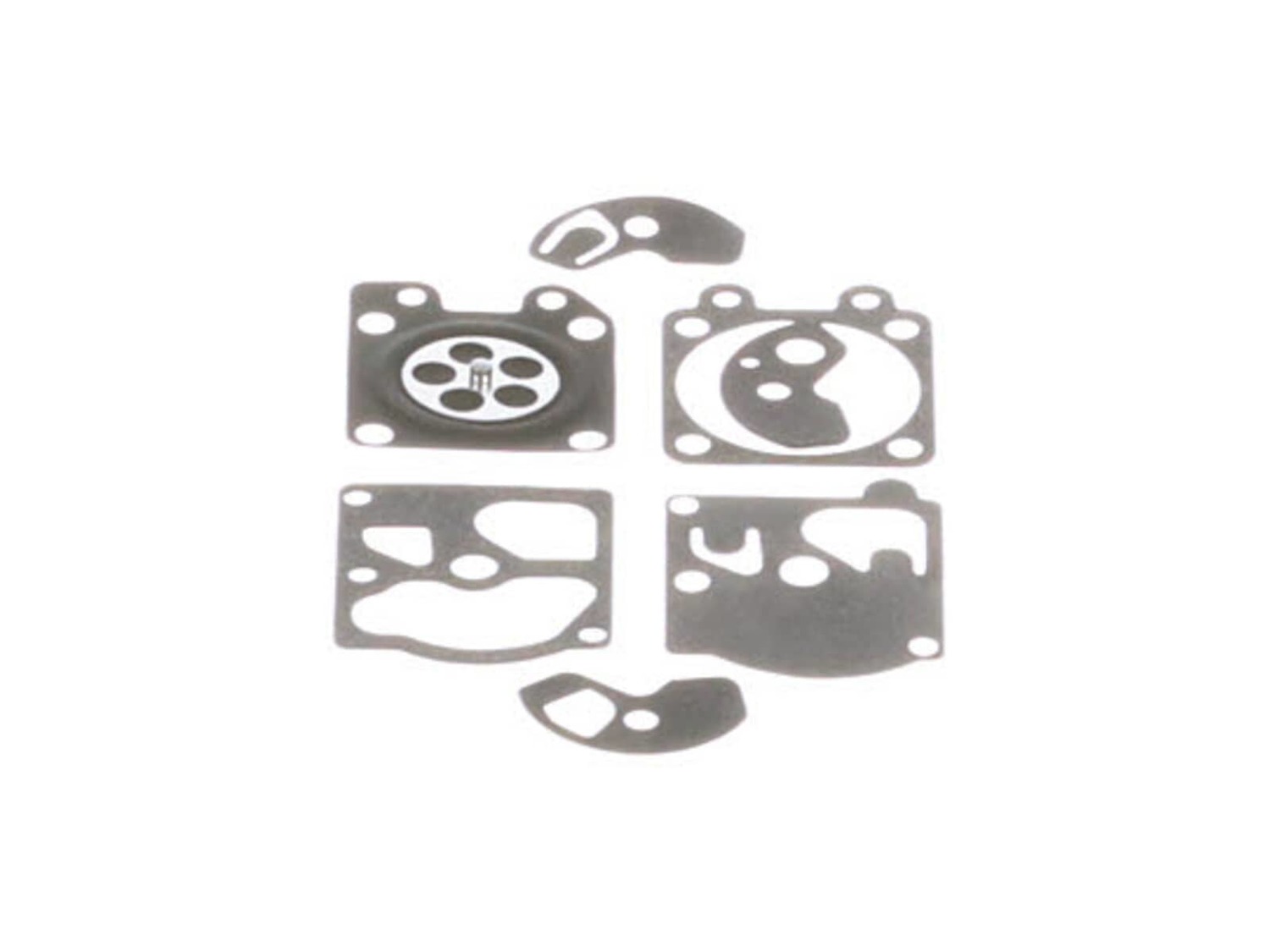

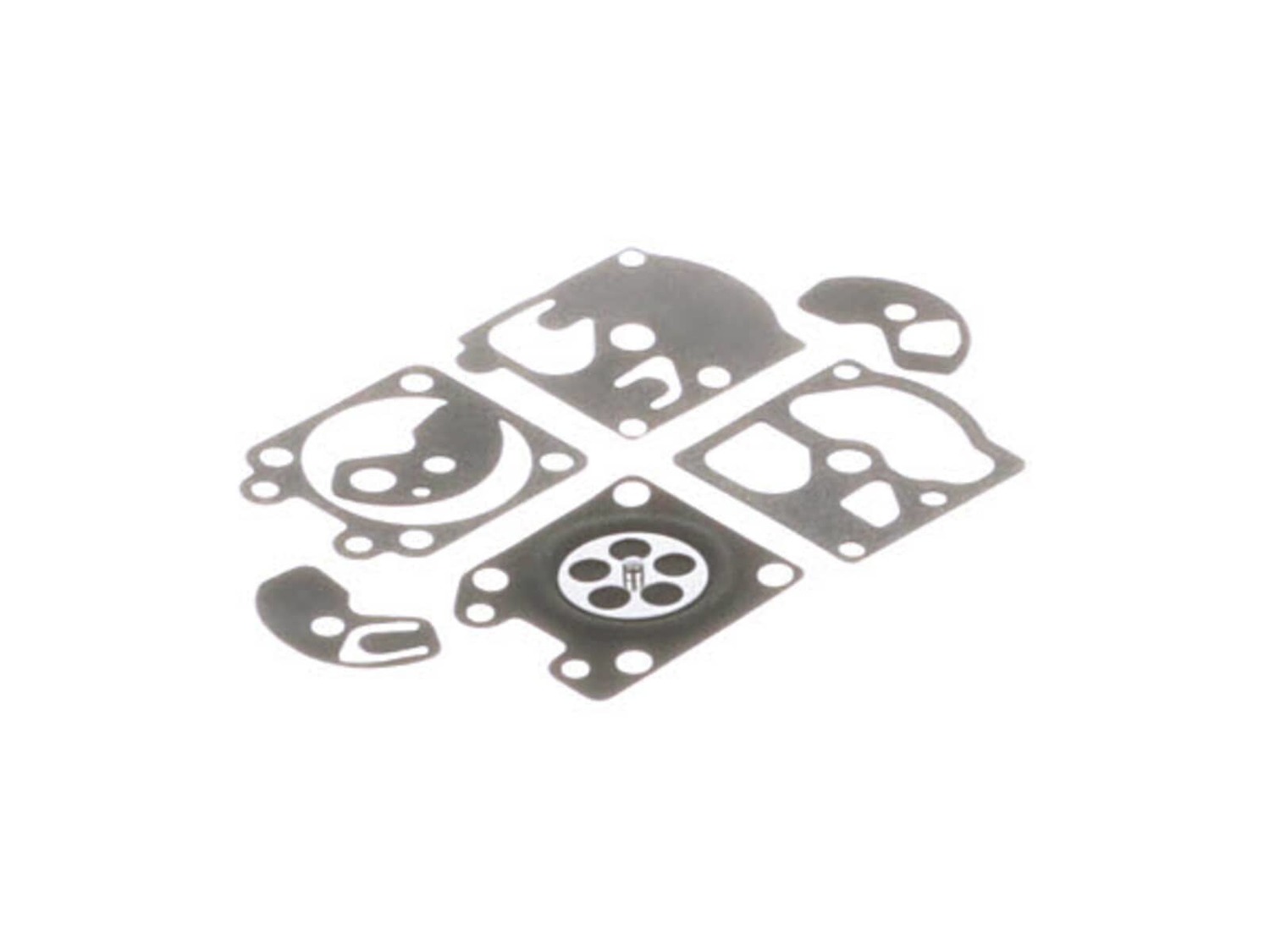

It is a genuine diaphragm kit that is supplied by the original equipment manufacturer for Echo lawn and garden equipment. The components are utilized to provide a tight seal between connected parts. Unfortunately, over time the material tends to wear out and it may begin to crack eventually requiring replacements. This high-quality kit includes all the necessary gaskets and diaphragms needed to repair your carburetor. Please make sure to refer to the appropriate diagrams of your model for the correct location and application of these parts.

Works with the following brands:

Echo
Works with the following products:
Leaf Blower / Vacuum

Works with the following brands:: Echo
Works with the following products: Leaf Blower / Vacuum

Questions and Answers

Be the first to ask our experts a question about this part!

Related Parts Additional or alternate parts to consider.

Fuel Pipe Kit

$7.98

Affresh Dishwasher Cleaner Tablets - 6

$22.91

Affresh Washing Machine Cleaner - 3 pack

$19.75

Produce Preserver Filter

$18.54

Affresh Washing Machine Cleaner Tablets – 6 Count

$28.91

Refrigerator Deodorizer

$32.12

Affresh Ice Machine Cleaner

$27.83

View Less

Model Compatibility

This part works with the following models:

Fix Number: FIX8854508
Manufacturer Part Number: 12310103930

Brand	Model Number	Description
Echo	CS-370	Chainsaw - Chainsaw
Echo	GT-140	Trimmer - Curved Shaft Grass Trimmer
Echo	HC-140	Hedge Trimmer - Hedge Clipper
Echo	HC-151I	Hedge Trimmer - Hedge Clipper
Echo	HC-160	Hedge Trimmer - Hedge Clipper
Echo	HC-160A	Hedge Trimmer - Hedge Clipper
Echo	KE-140DA	Trimmer - Curved Shaft Grass Trimmer
Echo	LBB-4000	Leaf Blower / Vacuum - Lesco LBB-4000 (After S/N 001001)
Echo	PB-200	Leaf Blower / Vacuum - Handheld
Echo	PB-400	Leaf Blower / Vacuum - Backpack Blower
Echo	PB-400E	Leaf Blower / Vacuum - Backpack Blower
Echo	PB-410	Leaf Blower / Vacuum - Backpack Blower
Echo	PB-411	Leaf Blower / Vacuum - Backpack Blower
Echo	SRM-140	Trimmer - String Trimmer
Echo	SRM-140DA	Trimmer - Curved Shaft Trimmer / Brushcutter
