9172450-1-M-Toro-93-0317-Deflector Asm
Part Location Diagram of 93-0317 Toro Deflector Asm
See part Z-2 in the diagram

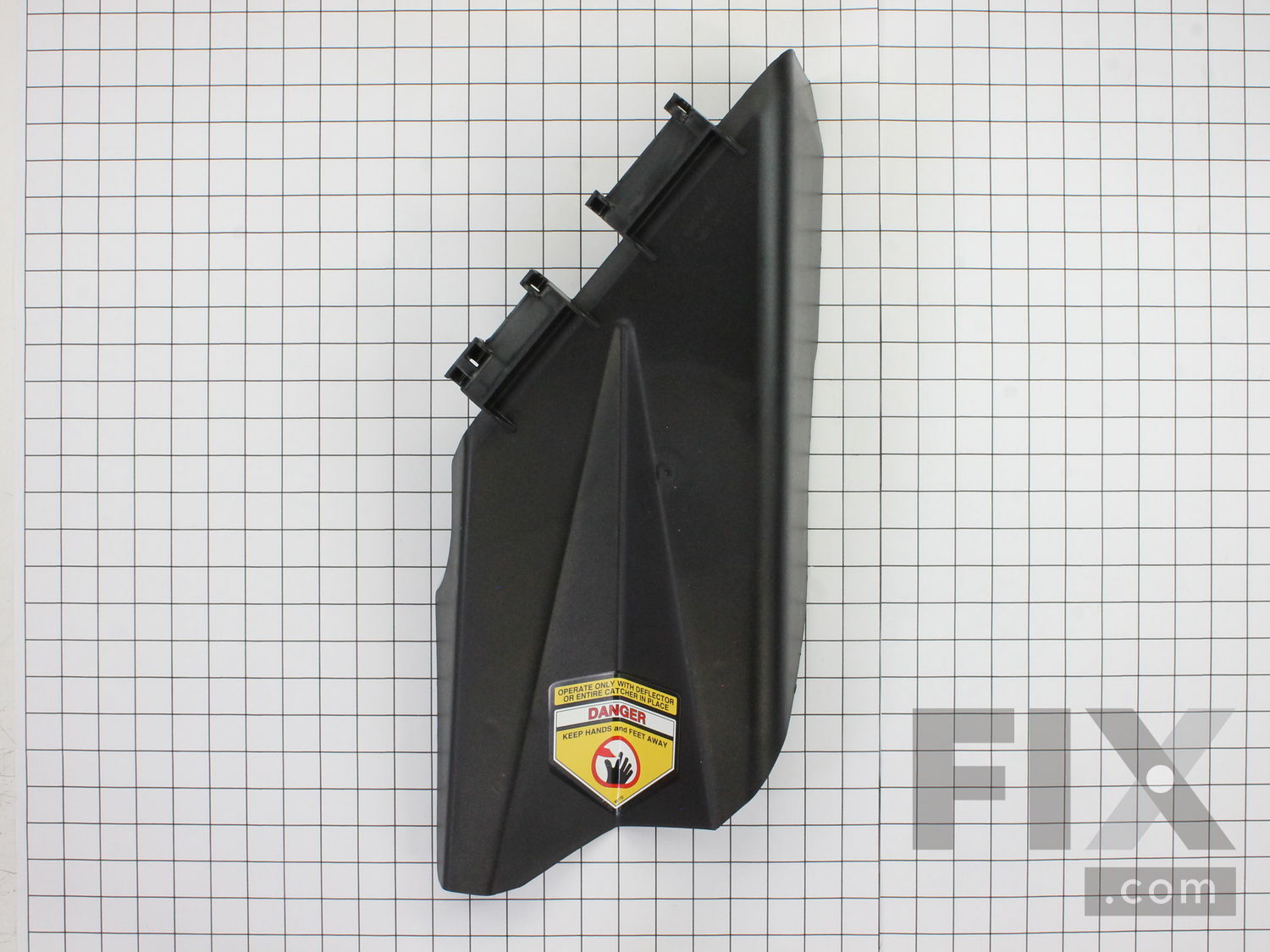

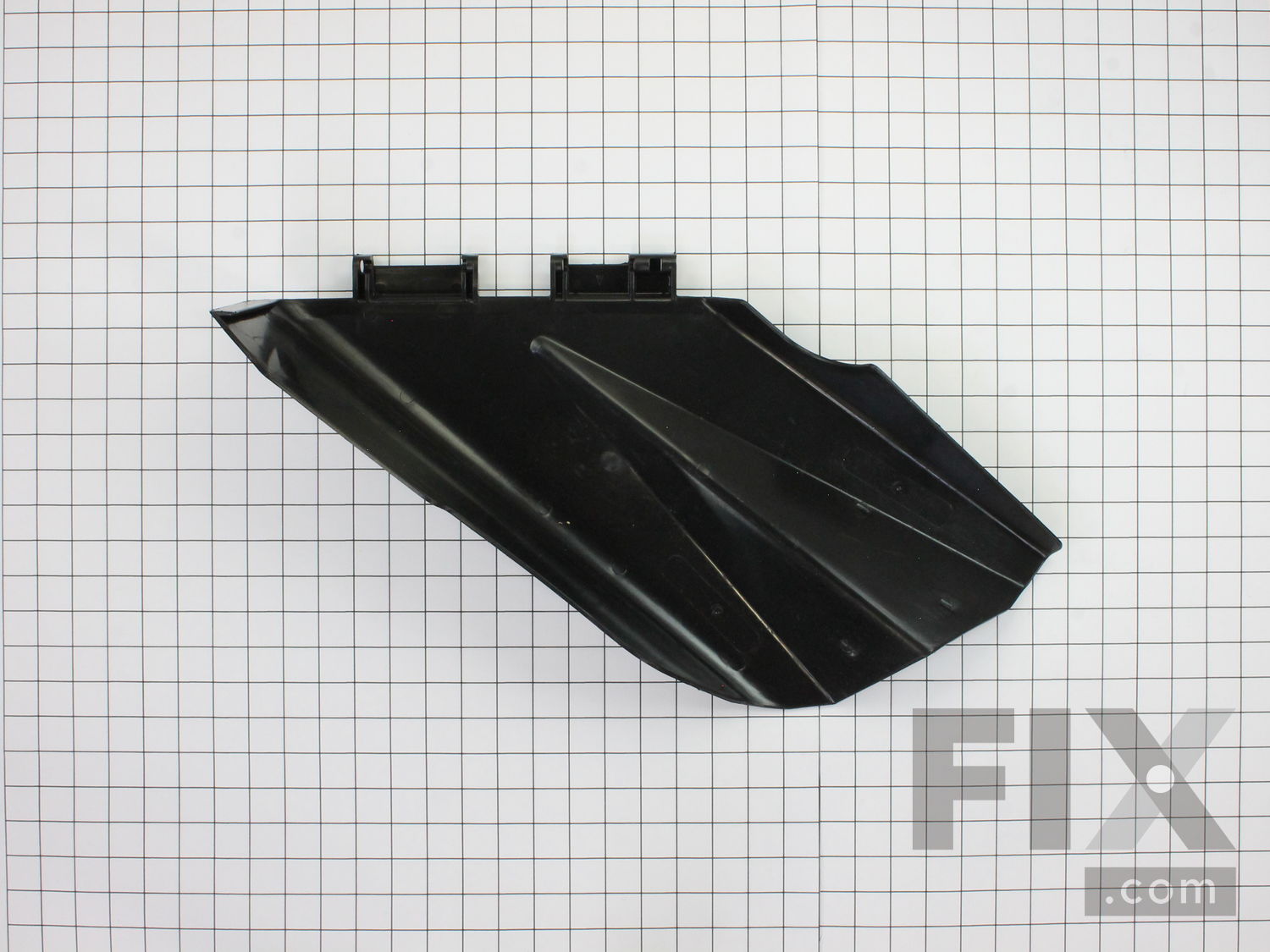

( Grid squares measure 1x1 inch )
9172450-1-S-Toro-93-0317-Deflector Asm 9172450-2-S-Toro-93-0317-Deflector Asm Part Location Diagram of 93-0317 Toro Deflector Asm

Deflector Asm 93-0317

Works With Model 78226!
$117.98
In Stock
Fix Number:
FIX9172450
Manufacturer #:
93-0317
Manufactured by:
Toro
Works With Model 78226!

Jump to:

Product Description

This is an authentic item that is supplied directly from the original equipment manufacturer for use with Toro and Lawn Boy lawn mowers and garden tractors. It is a high-quality replacement for a missing or damaged deflector assembly which originally came with the new unit, its purpose is to direct the trimmings away from the unit. This durable part is made of black plastic and is sold individually.

  • Works with the following brands:
    Toro, Lawn Boy
  • Works with the following products:
    Lawn Tractor, Lawn Mower
  • Part# 93-0317 replaces these:
    93-0317
Works with the following brands:
Toro, Lawn Boy
Works with the following products
Lawn Tractor, Lawn Mower
Part Number Cross Reference
Part# 93-0317 replaces these:
93-0317

Questions and Answers

Be the first to ask our experts a question about this part!

Affresh Washing Machine Cleaner - 3 pack
$19.75
Special Order
Part Number: FIX1960673
This washing machine cleaner includes three time-release tablets designed to remove odor-causing residues, grime, and buildup from high-efficiency and top-load washing machines. The tablets work by cleaning the tub, pump...
Produce Preserver Filter
$18.54
On Order
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Washing Machine Cleaner Tablets – 6 Count
$28.91
In Stock
Part Number: FIX12345661
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Affresh Dishwasher Cleaner Tablets - 6
$22.91
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Affresh Ice Machine Cleaner
$27.83
In Stock
Part Number: FIX12583750
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...
Refrigerator Deodorizer
$32.12
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.

Model Compatibility

This part works with the following models:
Fix Number: FIX9172450
Manufacturer Part Number: 93-0317
Brand Model Number Description
Toro 71180 Lawn Tractor - Lawn Tractor
Toro 71181 Lawn Tractor - Lawn Tractor
Toro 71184 Lawn Tractor - Lawn Tractor
Toro 71185 Lawn Tractor - Lawn Tractor
Toro 71190 Lawn Tractor - Lawn Tractor
Toro 71191 Lawn Tractor - Lawn Tractor
Toro 71193 Lawn Tractor - Lawn Tractor
Toro 71198 Lawn Tractor - Lawn Tractor
Toro 71202 Lawn Tractor - Lawn Tractor
Toro 71203 Lawn Tractor - Lawn Tractor
Toro 71205 Lawn Tractor - Lawn Tractor
Toro 71213 Lawn Tractor - Lawn Tractor
Toro 71215 Lawn Tractor - Lawn Tractor
Toro 71217 Lawn Tractor - Lawn Tractor
Toro 71220 Lawn Tractor - Lawn Tractor
Toro 71221 Lawn Tractor - Lawn Tractor
Toro 71223 Lawn Tractor - Lawn Tractor
Toro 71226 Lawn Tractor - Lawn Tractor
Toro 71227 Lawn Tractor - Lawn Tractor
Toro 71242 Lawn Tractor - Lawn Tractor
Toro 71427 Lawn Tractor - Lawn Tractor
Toro 71428 Lawn Tractor - Lawn Tractor
Toro 725057006 Lawn Mower - 725057006/Serial: T04za0001-
Toro 725057016 Lawn Mower - 725057016/Serial: T04zb0001-
Toro 725058026 Lawn Mower
Toro 74301 Lawn Tractor - Lawn Tractor
Toro 74325 Lawn Tractor - Lawn Tractor
Toro 74330 Lawn Tractor - Lawn Tractor
Toro 78216 Lawn Mower - Toro Lawn Mower Model 78216/SERIAL: 200000001-200999999 (78216/SERIAL:200000001200999999, 78216/SERIAL: 200000001 200999999) Parts
Toro 78226 Lawn Mower - Toro Lawn Mower Model 78226/SERIAL: 4900001-4999999 (78226/SERIAL:49000014999999, 78226/SERIAL: 4900001 4999999) Parts
