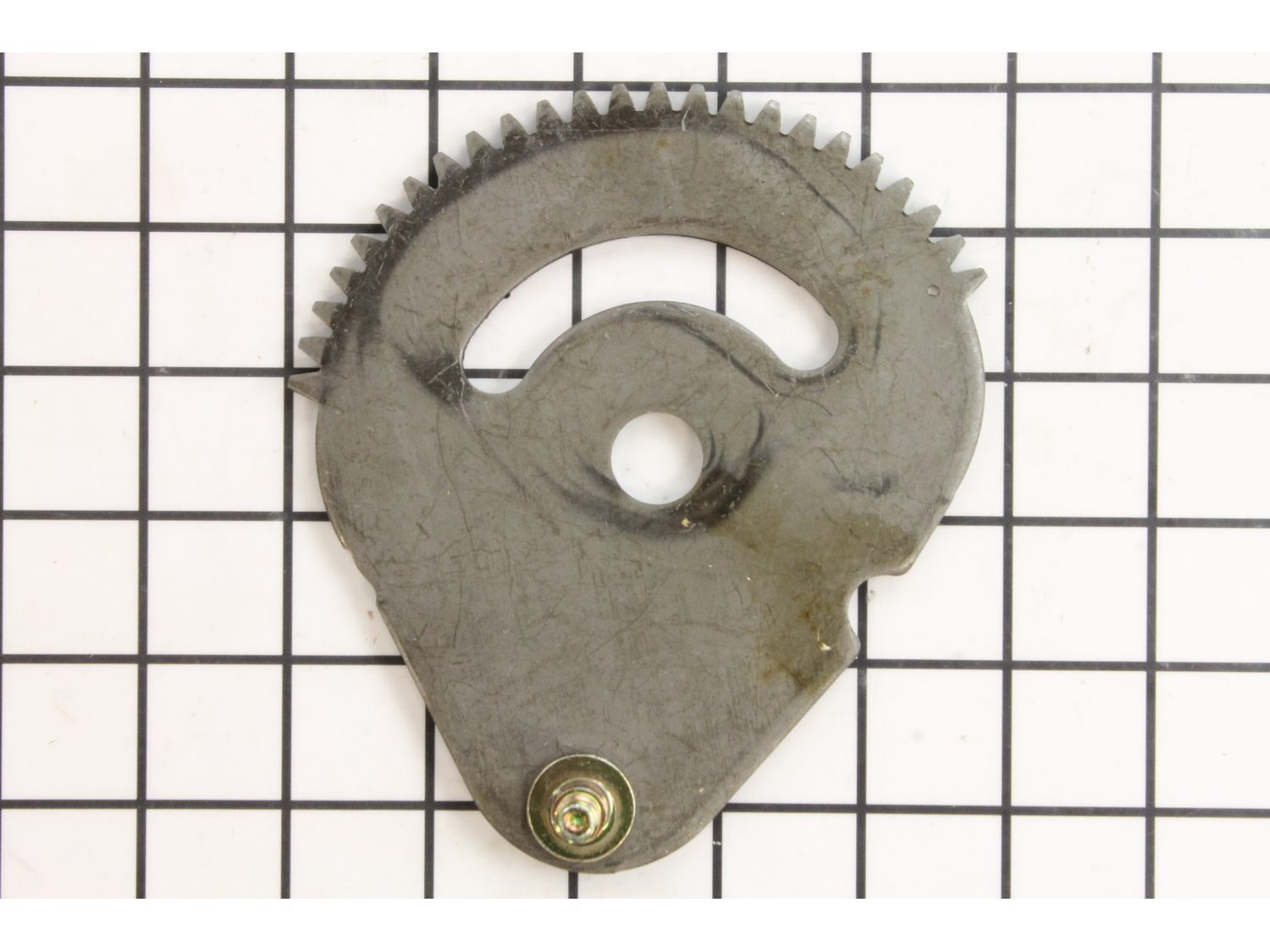

Sector Gear Plate 617-04024A

$55.70
In Stock
Fix Number:
FIX9049317
Manufacturer #:
617-04024A
Manufactured by:
MTD

Jump to:

Product Description

This replacement part is supplied directly from the original equipment manufacturer. It is specially designed for riding lawn mowers and garden tractors. The gear assembly is an important component which allows a user to steer the unit. It is the part that the steering shaft attaches to. This is an identical replacement for a damaged or a missing part that was installed on a new unit. Keep in mind this high-quality steering gear is made of durable metal and is sold individually. Refer to the diagrams of your model for the correct installation of the new part. You may need a screwdriver and a wrench set to take the deck apart in order to perform this repair.

  • Works with the following brands:
    MTD, Troy-Bilt, Yard Machines, Craftsman
  • Works with the following products:
    Lawn Tractor, Lawn Mower, Lawn Tractor Accessories
  • Part# 617-04024A replaces these:
    617-04024, 617-04024A
Works with the following brands:
MTD, Troy-Bilt, Yard Machines, Craftsman
Works with the following products
Lawn Tractor, Lawn Mower, Lawn Tractor Accessories
Part Number Cross Reference
Part# 617-04024A replaces these:
617-04024, 617-04024A
