11812490-1-M-MTD-703-08336E-Idler Bracket
Part Location Diagram of 703-08336E MTD Idler Bracket
See part I-4 in the diagram
( Grid squares measure 1x1 inch )
11812490-1-S-MTD-703-08336E-Idler Bracket Part Location Diagram of 703-08336E MTD Idler Bracket

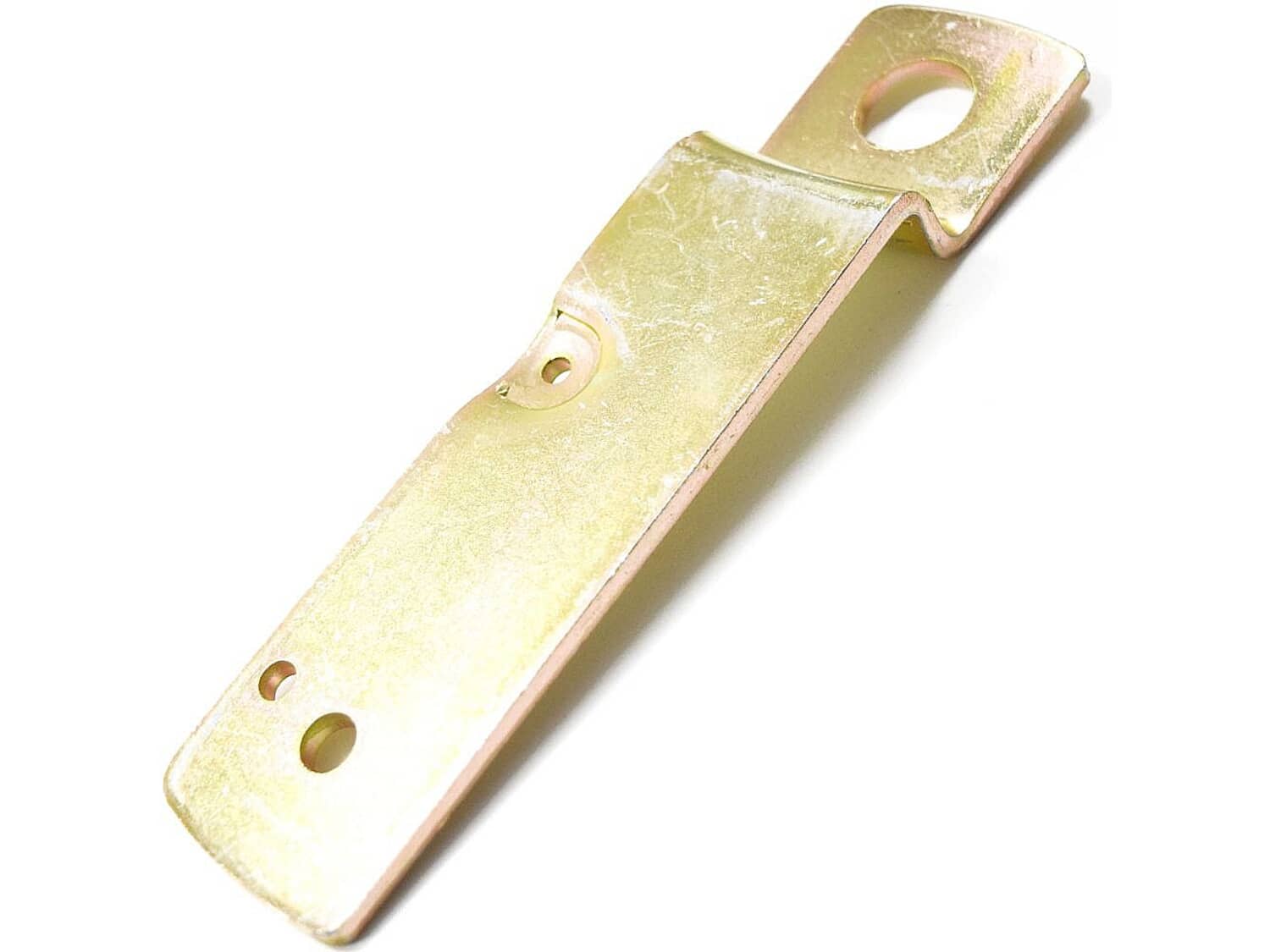

Idler Bracket 703-08336E

Works With Model 17AF2ACS004!
$40.43
Special Order
Fix Number:
FIX11812490
Manufacturer #:
703-08336E
Manufactured by:
MTD
Works With Model 17AF2ACS004!

Jump to:

Product Description

  • Works with the following brands:
    Cub Cadet, Craftsman, MTD, Yard Man
  • Works with the following products:
    Lawn Tractor, Lawn Mower, Engine
  • Part# 703-08336E replaces these:
    703-08336, 703-08336-0637, 703-08336-0691, 703-08336-4021, 703-08336-4033, 703-08336A , 703-08336A-0637, 703-08336A-0691, 703-08336A-4021, 703-08336A-4033, 703-08336B, 703-08336C, 703-08336C-0637, 703-08336E Show less
Works with the following brands:
Cub Cadet, Craftsman, MTD, Yard Man
Works with the following products
Lawn Tractor, Lawn Mower, Engine
Part Number Cross Reference
Part# 703-08336E replaces these:
703-08336, 703-08336-0637, 703-08336-0691, 703-08336-4021, 703-08336-4033, 703-08336A, 703-08336A-0637, 703-08336A-0691, 703-08336A-4021, 703-08336A-4033, 703-08336B, 703-08336C, 703-08336C-0637, 703-08336E

Questions and Answers

Be the first to ask our experts a question about this part!

Affresh Washing Machine Cleaner - 3 pack
$19.75
Special Order
Part Number: FIX1960673
This washing machine cleaner includes three time-release tablets designed to remove odor-causing residues, grime, and buildup from high-efficiency and top-load washing machines. The tablets work by cleaning the tub, pump...
Produce Preserver Filter
$18.54
On Order
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Washing Machine Cleaner Tablets – 6 Count
$28.91
In Stock
Part Number: FIX12345661
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Affresh Dishwasher Cleaner Tablets - 6
$22.91
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Affresh Ice Machine Cleaner
$27.83
In Stock
Part Number: FIX12583750
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...
Refrigerator Deodorizer
$32.12
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.

Model Compatibility

This part works with the following models:
Fix Number: FIX11812490
Manufacturer Part Number: 703-08336E
Brand Model Number Description
Yard Man 17AC2ACS055 Lawn Tractor - Lawn Tractor
Murray 17AC2ACS058 Lawn Tractor - Lawn Tractor
MTD 17AF2ACS004 Lawn Mower - Mtd Gold Zero-Turn Mower
MTD 17AKCACS099 Lawn Tractor - Lawn Tractor
MTD 17AKCACS299 Lawn Tractor - Lawn Tractor
MTD 17ARCBDS099 Lawn Tractor - Riding Mowers and Tractors
Cub Cadet 17BRCACS009 Lawn Mower - Rzt-L 42
Troy-Bilt 17WF2ACS011 Lawn Tractor - Lawn Tractor
Craftsman 247204000 Lawn Tractor - Zs6500 Zero-Turn Mower
Craftsman 247204110 Lawn Tractor - Z6000 Zero-Turn Mower
Craftsman 247204111 Lawn Tractor - Z6000 Zero-Turn Mower
Craftsman 247204112 Engine - Zero Turn Riding Mower
Craftsman 247204120 Lawn Tractor - Z6000 Zero-Turn Mower
Craftsman 247204121 Engine - Zero Turn Riding Mower
Craftsman 247204122 Lawn Tractor - Z6000 Zero-Turn Mower
Craftsman 24725001 Lawn Tractor - Lawn Tractor
Craftsman 247250010 Lawn Tractor - Ztl7000 Zero-Turn Mower
Cub Cadet 42 Lawn Tractor - Rzt-L Tractor
Murray MZ2142 Lawn Tractor - 42-Inch Zero-Turn Mower
Yard Man RZT-42 Lawn Tractor - Yard-Man 42 Inch Zero-Turn Mower
Cub Cadet RZT-L42 Lawn Tractor - Kh Tractor
Cub Cadet RZT-L42KH Lawn Tractor - Rzt-L42 Kh Tractor (17crcacs009) (2017)
Cub Cadet RZT-S42 Lawn Tractor - Rzt-S42 (2012) 17af2bds010 (2012) 17wf2bds010 (2012) 17wf2bds056 (2012) 17wf2bds210 (2012)
Cub Cadet RZT-S42KH Lawn Tractor - Rzt-S42 Kh (17wrcbds010) (2017)
Cub Cadet RZT42 Lawn Mower - Kohler 17AF2ACS
MTD ZT-L42 Lawn Tractor - Lawn Tractor
MTD ZT-S42 Lawn Tractor - Lawn Tractor
MTD ZT42 Lawn Tractor - Lawn Tractor
