17016483-1-M-Husqvarna-531170601-Front Baffle
Part Location Diagram of 531170601 Husqvarna Front Baffle
See part F-198 in the diagram

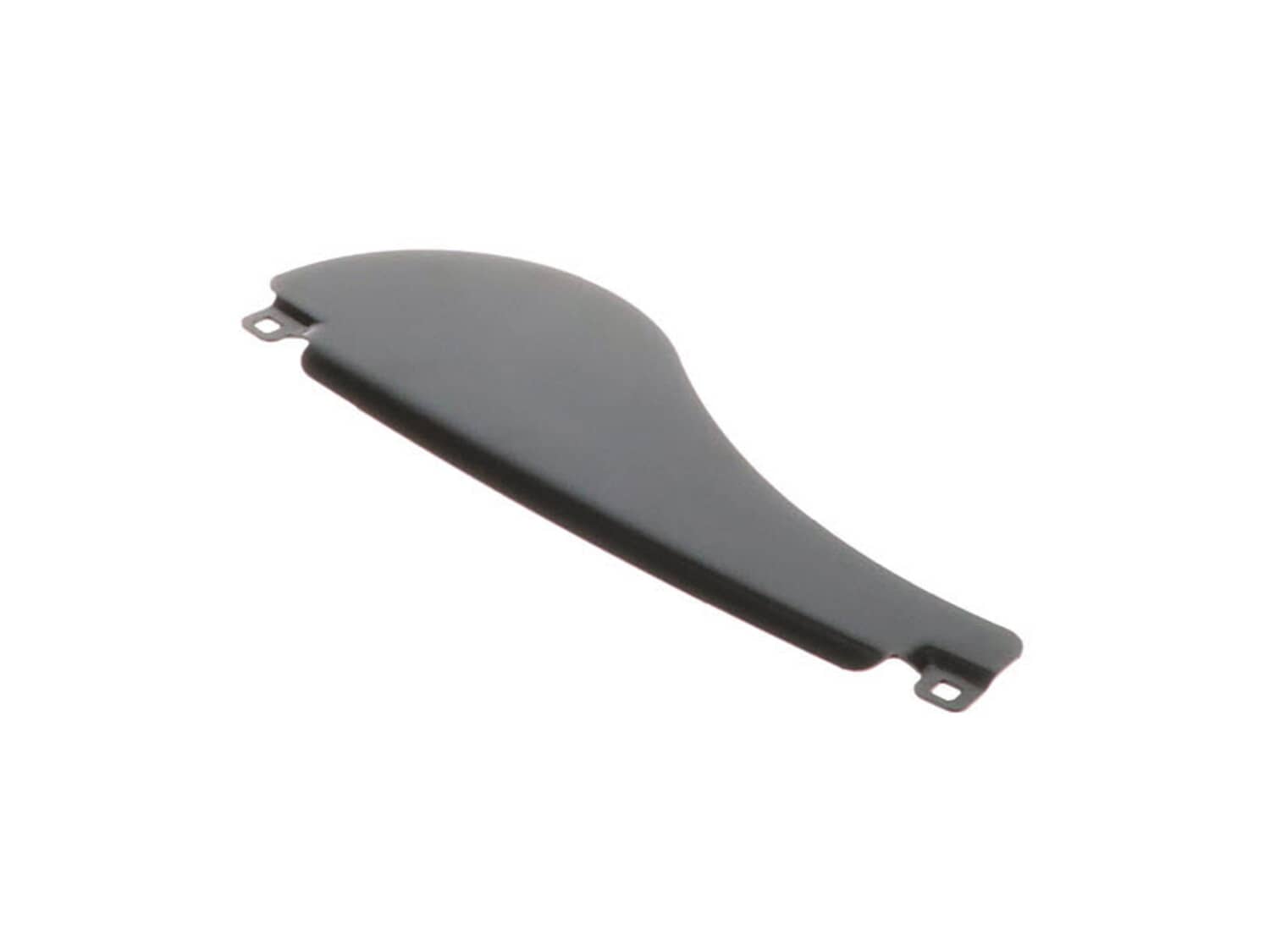

17016483-1-S-Husqvarna-531170601-Front Baffle 360 view

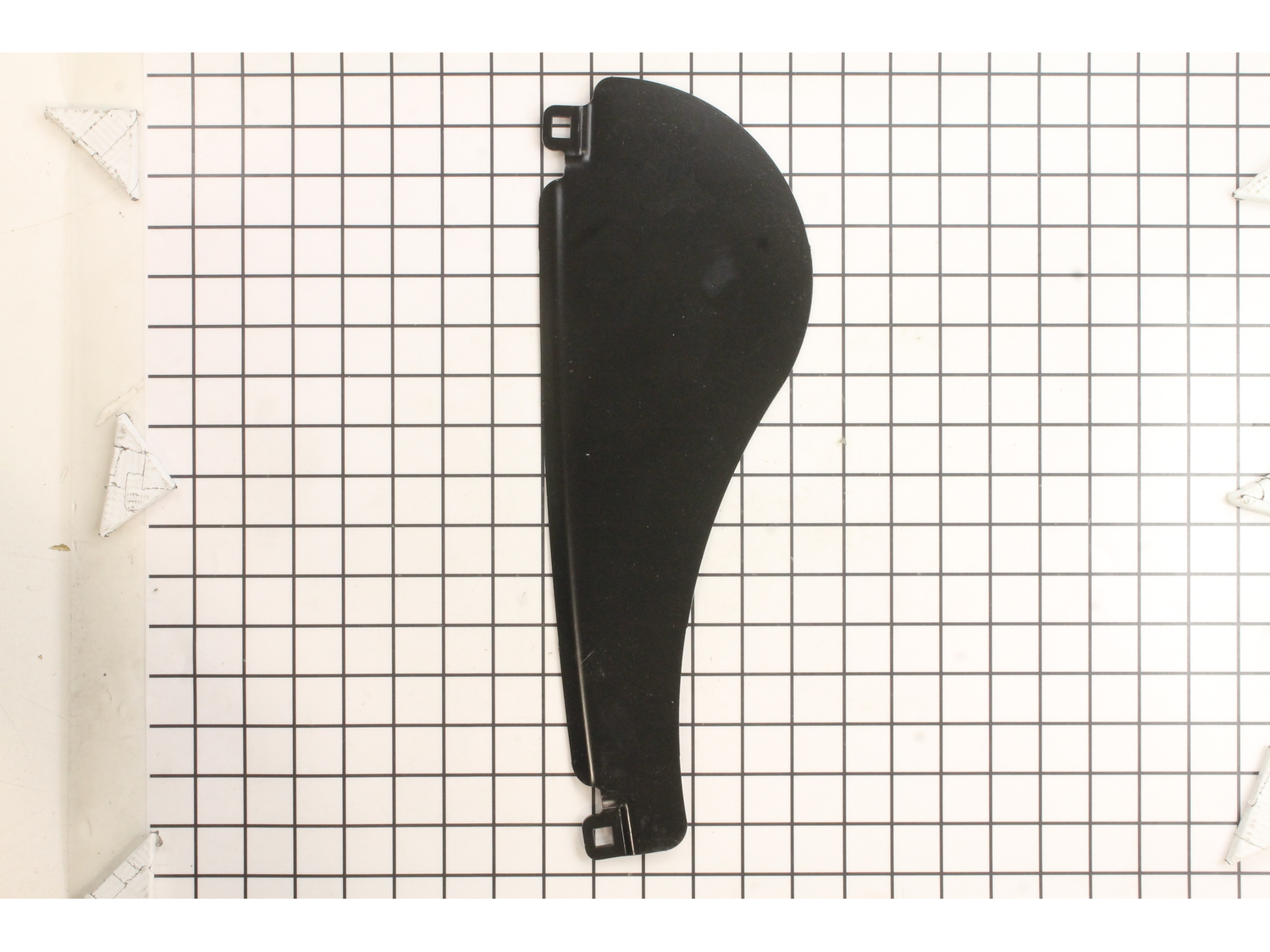

( Grid squares measure 1x1 inch )
17016483-1-S-Husqvarna-531170601-Front Baffle 17016483-2-S-Husqvarna-531170601-Front Baffle 17016483-3-S-Husqvarna-531170601-Front Baffle 17016483-1-S-Husqvarna-531170601-Front Baffle 360 view
Part Location Diagram of 531170601 Husqvarna Front Baffle

Front Baffle 531170601

$11.59
In Stock
Fix Number:
FIX17016483
Manufacturer #:
531170601
Manufactured by:
Husqvarna

Jump to:

Product Description

Keep your mower running at its best with this genuine replacement baffle, made specifically for Craftsman riding lawn mowers and garden tractors. This high-quality plastic part fits under the mower deck and helps direct grass clippings smoothly out of the discharge chute, giving you a cleaner, more even cut. Built for durability and a precise fit, this baffle is sold individually. Please note that the mounting hardware is not included and must be purchased separately. To ensure proper installation, we recommend checking your model’s diagram for the exact location and fit. Whether you're replacing a worn part or doing seasonal maintenance, this baffle is a smart choice to keep your mower performing like new.

  • Works with the following brands:
    Husqvarna, Craftsman, Poulan, Jonsered
  • Works with the following products:
    Lawn Mower, Lawn Tractor
  • Part# 531170601 replaces these:
    403149, 532403149
Works with the following brands:
Husqvarna, Craftsman, Poulan, Jonsered
Works with the following products
Lawn Mower, Lawn Tractor
Part Number Cross Reference
Part# 531170601 replaces these:
403149, 532403149

Questions and Answers

Be the first to ask our experts a question about this part!
