Wheel Assembly 2825267001

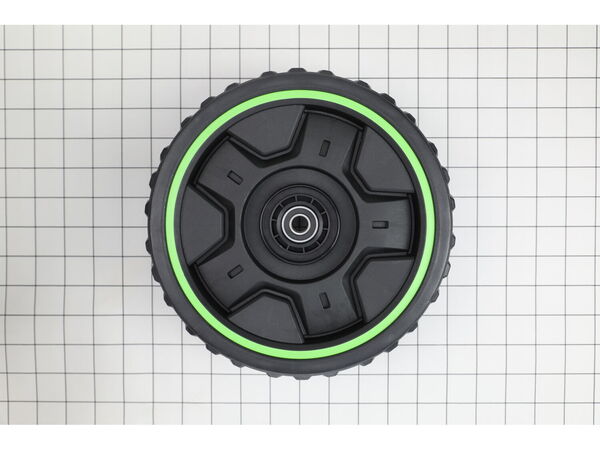

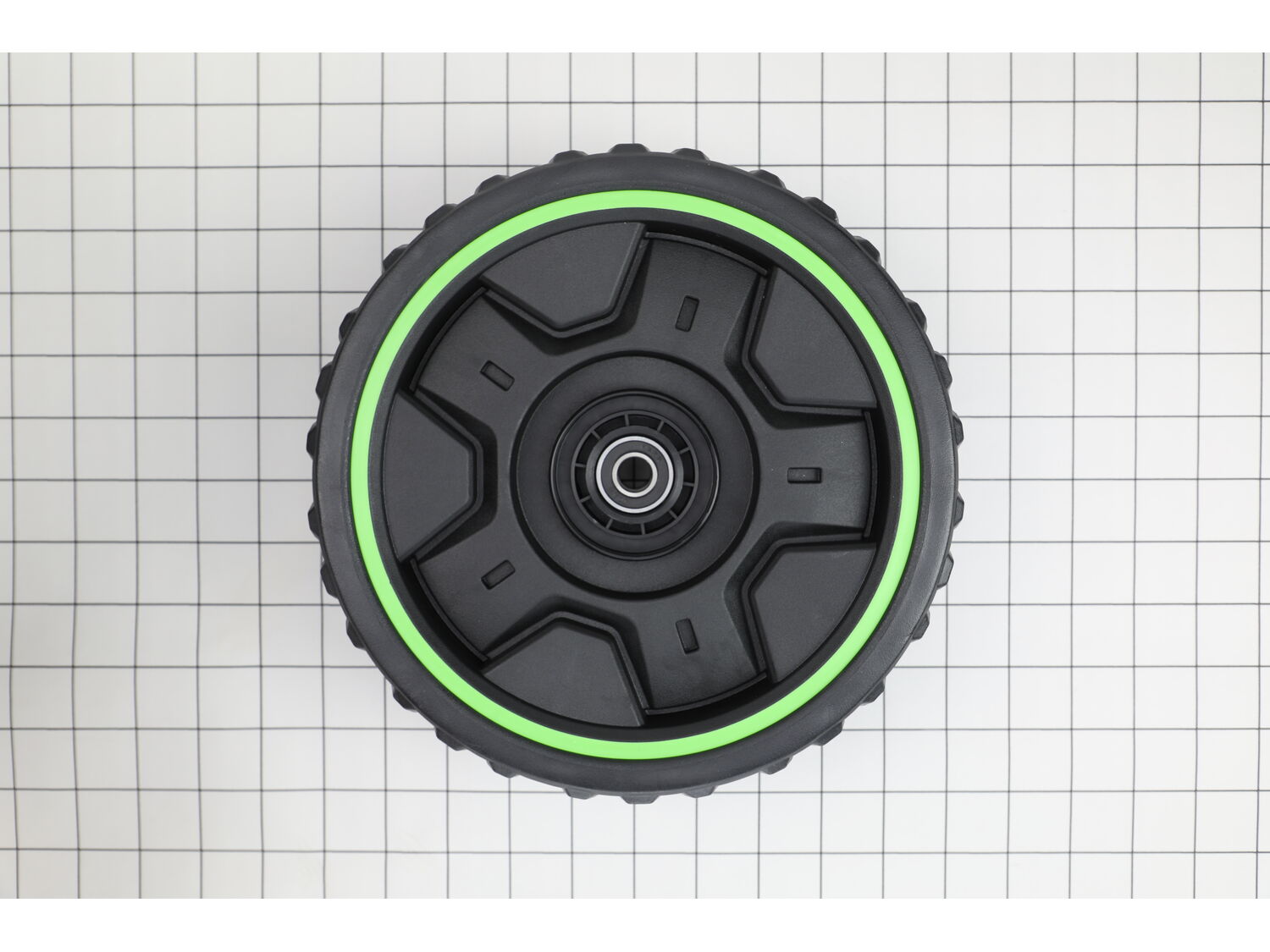

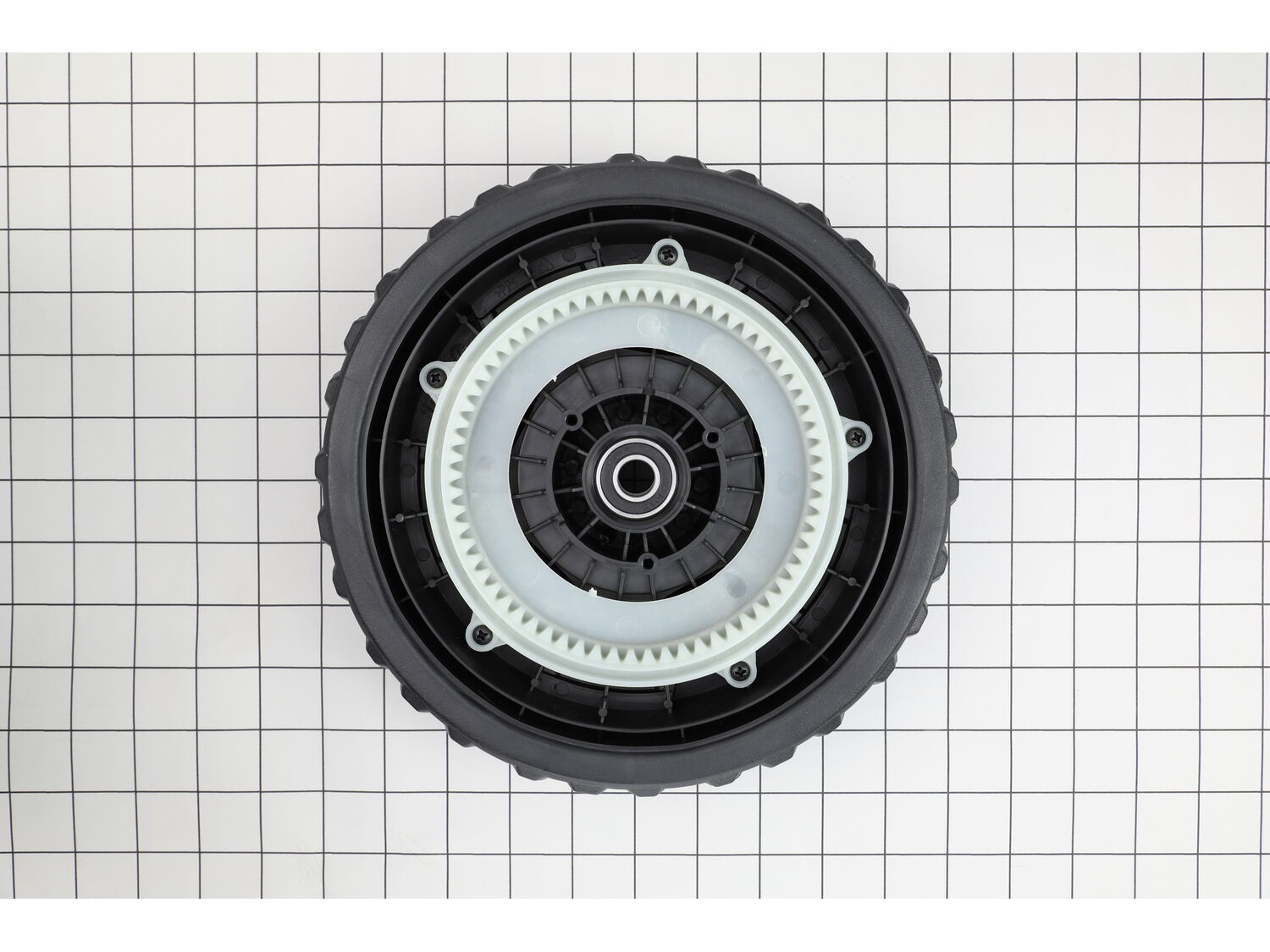

This is a single OEM rear wheel assembly for a lawnmower. It is a black wheel with a green stripe along the rim. This wheel features a single gear and an outer white ring gear. Be sure to remove the battery pack before servicing your lawnmower. To replace the wheel, start by turning the mower on the side. Use a flat-blade screwdriver to remove the dust cover from the wheel. Next, use an adjustable or 1/2-Inch (13mm) wrench and turn the bolt counterclockwise to remove it. Remove the bolt, damaged wheel, and wave washer from the wheel axle. If you are replacing the rear wheel for the self-propelled mower, remove the drive gear from the damaged wheel and assemble to the new wheel with the 3 screws. Next, mount the wave washer and the new wheel on the wheel axle with the round recess facing outward. Lock the wheel with the bolt by tightening the bolt in a clockwise motion. Finally, mount the dust cover onto the wheel and push into position.
