11877121-1-M-Milwaukee-16-01-3020-Service Armature Assembly
Part Location Diagram of 16-01-3020 Milwaukee Service Armature Assembly
See part 16 in the diagram

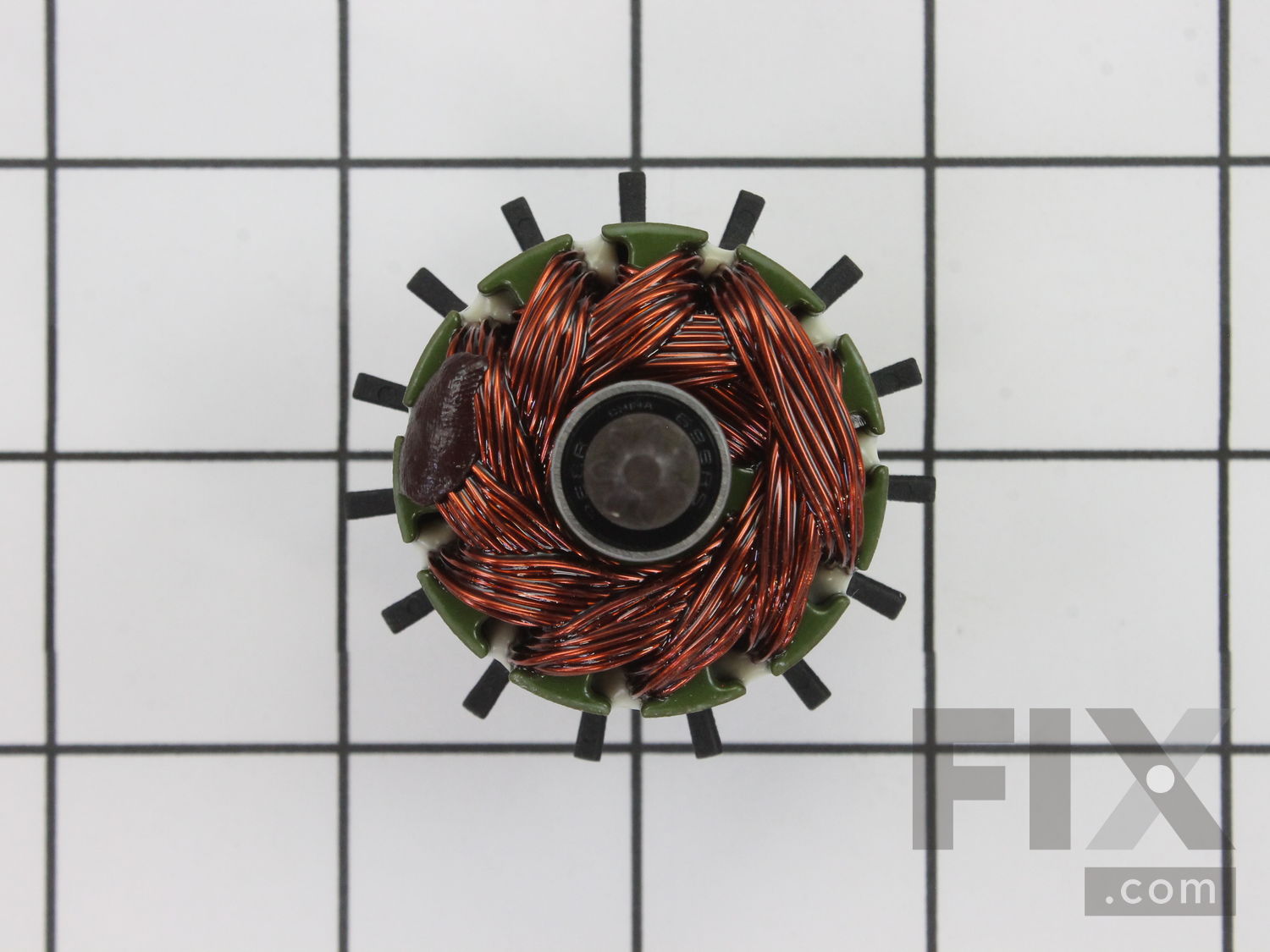

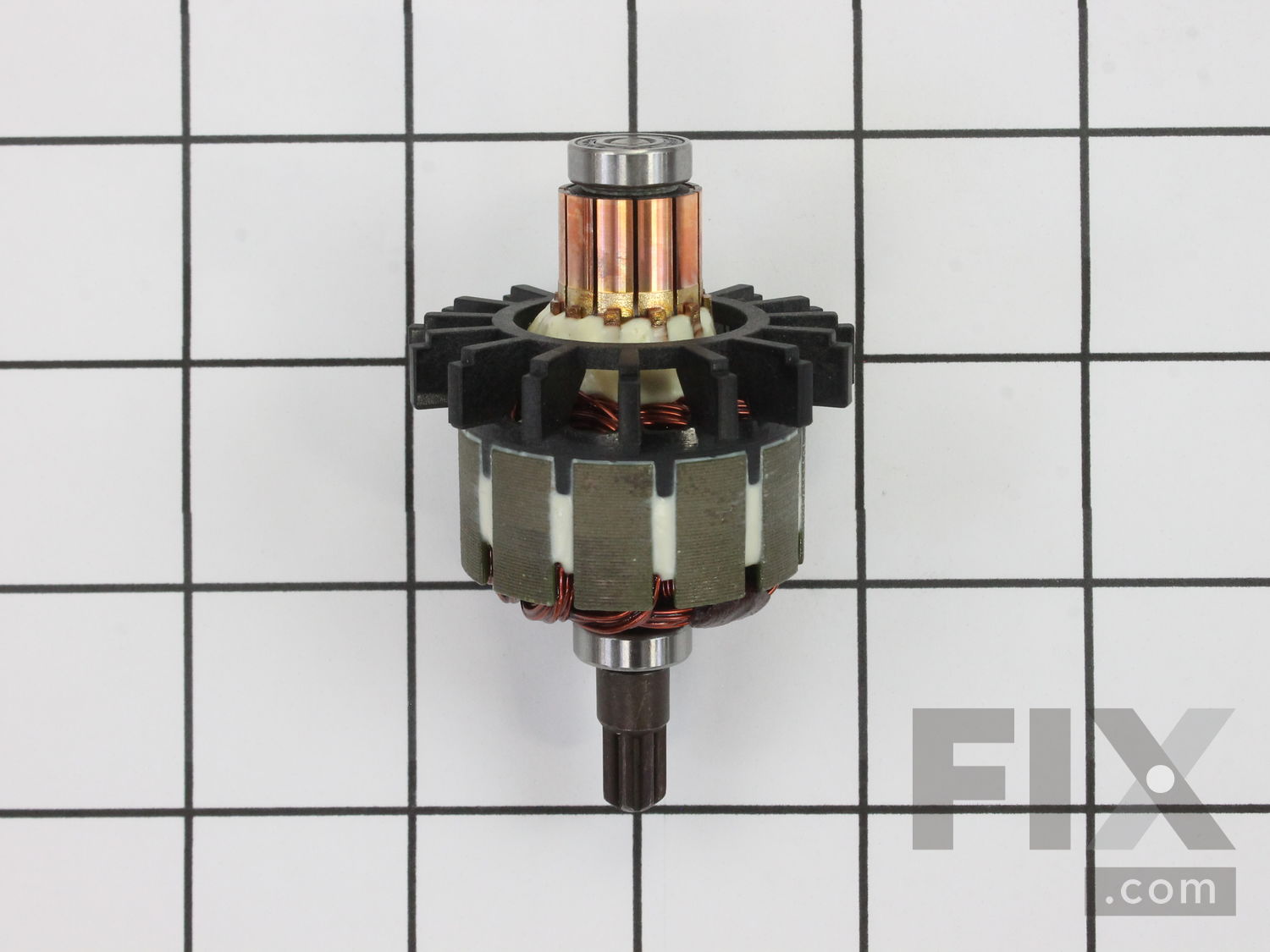

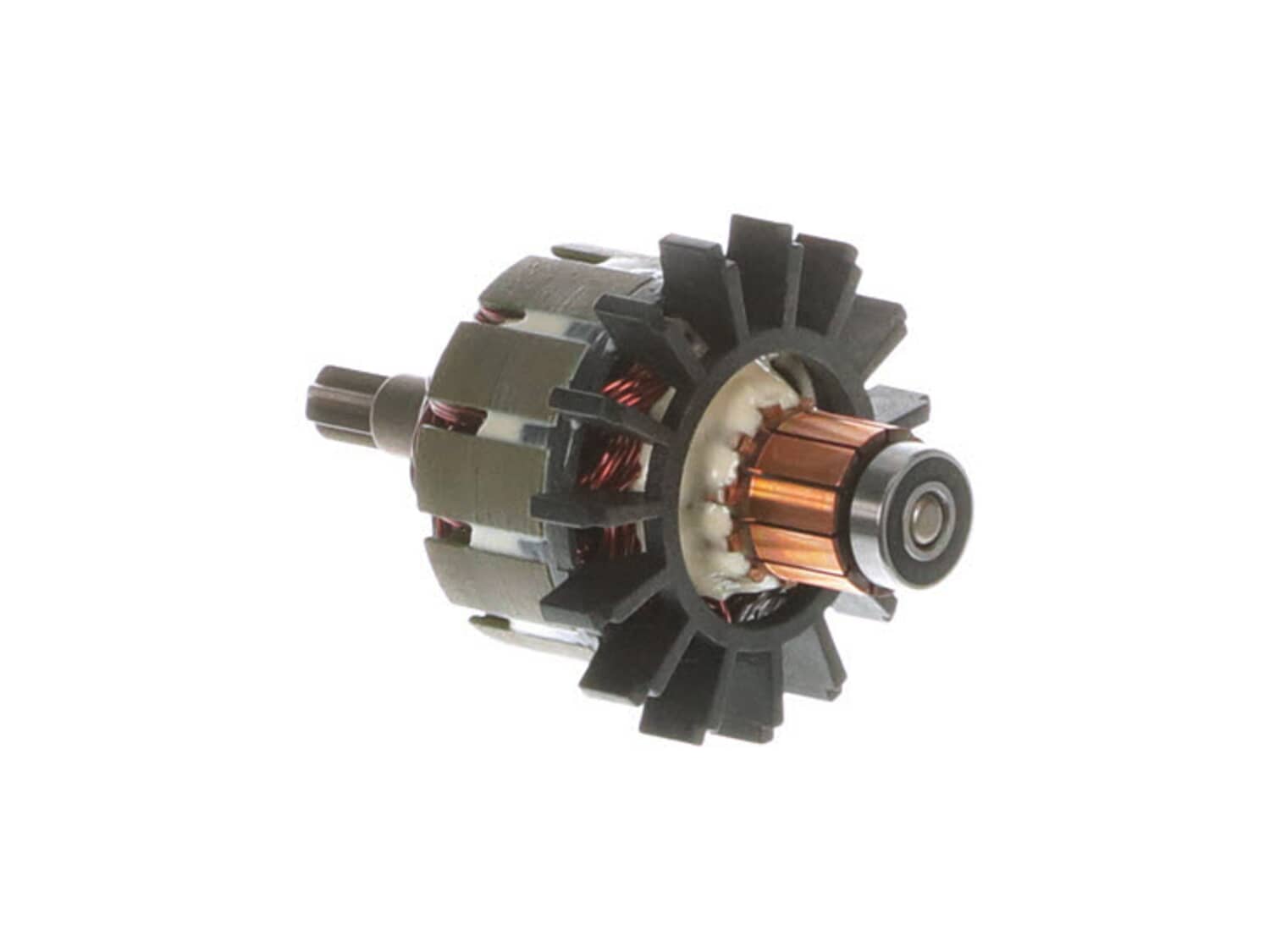

11877121-1-S-Milwaukee-16-01-3020-Service Armature Assembly 360 view
( Grid squares measure 1x1 inch )
11877121-1-S-Milwaukee-16-01-3020-Service Armature Assembly 11877121-2-S-Milwaukee-16-01-3020-Service Armature Assembly 11877121-3-S-Milwaukee-16-01-3020-Service Armature Assembly 11877121-1-S-Milwaukee-16-01-3020-Service Armature Assembly 360 view
Part Location Diagram of 16-01-3020 Milwaukee Service Armature Assembly

Service Armature Assembly 16-01-3020

Works With Model 2650-059!
$42.82
In Stock
Fix Number:
FIX11877121
Manufacturer #:
16-01-3020
Manufactured by:
Milwaukee
Works With Model 2650-059!

Jump to:

Product Description

This service armature assembly is specially designed for Milwaukee impact drivers. It is a genuine item that is supplied from original equipment manufacturer. This assembly includes an armature, a plastic fan, armature bearing and commutator end bearing. It is a key component of an electric motor. It is highly recommended to replace both carbon brushes when replacing an armature. To replace this service armature assembly you will need a screwdriver.

  • Works with the following brands:
    Milwaukee
  • Works with the following products:
    Impact Driver
Works with the following brands:
Milwaukee
Works with the following products
Impact Driver
