8861745-1-M-Echo-13201040830-Pipe-Return-3x6x75mm
Part Location Diagram of 13201040830 Echo Pipe-Return-3x6x75mm
See part D-7 in the diagram

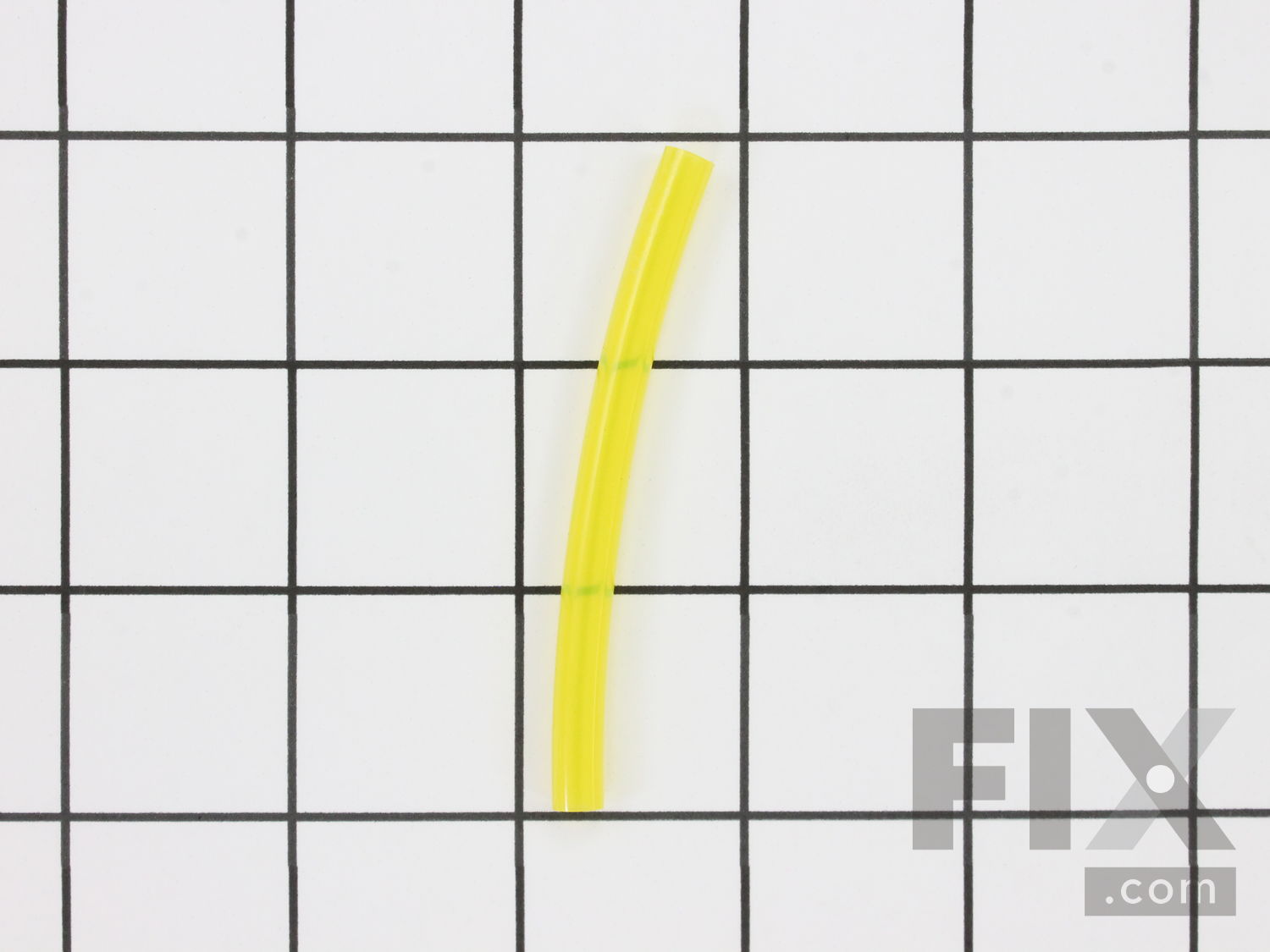

( Grid squares measure 1x1 inch )
8861745-1-S-Echo-13201040830-Pipe-Return-3x6x75mm Part Location Diagram of 13201040830 Echo Pipe-Return-3x6x75mm

Pipe-Return-3x6x75mm

Rated by 1 customers

?

Really Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$5.19
In Stock
Fix Number:
FIX8861745
Manufacturer #:
13201040830
Manufactured by:
Echo
Works with the following brands:
Echo
Works with the following products
Hedge Trimmer, Trimmer, Pole Saw, Edger
Questions and Answers 1 Installation Instruction
Product Description Questions and Answers Installation Instructions Model Compatibility

Product Description

  • Works with the following brands:
    Echo
  • Works with the following products:
    Hedge Trimmer, Trimmer, Pole Saw, Edger

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.8 / 5.0, 1 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Steve from Hilliard, OH
Parts Used:
13120507321, 13201040830, 13200240630, 12318140630
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Replaced fuel line, primer,filter and hoes
In home shop
1 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX8861745
Manufacturer Part Number: 13201040830
Brand
Model Number
Description
Echo
GT-2200
Trimmer - Curved Shaft Grass Trimmer
Echo
HC-152
Hedge Trimmer - Hedge Trimmer
Echo
HC-155
Hedge Trimmer - Hedge Clipper
Echo
HC-165
Hedge Trimmer - Hedge Clipper
Echo
HC-185
Hedge Trimmer - Hedge Clipper
Echo
HC-225
Hedge Trimmer - Hedge Clipper
Echo
HC-235
Hedge Trimmer - Hedge Clipper
Echo
HC-245
Hedge Trimmer - Hedge Clipper
Echo
HCA-265
Hedge Trimmer - Hedge Clipper Articulating
Echo
HCA-266
Hedge Trimmer - Articulating Hedge Clipper
Echo
Pas-265
Trimmer - Pro Attachment Series
Echo
PAS-266
Trimmer - Gas Power Source Attachement
Echo
PE-2201
Edger - Edger
Echo
PE-2201A
Edger - Edger
Echo
PE-220A
Edger - Edger
Echo
PE-265
Edger - Edger
Echo
PE-265S
Edger - Edger
Echo
PE-266
Edger - 25.4cc Edger
Echo
PE-266S
Edger - 25.4 cc Edger
Echo
PPT-265
Pole Saw - Power Pruner Telescoping Shaft
Echo
PPT-265H
Pole Saw - Pruner
Echo
PPT-265S
Pole Saw - Power Pruner Telescoping Shaft
Echo
PPT-266
Pole Saw - Pole Saw
Echo
PPT-266H
Pole Saw - Power Pruner
Echo
SCH-265
Hedge Trimmer - Shaft Hedge Trimmer
Echo
SHC-265
Hedge Trimmer - Shaft Hedge Trimmer
Echo
SHC-266
Hedge Trimmer - Short Shafted Hedge Trimmer
Echo
SRM-2000
Trimmer - Straight Shaft Trimmer / Brushcutter
Echo
SRM-2200
Trimmer - Straight Shaft Trimmer / Brushcutter
Echo
SRM-2201
Trimmer - Straight Shaft Trimmer / Brushcutter
