See part 3 in the diagram

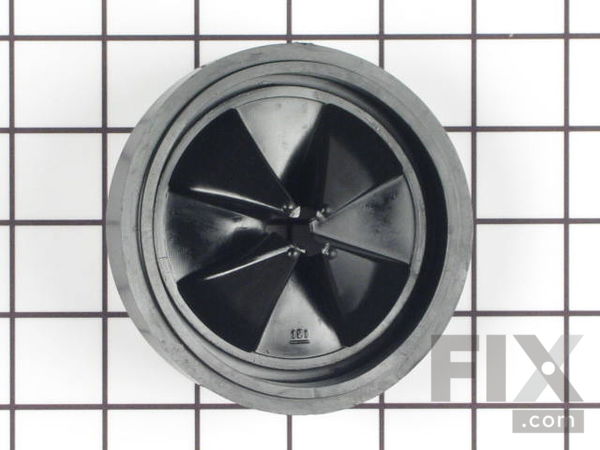

( Grid squares measure 1x1 inch )

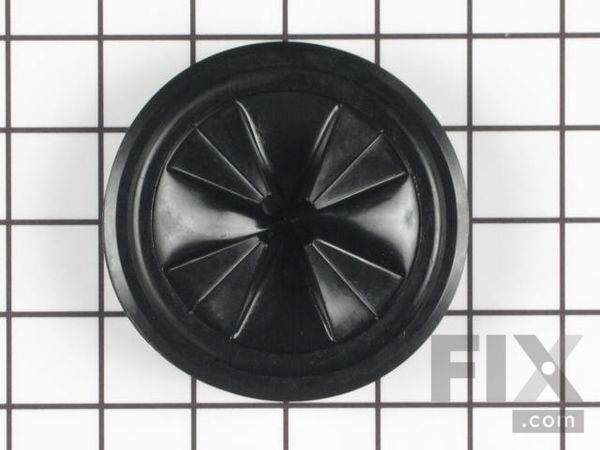

Splash Guard

$20.47   In Stock
Fix Number: FIX357521
Manufacturer #: 4211615
Manufactured by: Whirlpool

Product Description

This is a flexible rubber cover that is over the top of the sink drain. It keeps liquids and smaller food particles from splashing back into the sink.

Questions and Answers

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

1 question answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.
    Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Lawrence
    September 28, 2021
    How do I install a new splash guard
    For model number GC1000
    Hello Lawrence, thank you for your question. First, unplug the unit. Then disconnect the dishwasher inlet port. Using a 3/8 inch nut driver or a flat head screw driver, unthread the mounting screws securing the tailpipe flange to the disposer. Now rotate the lock ring counter clockwise to release the disposer from the sink. If still intact, pull off the old splash guard to install the new splash guard. Align it over the lip on the top of the disposer. Reinstall the disposer by positioning it in the mounting bracket making sure the disposer's outlet port is aligned with the tailpipe. Confirm the tailpipe gasket is in place on the outlet port, then position the tailpipe flange with the port and thread the two screws to secure. Now fully rotate the disposer lock ring clockwise until it locks into place. Reattach the dishwasher drain hose to the inlet port, plug the power cord back in and the garbage disposer should be ready for use. We hope this helps!

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
      Model Compatibility
      This part works with the following models:
      Fix Number: FIX357521
      Manufacturer Part Number: 4211615
      Brand
      Model Number
      Description
      KitchenAid
      6KCDB250T0
      Food Waste Disposer
      KitchenAid
      6KCDB250T1
      Food Waste Disposer
      KitchenAid
      7KCDB250T0
      Food Waste Disposer
      KitchenAid
      7KCDB250T1
      Food Waste Disposer
      Maytag
      DFC0100AAX
      Food Waste Disposer
      Maytag
      DFC1000AAX
      Food Waste Disposer
      Maytag
      DFC1500AAX
      Food Waste Disposer
      Whirlpool
      DFC1500AAX-3
      Maytag
      DFC5500AAX
      Food Waste Disposer
      Maytag
      DFC5500AAX3
      Maytag
      FC1
      Food Waste Disposer
      Maytag
      FC3
      Food Waste Disposer
      Whirlpool
      GC1000PE
      Food Waste Disposer
      Whirlpool
      GC1000PE1
      Food Waste Disposer
      Whirlpool
      GC1000PE2
      Food Waste Disposer
      Whirlpool
      GC1000PE4
      Food Waste Disposer
      Whirlpool
      GC1000XE
      Food Waste Disposer
      Whirlpool
      GC1000XE1
      Food Waste Disposer
      Whirlpool
      GC1000XE2
      Food Waste Disposer
      Whirlpool
      GC1000XE4
      Food Waste Disposer
      Whirlpool
      GC2000PE1
      Food Waste Disposer
      Whirlpool
      GC2000PE2
      Food Waste Disposer
      Whirlpool
      GC2000PE5
      Food Waste Disposer
      Whirlpool
      GC2000XE
      Food Waste Disposer
      Whirlpool
      GC2000XE1
      Food Waste Disposer
      Whirlpool
      GC2000XE2
      Food Waste Disposer
      Whirlpool
      GC2000XE5
      Food Waste Disposer
      Whirlpool
      GC2000XP
      Food Waste Disposer
      Whirlpool
      GC3000XE
      Food Waste Disposer
      Jenn-Air
      GC410
      Food Waste Disposer
