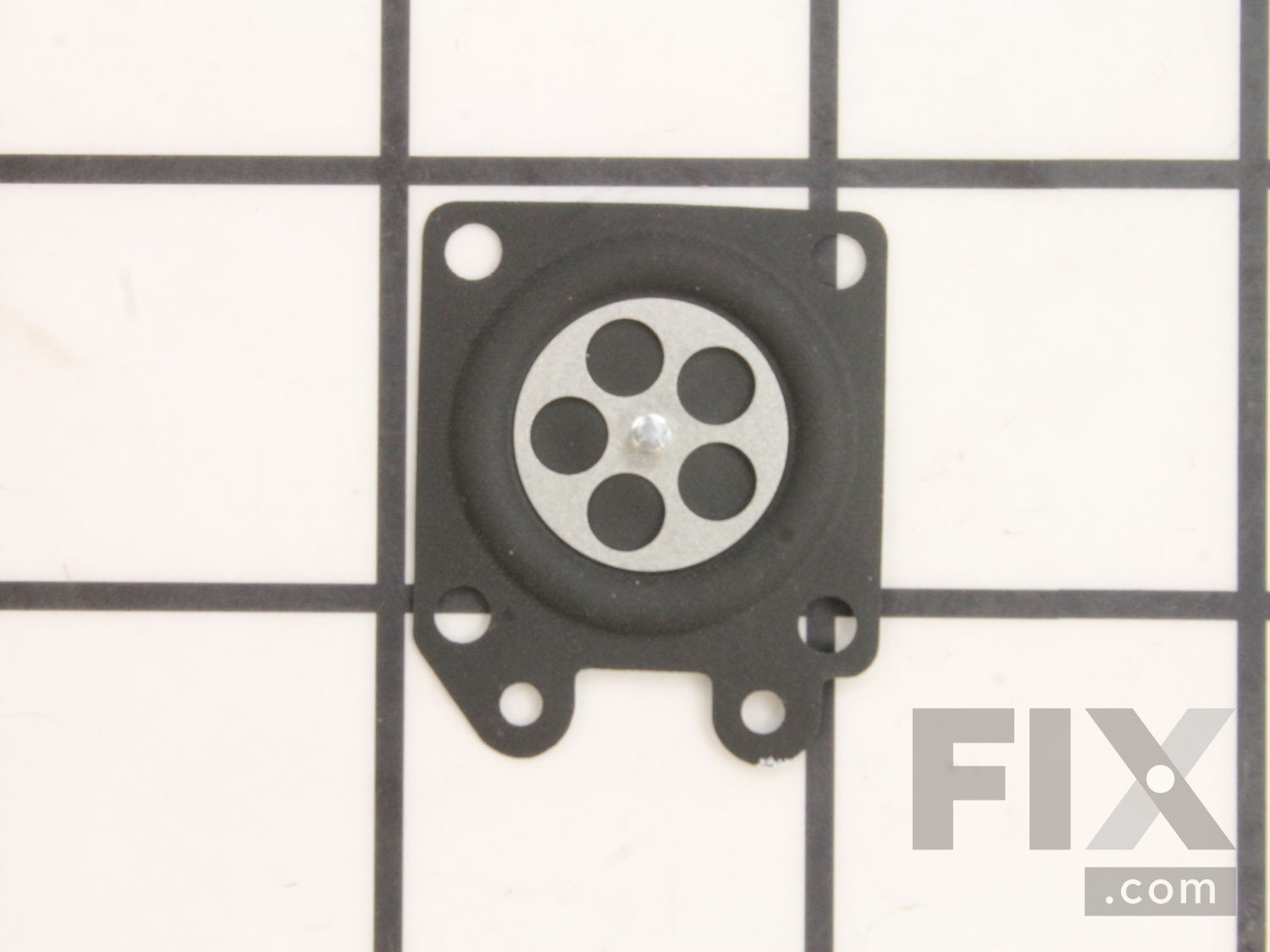

Diaphragm Assembly- Metering 16013-ZM3-004

$11.98
In Stock
Fix Number:
FIX9896807
Manufacturer #:
16013-ZM3-004
Manufactured by:
Honda

Jump to:

Product Description

The metering diaphragm goes between the metering diaphragm gasket and the air purge body. This is a genuine Honda item sourced directly from the manufacturer for use in engines, rototillers, edgers, trimmers, and brush cutters. It is available as an individual replacement part and is made of a thin material. When replacing this item a screwdriver and a socket set might be required during the installation process. Over time this part may break and will need to be replaced.

  • Works with the following brands:
    Honda
  • Works with the following products:
    Engine, Trimmer
Works with the following brands:
Honda
Works with the following products
Engine, Trimmer
