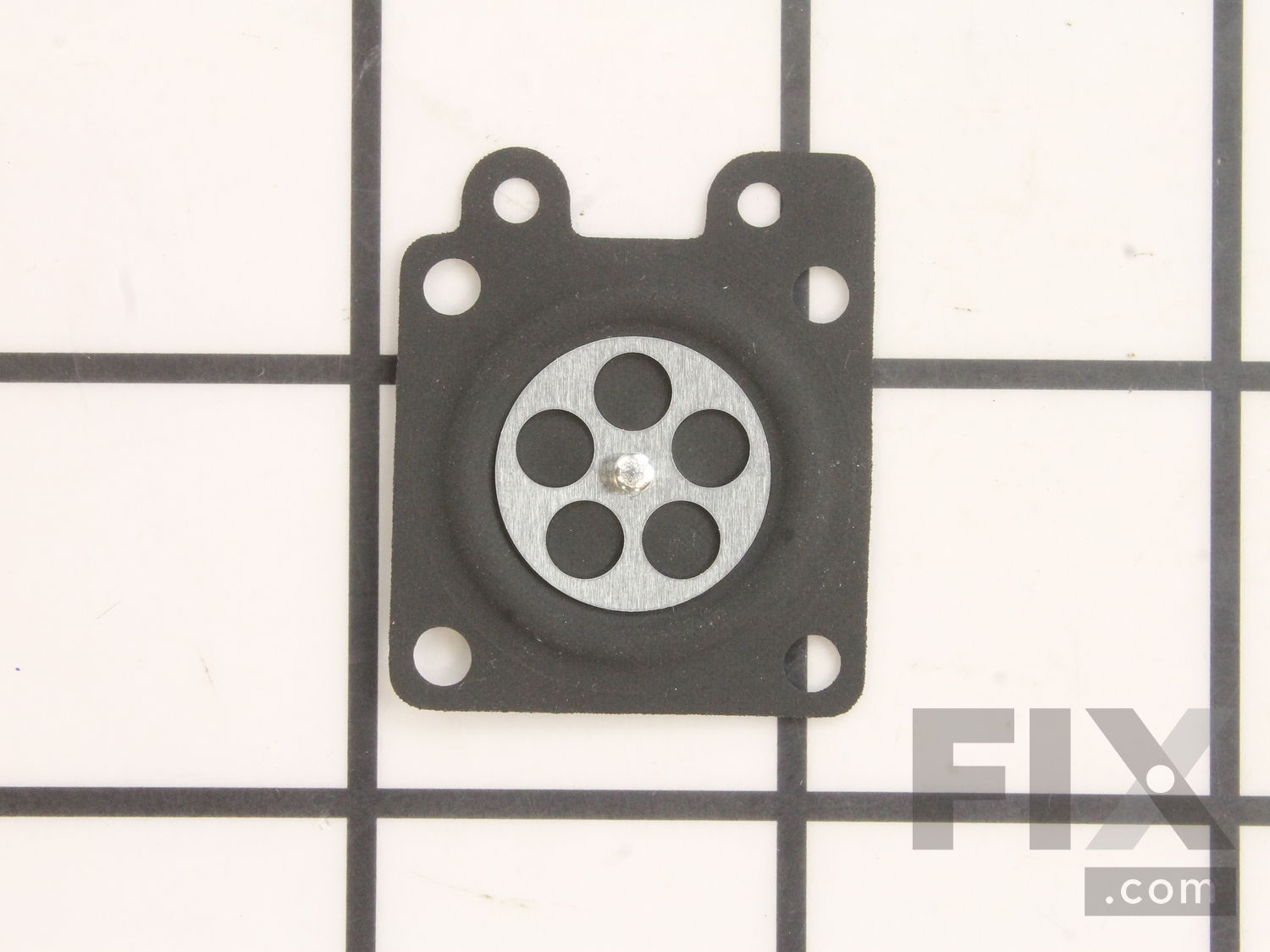

( Grid squares measure 1x1 inch )
9896797-1-S-Honda-16013-Z0H-003-Diaphragm Assembly- Metering 9896797-2-S-Honda-16013-Z0H-003-Diaphragm Assembly- Metering 9896797-3-S-Honda-16013-Z0H-003-Diaphragm Assembly- Metering 9896797-1-S-Honda-16013-Z0H-003-Diaphragm Assembly- Metering 360 view
Part Location Diagram of 16013-Z0H-003 Honda Diaphragm Assembly- Metering

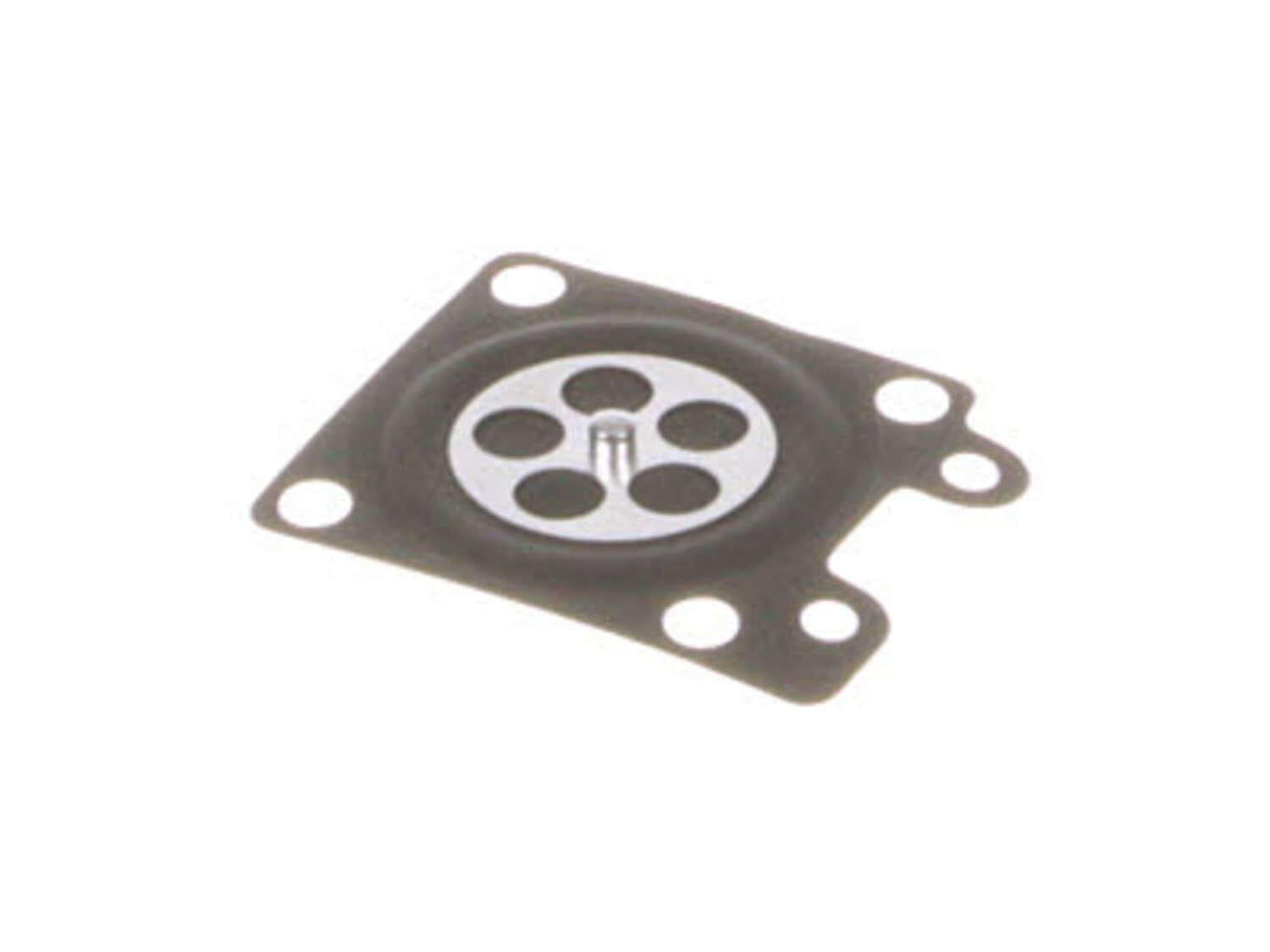

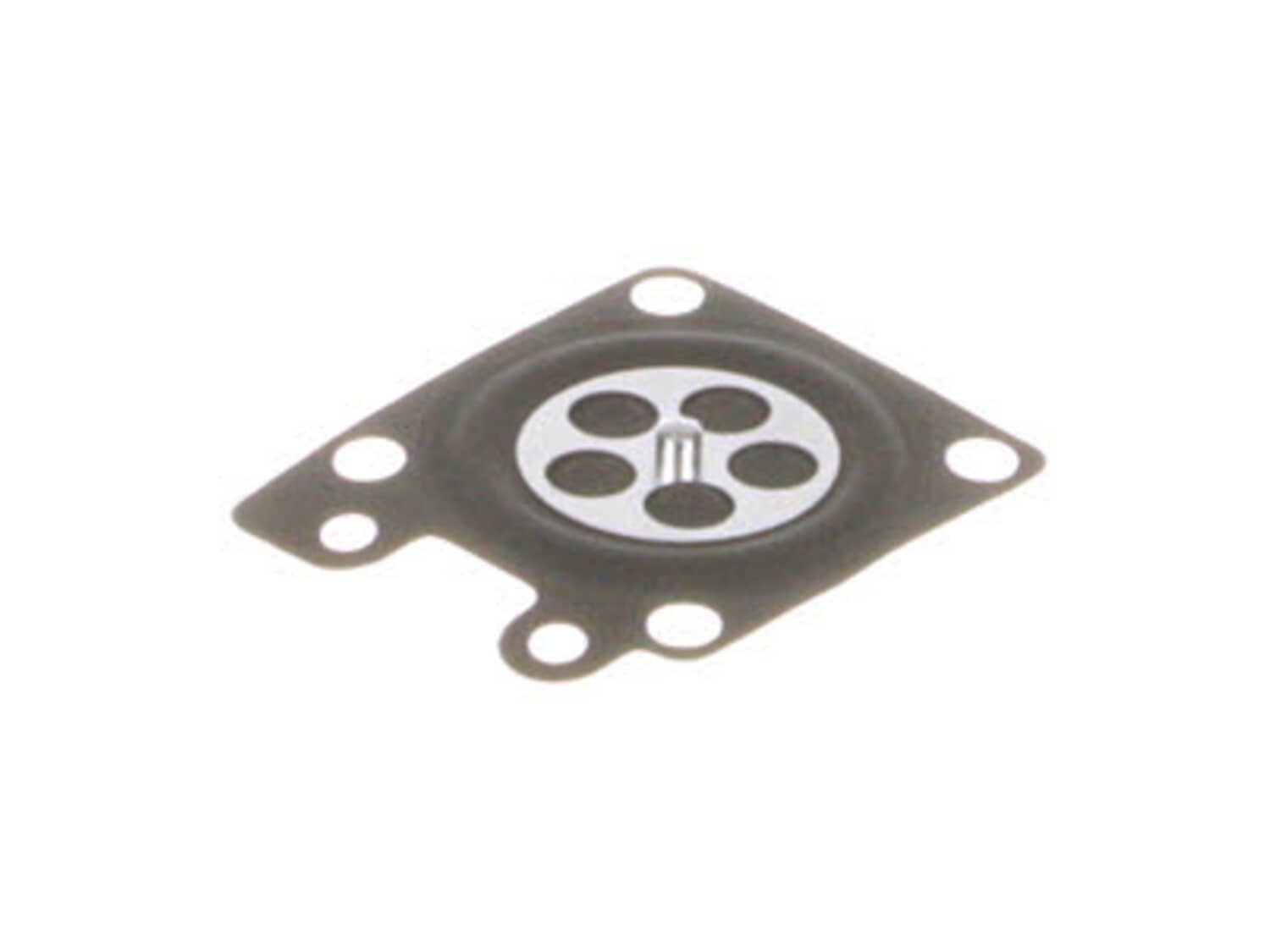

Diaphragm Assembly- Metering 16013-Z0H-003

$22.91
In Stock
Fix Number:
FIX9896797
Manufacturer #:
16013-Z0H-003
Manufactured by:
Honda

Jump to:

Product Description

This is an authentic Honda replacement part manufactured for use with small engines. Through time fuel can deteriorate gaskets and old fuel can clog the passageways inside a carburetor. It is recommended to replace gaskets when cleaning a carburetor to ensure good seals and clear passageways. This metering diaphragm gasket is available as an individual replacement part, please see model diagram for associative parts.

  • Works with the following brands:
    Honda
  • Works with the following products:
    Engine, Trimmer, Tiller
Works with the following brands:
Honda
Works with the following products
Engine, Trimmer, Tiller
