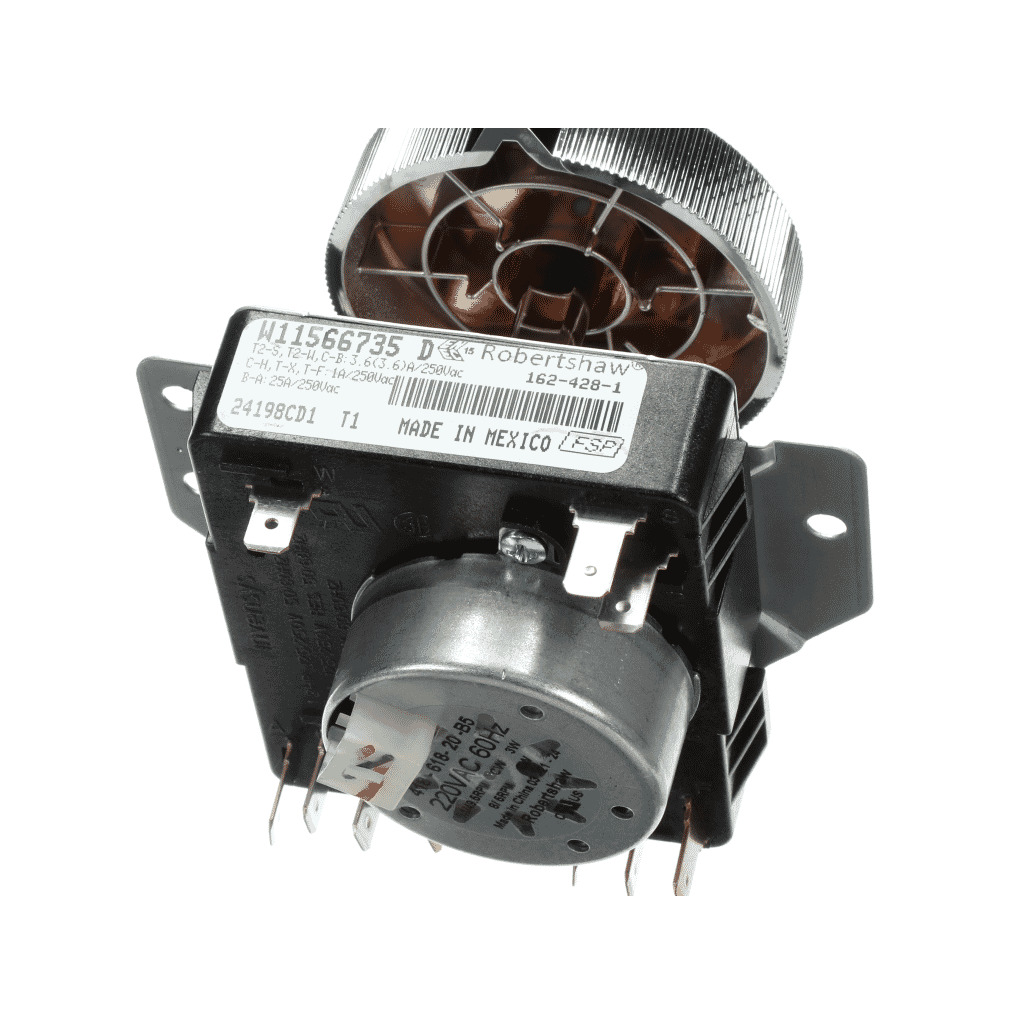

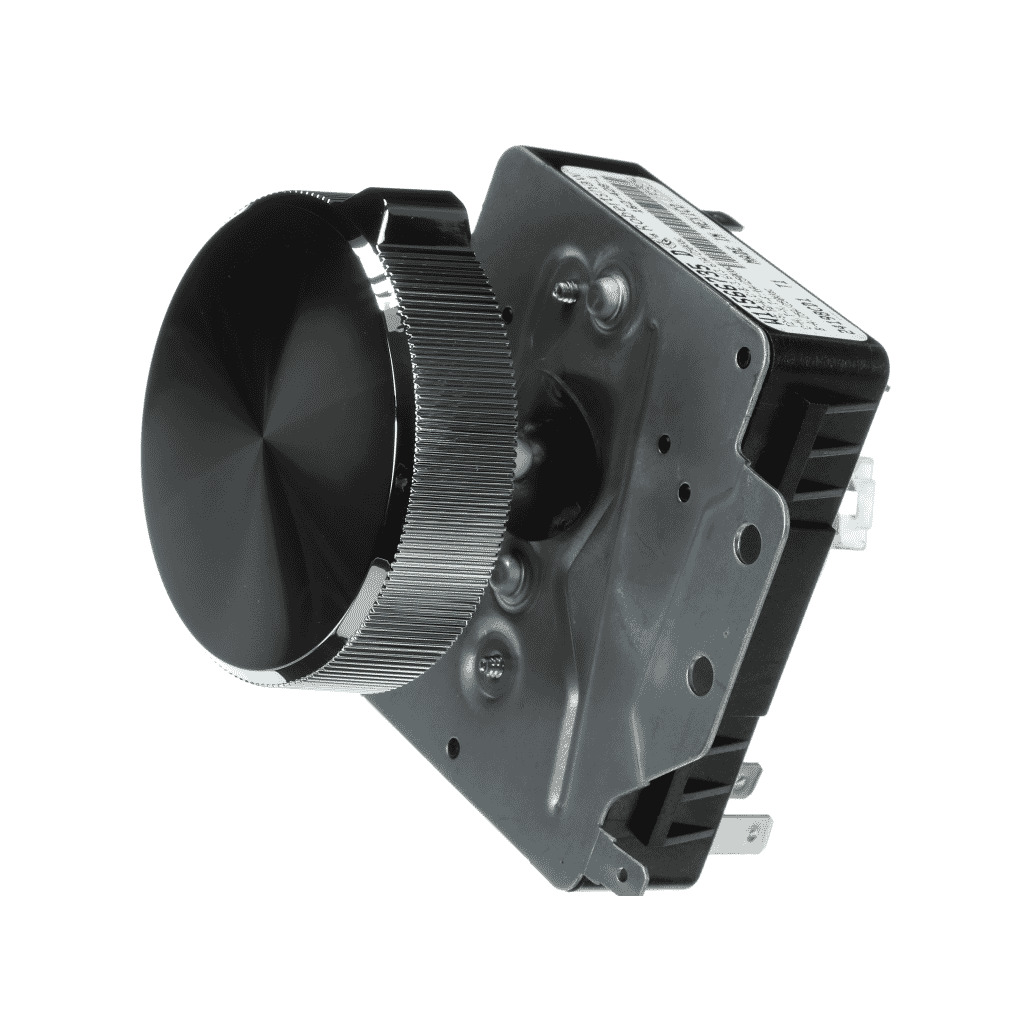

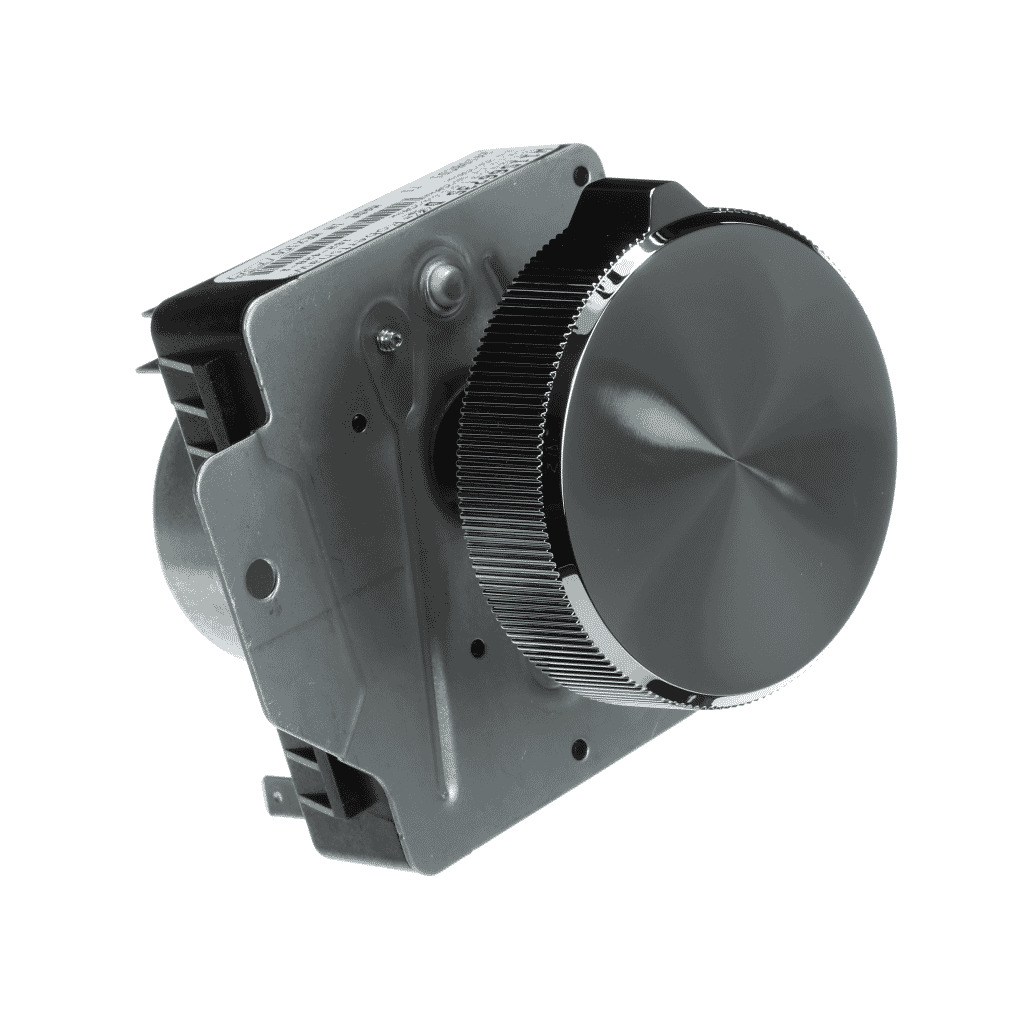

Part Location Diagram of W11685947 Whirlpool TIMER
See part 3 in the diagram
( Grid squares measure 1x1 inch )
17216594-1-S-Whirlpool-W11685947-TIMER 17216594-2-S-Whirlpool-W11685947-TIMER 17216594-3-S-Whirlpool-W11685947-TIMER Part Location Diagram of W11685947 Whirlpool TIMER

TIMER W11685947

$66.86
In Stock
Fix Number:
FIX17216594
Manufacturer #:
W11685947
Manufactured by:
Whirlpool

Jump to:

Product Description

Restore your dryer’s performance with this replacement timer, which regulates cycle length and coordinates the appliance’s electrical functions. Designed for select models, it offers dependable operation and easy installation. To ensure safety, unplug the dryer and consider wearing gloves during the process. Always verify your model number before purchasing, as even small differences in part design can affect fit and function.

  • Works with the following brands:
    Maytag
  • Works with the following products:
    Dryer
  • Fixes the following symptoms:
    Timer Not Working, Won’t Start
  • Part# W11685947 replaces these:
    W11566735
Works with the following brands:
Maytag
Works with the following products
Dryer
Fixes the following symptoms
Timer Not Working, Won’t Start
Part Number Cross Reference
Part# W11685947 replaces these:
W11566735
