Limit Thermostat WPW10116735

Rated by 5 customers

?

Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$66.07
In Stock
Fix Number:
FIX11748479
Manufacturer #:
WPW10116735
Manufactured by:
Whirlpool

Jump to:

Product Description

This hi-limit thermostat acts as a safety mechanism that keeps the dryer from overheating. With this thermostat, a dryer's heating element will cut out if the internal temperature reaches 225 degrees Fahrenheit. The element will kick back in when the temperature drops to 185 degrees Fahrenheit - the differential of 40 degrees.

  • Works with the following brands:
    Amana, Maytag, Speed Queen, Whirlpool
  • Works with the following products:
    Dryer
  • Fixes the following symptoms:
    Too hot
  • Part# WPW10116735 replaces these:
    AP6015206, 61210, 62641, R0611009, W10116735, Y62641
Works with the following brands:
Amana, Maytag, Speed Queen, Whirlpool
Works with the following products
Dryer
Fixes the following symptoms
Too hot
Part Number Cross Reference
Part# WPW10116735 replaces these:
AP6015206, 61210, 62641, R0611009, W10116735, Y62641

Videos For installing this part.

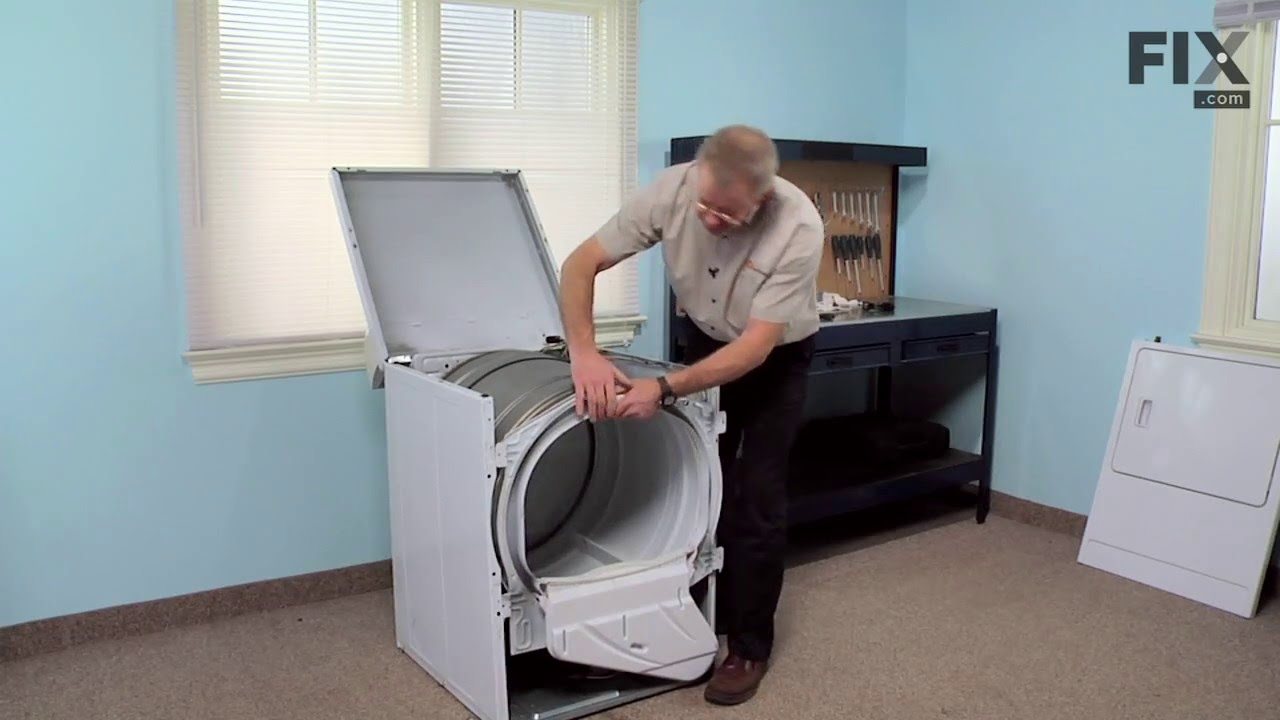

Replacing your Limit Thermostat

Replacing your Limit Thermostat
