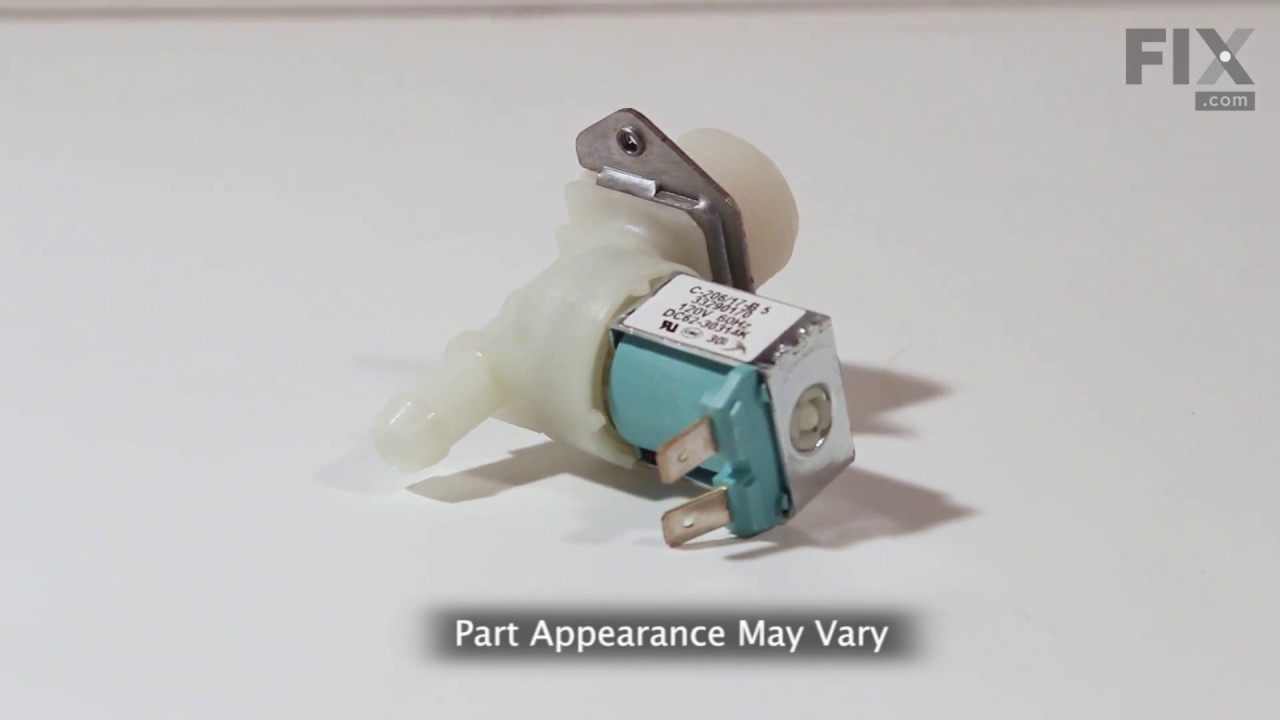

Water Inlet Valve
$60.02
In Stock
Fix Number: FIX8760080
Manufacturer #: W10648041
Manufactured by:
Whirlpool
-
Product Description
This water inlet valve should be located behind the lower kickplate panel in either the right or left corner. The attaching solenoids on the valve open and close according to the desired amount of water needed.
-
Works with the following brandsWhirlpool, Kenmore, KitchenAid, Maytag
-
Works with the following productsDishwasher
-
Fixes the following symptomsLeaking, Will not fill with water, Not cleaning dishes properly
-
Part Number Cross ReferencePart# W10648041 replaces these:AP5802887, W10195048, W10195049, W10219505, W10219506, W10648041VP, W10865472, WPW10195049
Product Description
This water inlet valve should be located behind the lower kickplate panel in either the right or left corner. The attaching solenoids on the valve open and close according to the desired amount of water needed.
-
Works with the following brands:Whirlpool, Kenmore, KitchenAid, Maytag
-
Works with the following products:Dishwasher
-
Fixes the following symptoms:Leaking, Will not fill with water, Not cleaning dishes properly
-
Part# W10648041 replaces these:AP5802887, W10195048, W10195049, W10219505, W10219506, W10648041VP ... Show more , W10865472, WPW10195049 Show less
Videos For installing this part.
Replacing your Water Inlet Valve
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Installation Instructions Provided by Fix customers like you.
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:David from Simsbury, CT
-
Parts Used:W10648041
-
Difficulty Level:Very Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Pliers, Screw drivers, Wrench set
Leaking Water Inlet Valve
Detailed replacement instructions currently online recommend pulling the dishwasher out from under the counter and turning it on its side to access the water inlet valve. With the cover plate at the under the door removed the water inlet valve is easy to see with a small flashlight, and easy to disconnect, remove, and replace lying on the floor. I would recommend doing this repair without removing the dishwasher.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Mike from Hillsdale, MI
-
Parts Used:W10648041
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Nutdriver, Pliers
Returned fromFloridaad found the dish washer leaking water.
removed the kick plate at bottom front of dishwasher. Remove 1/4 inch screw holding bracket. Unplug connector, remove both hoses. Reverse procedure to install. About a twenty minute or less repair. Orderigthe right part was so easy. Thanks!
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Francisco from Montclair, NJ
-
Parts Used:W10648041
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Pliers, Screw drivers, Socket set
water would not stop flowing into the dishwasher and leaked onto the floor
The water inlet valve shuts off the water supply once the water reaches a certain level inside the dishwasher. A properly functioning inlet valve will also shut off the water supply when the door is opened. If you open the door when its filling up and the water continuous to pour in, then your inlet valve is defective. In my case, due to extrema cold the hoses and probably the inlet valve froze and was damaged.Before pulling the dishwasher out make sure you completely drain it by pressing and holding the cancel button. Pull it out and unplug. Remove the racks inside and flip the dishwasher on its side to have access to the bottom. remove the front lower damper (two crews). Locate the inlet valve and release the valve from the frame (one screw), disconnect the water supply hose, disconnect the fill hose and disconnect the electric jack. Replace the faulty inlet valve and reverse the steps.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Earl from Sun Valley, CA
-
Parts Used:W10648041
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Nutdriver, Pliers
Water was dripping at the base of the unit.
Removed one screw with a nut driver, removed a hose clamp and hose and removed the wiring clip. Then reversed the process to install the new valve.
Was this instruction helpful to you?
Thank you for voting!
- < Prev
- 1
- Next >
Model Compatibility
This part works with the following models:
Fix Number: FIX8760080
Manufacturer Part Number: W10648041
Manufacturer Part Number: W10648041
Brand
Model Number
Description
Kenmore
66512772K311
Dishwasher
- Kenmore Dishwasher Model 665.12772K311 (66512772K311, 665 12772K311) Parts
Kenmore
66512773K311
Dishwasher
- Kenmore Dishwasher Model 665.12773K311 (66512773K311, 665 12773K311) Parts
Kenmore
66512776K311
Dishwasher
- Kenmore Dishwasher Model 665.12776K311 (66512776K311, 665 12776K311) Parts
Kenmore
66512782K311
Dishwasher
- Kenmore Dishwasher Model 665.12782K311 (66512782K311, 665 12782K311) Parts
Kenmore
66512833K311
Dishwasher
- Kenmore Dishwasher Model 665.12833K311 (66512833K311, 665 12833K311) Parts
