Whirlpool/Whirlpool_Thumb/46WLNAIP.gif
See part 17 in the diagram

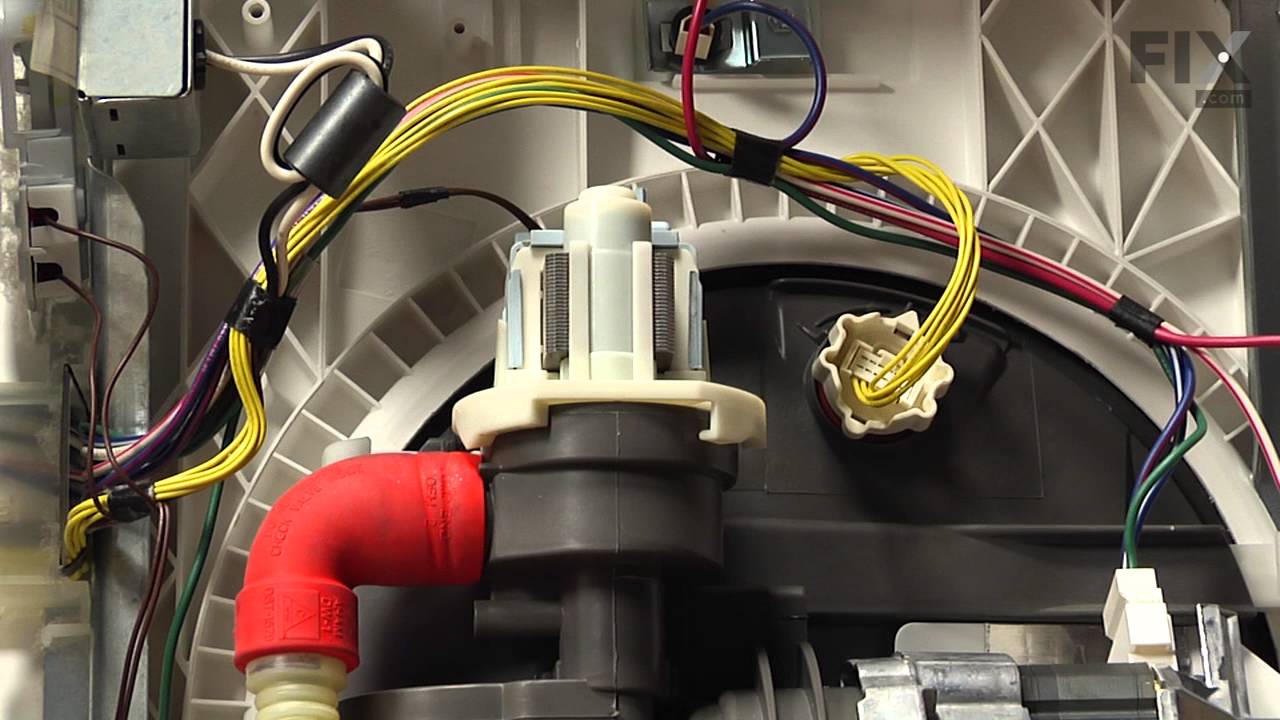

Replacing your Whirlpool Dishwasher Dishwasher Drain Pump play video
( Grid squares measure 1x1 inch )

Dishwasher Drain Pump

$94.72
Fix Number: FIX11753379
Manufacturer #: WPW10348269
Manufactured by: Whirlpool

Product Description

Videos For installing this part.

Replacing your Dishwasher Drain Pump

Replacing your Dishwasher Drain Pump play video
Questions and Answers

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

1 question answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.
    Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Steven
    14 days ago
    My dishwasher won't drain. Also, no motor noise when I put dishwasher in cancel/drain mode. How do I know if it's the pump that bad or the controller?
    For model number KDTE104ESS1 Kitchenaid
    Hello Steven, Thank you for your inquiry. You can test the drain pump with a multimeter to see if it is causing the issue. We also recommend checking the drain filter, and the dishwasher pump and motor assembly, and check the wiring for any loose connections. Good luck with your repair.

    Was this helpful?
    Thank you for voting!
    Related Parts:

      Installation Instructions Provided by Fix customers like you.

      Average Repair Rating: 4.2 / 5.0, 11 reviews.
      Sort by:
      Sorry, we couldn't find any existing installation instruction that matched.
      • Customer:
        WILLIAM from MCKEES ROCKS, PA
      • Parts Used:
        WPW10348269
      • Difficulty Level:
        Very Easy
      • Total Repair Time:
        15 - 30 mins
      • Tools:
        Pliers, Screw drivers
      Dishwasher not draining
      This was one of the easiest jobs I ever did first I rremoved the excess water with a Shop-Vac then removed the kick plate two screws then removed the clamp from the drain hose pulled the electrical wiring off the pump removed the pump by turning it counterclockwise put the new pump in turning it clockwise it took less than a half-hour but a little more than 15 minutes
      15 of 16 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      • Customer:
        Mark from Winnie, TX
      • Parts Used:
        WPW10348269
      • Difficulty Level:
        Easy
      • Total Repair Time:
        30 - 60 mins
      • Tools:
        Nutdriver, Pliers
      Water remaining in the bottom of dishwasher after cycle was completed
      Cut the breaker off for the dishwasher. Removed the dishwasher drain line from the garbage disposal and used a wet/dry vacuum cleaner do vacate all the water from the dishwasher. I was able to look at new pump to see where the clip was located to push in so I could rotate old pump to get it out of housing. Before taking it out I removed the wire going to the pump and then rotated the pump and took it out. Watching the video twice that was provided by this site will make installation pretty easy for most. I put new pump in and rotated until it locked and then replaced the plug wire back to the new pump. The rest was just putting things back like the drain line and make sure all your clamps are put back in place. I was able to change the old pump without taking dishwasher out of counter and turning it on its side. It was a little more difficult working on it in this manner but surely doable.
      8 of 8 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      • Customer:
        Mark from NEW PRT RCHY, FL
      • Parts Used:
        WPW10348269
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Tools:
        Pliers, Screw drivers
      Dishwasher stopped draining
      Remove cover plate from the bottom of the dishwasher. Move hose clamp out of the way. Unscrew dishwasher pump being careful not to pull on wires. Unplug wire harness. Plug wires into new pump. Reinstall pump and put hose clamp back in place. Reinstall cover plate.
      4 of 4 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      • Customer:
        steven from ATWATER, CA
      • Parts Used:
        WPW10348269
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        15 - 30 mins
      • Tools:
        Pliers, Screw drivers, Socket set
      Dish washer was not Discharging water
      Pulled the dishwasher out laid it on the floor

      Remove the old pump install the new pump by hand no tools required

      Re installed dishwasher
      2 of 2 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      • Customer:
        Thomas from Morrisville, NY
      • Parts Used:
        WPW10348269
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        15 - 30 mins
      • Tools:
        Screw drivers
      faulty drain pump
      removed bottom cover. Unclipped drain pump and wire. Installed new one. 15 minutes.
      1 person found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      • Customer:
        andrew from bethesda, MD
      • Parts Used:
        WPW10348269
      • Difficulty Level:
        Very Easy
      • Total Repair Time:
        15 - 30 mins
      • Tools:
        Screw drivers
      water won't drain and unit not running
      it took a great effort to turn the pump - counter clock wise- to disconnect the pump from housing. after few trial it finally came lose.when the pump drop lower you can easily disconnect the wire from the unit. put down a tray under the pump so water will not running under the washer. the problem started when some how the pump is loose and water was dripping resulting burning out the copper wiring .
      0 of 1 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      • Customer:
        Matthew from Sunrise, FL
      • Parts Used:
        WPW10348269
      • Difficulty Level:
        Easy
      • Total Repair Time:
        15 - 30 mins
      • Tools:
        Pliers, Screw drivers, Wrench (Adjustable)
      Dishwasher would not drain
      Found this site and discovered the most common cause of a dishwasher failing to drain was a faulty drain pump. I ordered a new one from partselect.com. It arrived very quickly. The DIY video was extremely informative and made replacing the drain pump super easy; however, after installation I was still having the same problem. Of course, if I just remembered to pop out the plastic drain block piece in the new garbage disposal I had just installed the day before it stopped draining, I could've avoided everything.
      0 of 1 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      • Customer:
        Gavin from Lanoka Harbor, NJ
      • Parts Used:
        WPW10348269
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        15 - 30 mins
      • Tools:
        Pliers, Screw drivers
      unit not draining
      followed your instructions from the e-mail you sent me... Thank You Very Much !
      0 of 1 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      • Customer:
        Ken from Atlanta, GA
      • Parts Used:
        WPW10348269
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        30 - 60 mins
      • Tools:
        Nutdriver
      does not drain
      The online videos and other commenters have described very well how to complete this repair. The only thing I wish had been suggested was to first be sure the drain hose was not clogged!
      0 of 1 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      • Customer:
        Jerry from Perry, MO
      • Parts Used:
        WPW10348269
      • Difficulty Level:
        Easy
      • Total Repair Time:
        15 - 30 mins
      • Tools:
        Pliers
      Dish washer was not draining
      Ordered a drain pump and installed it , but would not drain.Found the hose was clogged. cleaned it out and worked fine left the new pump in due to the age of the dishwasher.
      0 of 1 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Model Compatibility
      This part works with the following models:
      Fix Number: FIX11753379
      Manufacturer Part Number: WPW10348269
      Brand
      Model Number
      Description
      Kenmore
      66213032K112
      Dishwasher - Dishwasher
      Kenmore
      66213273K112
      Dishwasher - Dishwasher
      Kenmore
      66512093K210
      Dishwasher - UNDERCOUNTER DISWASHER
      Kenmore
      66512413N410
      Dishwasher - DISHWASHER
      Kenmore
      66512413N411
      Dishwasher - DISHWASHER
      Kenmore
      66512723K310
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66512723K311
      Dishwasher - DISHWASHER
      Kenmore
      66513012K110
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513012K111
      Dishwasher
      Kenmore
      66513012K112
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513012K113
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513013K110
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513013K111
      Dishwasher
      Kenmore
      66513013K112
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513013K113
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513014K110
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513014K111
      Dishwasher
      Kenmore
      66513014K112
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513014K113
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513019K110
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513019K111
      Dishwasher
      Kenmore
      66513019K112
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513019K113
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513023K110
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513023K111
      Dishwasher
      Kenmore
      66513023K112
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513023K113
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513032K110
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513032K111
      Dishwasher - UNDERCOUNTER DISHWASHER
      Kenmore
      66513032K112
      Dishwasher - UNDERCOUNTER DISHWASHER
