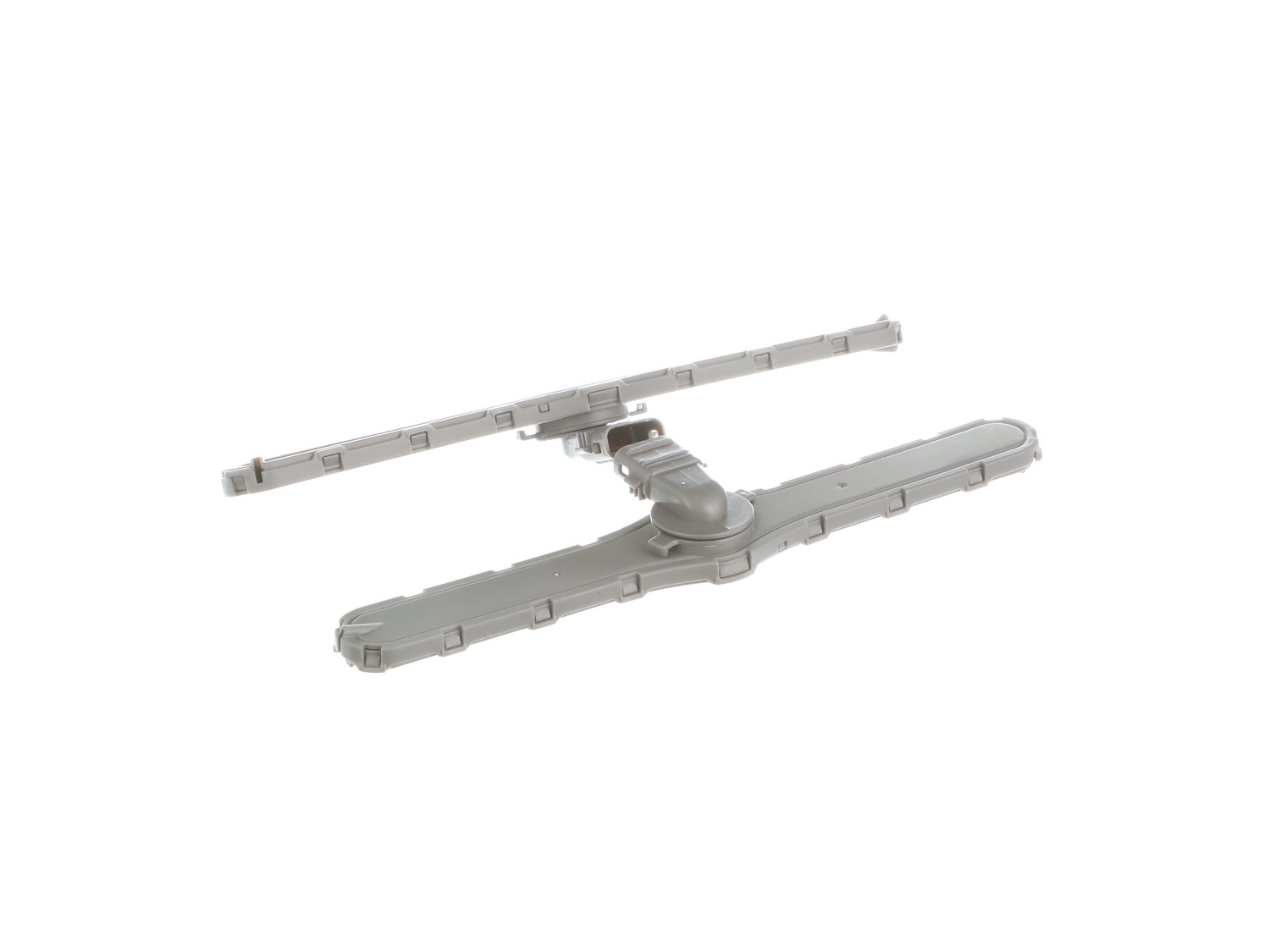

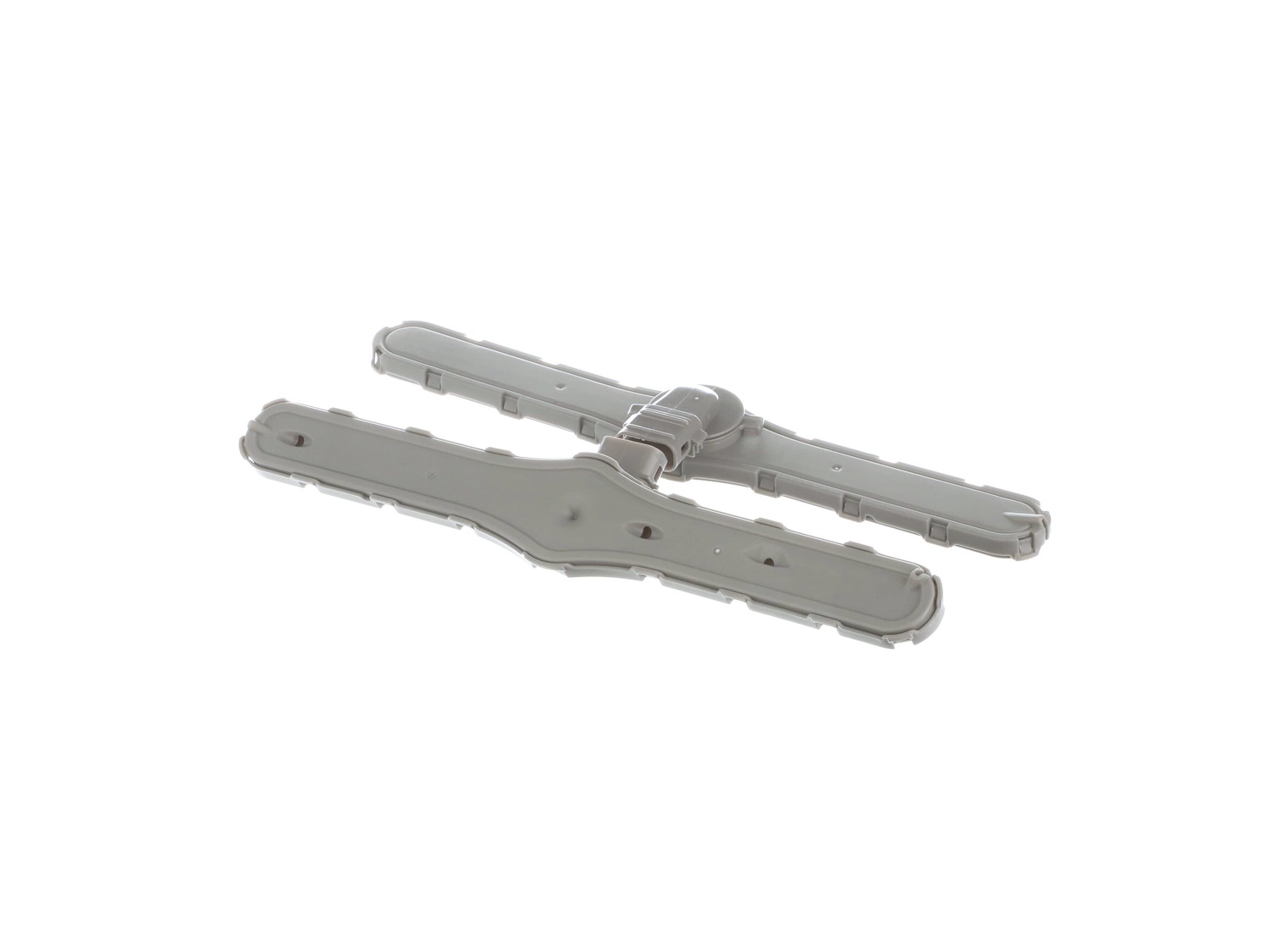

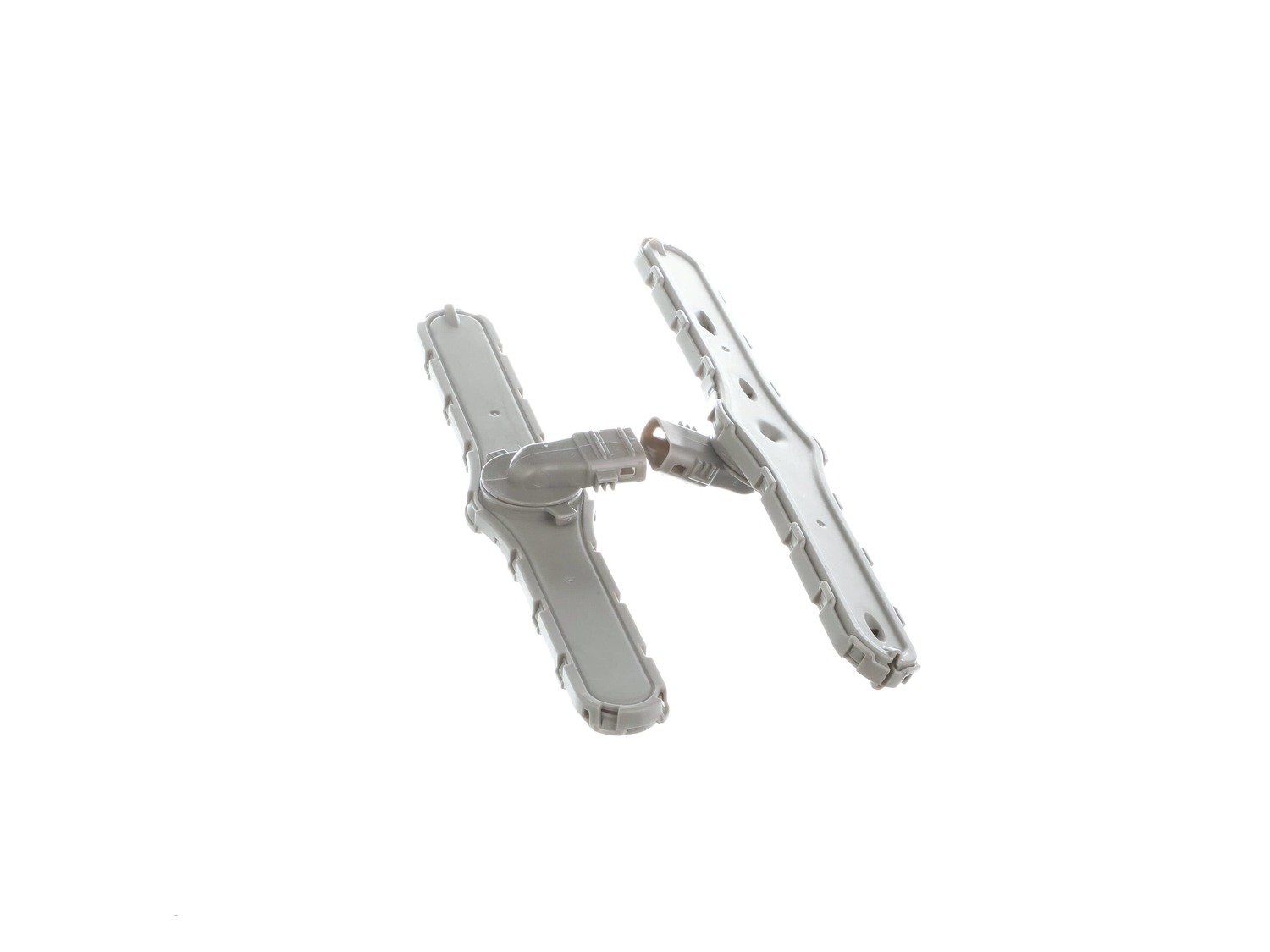

Good upper-rack cleaning depends on the top spray nozzle receiving enough water and moving without blockage. Cracks, mineral buildup, or trapped food can weaken the spray and leave residue behind. Clean the arm and check for low water flow or poorly placed dishes before ordering a replacement. Match the assembly to the full appliance model and parts diagram. Turn off power, secure each connector carefully, and rotate the new arm by hand to confirm it is attached correctly and has a clear path.
Works with the following brands:
Samsung
Works with the following products:
Dishwasher
Fixes the following symptoms:
Not cleaning dishes properly
Works with the following brands:
Samsung
Works with the following products
Dishwasher
Fixes the following symptoms
Not cleaning dishes properly
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
3 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched. Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Pat
September 4, 2022
Top sprayer won’t stay on the assembly
For model number Dw80k705oug
Hello Pat, thank you for your inquiry. Our research on your model number suggests that the issue is likely to be with the upper spray arm, part number FIX12085666. Customer service is always available to help you place an order if you are having trouble doing so. Good luck with your repair!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Jin
December 1, 2022
Top spinner is keep falling after reattaching several wash cycles. This part looks like ours. Will this work on my model?
Thank you.
For model number DW80M9550US
Hi Jin,
Thank you for your question. This would not be the correct top spinner for your dishwasher. The part number listed under your model number for the top spinner is FIX12085764. If you need help placing an order for it, customer service is open 7 days a week and anyone will be happy to assist you. Please feel free to give us a call. We look forward to hearing from you!
The top spinner on my dishwasher fell down. I have the part#DW7000KM,OEM (spinner , small ring, and twist on thingy, but it won’t stay attached. It doesn’t help that I have a 3rd rack and it is almost impossible to reach the place where the water would come out when in use. Any suggestions?
For model number DW80k7050UG
Hi Shelley,
Thank you for your question. Before beginning this repair, turn the power off to the dishwasher. Then open the dishwasher door and remove the top rack by lifting up on it and push the rails back in. Then remove the upper dishrack out by pulling it out and left it up and out. Once it is out, push the rails back in. The top spray arm is held in place by 2 clips. Use a small flat-head screwdriver to release one of the clips and pull the water supply tube down. Once you have one side off, the other will come off. There is a locking tab on the spray arm. Press on each side to release it and remove it from the tube. Then push the new spray arm on until it locks in. Then follow the steps in reverse to reinstall the parts. We hope this helps!
Was this helpful?
Thank you for voting!
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
This three count package of Affresh Washing Machine Cleaner helps remove odor causing residue from inside the washer, each slow dissolving tablet works throughout the wash cycle and is suitable for all washer brands, inc...
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
This cleaner is ideal for ventilation, microwaves, cooktops, refrigeration, and stainless steel surfaces. It easily removes burnt-on debris and greasy residues. Can be used on kitchen cabinets, countertops, tile and stee...
★
Customer Reviews
Average Rating:
(1 Review)
5.0
★★★★★
★★★★★
Filter By Rating:
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Jeffery V G - May 18, 2021
Verified Purchase
Nice replacement
This replacement nozzle assembly was just like the original.
Model Compatibility
This part works with the following models:
Fix Number: FIX12085666
Manufacturer Part Number: DD82-01309A
