557009-1-M-Whirlpool-8193506 -Float Switch Kit
Part Location Diagram of 8193506 Whirlpool Float Switch Kit
See part 11 in the diagram
Replacing your KitchenAid Dishwasher Float Switch Kit
( Grid squares measure 1x1 inch )
557009-1-S-Whirlpool-8193506 -Float Switch Kit 557009-2-S-Whirlpool-8193506 -Float Switch Kit 557009-3-S-Whirlpool-8193506 -Float Switch Kit Part Location Diagram of 8193506 Whirlpool Float Switch Kit Replacing your KitchenAid Dishwasher Float Switch Kit

Float Switch Kit

Rated by 1 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$49.79
In Stock
Fix Number: FIX557009
Manufacturer #: 8193506
Manufactured by: Whirlpool
  • Product Description

    This kit includes the switch, lever, seal and standpipe. Water that fills your dishwasher lifts the float, and when it reaches a certain level, the float acts as a trigger for the float switch. The float triggers the switch to shut off, thereby shutting off the flow of water into the dishwasher.

  • Works with the following brands
    KitchenAid, Kenmore, Whirlpool, Maytag
  • Works with the following products
    Dishwasher
  • Fixes the following symptoms
    Leaking, Will not fill with water, Not draining
  • Part Number Cross Reference
    Part# 8193506 replaces these:
    AP3138166, 903948, 8193506, 8268889, 8268891, 8545880, 8545946
1 Installation Video
1 Related Part Questions and Answers
1 Installation Instruction Model Compatibility
Product Description Part Videos Questions and Answers Related Parts Installation Instructions Model Compatibility

Product Description

This kit includes the switch, lever, seal and standpipe. Water that fills your dishwasher lifts the float, and when it reaches a certain level, the float acts as a trigger for the float switch. The float triggers the switch to shut off, thereby shutting off the flow of water into the dishwasher.

  • Works with the following brands:
    KitchenAid, Kenmore, Whirlpool, Maytag
  • Works with the following products:
    Dishwasher
  • Fixes the following symptoms:
    Leaking, Will not fill with water, Not draining
  • Part# 8193506 replaces these:
    AP3138166, 903948, 8193506, 8268889, 8268891, 8545880 ... Show more , 8545946 Show less

Videos For installing this part.

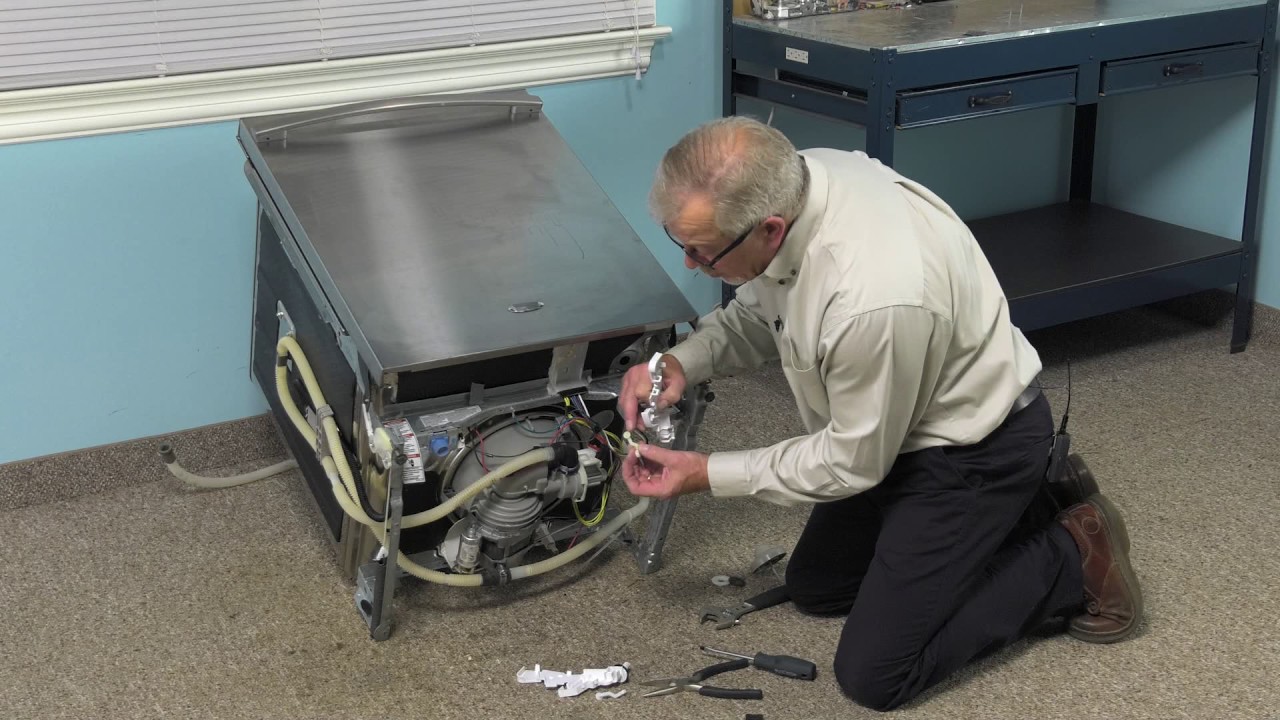

Replacing your Float Switch Kit

Replacing your Float Switch Kit

Questions and Answers

Be the first to ask our experts a question about this part!

FLOAT-Assembly
$49.83
Part Number: FIX11745483
As water is filling your dishwasher, a float rises along with it. When the float reaches a predetermined level, it shuts off the flow of water, thereby preventing a leak.
$49.83
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.4 / 5.0, 1 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
  • Customer:
    John from canton, TX
  • Parts Used:
    8193506
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Wrench (Adjustable)
Water leak near right front leg.
Watched 3 youtube videos. Removed front door panel (see video). Popped open the float switch assembly (see new assembly to find the 2 pop open points). Disconnect the two electrical connections (breaker already turned off) and pull out the switch. Disengage the connecting rod so that the float cap (on right front bottom of dishwasher interior) can be lifted out. Remove the large white nylon nut from the location vacated by the float cap. The float switch assembly now drops out. Install new float switch assembly, placing black rubber gaskets on the threaded portion of the assembly, one prior to insertion and one after insertion into dishwasher bottom. Return nut to secure and tighten. Reverse earlier steps of the disassembly. When done, make sure when lifting float cap that you can hear the switch click. If it doesn't click, you did something wrong .
4 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Back to Top
Model Compatibility
This part works with the following models:
Fix Number: FIX557009
Manufacturer Part Number: 8193506
Brand
Model Number
Description
Kenmore
665110739120
Dishwasher
Kenmore
665110739130
Dishwasher
Kenmore
665110739140
Dishwasher
Kenmore
665110739190
Dishwasher
Kenmore
66513113K700
Dishwasher
Kenmore
66513114K701
Dishwasher
Kenmore
66513119K700
Dishwasher
Kenmore
66513123K700
Dishwasher
Kenmore
66513123K701
Dishwasher
Kenmore
66513129K700
Dishwasher
Kenmore
66513173K705
Dishwasher - Kenmore Dishwasher Model 665.13173K705 (66513173K705, 665 13173K705) Parts
Kenmore
66513413K700
Dishwasher
Kenmore
66513419K701
Dishwasher
Kenmore
66513422K701
Dishwasher
Kenmore
66513752K600
Dishwasher
Kenmore
66513753K601
Dishwasher
Kenmore
66513753K603
Dishwasher
Kenmore
66513754K601
Dishwasher
Kenmore
66513754K603
Dishwasher
Kenmore
66513763K603
Dishwasher
Kenmore
66513769K600
Dishwasher
Kenmore
66513772K600
Dishwasher
Kenmore
66513772K603
Dishwasher
Kenmore
66513772K604
Dishwasher
Kenmore
66513773K603
Dishwasher
Kenmore
66513773K604
Dishwasher
Kenmore
66513779K600
Dishwasher
Kenmore
66513782K600
Dishwasher
Kenmore
66513785K600
Dishwasher
Kenmore
66513785K603
Dishwasher
