Piston and Nut Assembly – Part Number: WD24X10018
Piston and Nut Assembly – Part Number: WD24X10018 Piston and Nut Assembly – Part Number: WD24X10018 https://fixcom.azureedge.net/Schematics/GE/00112583i02.gif

Piston and Nut Assembly

Your Price
$19.24

Fix Number: FIX260690

Manufacturer #: WD24X10018

Manufactured by: GE

Get this part fast. Average delivery time via standard shipping: 1.8 days.

Part description

This is used for the check valve.

Works with the following brands

General Electric, Kenmore, Hotpoint, Amana

Works with the following products

Dishwasher

Fixes the following symptoms

Not draining | Not cleaning dishes properly | Leaking

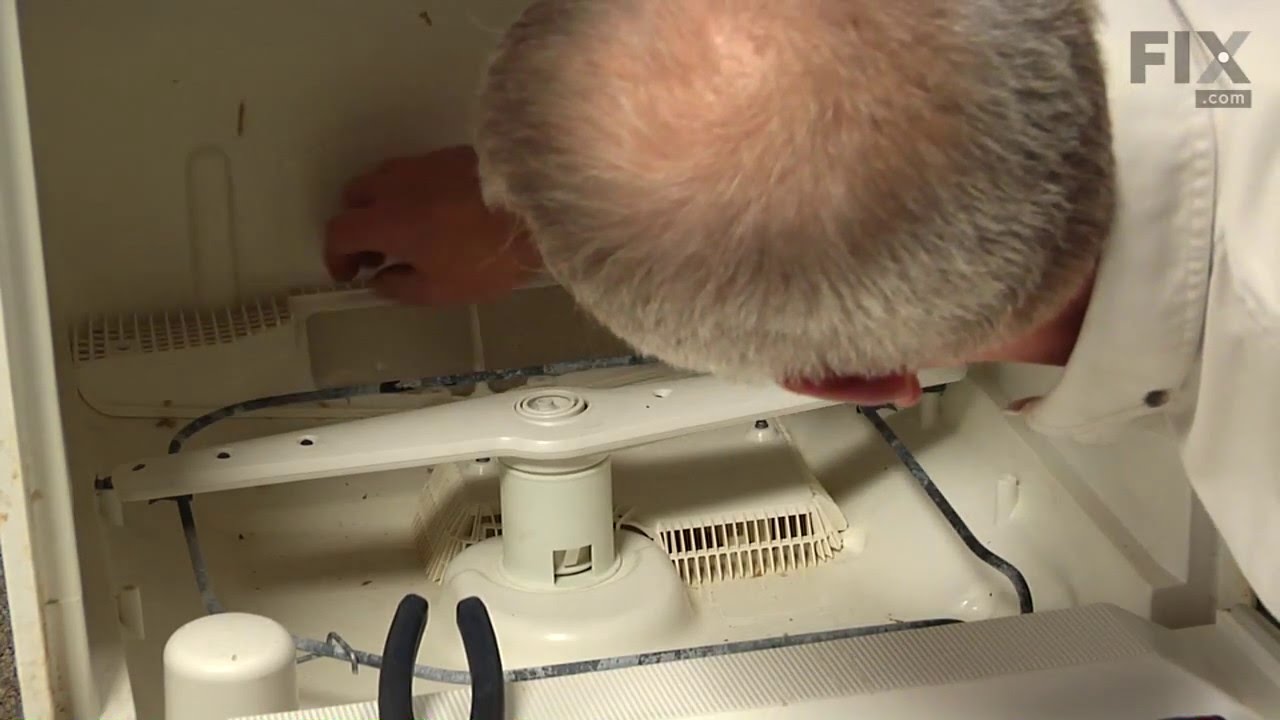

Videos For installing this part.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.8 / 5.0, 12 reviews
Customer:
Dino from Ashburn, VA
Parts Used:
  • Piston and Nut Assembly
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver, Pliers
Dishwasher wouldn't drain
Very easy to accomplish. Took off the back screen and removed piston nut assembly with some pliers. It just screws out. Installed the new part and reinstalled the screen and it works like new!
1 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Randy from Wylie, TX
Parts Used:
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Screw drivers, Socket set, Wrench (Adjustable)
Dishwasher was not draining completely.
Remove the bottom rack. Put a block under the front edge of the opened door to keep the pressure off the hinges as I worked. I removed the two screws holding the cover inlet (506) and removed the cover sump (509) and the filter sump (508). I took a screwdriver to pry up the washers that secured the large screen just below the heating element. I removed the standing water with a wet vacuum and cleaned the sump and inlet parts. Removed the right screw that held the supt calrod (112). Removed the two screws that held the filter frame (543) and unscrewed the piston and nut assembly (564) which was completed deteriorated. Installed the new piston and nut and replaced all the pieces removed earlier. Removed the corner tub baffles (26) and replaced with new ones. I did not use the valve body gasket. The dishwasher is working perfectly after multiple uses.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Michael from Oak Creek, WI
Parts Used:
  • Piston and Nut Assembly
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver, Pliers
After total cycle was complete, there was a large volumn of water in bottom of dishwasher.
Removed 4 screws from rear cover inside washer. Gently removed check valve with a pliers. Found the check valve seat had failed and was completely gone. Checked discharge opening for debris. There was none. Gently tightened new valve with pliers and reinstalled cover. Ran complete cycle - problem solved, no residual water in bottom of dishwasher.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Greg from Vallejo, CA
Parts Used:
Difficulty Level:
Easy
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Wrench (Adjustable)
Not draining and leaking from flow diverter solenoid
The instruction videos on the site were well done. The only real addition I wanted to add here, is that the repair itself only took an hour. The reason I listed it as taking more than 2 hours was due to the amount of time it took to clean the build up of calcium and hardened soap from the various areas. Keep this in mind when doing your own repair. Removing and replacing the parts was quick and painless. Cleaning the crud was time consuming.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Art from Macungie, PA
Parts Used:
  • Piston and Nut Assembly
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver, Pliers
Water does not drain entirly from dishwasher
Removed three screws from rear basket. Unscrewed existing valve. Needed to use a channel locks to loosen using the tabs on the valve. Installed new valve. Hand tighten then one 1/8 of a turn to tighten. Don't tighted to much. Ran a full load and checked after completed cycle. Did not fix the problem. Water still remains. I realise that the suggested part had only a little better than 50% success rate.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Sue from Shirley, AR
Parts Used:
  • Piston and Nut Assembly
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Dishwasher was no longer draining
Drained standing water using a shop vac. Took out all screens in the bottom, cleaned out as much "gunk" as I could. Saw the mangled Piston and Nut Assembly. Found the part on line. When the order came in, replaced the part. Very easy and worked like a charm! MUCH better than replacing our old dishwasher. All it took was a screwdriver, you can do it. I did it while my husband was at his fire dept. meeting!
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Tom from Boise, ID
Parts Used:
  • Piston and Nut Assembly
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver, Pliers
"slow drain" error
Simple job! Remove 4 1/4" hex-headed screws at the back, un-screw the old part (pliers may be needed) and install the new one. The replace the cover and 4 screws.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Tomas from Temecula, CA
Parts Used:
  • Piston and Nut Assembly
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Socket set, Wrench (Adjustable)
Washer does not drain entirely
Ordered part #WD24X10018, piston and nut assembly. As advised., tried to unscrew 4 screws to remove part. 2 screws were no problem, the other two were just under and in line with what looks like heating tubing. Had to loosen same in order to remove the other two.. Could not remove piston, as it was frozen. Luckily I had Naval Jelly rust dissolver, whichI I applied and left over night, which did the trick. I replaced the part butIi still have 1/2" water standing. Now what do I replace?.....Tom P.S. washer has hardly been used??
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Douglas from Bandera, TX
Parts Used:
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
Dishes weren't coming out clean
Researched the internet and found parts supplier who had the replacement parts suggested and how to videos. Only difficulty was the old piston & nut assembly which was "frozen tight in place". Had to muscle it out. Rest of repair couldn't have been much easier. Once old parts were replaced, dishes seem to be coming out better. For now this beat spending $$ for a new dishwasher.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Bonnie from Scottsdale, AZ
Parts Used:
  • Piston and Nut Assembly
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Socket set
Dishwasher did not fully drain
Removed the lower basket and then removed the cover with the filter screen at the back of the dishwasher by removing four small screws. Turned the piston and nut assembly counterclockwise with pliers to unscrew it. Cleaned the recess and screwed-in the new part. Problem fixed!
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
John from Tampa, FL
Parts Used:
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver
Bottom of the tub stopped draining
I checked this website and found that the Piston & Nut Assembly was the likely culprit. I unscrewed the 4 screws holding the plastic screen assembly at the bottom rear of the inside of the dishwasher. Simply unscrewed the Piston & Nut Assembly-it has a little difficult at first. It was all gobbed up and also the rubber valve was disintegrated. Screwed in the new part and replaced the plastic screen cover. While I was at it, my Filter Gasket (screen) Assembly at the bottom of the tub needed to be replaced. I removed the washer arm by using a screwdriver to gently push the holding tabs out of the way at the bottom. Then using the same screwdriver, I slid the head under the metal tabs on the two plastic pegs that hold the Gasket Assembly down. Make sure you slide the screwdriver head between the metal tabs and the actual Gasket-if you don't you'll snap off the plastic peg. Put the new Gasket Assembly in and use the reverse process to secure it down. Replace the washer arm and you're done. Piece of cake-runs like new.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
William from AVON, CT
Parts Used:
  • Piston and Nut Assembly
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Socket set
Water not draining
per instructions, easy. Less than $20
0 of 1 people found these instructions helpful

Were these instructions helpful?
