8691810-1-M-Whirlpool-W10620783-DUCT-KIT
Part Location Diagram of W10620783 Whirlpool DUCT-KIT
See part NI in the diagram
( Grid squares measure 1x1 inch )
8691810-1-S-Whirlpool-W10620783-DUCT-KIT 8691810-2-S-Whirlpool-W10620783-DUCT-KIT Part Location Diagram of W10620783 Whirlpool DUCT-KIT

DUCT-KIT W10620783

Works With Model KCGD500GSS05!
$427.69
In Stock
Fix Number:
FIX8691810
Manufacturer #:
W10620783
Manufactured by:
Whirlpool
Works With Model KCGD500GSS05!

Jump to:

Product Description

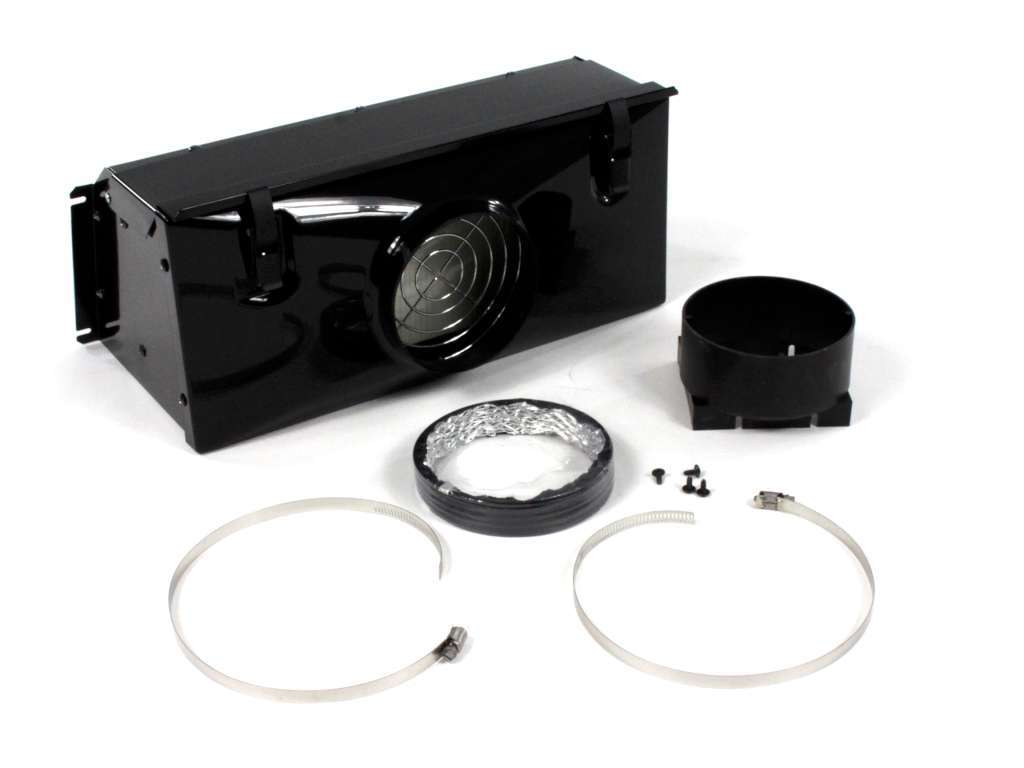

This ductless downdraft vent kit in black is ideal for situations where exterior venting isn’t possible. It includes a filter housing and a filter that work together to clean and recirculate air. The unit measures approximately 20" L x 13" W x 12" H. Installation may require basic tools, though some models allow for tool-free setup—check your appliance’s guide for specifics. For best results, replace the filter every six months or when airflow decreases.

  • Works with the following brands:
    KitchenAid
  • Works with the following products:
    Cooktop
  • Part# W10620783 replaces these:
    JDA7000WX, W10251103
Works with the following brands:
KitchenAid
Works with the following products
Cooktop
Part Number Cross Reference
Part# W10620783 replaces these:
JDA7000WX, W10251103
