Part Location Diagram of 74005790 Whirlpool Red Indicator Light
See part 4 in the diagram

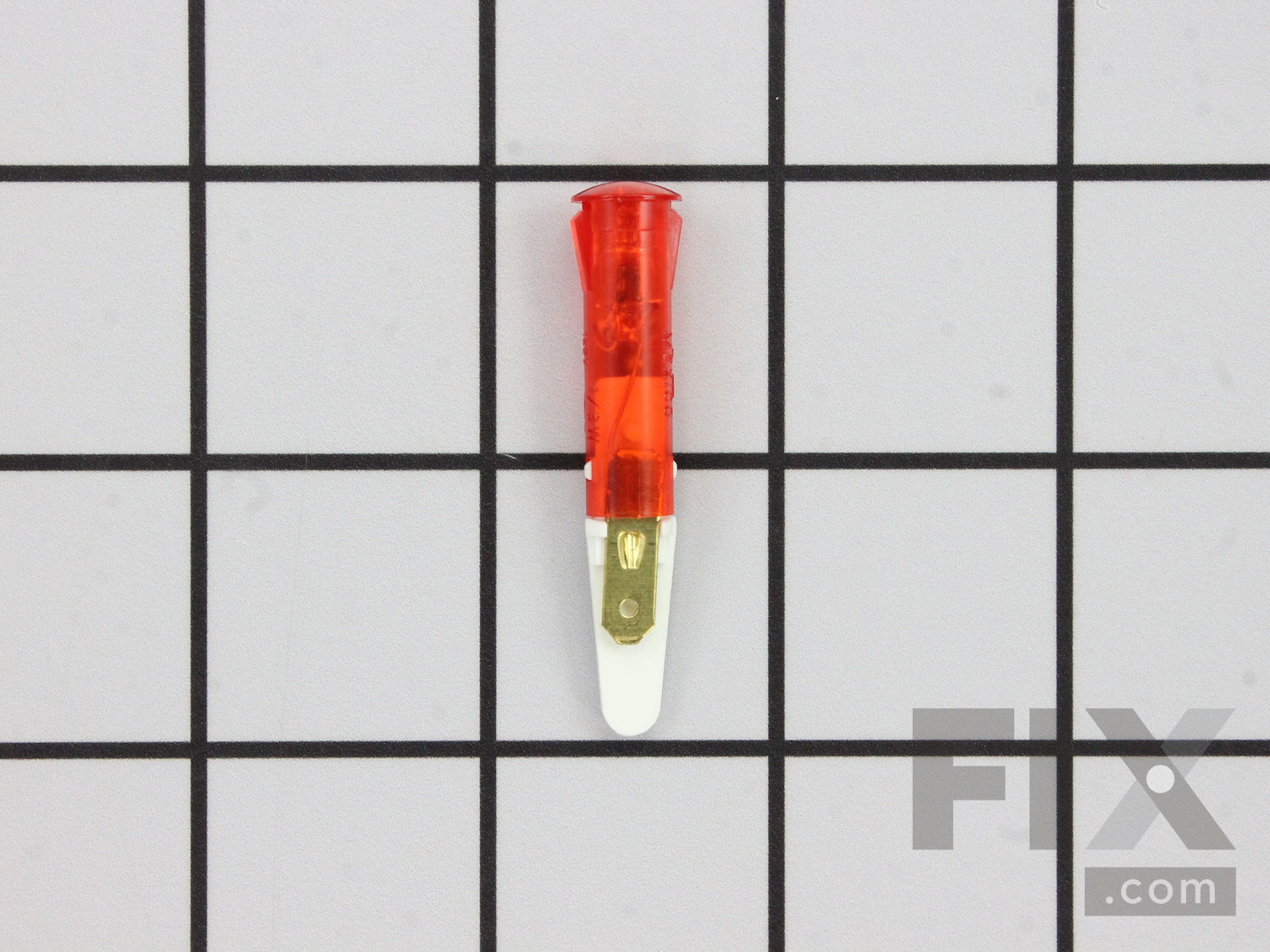

( Grid squares measure 1x1 inch )

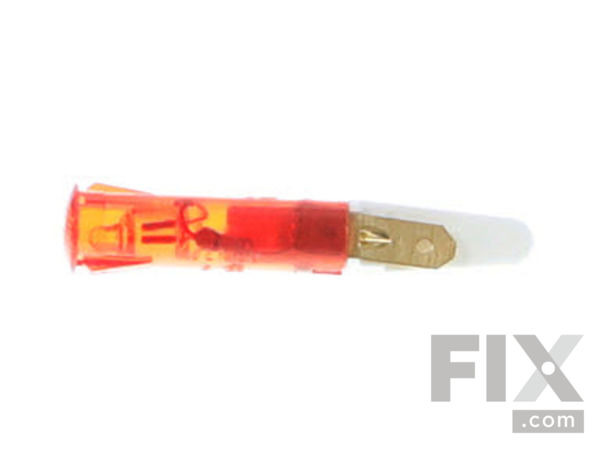

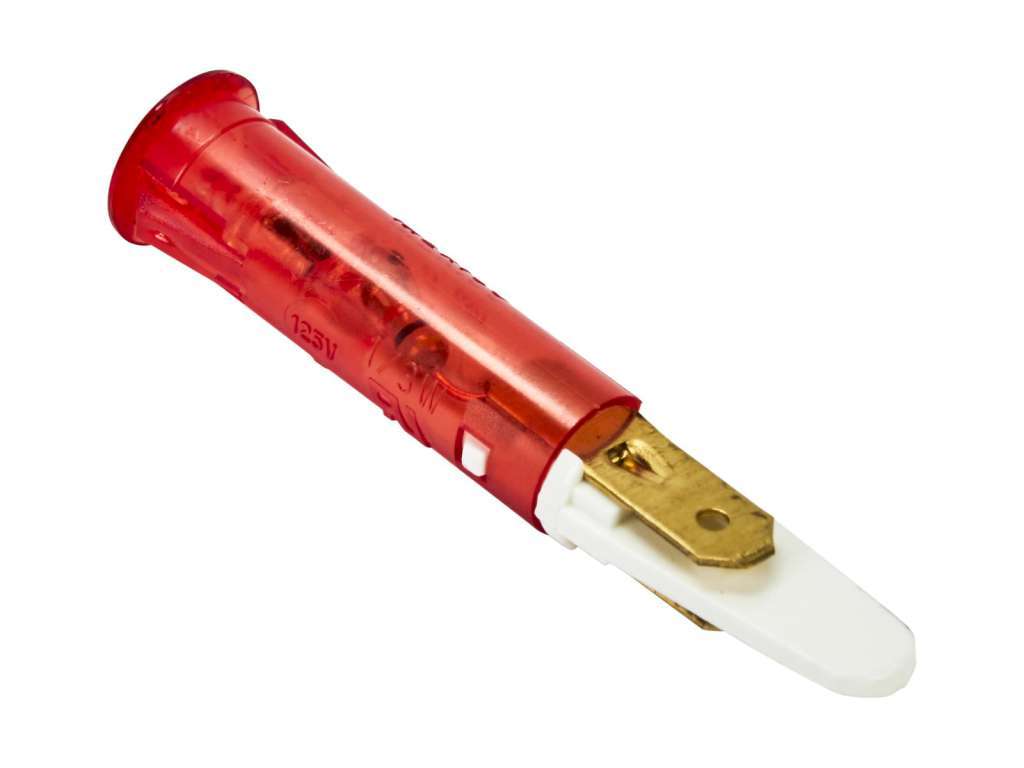

Red Indicator Light

★★★★★
★★★★★
2 Reviews

Rated by 3 customers

?

Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$11.14
In Stock
Fix Number:
FIX2083515
Manufacturer #:
74005790
Manufactured by:
Whirlpool

Product Description

This indicator light illuminates, alerting you as to when the oven or stovetop is operating.

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.2 / 5.0, 3 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Bob from CARTHAGE, MO
Parts Used:
74005790, W11088181
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers
Burners would heat up but when a pot of water was set on them the burner would go off. Customer thought it was the weight of the pot and water but it was the extra current draw through the switch whose contacts were bad.
The design of this JennAir was such that about 18 screws had to be removed to get the top plate off to access the switches. After getting the old switches out I noticed they had more terminals than the new ones so it required using some terminal multipliers to accommodate all the wiring needed. Not a hard fix overall but it does take time considering all the screws that have to be removed and replaced.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
James from Oakland, OR
Parts Used:
5708M001-60, 74005790
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers, Screw drivers
Both burners in the left module simultaneously intermittent.
Cause: burned plug contact. Remove both modules and screws retaining the trim ring on cooktop. Remove screws holding pan under affected module and ceramic holder from that pan. Remove screws holding switches Harns-wire connects to to allow easier access and disconnect Harns-wire using needle nose pliers. Release retaining clip on Harns-w ire unit with small screw driver and push out through the ceramic block from the back. Polish affected contact spade on module. Reassemble in opposite order after cleaning stiff up.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Pat from Spokane, WA
Parts Used:
74005790
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Burned out light
The light was incased in red vinyl with a stiff partition in the center to separate the two wires. Simply connect the two wires to the female ends and we have a working light!
