11744713-1-M-Whirlpool-WP7737P245-60-Knob - Chrome
Part Location Diagram of WP7737P245-60 Whirlpool Knob - Chrome
See part 2 in the diagram
Replacing your Jenn-Air Cooktop Knob - Chrome
11744713-1-S-Whirlpool-WP7737P245-60-Knob - Chrome 360 view

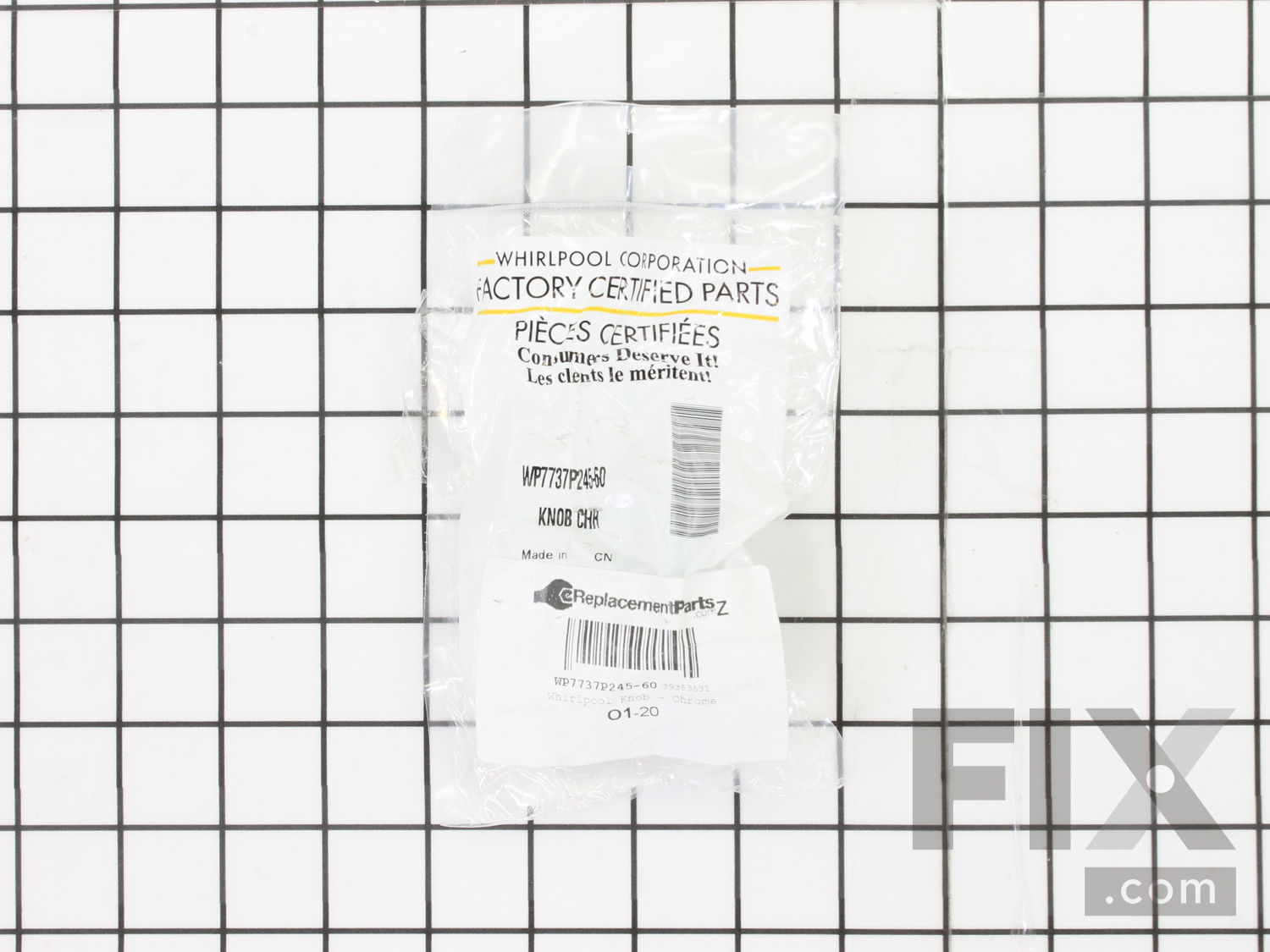

( Grid squares measure 1x1 inch )
11744713-1-S-Whirlpool-WP7737P245-60-Knob - Chrome 11744713-1-S-Whirlpool-WP7737P245-60-Knob - Chrome 360 view
Part Location Diagram of WP7737P245-60 Whirlpool Knob - Chrome Replacing your Jenn-Air Cooktop Knob - Chrome

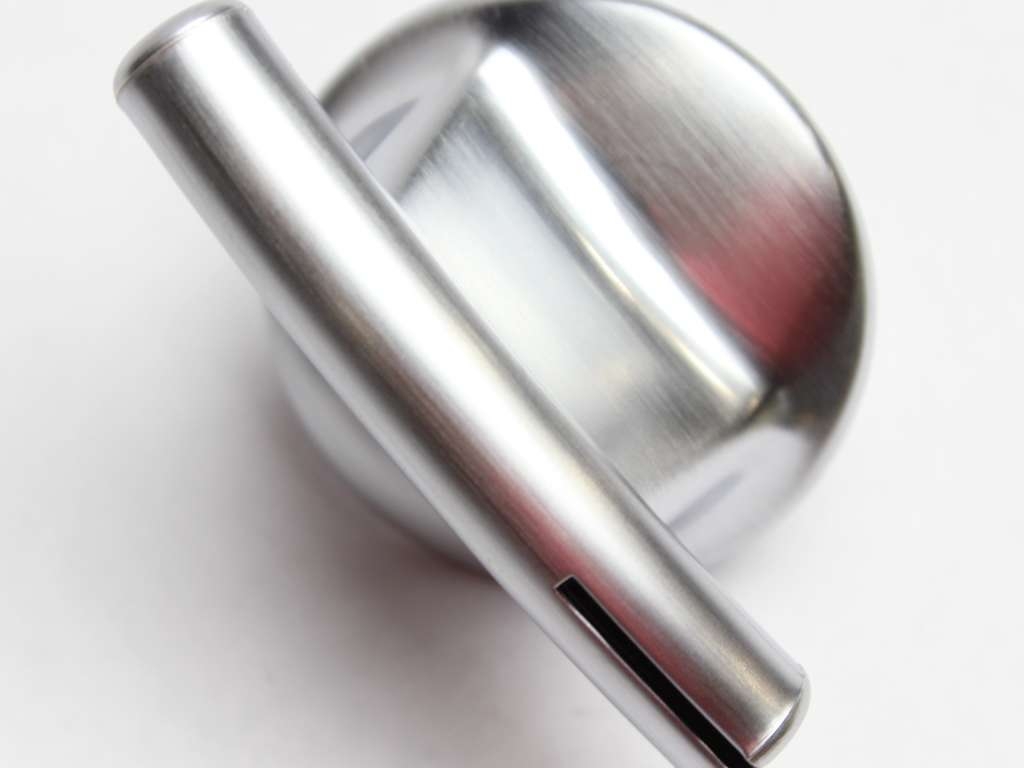

Knob - Chrome

★★★★★
★★★★★
1 Review

Rated by 5 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$23.22
In Stock
Fix Number: FIX11744713
Manufacturer #: WP7737P245-60
Manufactured by: Whirlpool
  • Product Description

    This is an OEM chrome control knob, measuring approximately 1-1/2 inches in diameter. This control knob either controls the speed of the cooktop fan or the heat of the burner. This knob is compatible with D-shaped shafts. This is a simple and tool-free repair, just pull the knob off the shaft and place the new one into place. This is a good opportunity to inspect all the knobs on your appliance to maintain a consistent appearance. Each knob is sold separately.

  • Works with the following brands
    Jenn-Air, KitchenAid
  • Works with the following products
    Cooktop
  • Fixes the following symptoms
    Element will not heat, Will Not Start, Touchpad does not respond
  • Part Number Cross Reference
    Part# WP7737P245-60 replaces these:
    AP6011516, 74007918, 7737P245-60, WP7737P245-60VP
1 Installation Video Questions and Answers
5 Installation Instructions
1 Customer Review Model Compatibility
Product Description Part Videos Questions and Answers Installation Instructions Customer Reviews Model Compatibility

Product Description

This is an OEM chrome control knob, measuring approximately 1-1/2 inches in diameter. This control knob either controls the speed of the cooktop fan or the heat of the burner. This knob is compatible with D-shaped shafts. This is a simple and tool-free repair, just pull the knob off the shaft and place the new one into place. This is a good opportunity to inspect all the knobs on your appliance to maintain a consistent appearance. Each knob is sold separately.

  • Works with the following brands:
    Jenn-Air, KitchenAid
  • Works with the following products:
    Cooktop
  • Fixes the following symptoms:
    Element will not heat, Will Not Start, Touchpad does not respond
  • Part# WP7737P245-60 replaces these:
    AP6011516, 74007918, 7737P245-60, WP7737P245-60VP

Videos For installing this part.

Replacing your Knob - Chrome

Replacing your Knob - Chrome

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.4 / 5.0, 5 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
  • Customer:
    David from Edina, MN
  • Parts Used:
    WP7737P245-60
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
Knob support was cracked due to age
Piece of cake to replace
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    christine from new city, NY
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
Needed new knobs
Easy looks great
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Kim from Cenntennial, CO
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
needed new knobs for cooktop
Found everything very here and was sure that I had the correct parts. They came to me promptly. I am very pleased.
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    dante from west chester, PA
  • Parts Used:
    WP7737P245-60, WP74010783
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Nutdriver, Pliers, Screw drivers, Wrench (Adjustable)
The control know for the 3 stage fan unit and the switch itself needed replaced.
step 1 Disconnect electric/ step 2 shut off gas line then disconnect/ step 3 disconnect vent on blower from the hvac line out of building/ step 4 lift cooktop completely out and sit upright on ground/ step 5 remove all phillips head screws connecting the glass top to the metal housing of the unit/ step 6 (with a manual phillips head screw driver) remove the screws holding the metal burners to the cooktop, there are 2 screws per burner, once screws are removed disconnect electric ignition chord from the bottom of the burner/ step 7 (2 man effort) lift glass top and disconnect fan switch, one at a time remove the electric leads and reconnect to the new switch, mount switch in housing it will snap into place/ step 8 reconnect all electric leads and screw unit back together/ step 9 after reinstalling cooktop into counter simply place chrome knob on new switch and test function. Entire process should take 1.5 hours for 2 workers.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Betty from Auburn, KS
  • Parts Used:
    WP7737P245-60
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
Two of the knobs were cracked at the base.
Just put the new knobs on properly and all was working once again!
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
★ Customer Reviews
Average Rating: (1 Review)
5.0
★★★★★
★★★★★
Filter By Rating:
  • 5★
    1
  • 4★
    0
  • 3★
    0
  • 2★
    0
  • 1★
    0
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Lisa J - April 21, 2020
Verified Purchase
I’ve ordered from fix.com a few times
Product fit perfect-
  • 1
Model Compatibility
This part works with the following models:
Fix Number: FIX11744713
Manufacturer Part Number: WP7737P245-60
Brand
Model Number
Description
Jenn-Air
JEC8430ADB
Cooktop
Jenn-Air
JEC8430ADF
Cooktop
Jenn-Air
JEC8430ADN
Cooktop
Jenn-Air
JEC8430ADS
Cooktop
Jenn-Air
JEC8430ADW
Cooktop
Jenn-Air
JEC8536ADB
Cooktop
Jenn-Air
JEC8536ADF
Cooktop
Jenn-Air
JEC8536ADN
Cooktop
Jenn-Air
JEC8536ADS
Cooktop
Jenn-Air
JEC8536ADW
Cooktop
Jenn-Air
JEC9530ADB
Cooktop
Jenn-Air
JEC9530ADF
Cooktop
Jenn-Air
JEC9530ADS
Cooktop
Jenn-Air
JEC9530ADW
Cooktop
Jenn-Air
JEC9536ADB
Cooktop
Jenn-Air
JEC9536ADF
Cooktop
Jenn-Air
JEC9536ADS
Cooktop
Jenn-Air
JEC9536ADW
Cooktop
Jenn-Air
JGD8430ADB
Cooktop
Jenn-Air
JGD8430ADB14
Cooktop - 30" GAS BUILT-IN DOWNDRAFT COOKTOP
Jenn-Air
JGD8430ADF
Cooktop
Jenn-Air
JGD8430ADF15
Cooktop - 30" GAS BUILT-IN DOWNDRAFT COOKTOP
Jenn-Air
JGD8430ADN15
Cooktop - 30" GAS BUILT-IN DOWNDRAFT COOKTOP
Jenn-Air
JGD8430ADS
Cooktop
Jenn-Air
JGD8430ADS14
Cooktop - 30" GAS BUILT-IN DOWNDRAFT COOKTOP
KitchenAid
KGCD807XBL00
Cooktop
KitchenAid
KGCD807XSS00
Cooktop
