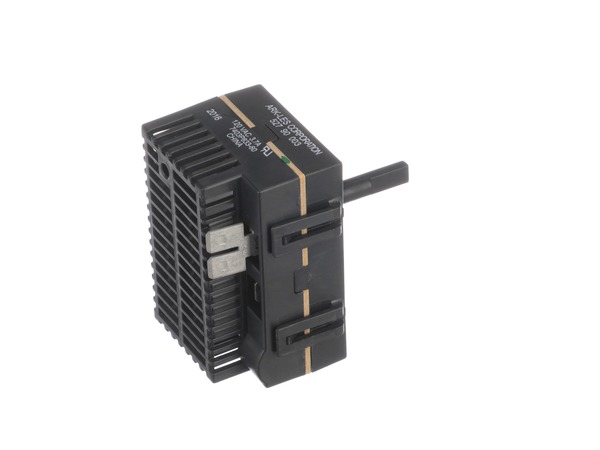

11744309-1-S-Whirlpool-WP74009256-Fan Switch 360 view
( Grid squares measure 1x1 inch )
11744309-1-S-Whirlpool-WP74009256-Fan Switch 11744309-2-S-Whirlpool-WP74009256-Fan Switch 11744309-3-S-Whirlpool-WP74009256-Fan Switch 11744309-1-S-Whirlpool-WP74009256-Fan Switch 360 view
Part Location Diagram of WP74009256 Whirlpool Fan Switch

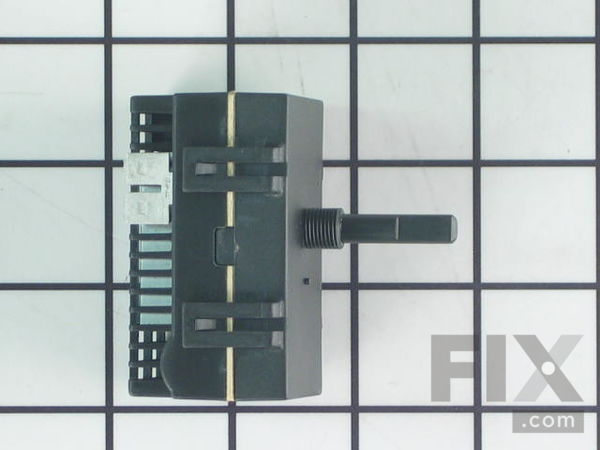

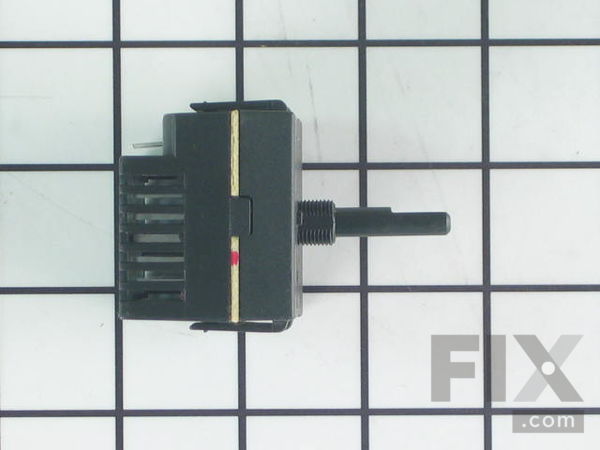

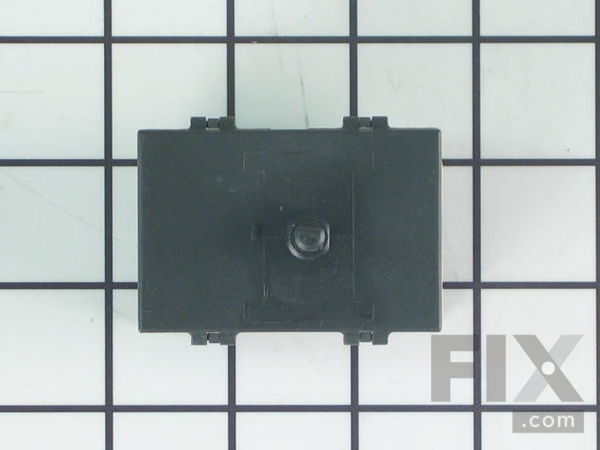

Fan Switch WP74009256

★★★★★
★★★★★
1 Review

Rated by 3 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$114.95
In Stock
Fix Number:
FIX11744309
Manufacturer #:
WP74009256
Manufactured by:
Whirlpool

Jump to:

Product Description

This switch controls the speed of the fan.

  • Works with the following brands:
    Jenn-Air
  • Works with the following products:
    Cooktop
  • Fixes the following symptoms:
    Will Not Start
  • Part# WP74009256 replaces these:
    12002045, 74009256, 7403P833-60
Works with the following brands:
Jenn-Air
Works with the following products
Cooktop
Fixes the following symptoms
Will Not Start
Part Number Cross Reference
Part# WP74009256 replaces these:
12002045, 74009256, 7403P833-60
