The pressure switch is made out of metal and plastic. It is a genuine DeWALT replacement part for use in compressors. This part is available individually. When replacing this item a screwdriver and a wrench might be required during the installation process. This item will need to be replaced if it breaks.
Works with the following brands:
DeWALT, Craftsman, Porter Cable
Works with the following products:
Compressor
Fixes the following symptoms:
Air leak, Compressor will not operate
Part# 5140119-56 replaces these:
5140119-56
Works with the following brands:
DeWALT, Craftsman, Porter Cable
Works with the following products
Compressor
Fixes the following symptoms
Air leak, Compressor will not operate
Part Number Cross Reference
Part# 5140119-56 replaces these:
5140119-56
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
5 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched. Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Steve
January 30, 2022
Would this be the main reason for tank not filling?
For model number D55146
Hello Steve, Thank you for your inquiry. This would be one of the main parts that would cause this issue. Check your gaskets as well for any air leaks. Good luck with your repair.
3 people found this helpful.
Was this helpful?
Thank you for voting!
Burnie
March 28, 2023
What is the pressure rating on this switch?
For model number D55146
Hi Burnie, thank you for reaching out. According to our research, the pressure switch, part number FIX10178433, has a pressure rating of 125 - 155 PSI. We hope this information helps!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Tony
December 15, 2021
Is just the red switch knob available?
For model number D55146
Hello Tony, Thank you for the question. The Red Knob is only sold as part of the Switch. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
Was this helpful?
Thank you for voting!
Max
January 19, 2023
Compressor gets to cut out pressure shuts of compressor then exhaust pressure untill it gets down to cutin pressure then starts up again. I replaced pressure switch but it still does this.
For model number DXCMLA1983054
Hello Max, thank you for contacting us. We would recommend checking the following parts to fix your issue: Regulator, part number FIX10178430, Check Valve, part number FIX10178399, and Safety Bleeder Valve, part number FIX10178437. We look forward to hearing from you if you need assistance with placing an order through our 7-days-a-week customer service. We hope this helps!
Hi, if my air compressor is going past the 200 psi max tank pressure and blowing off PRV do I need a new pressure switch?
For model number D55146/A18491
Hi Seth, thank you for reaching out. The issue is probably with the pressure switch, part number FIX12092984. But before replacing the pressure switch, we suggest checking the regulator assembly, part number FIX10187318, and the safety valve, part number FIX10116464. We hope this sorts out your problem!
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
This washing machine cleaner includes three time-release tablets designed to remove odor-causing residues, grime, and buildup from high-efficiency and top-load washing machines. The tablets work by cleaning the tub, pump...
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...
Installation Instructions Provided by Fix customers like you.
Average Repair Rating: 3.3 / 5.0, 1 reviews.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.

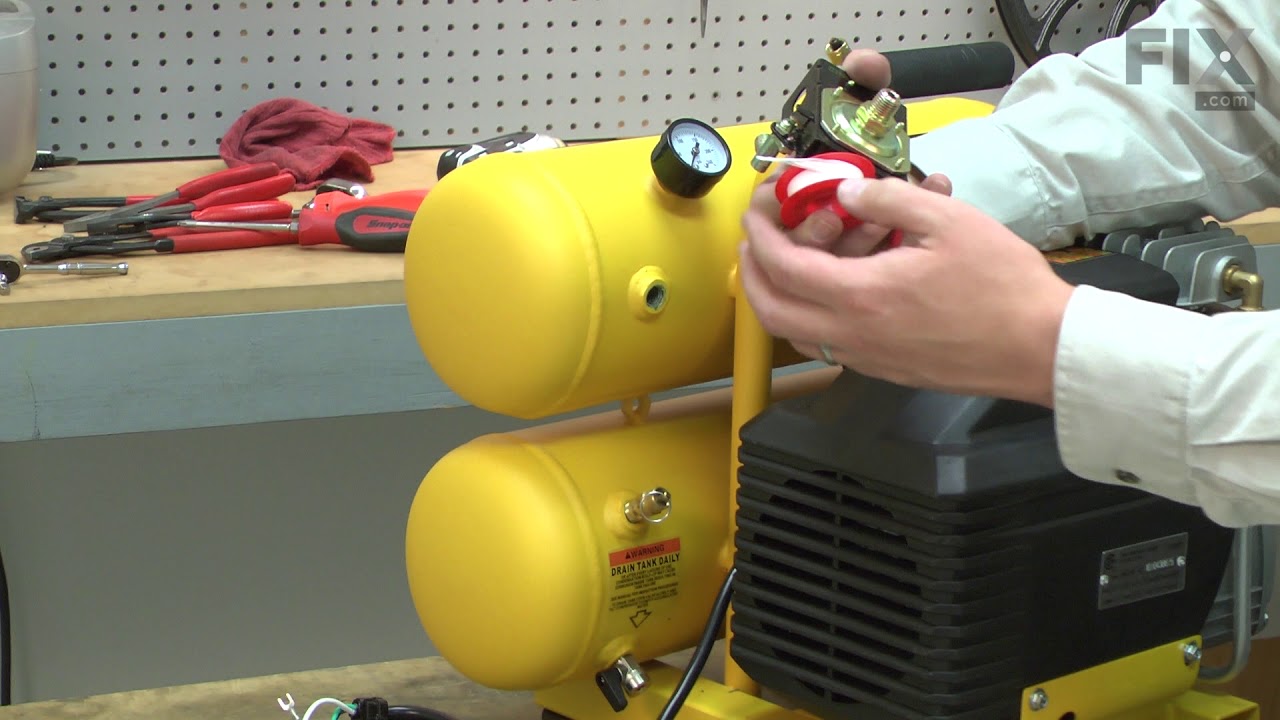

Very simple. Took photos of the electrical hookups prior to removing the old pressure switch via mobile phone. Removed old pressure switch and then removed the safety valve and pressure meter from old switch and put them on the new pressure switch (teflon tape required). Put new switch on and added the electrical hookups. Job done. T
... Read morehis fixed my issue.
Read less
12 of 13 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
★
Customer Reviews
Average Rating:
(3 Reviews)
5.0
★★★★★
★★★★★
Filter By Rating:
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Mark G - May 8, 2022
Verified Purchase
right part
got the right part at a good price The wiring was a little different but i got it to work.
★★★★★
★★★★★
Ronnie C - February 20, 2022
Verified Purchase
Works Direct
Excellent peice
★★★★★
★★★★★
Keith M - May 12, 2023
Verified Purchase
great part
Would’ve been nice to be able to add expedited freight, but they saved a lot of money on the part and it’s working great
